VNM Motion Surge-Double TL Platform

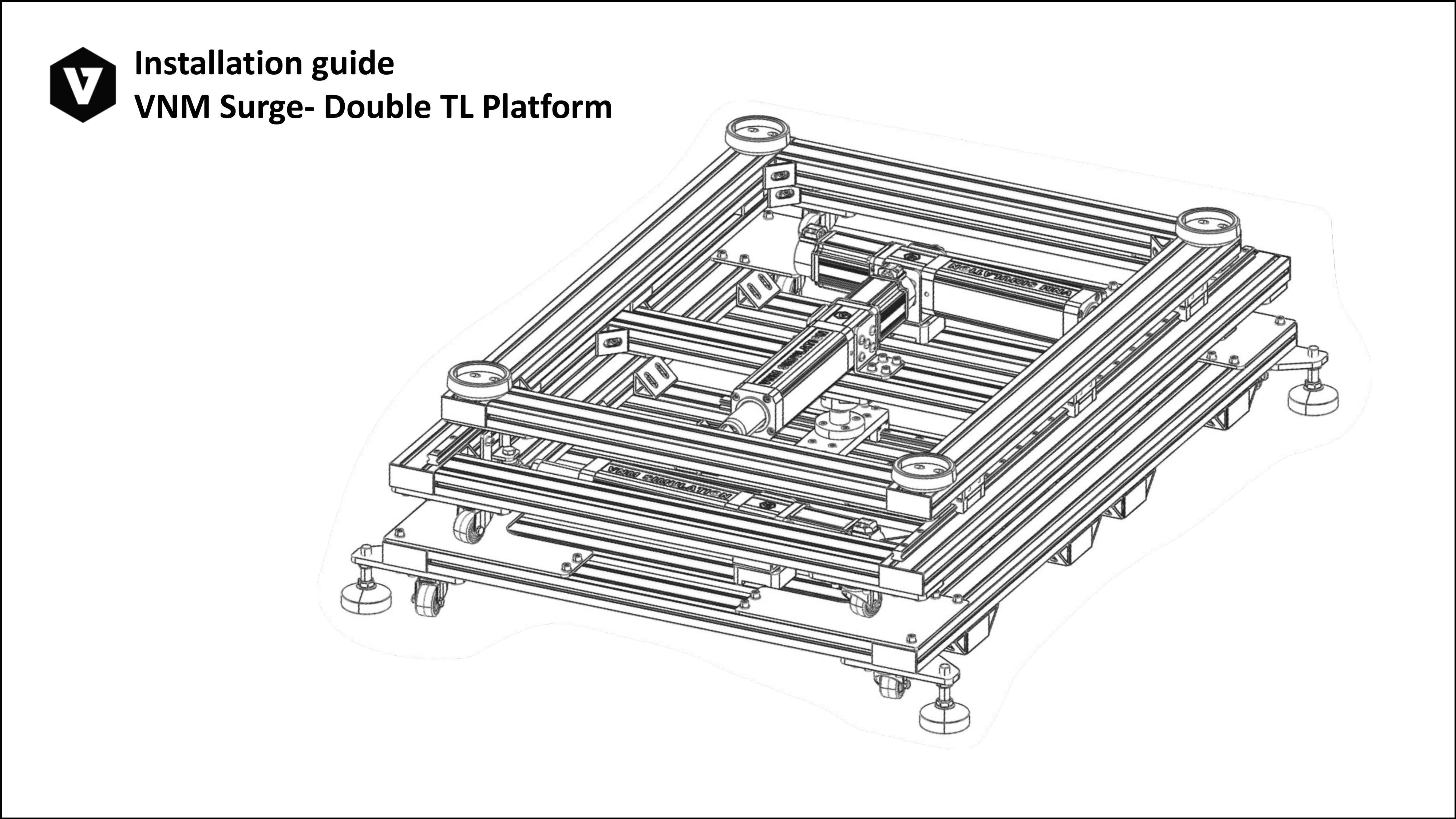

page 01

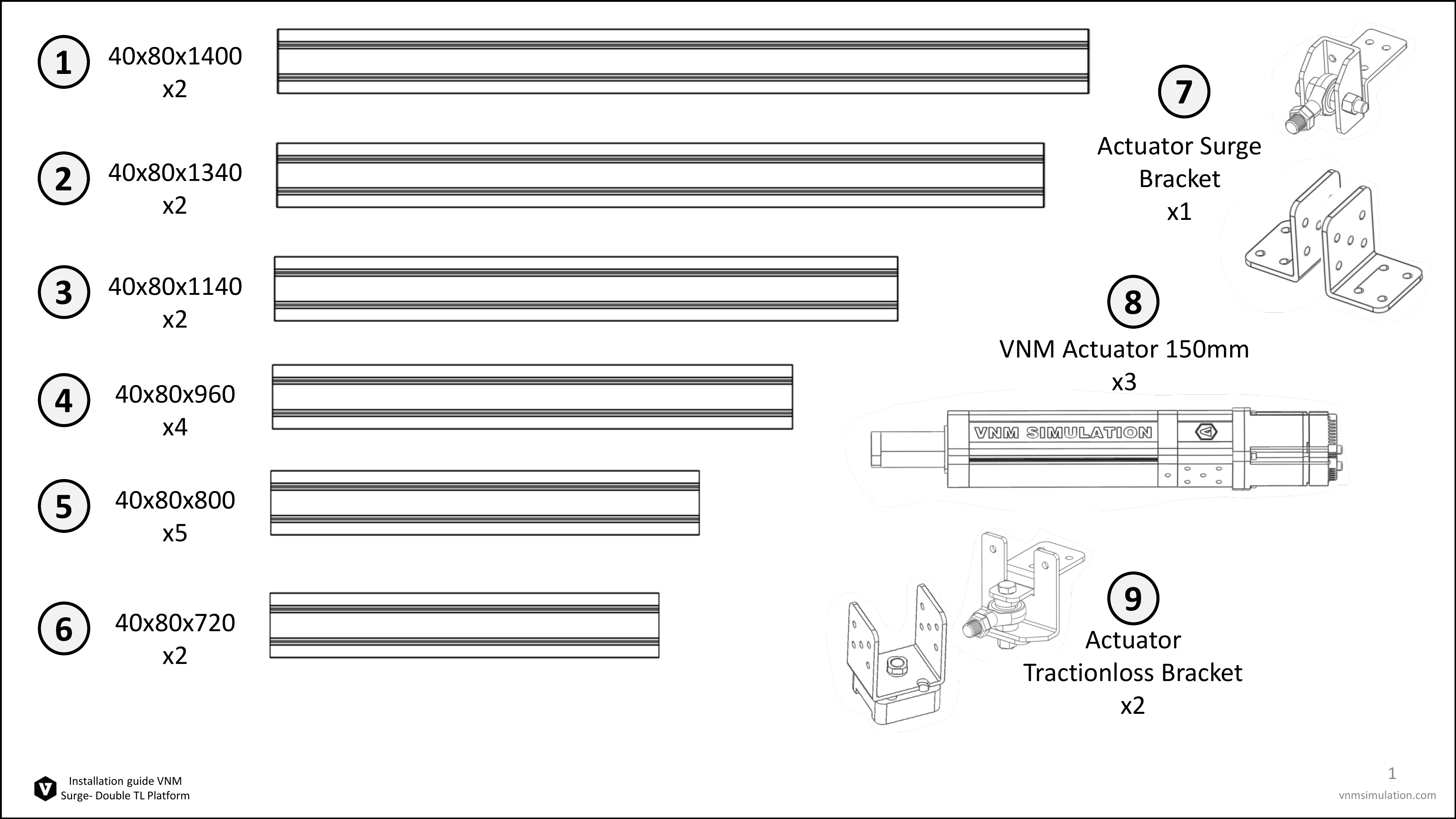

page 02

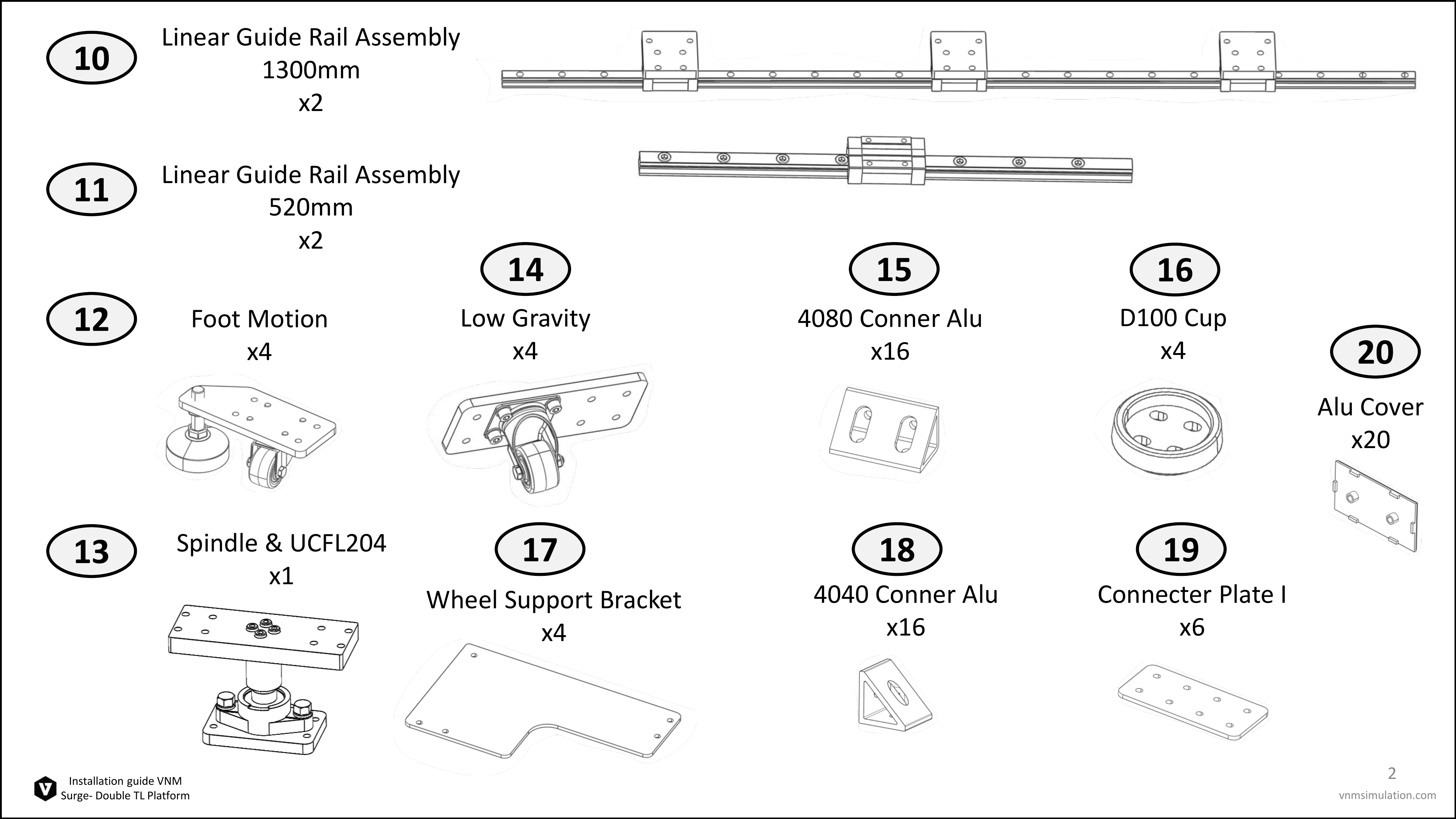

page 03

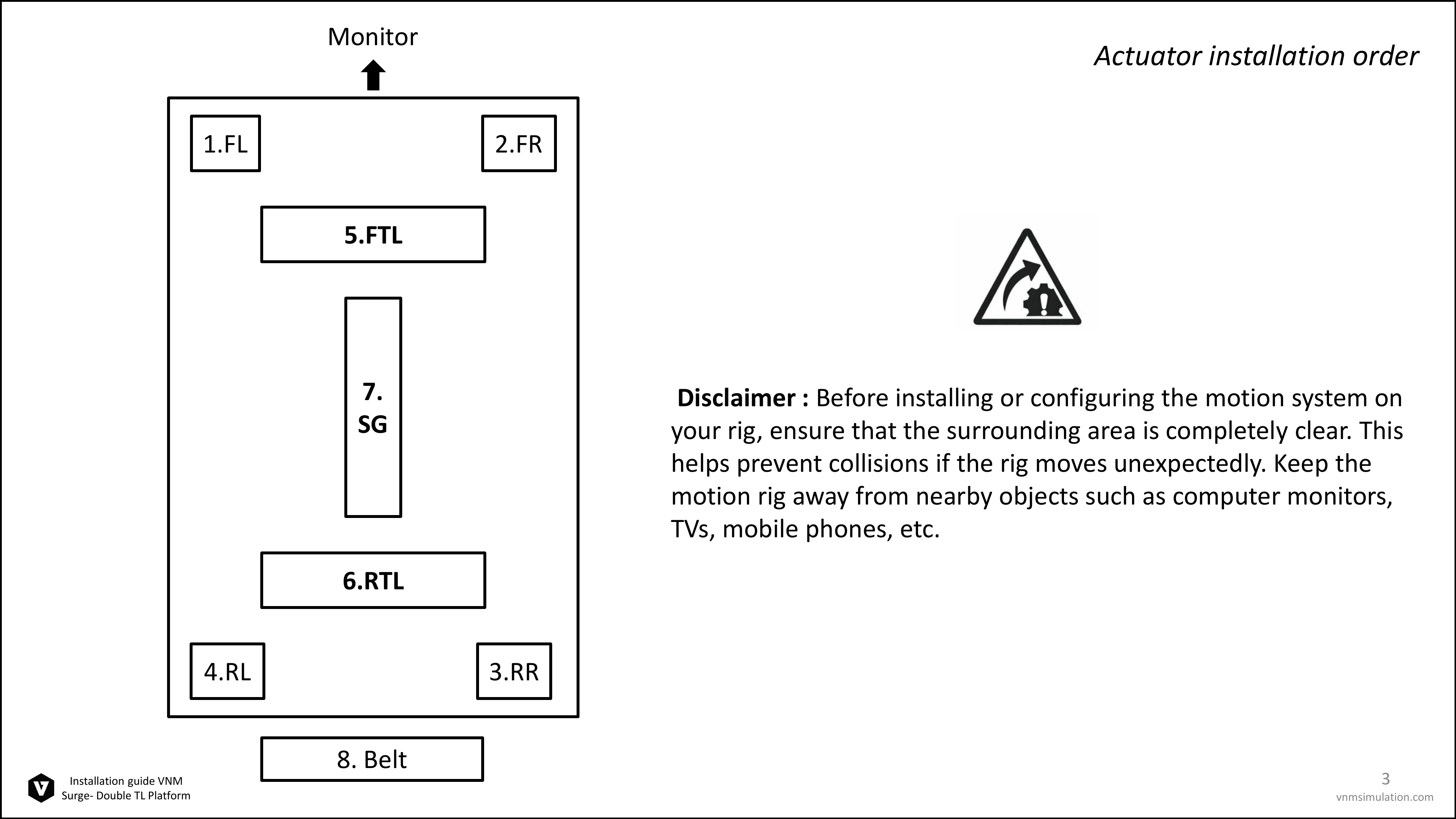

page 04

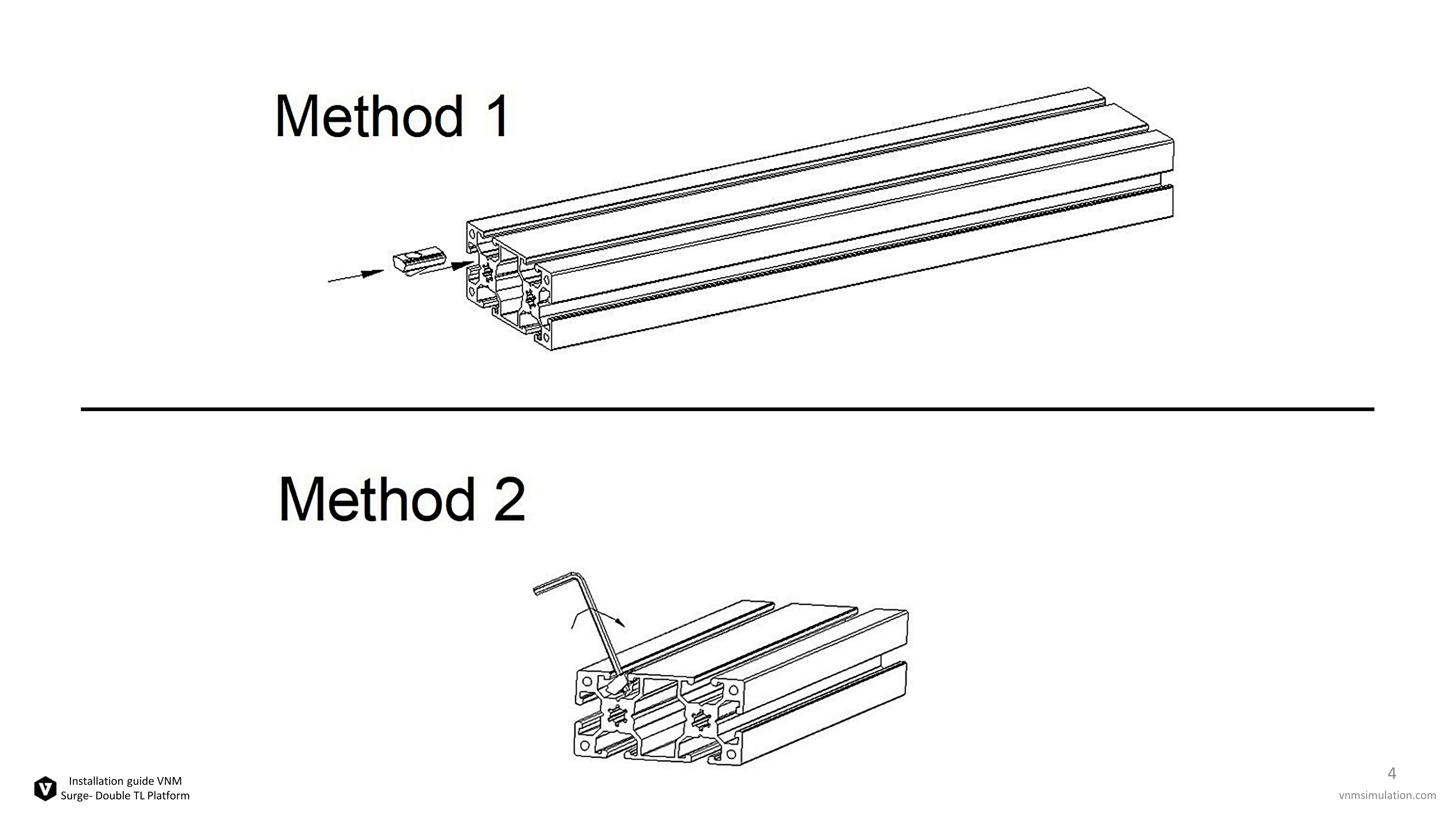

page 05

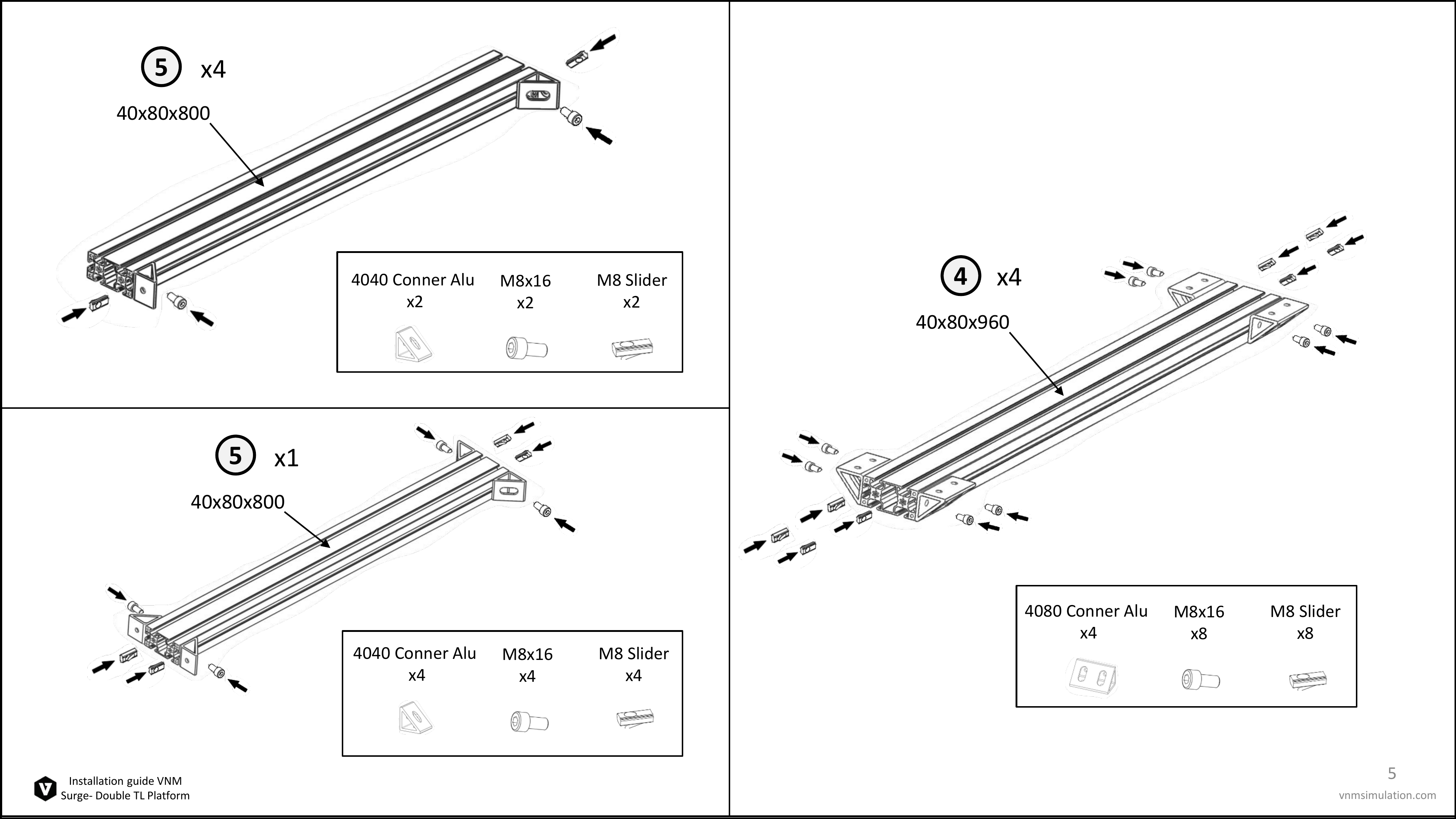

page 06
page 07

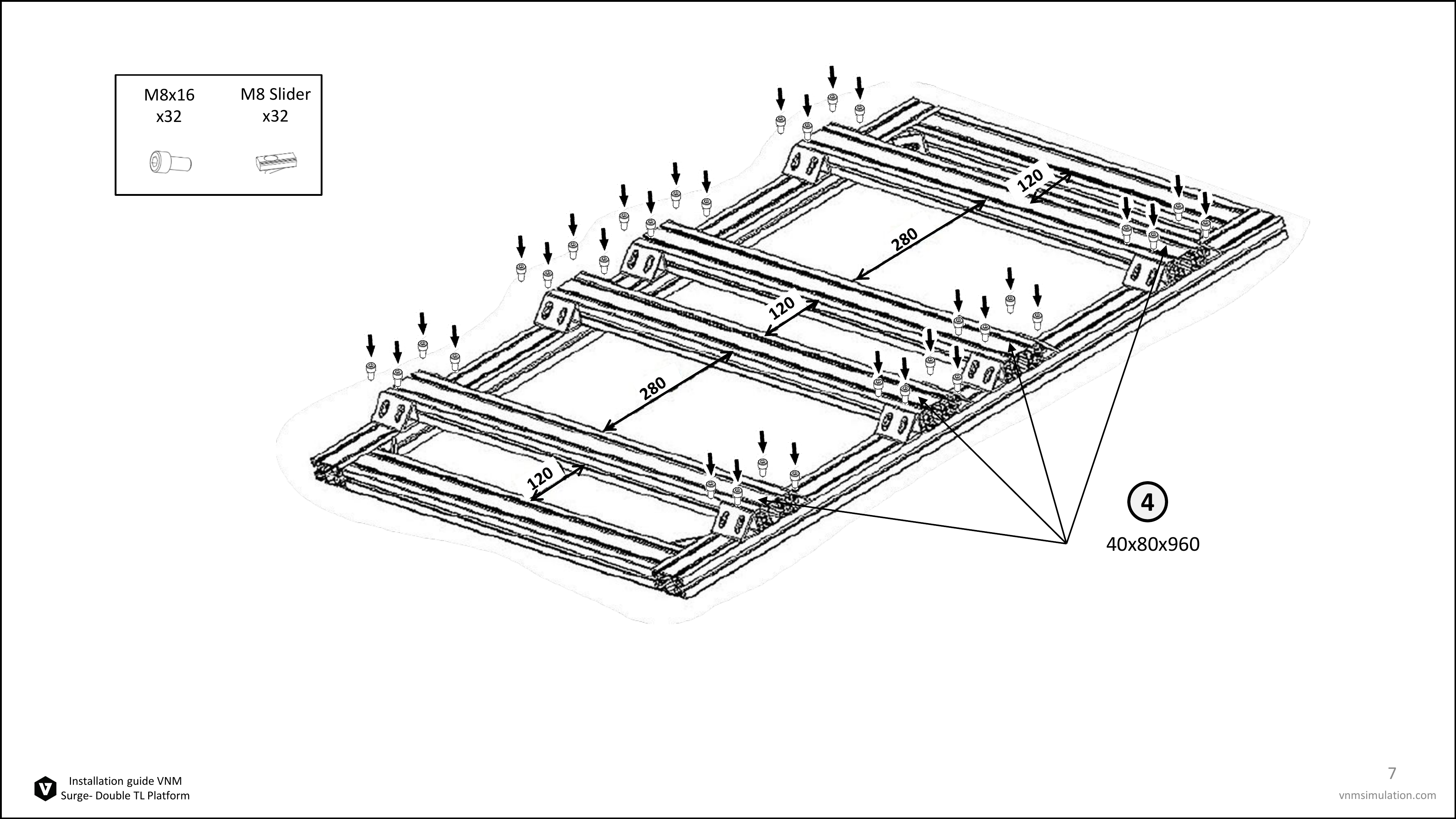

page 08

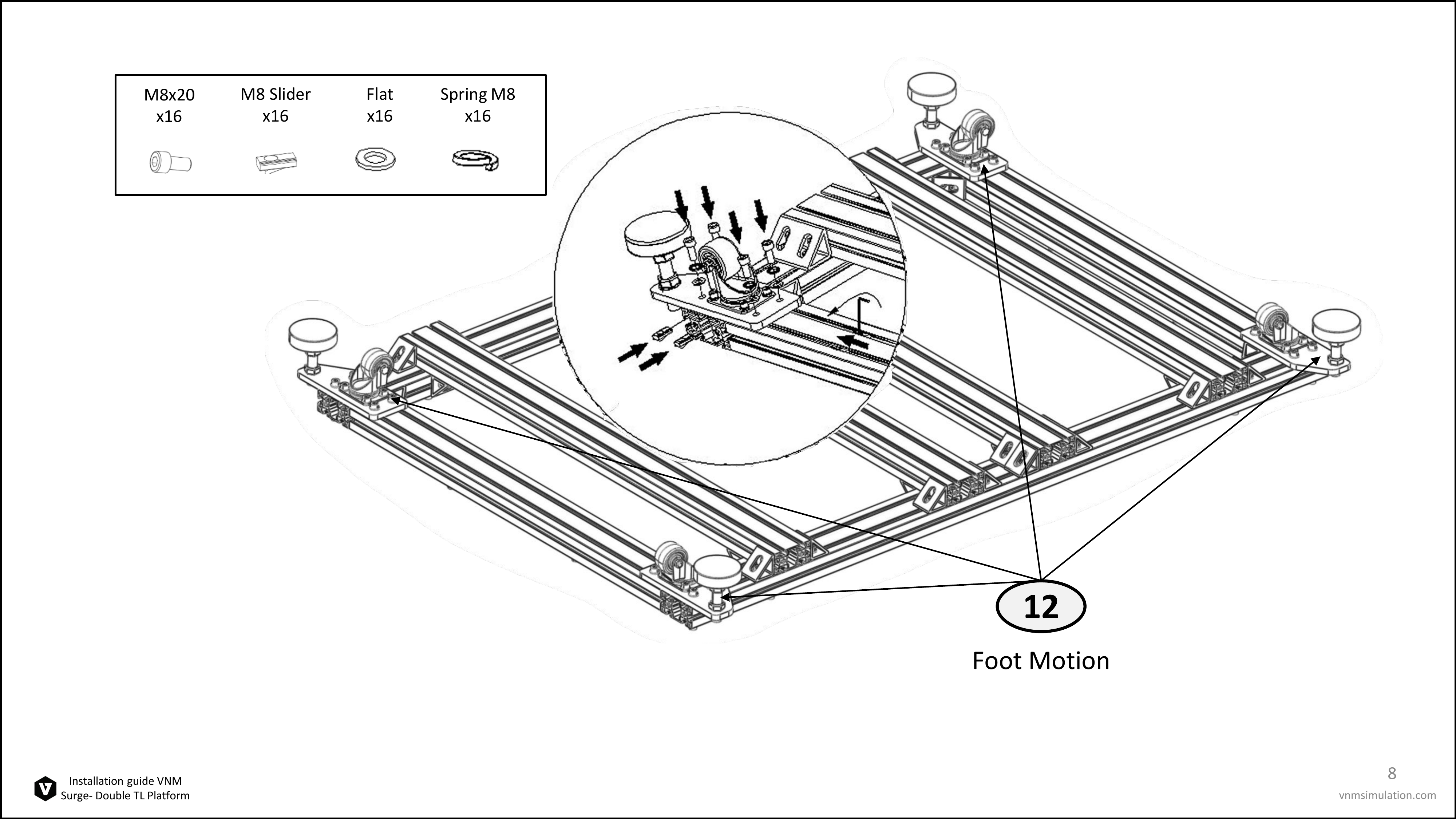

page 09

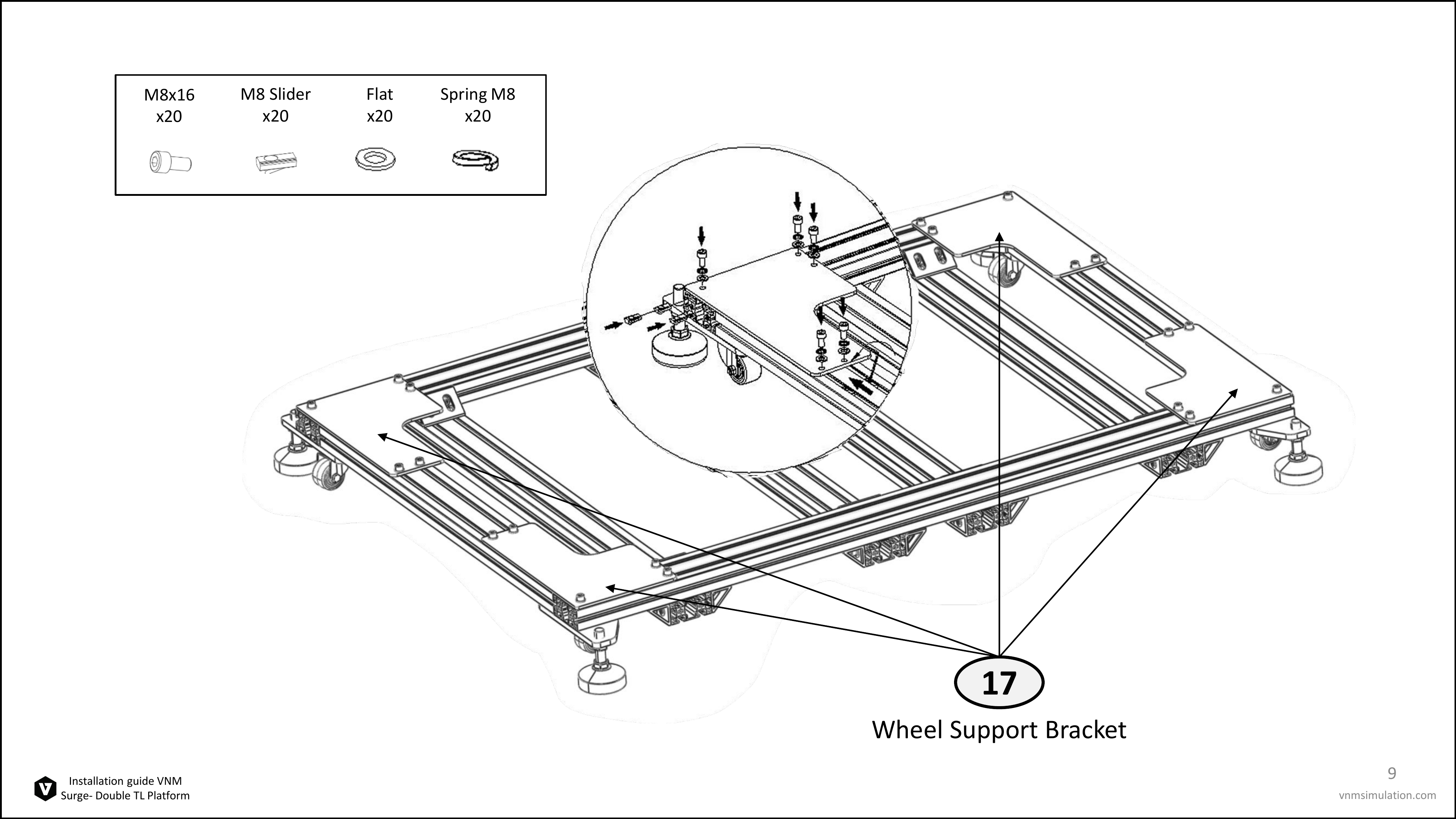

page 10

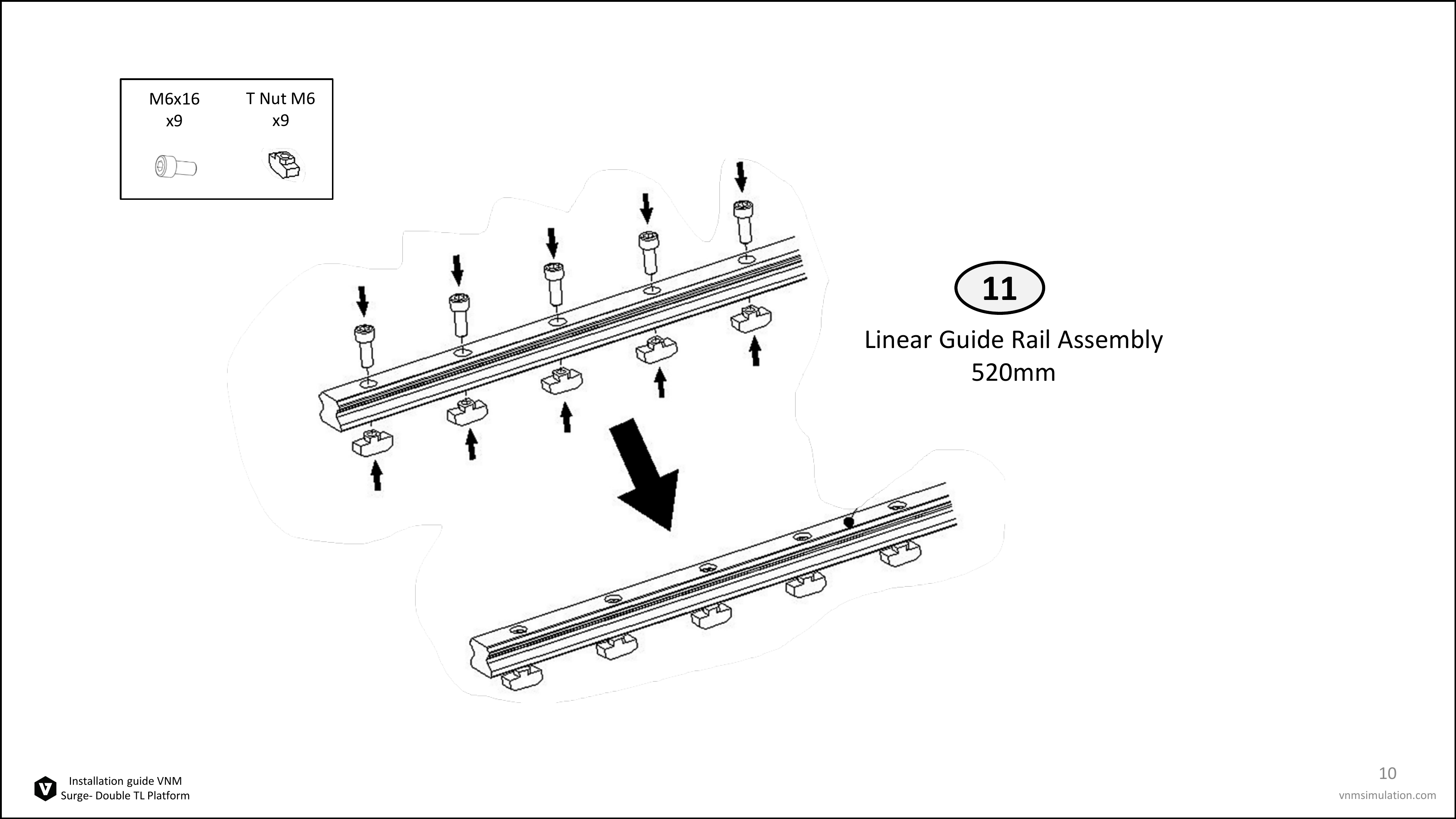

page 11

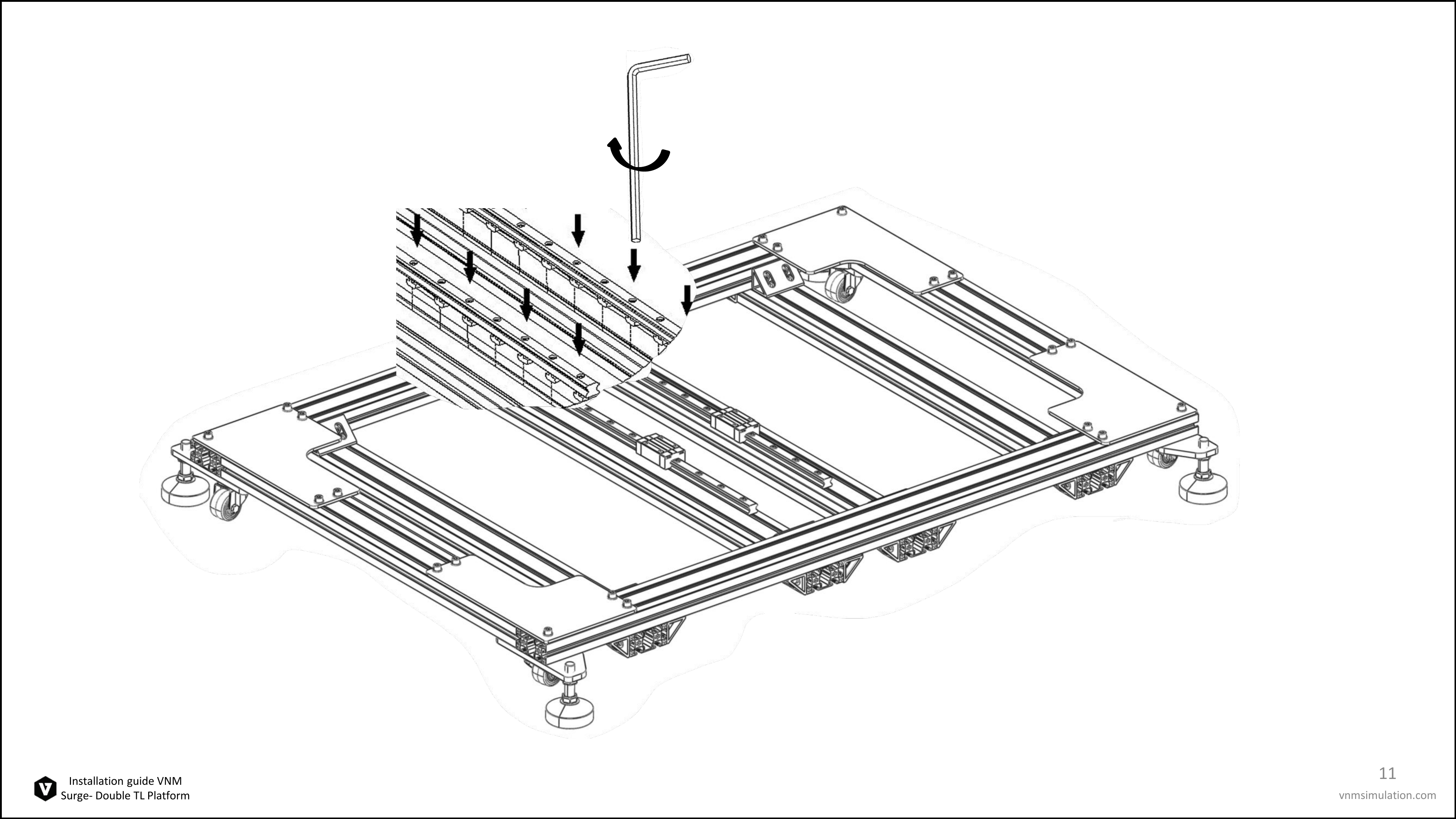

page 12

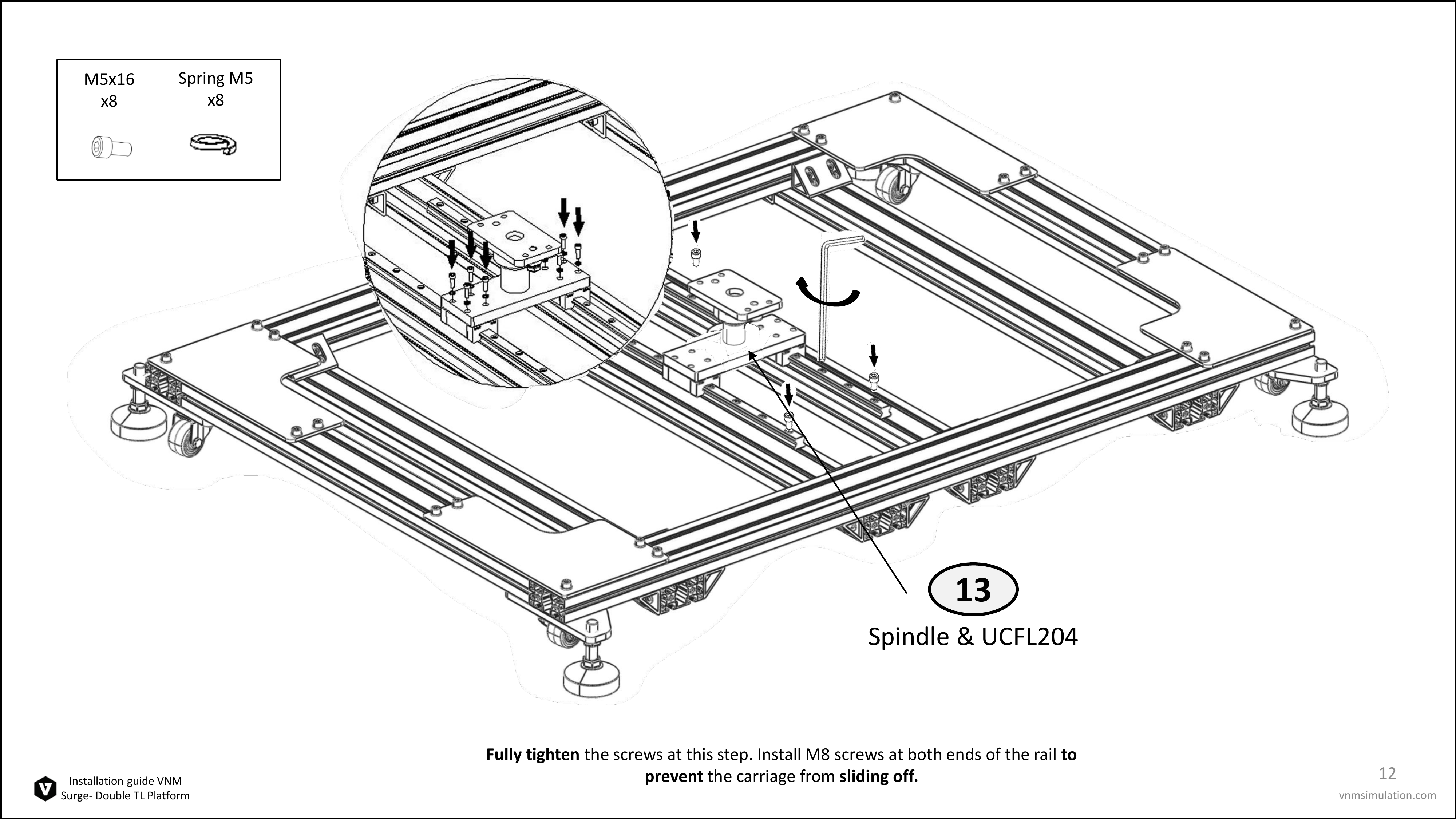

page 13

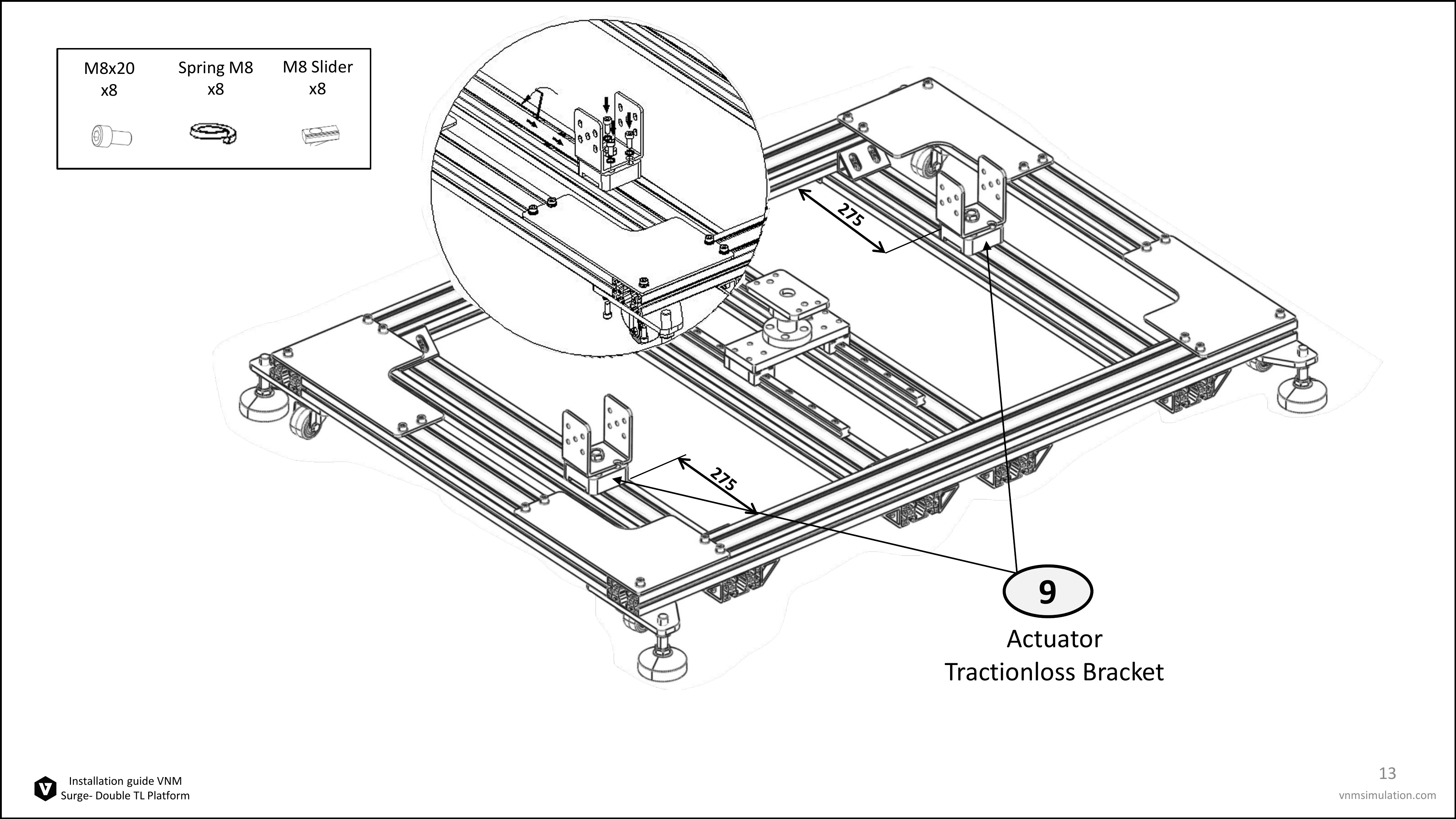

page 14

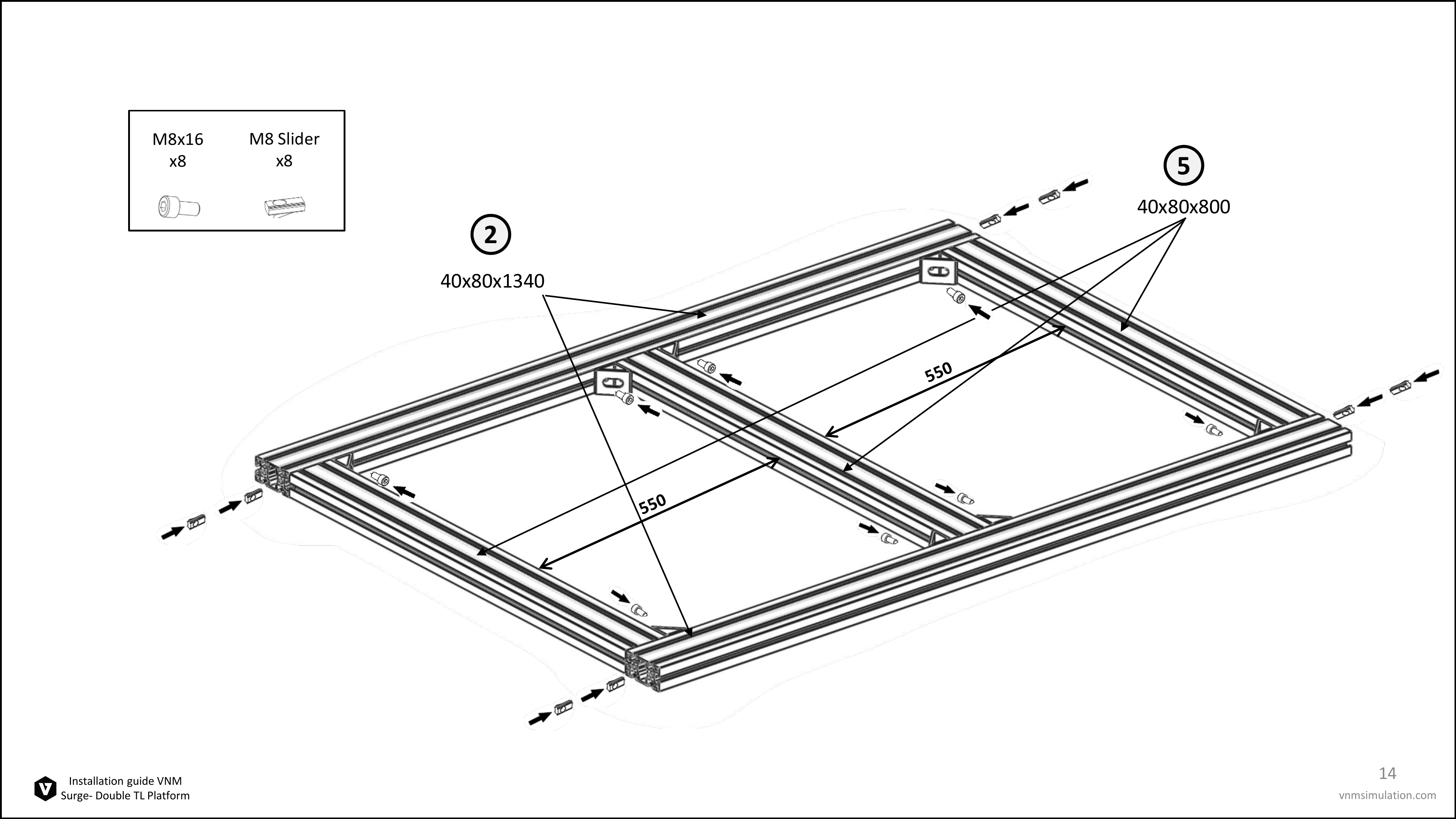

page 15

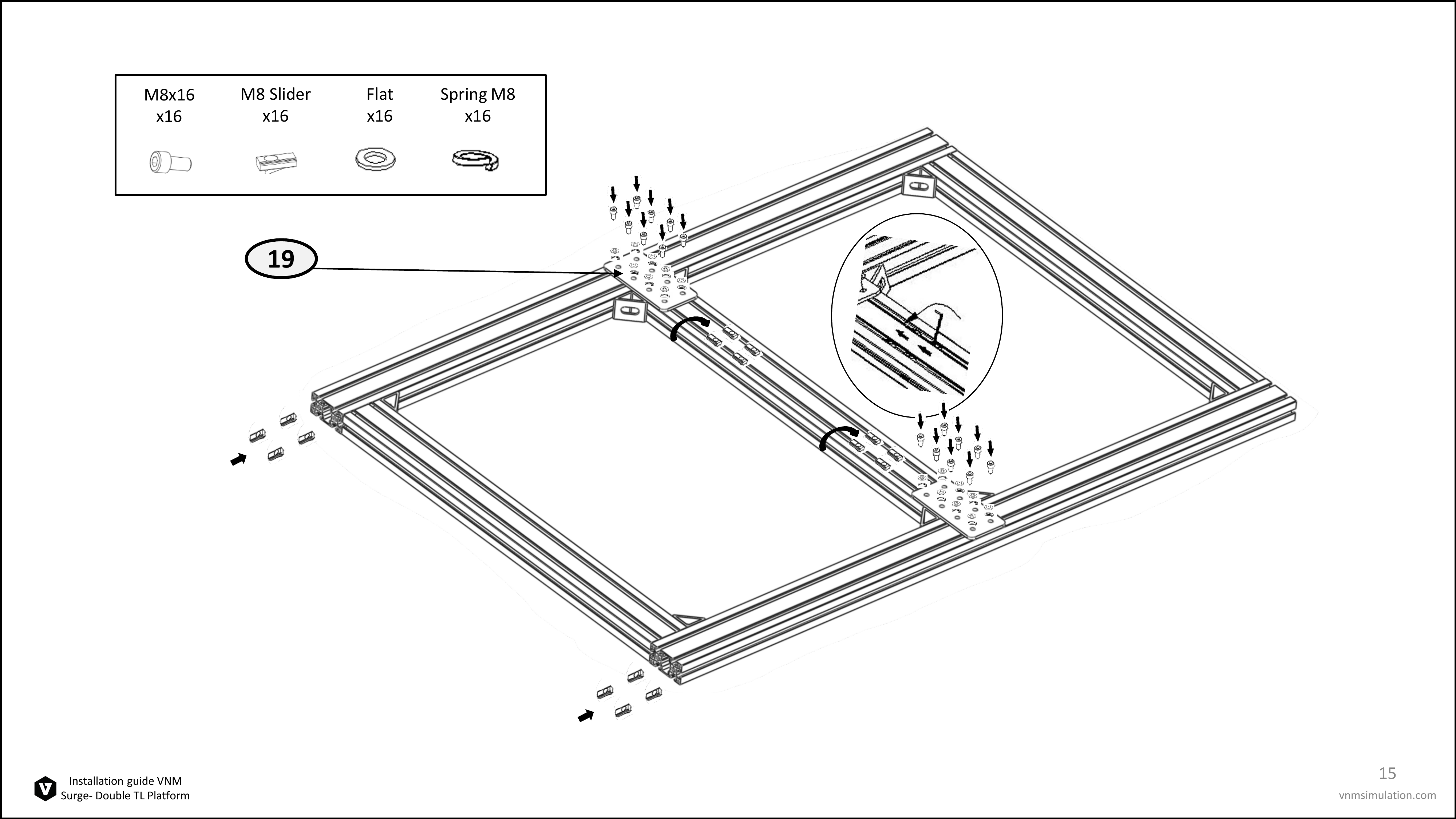

page 16

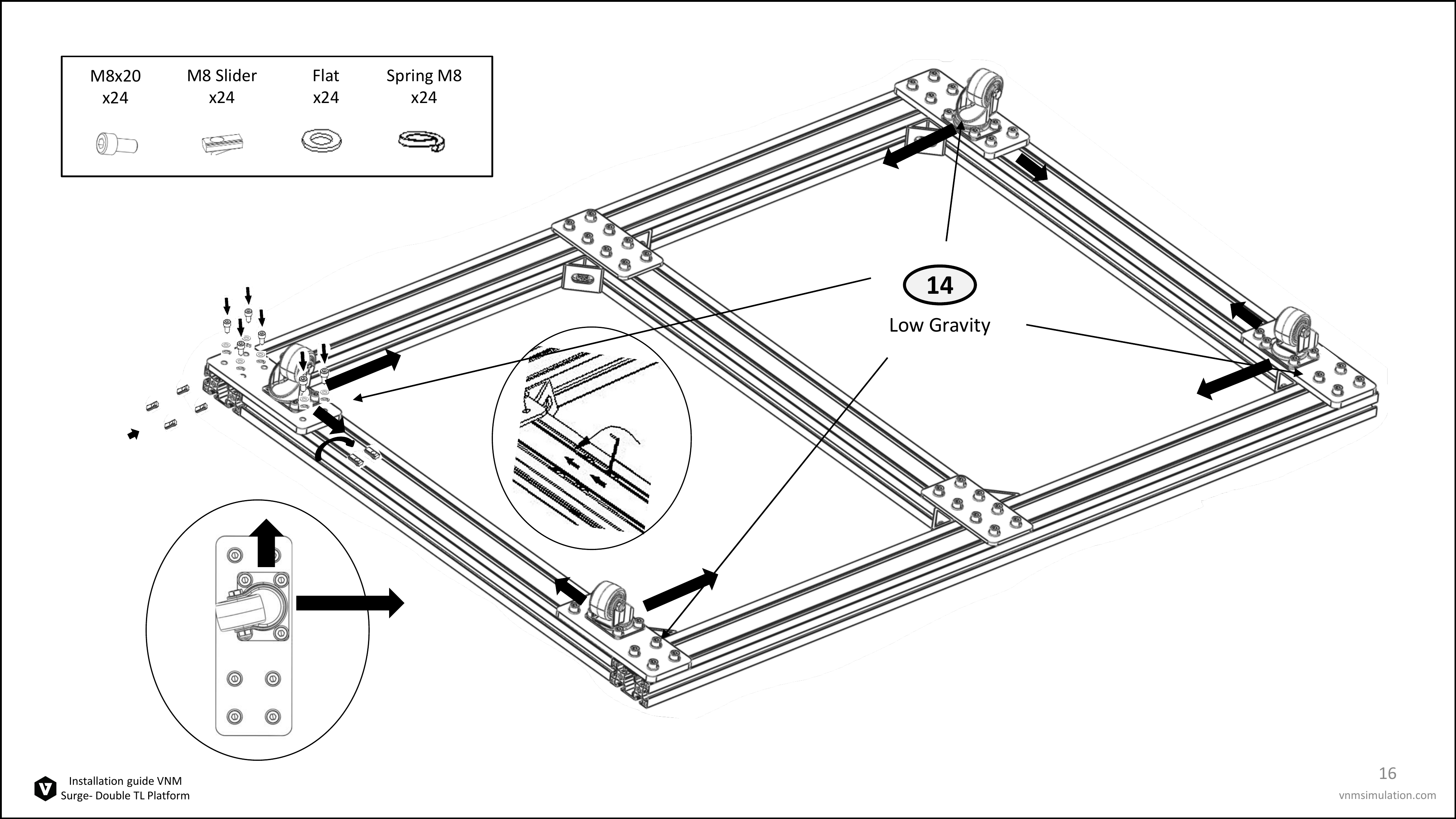

page 17

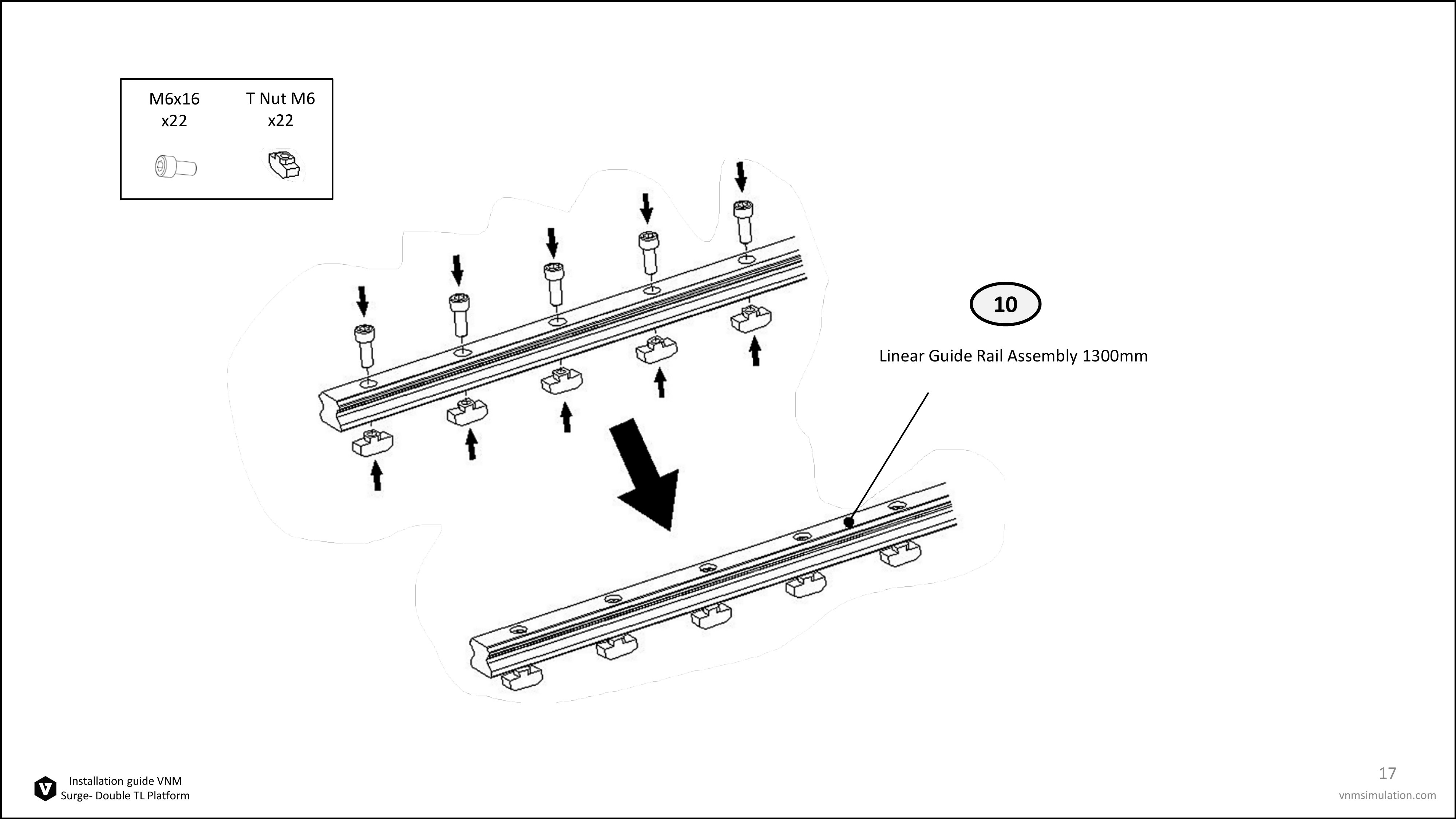

page 18

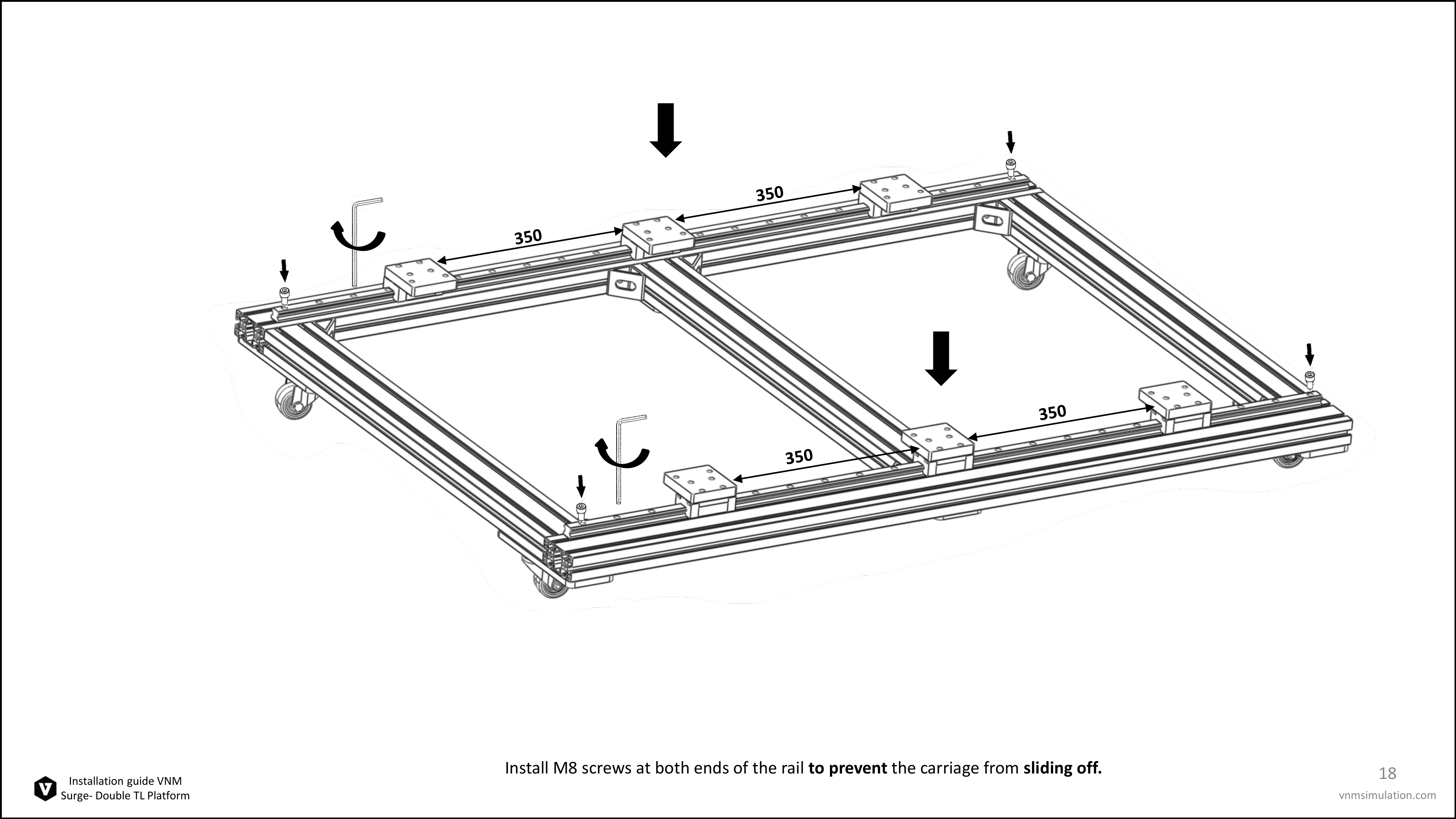

page 19

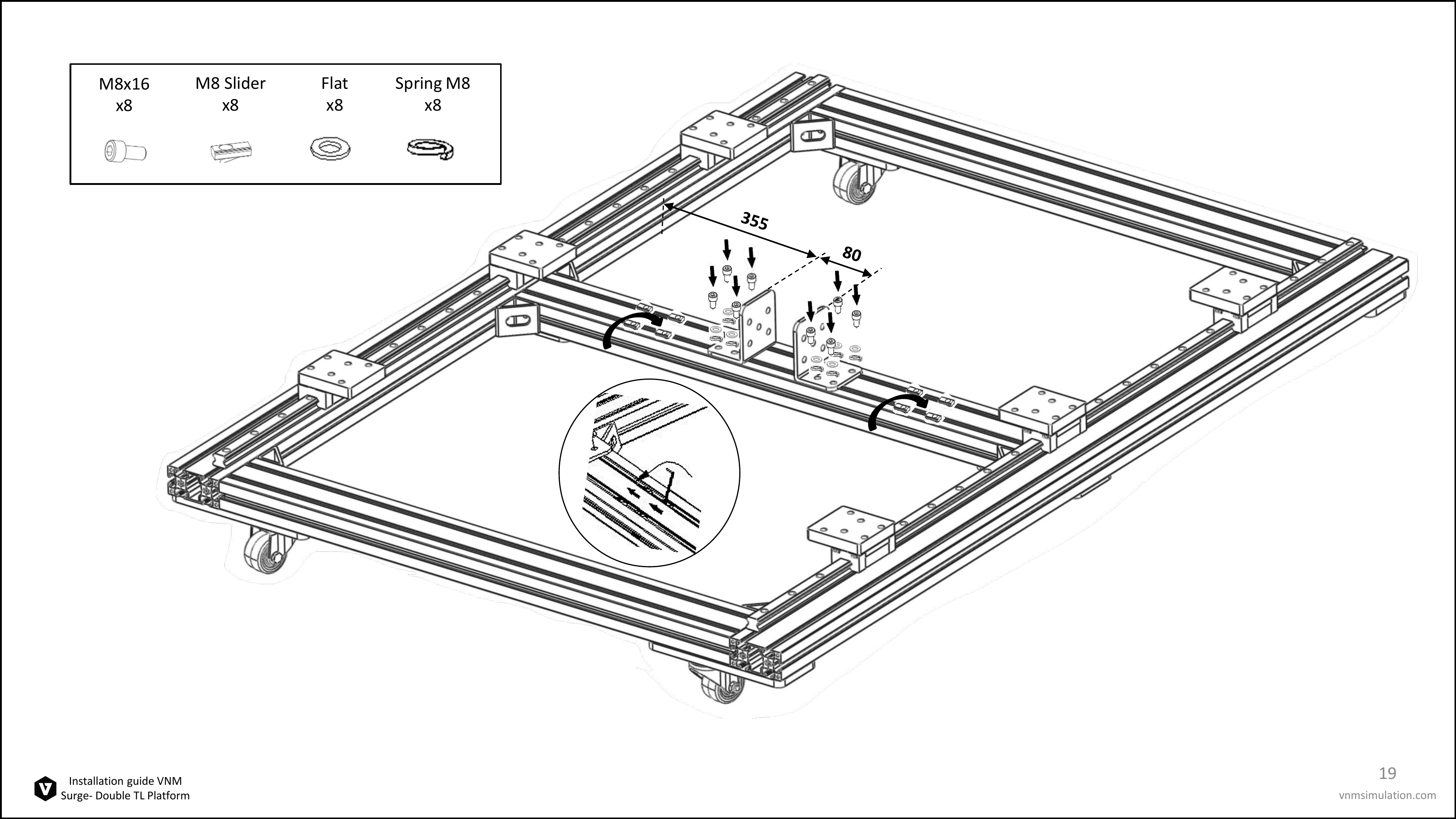

page 20

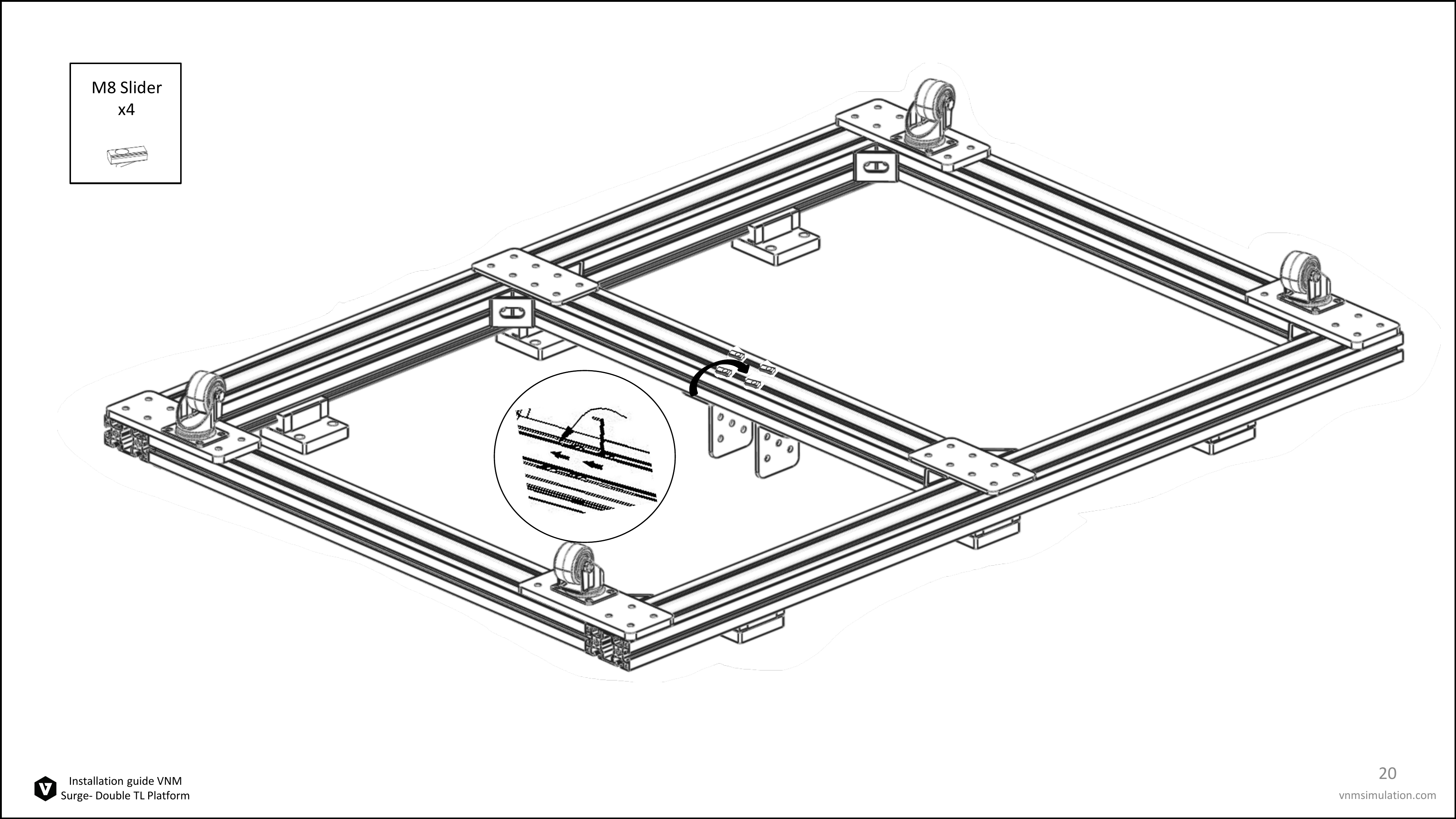

page 21

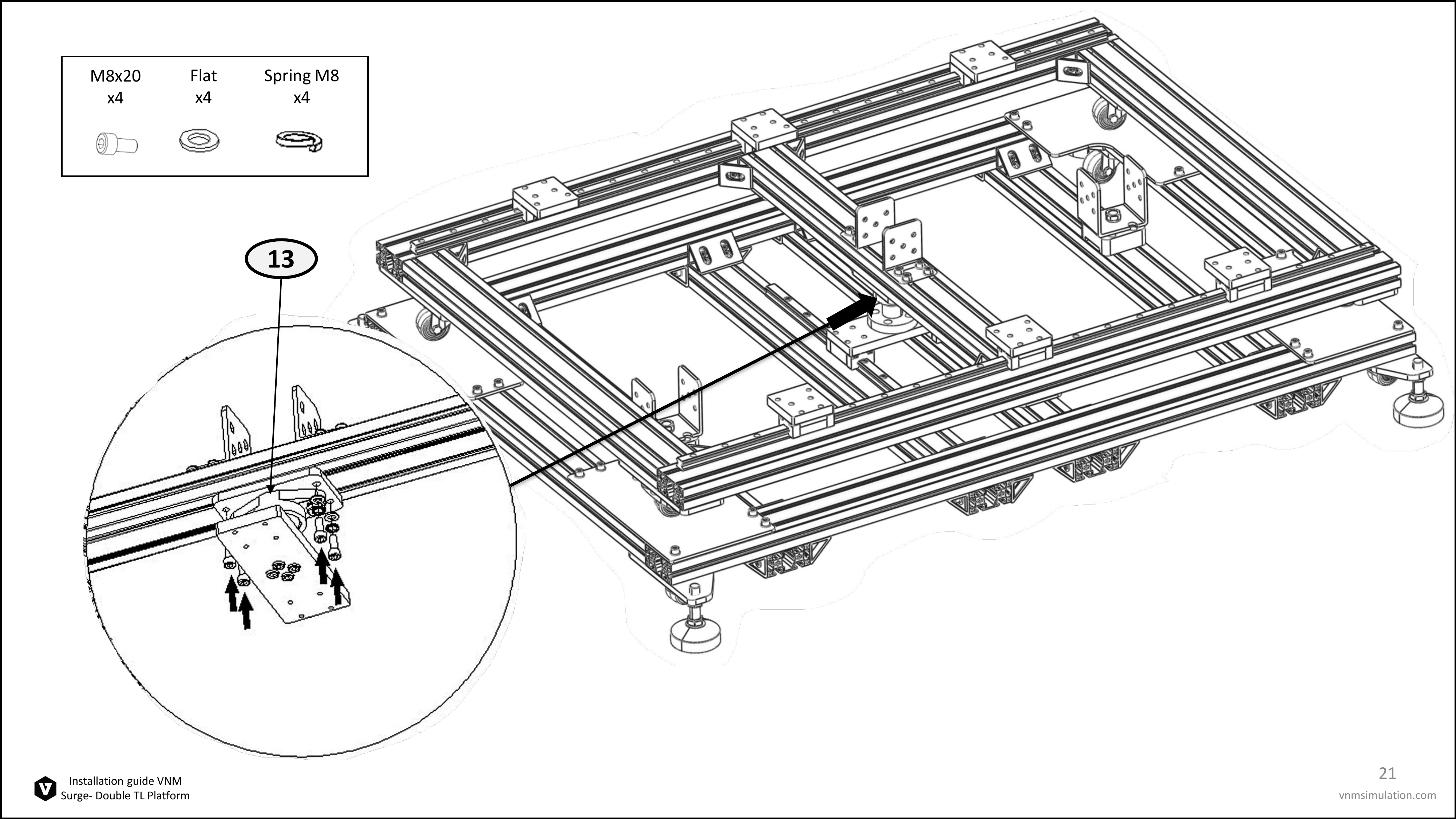

page 22

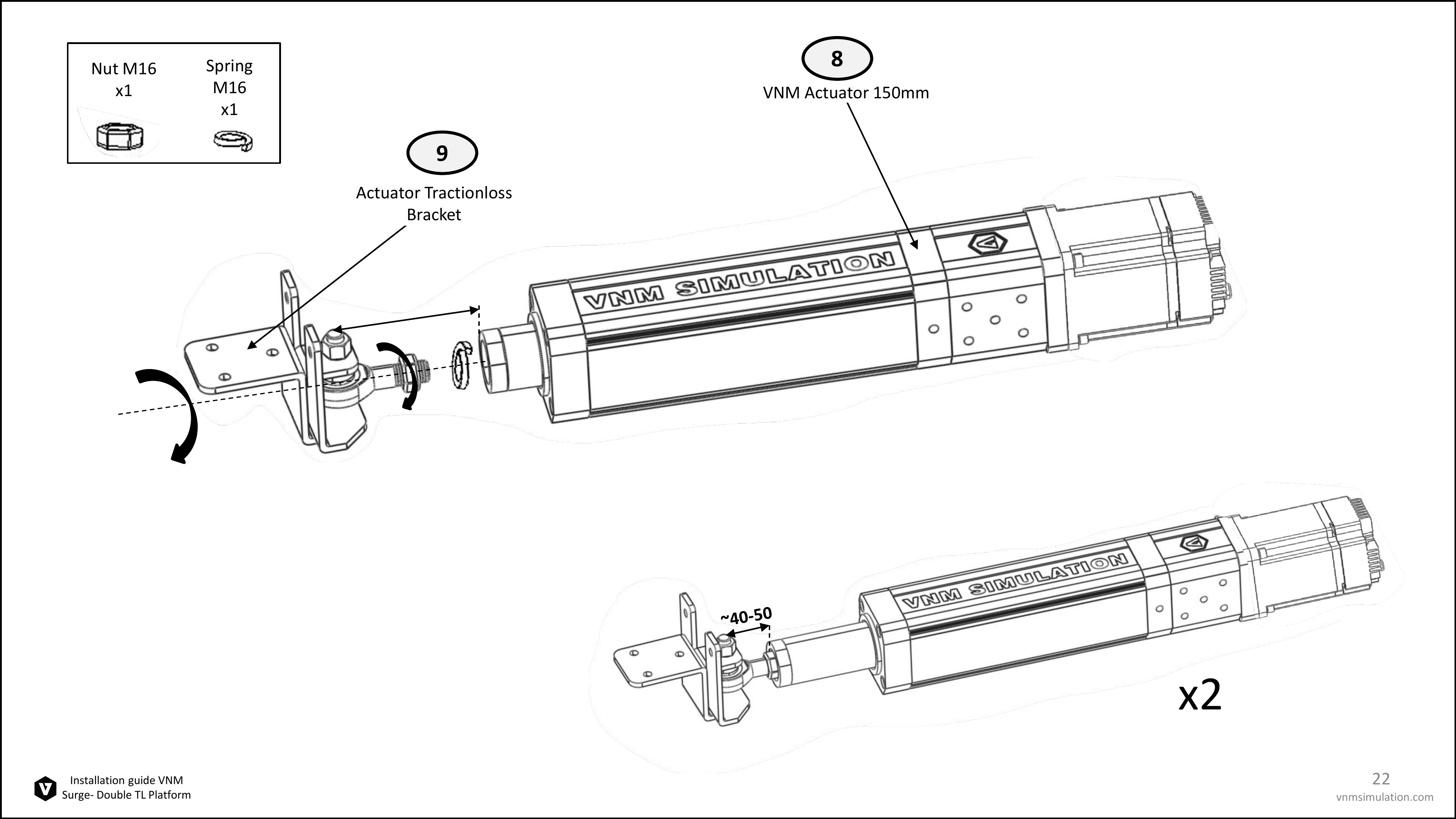

page 23

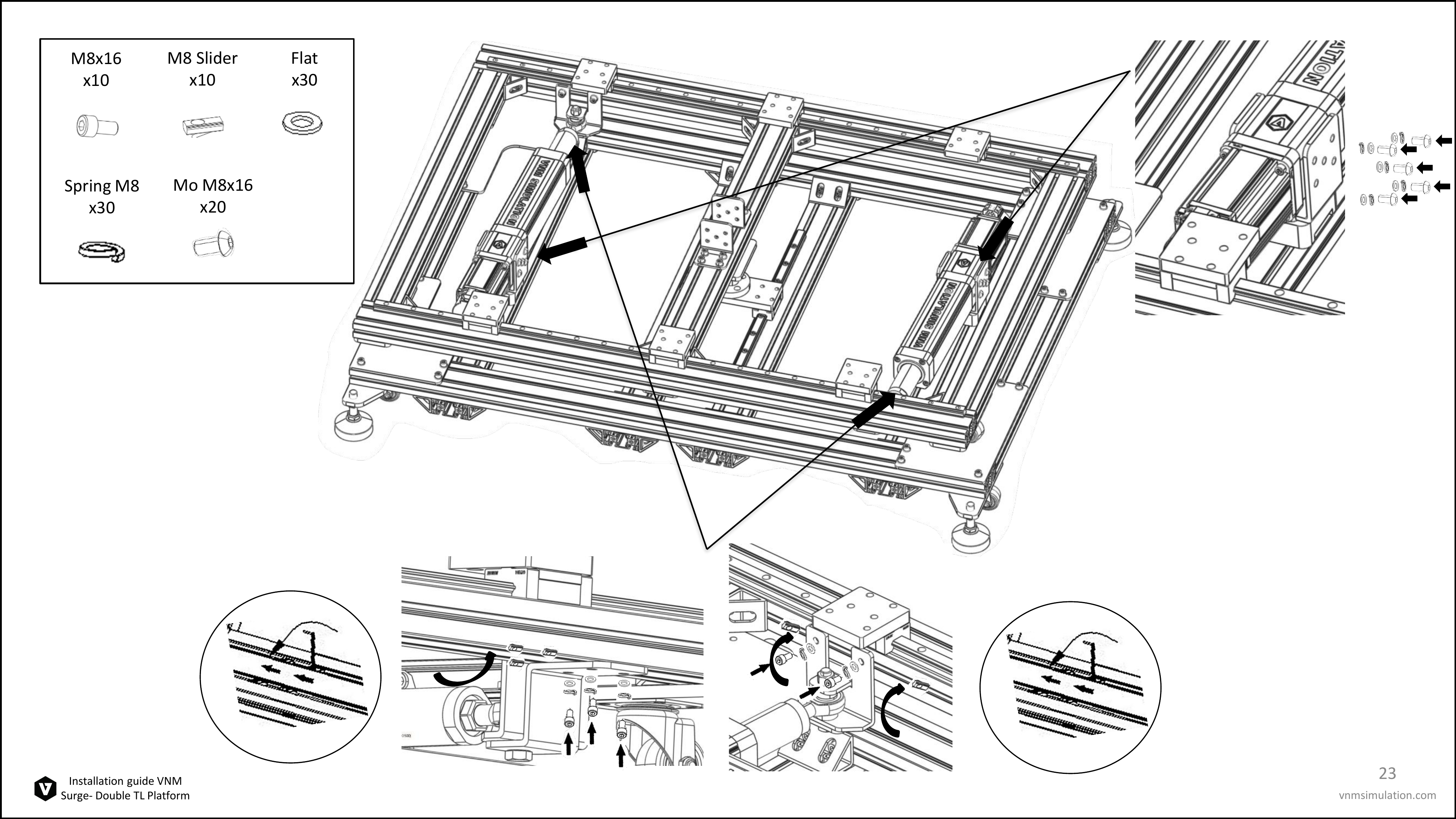

page 24

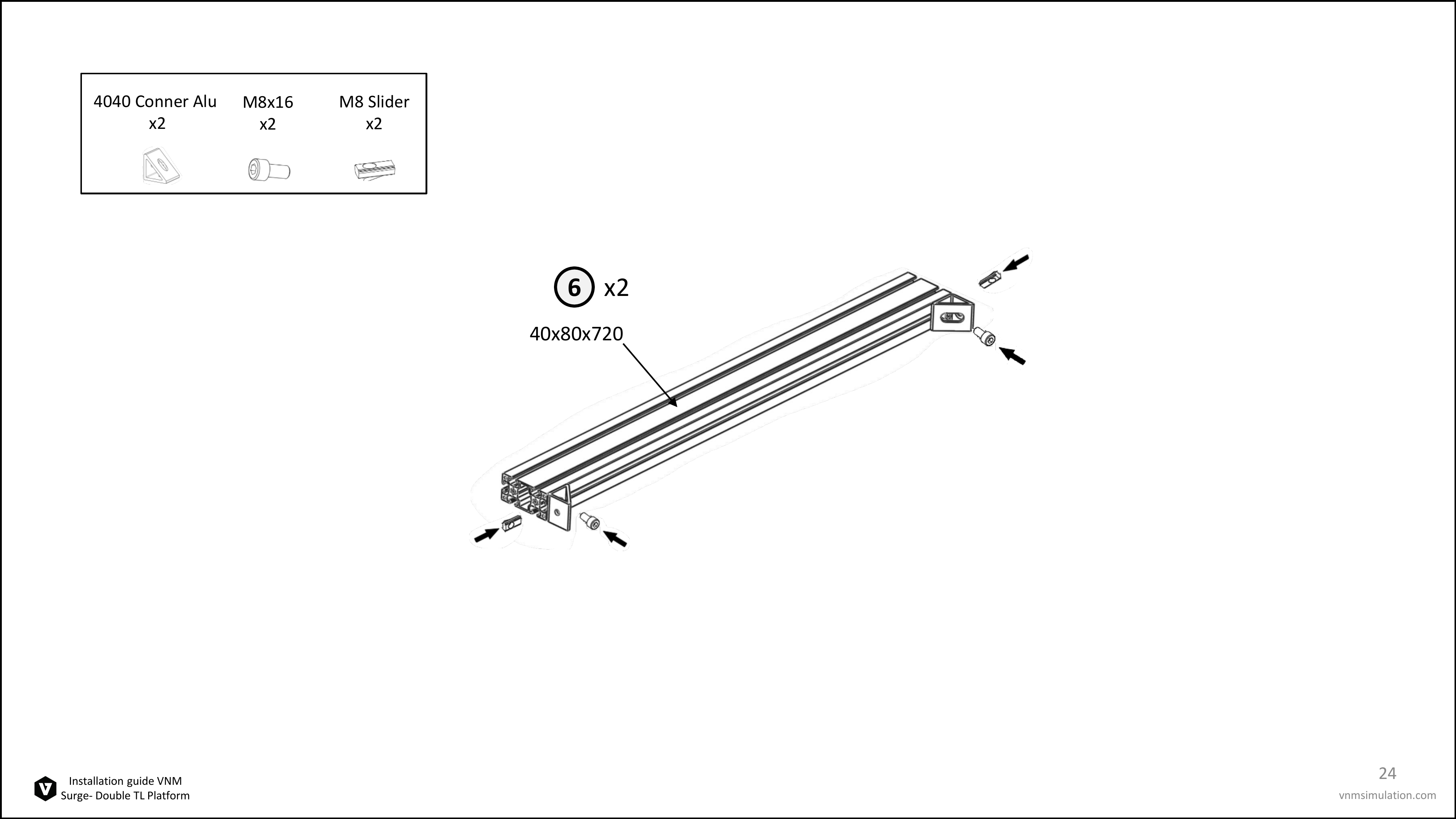

page 25

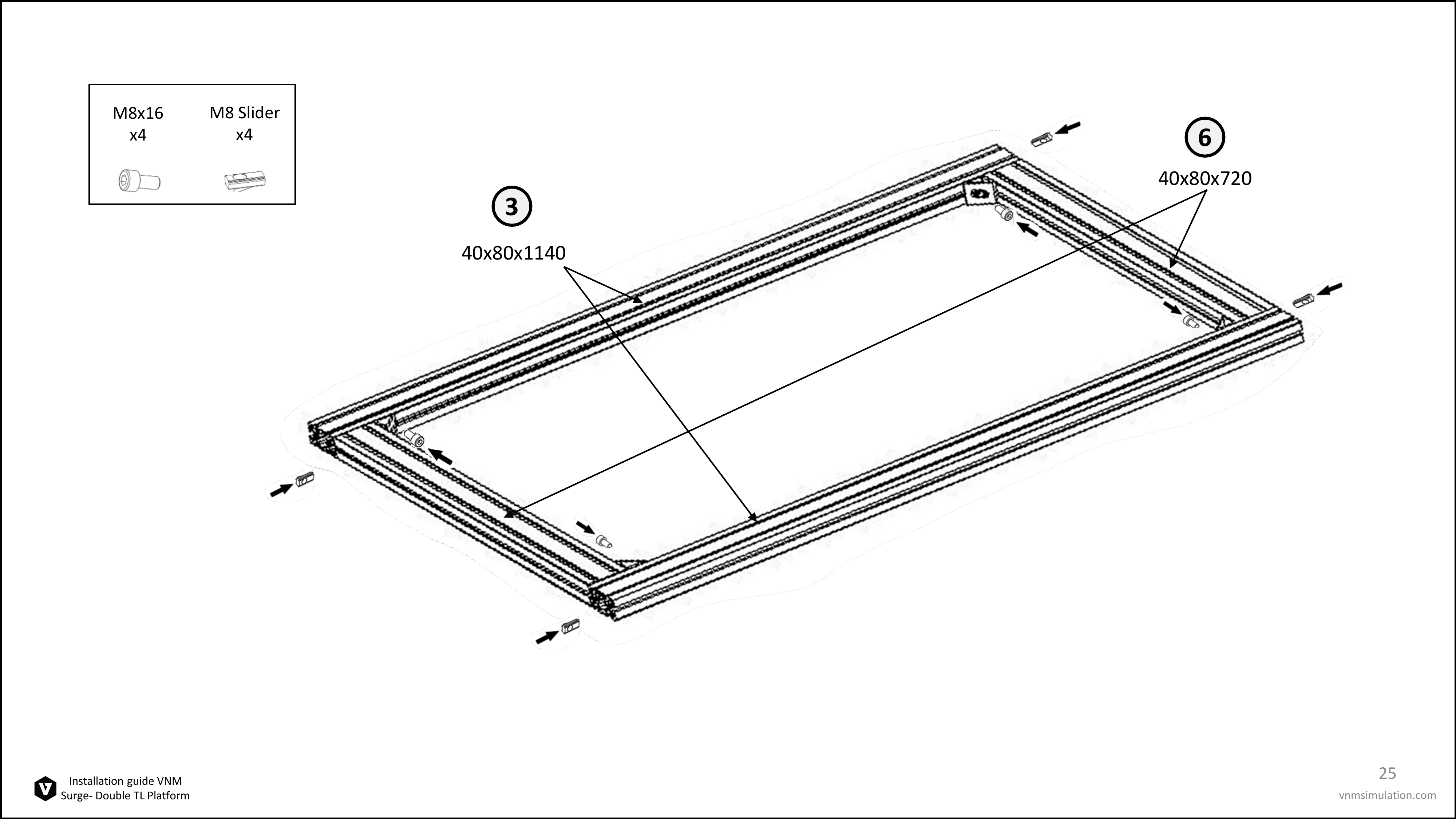

page 26

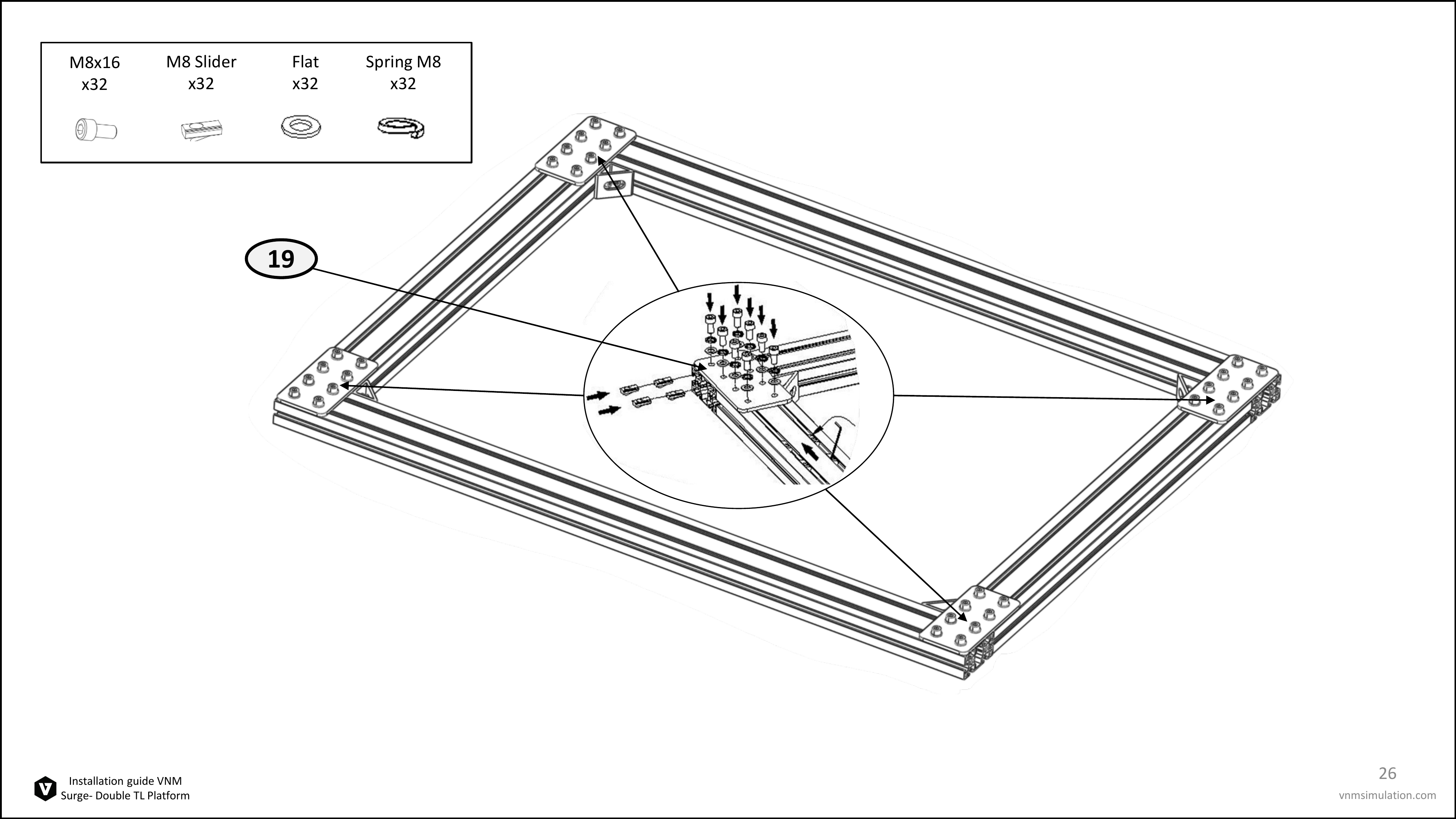

page 27

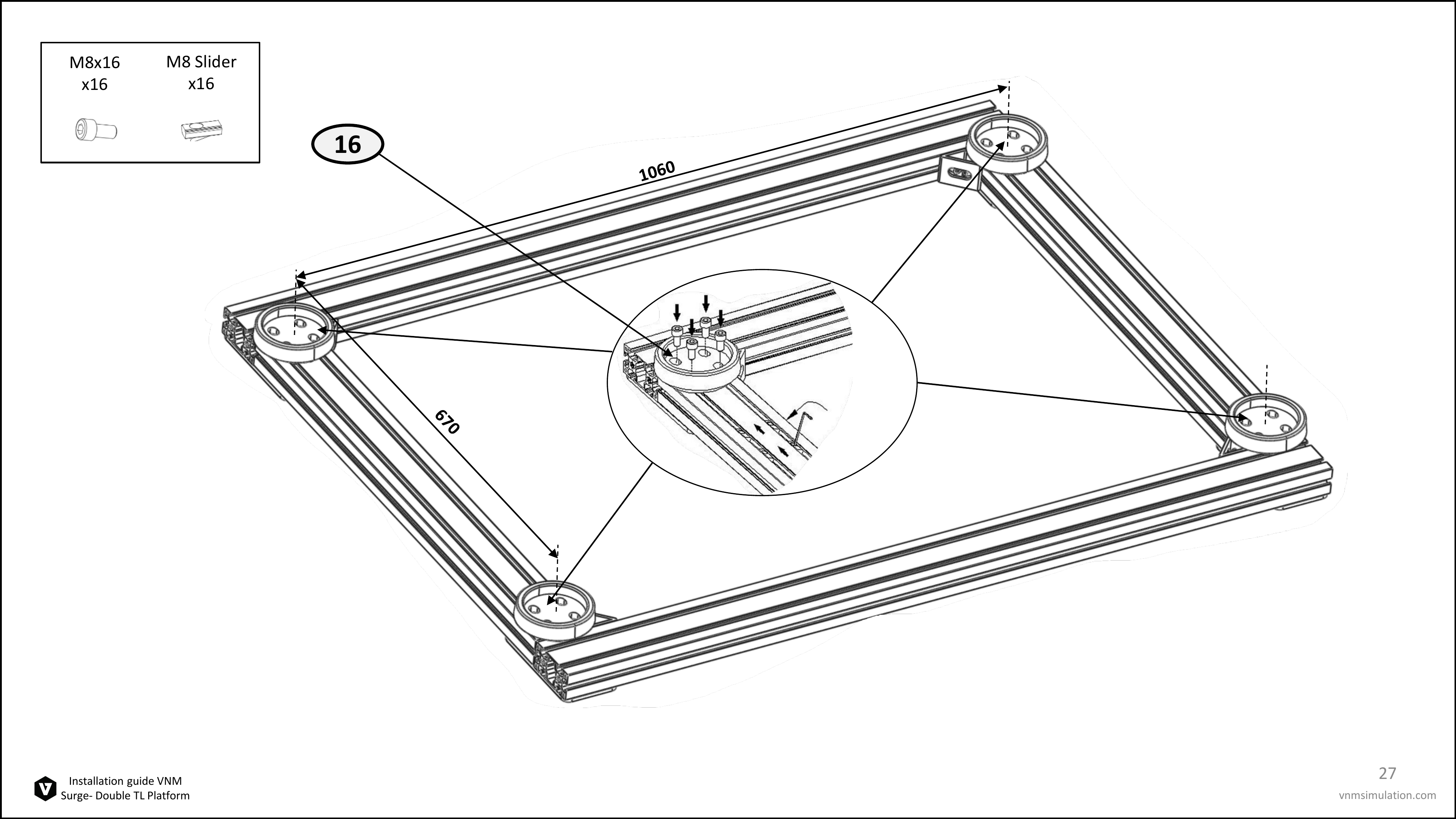

page 28

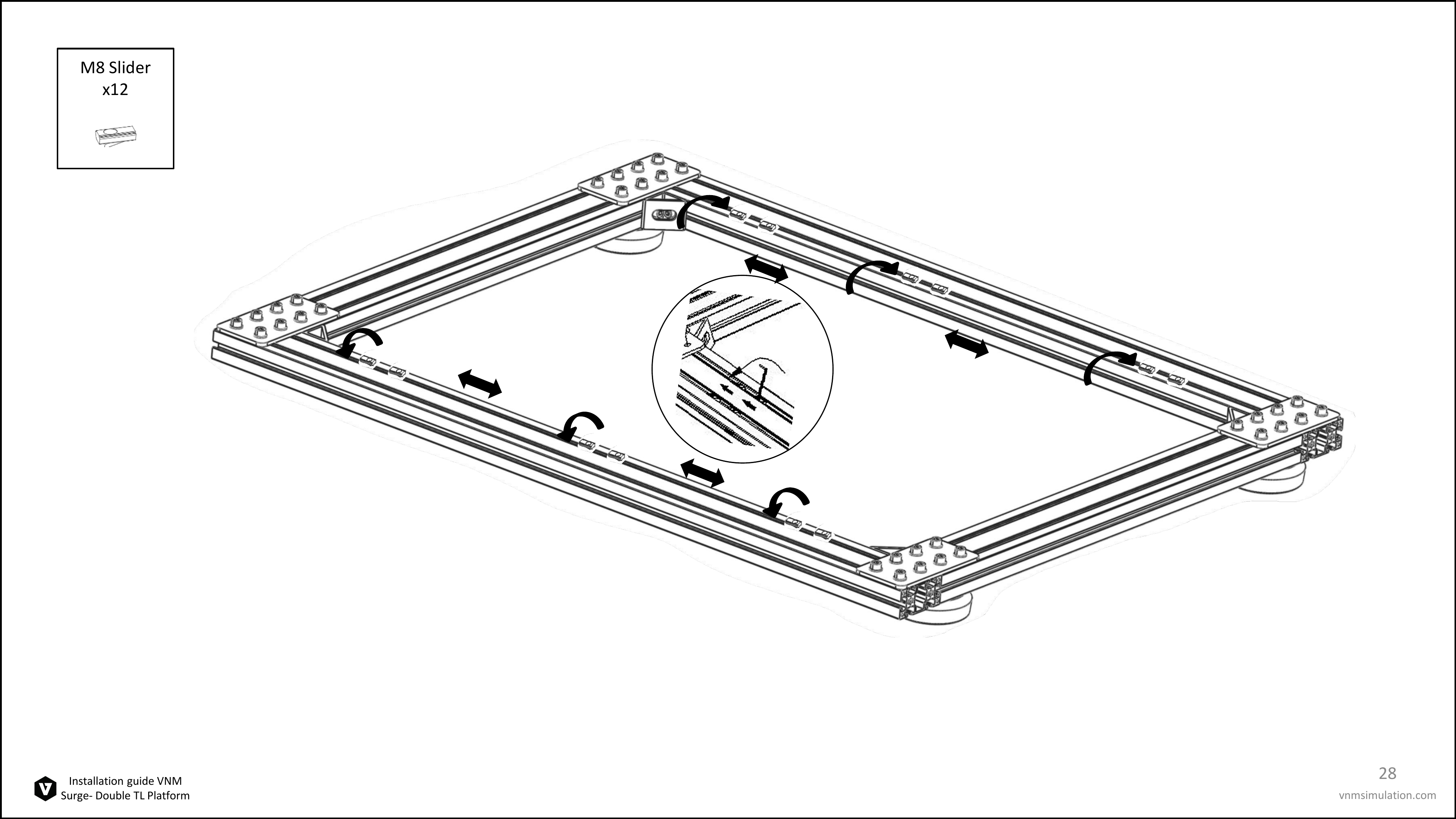

page 29

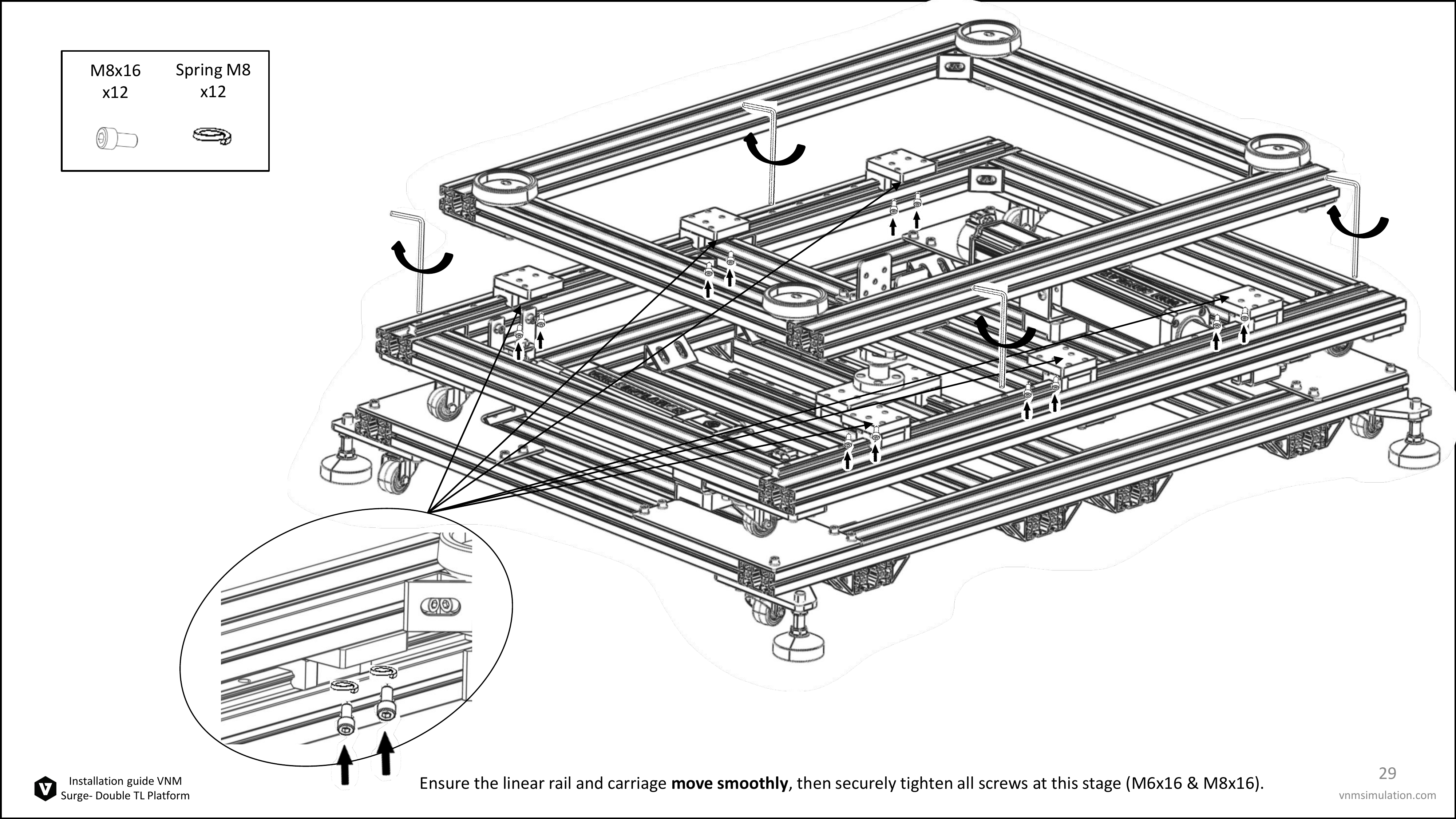

page 30

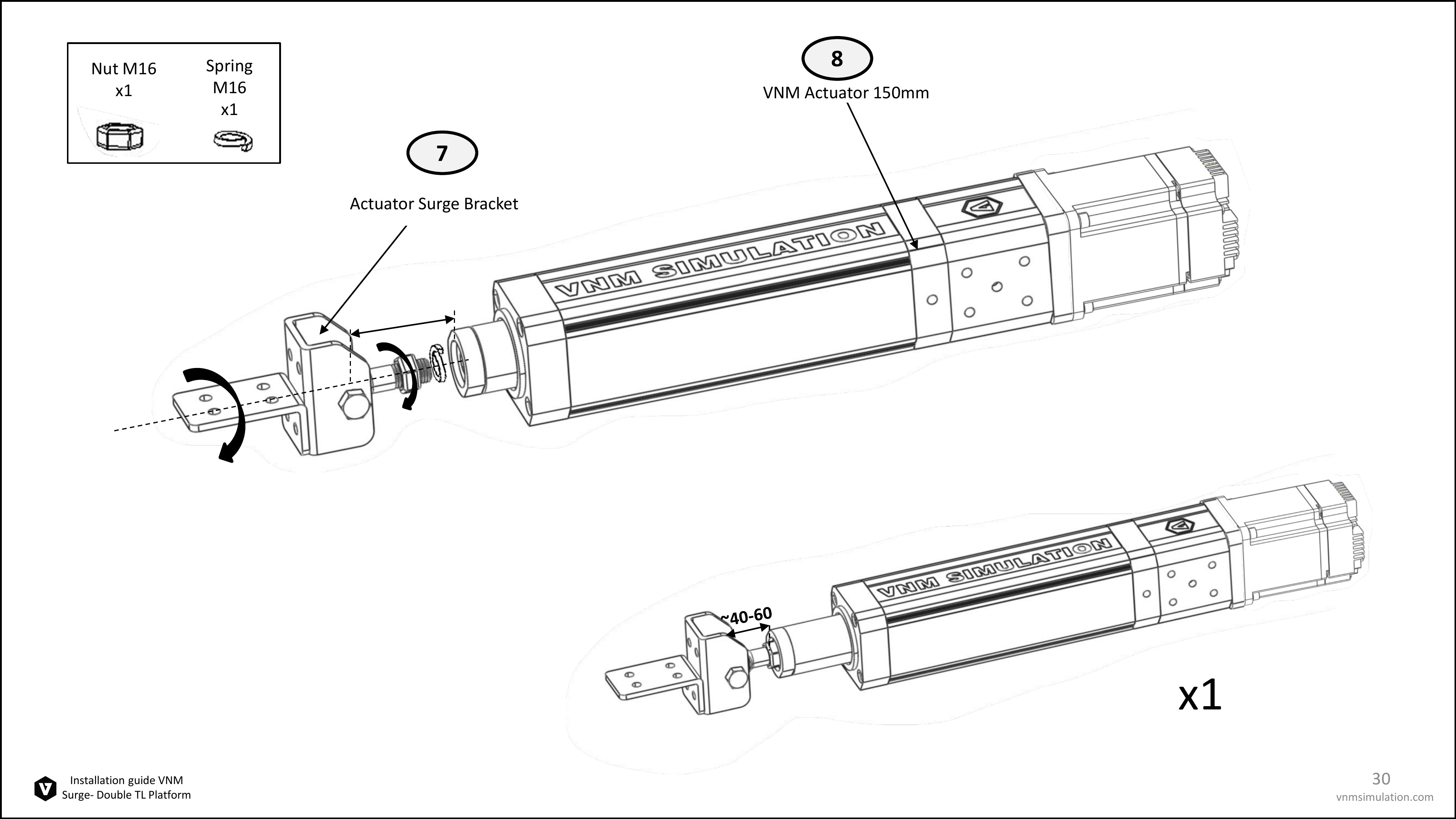

page 31

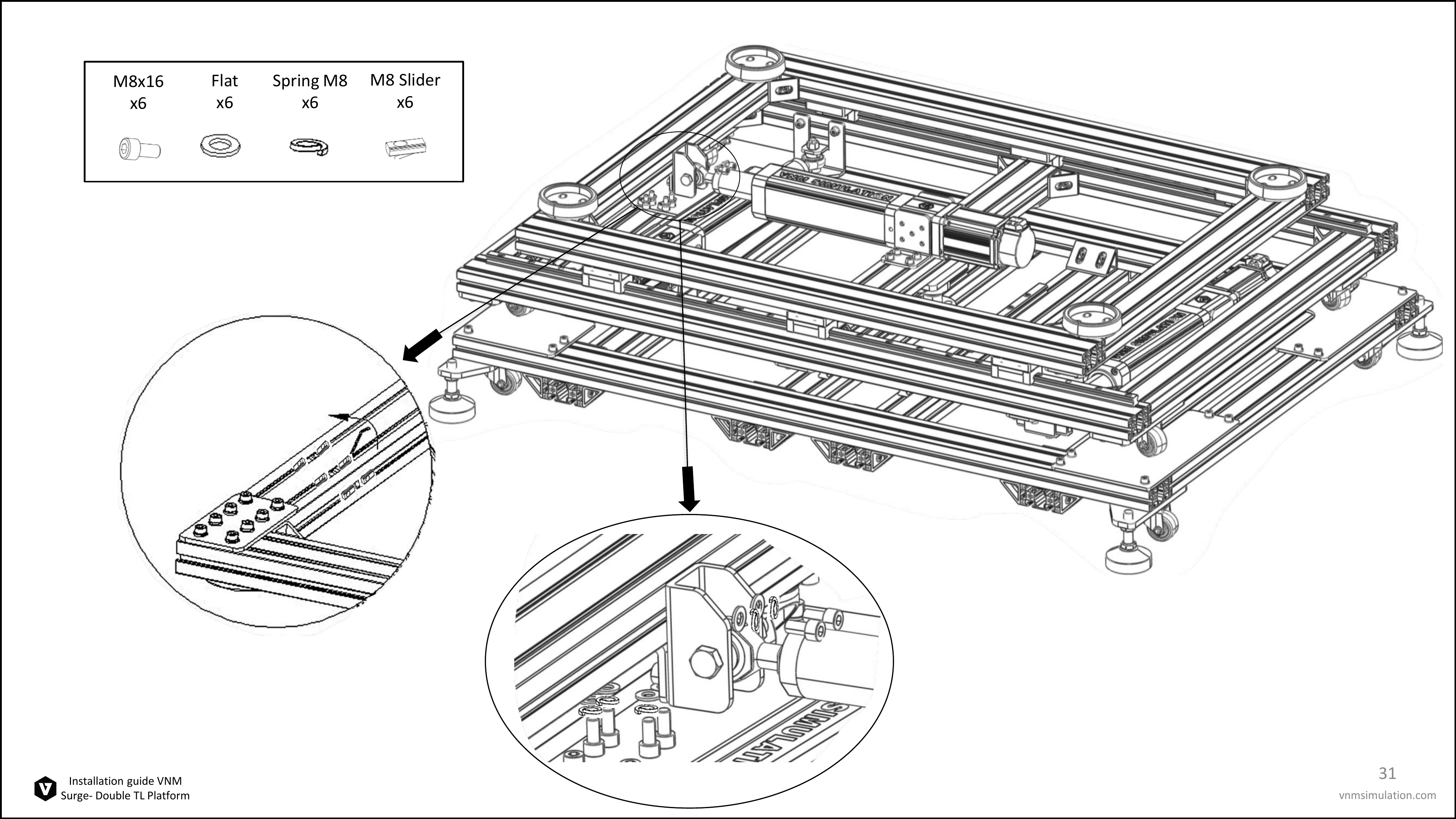

page 32

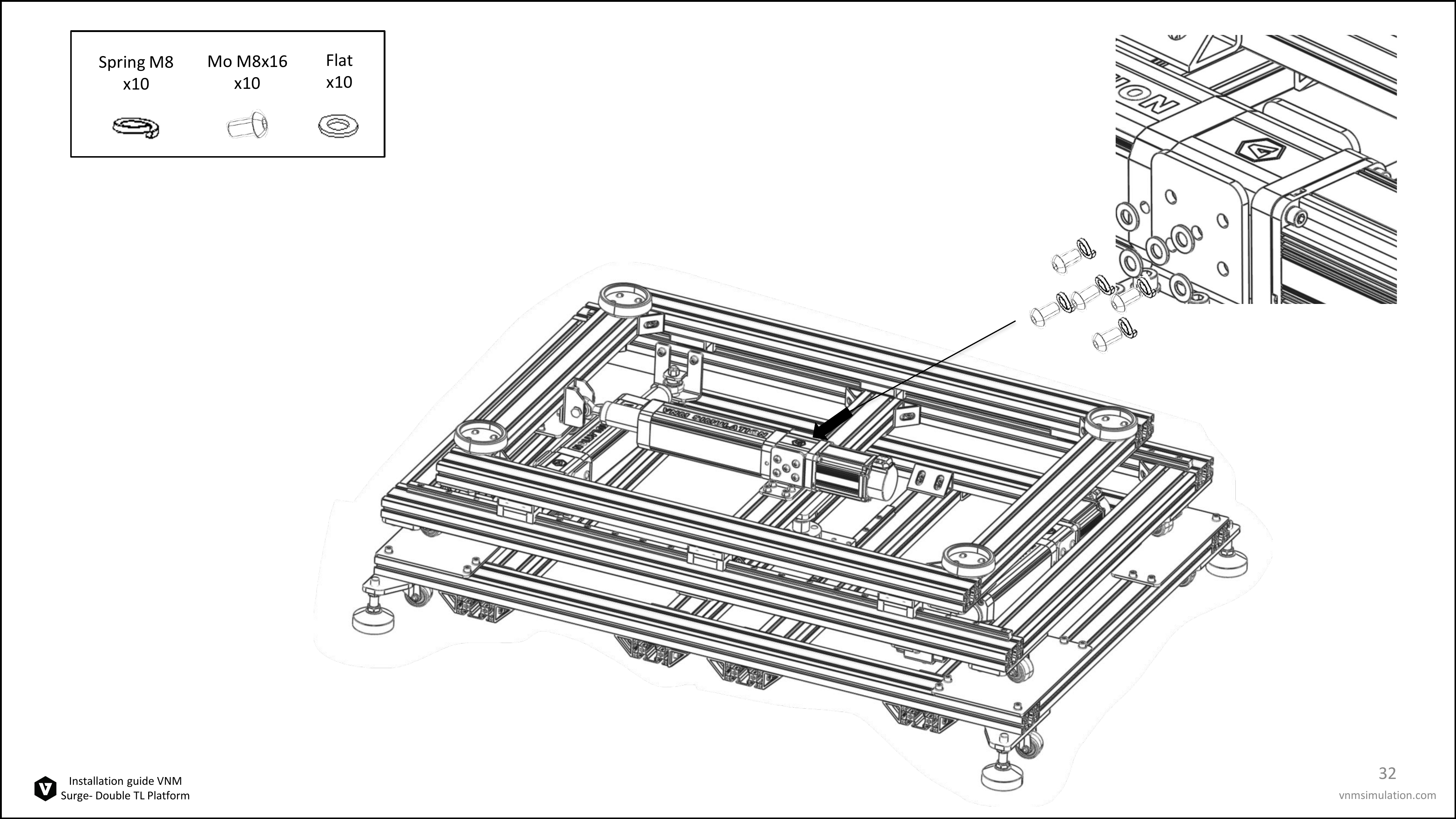

page 33

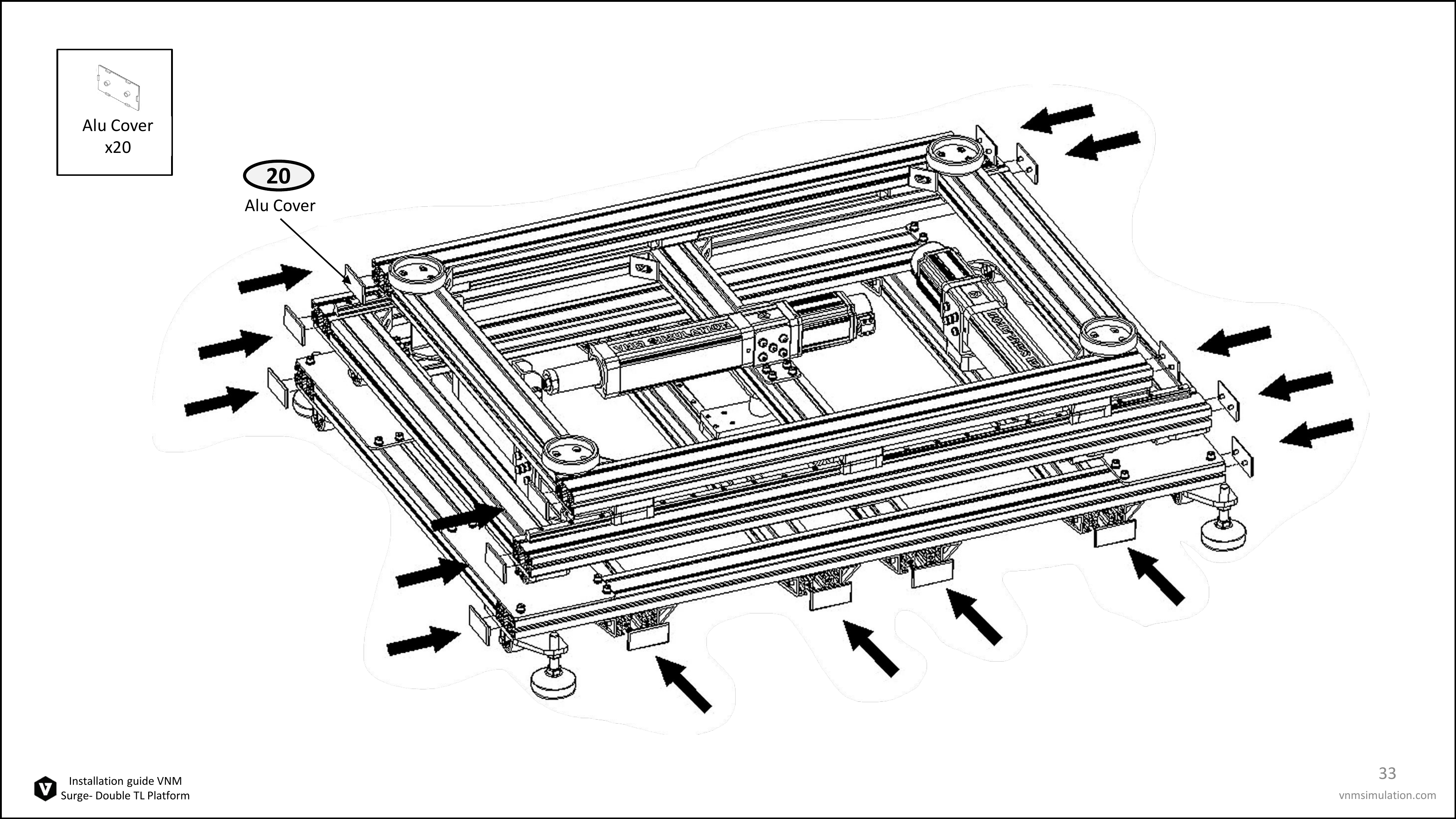

page 34

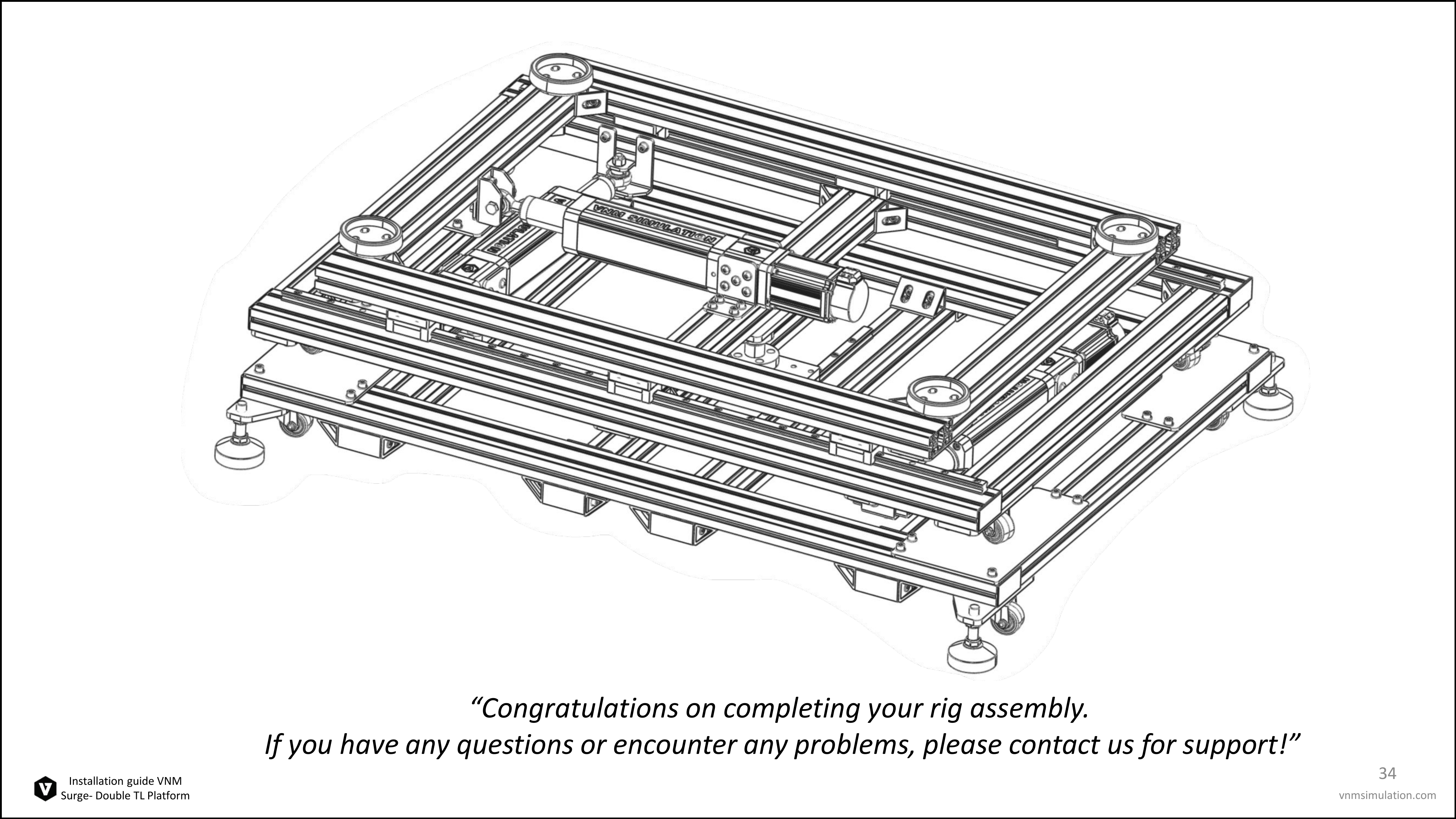

page 35

Download PDF
