APEX-R Steering Wheel HUB

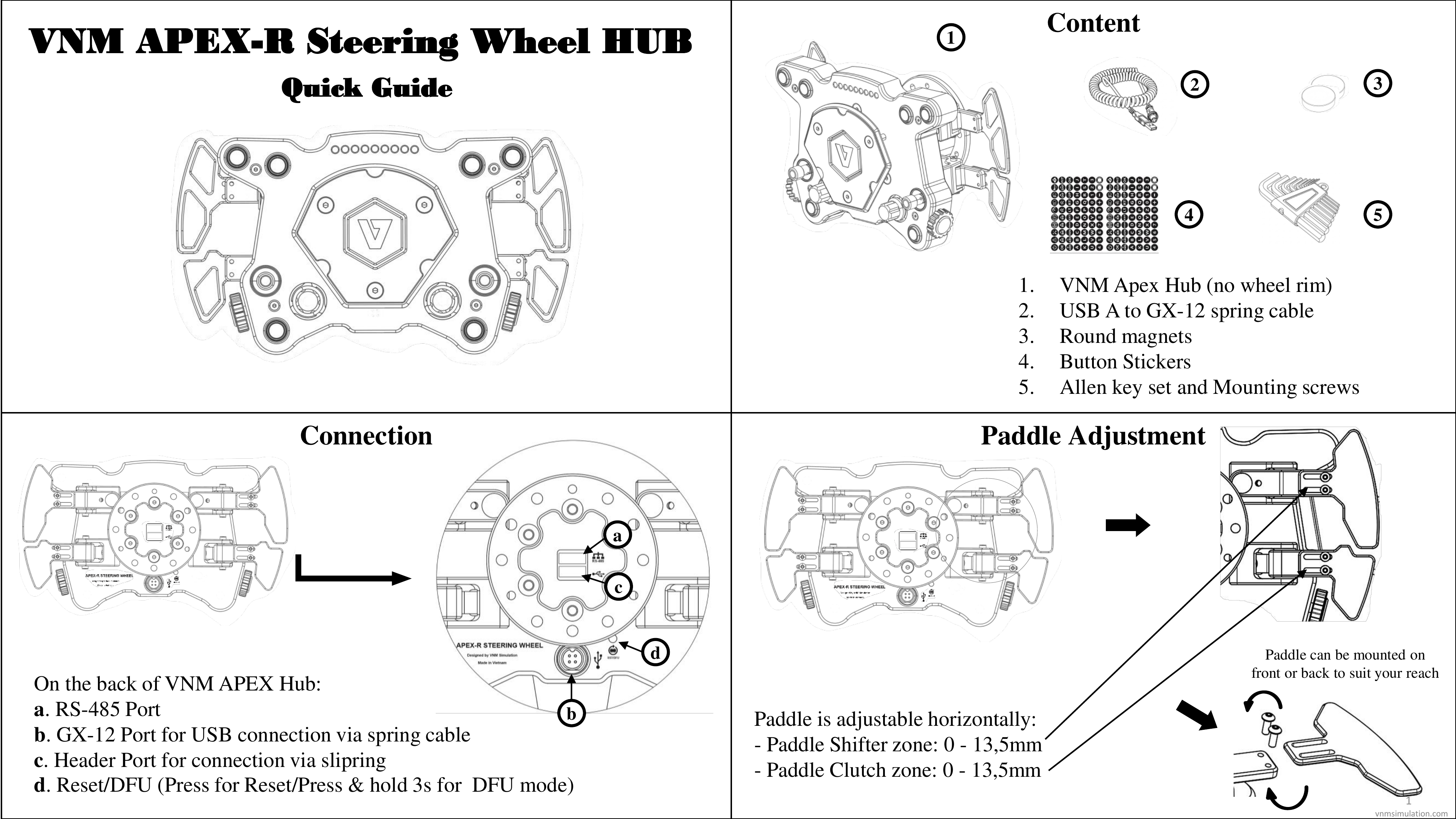

apex r steering wheel hub page 1

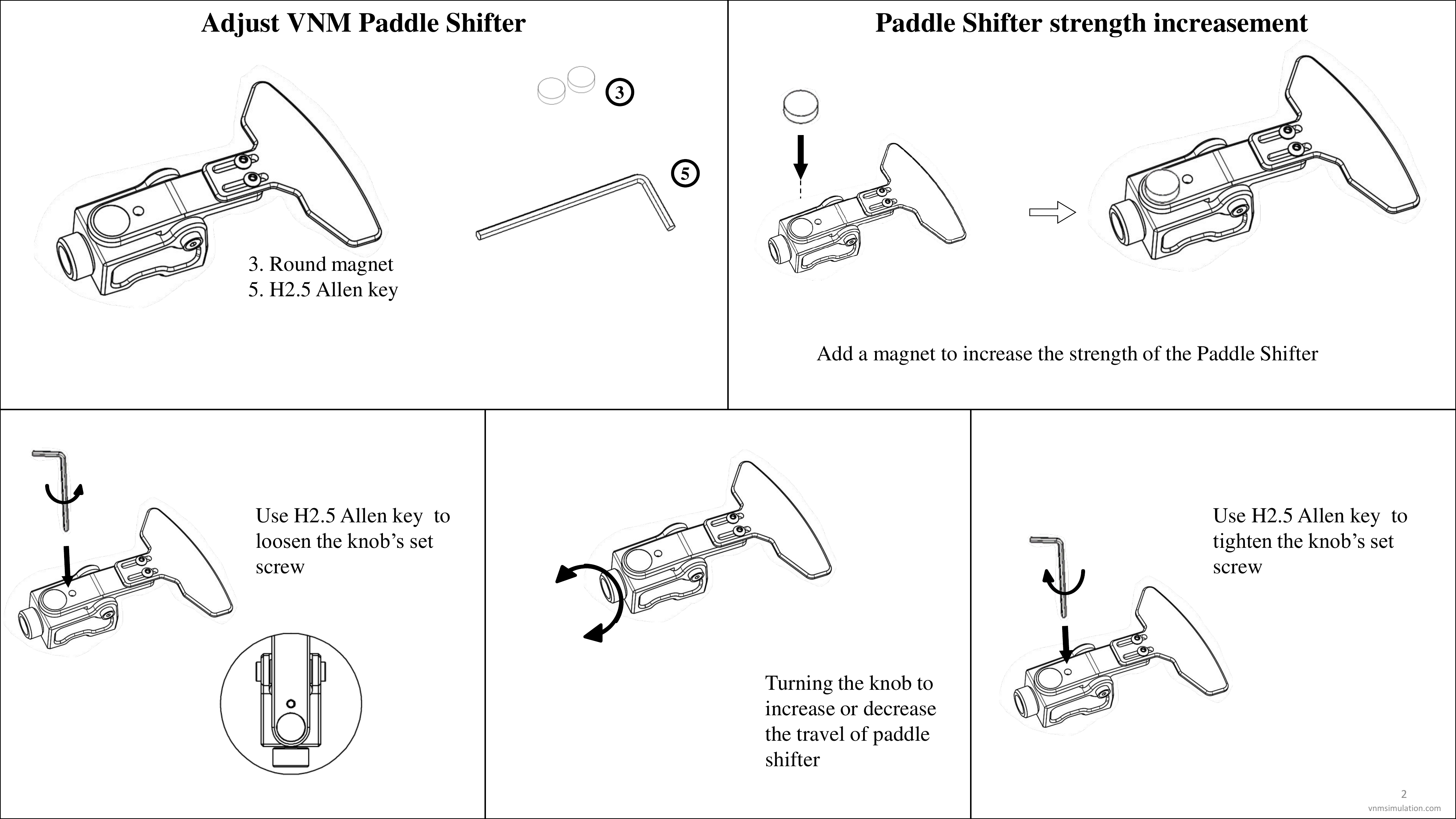

apex r steering wheel hub page 2

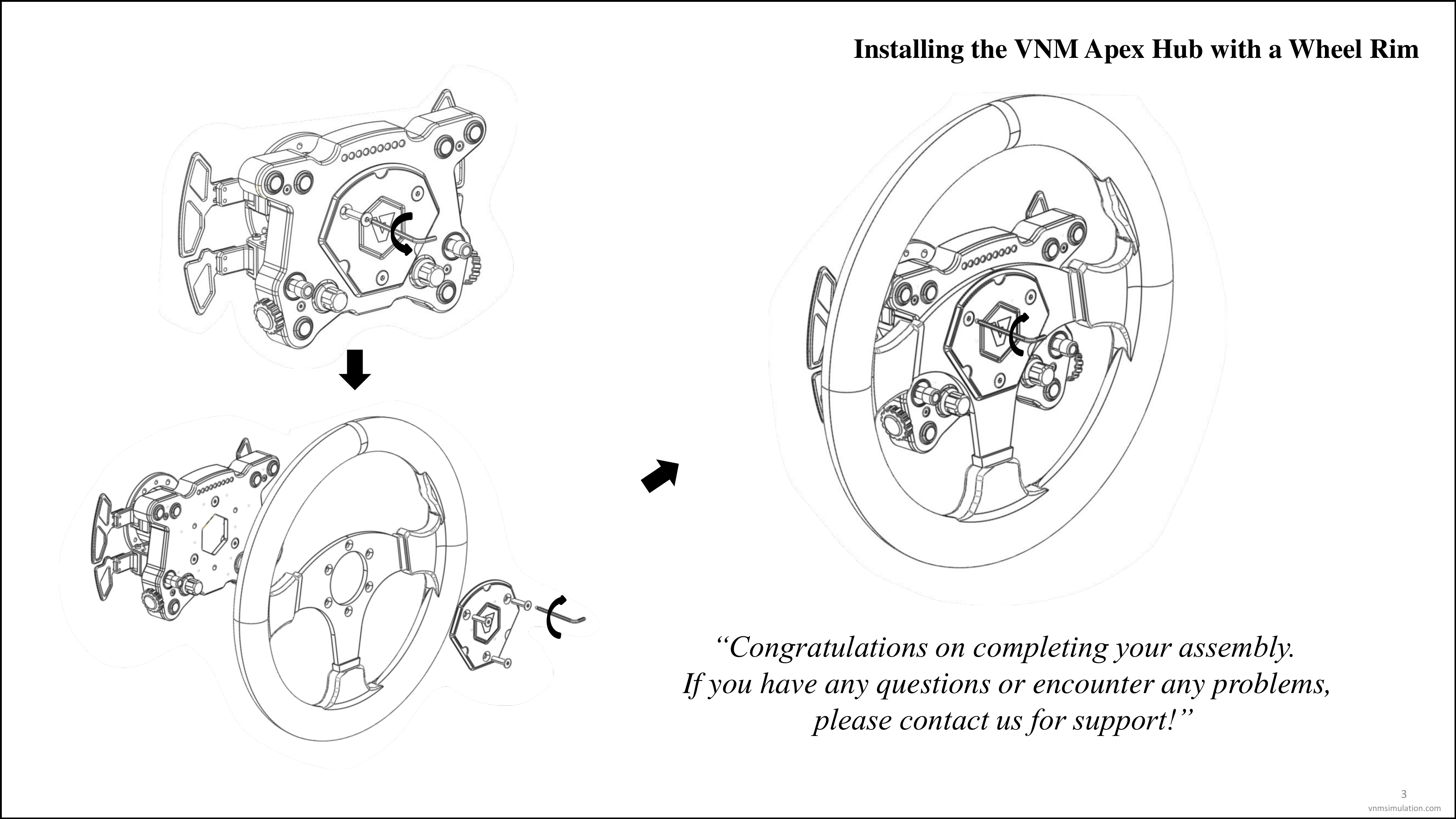

apex r steering wheel hub page 3

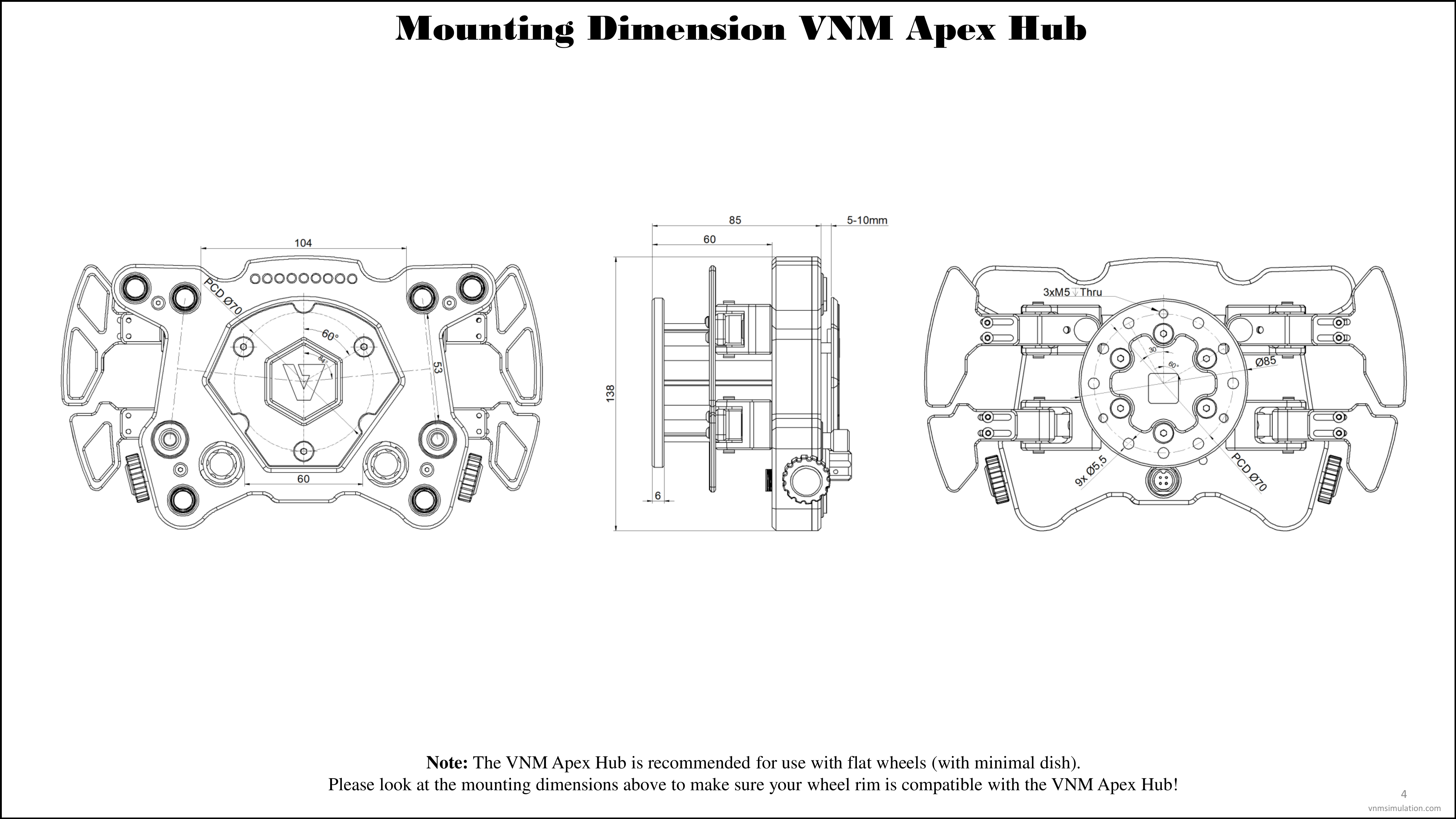

apex r steering wheel hub page 4

Download PDF
