Quad Monitor Mount Extension

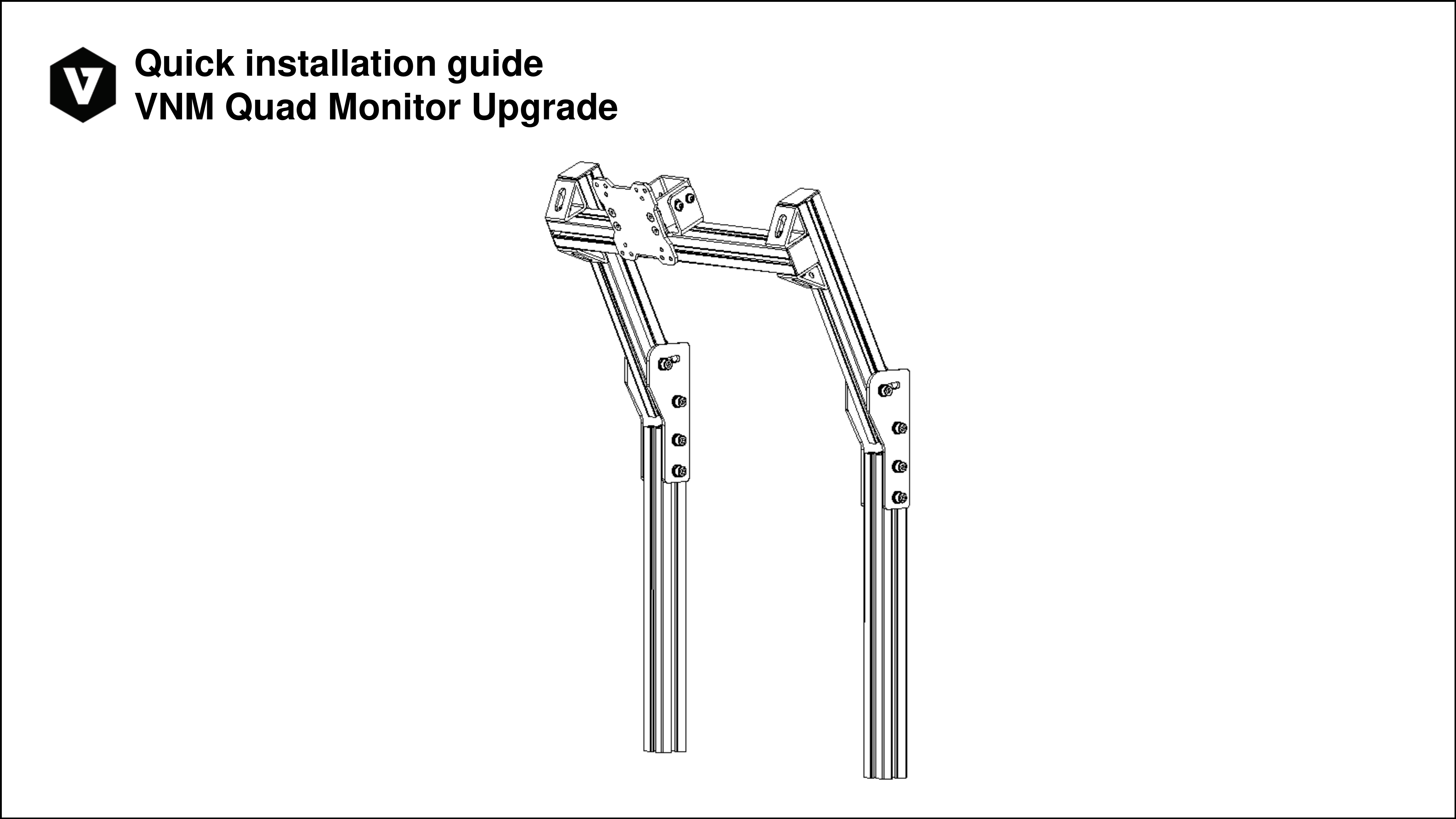

page 01

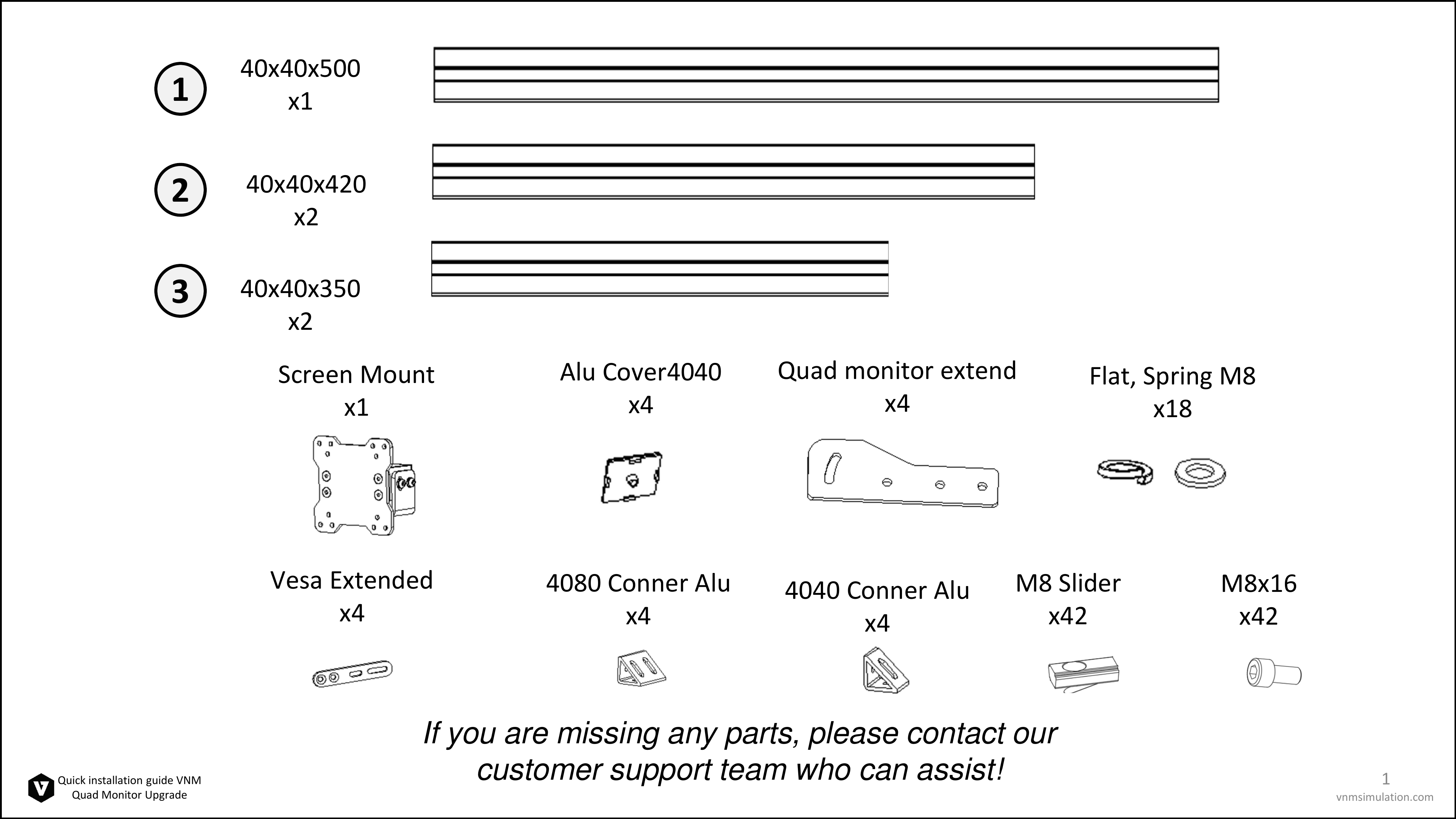

page 02

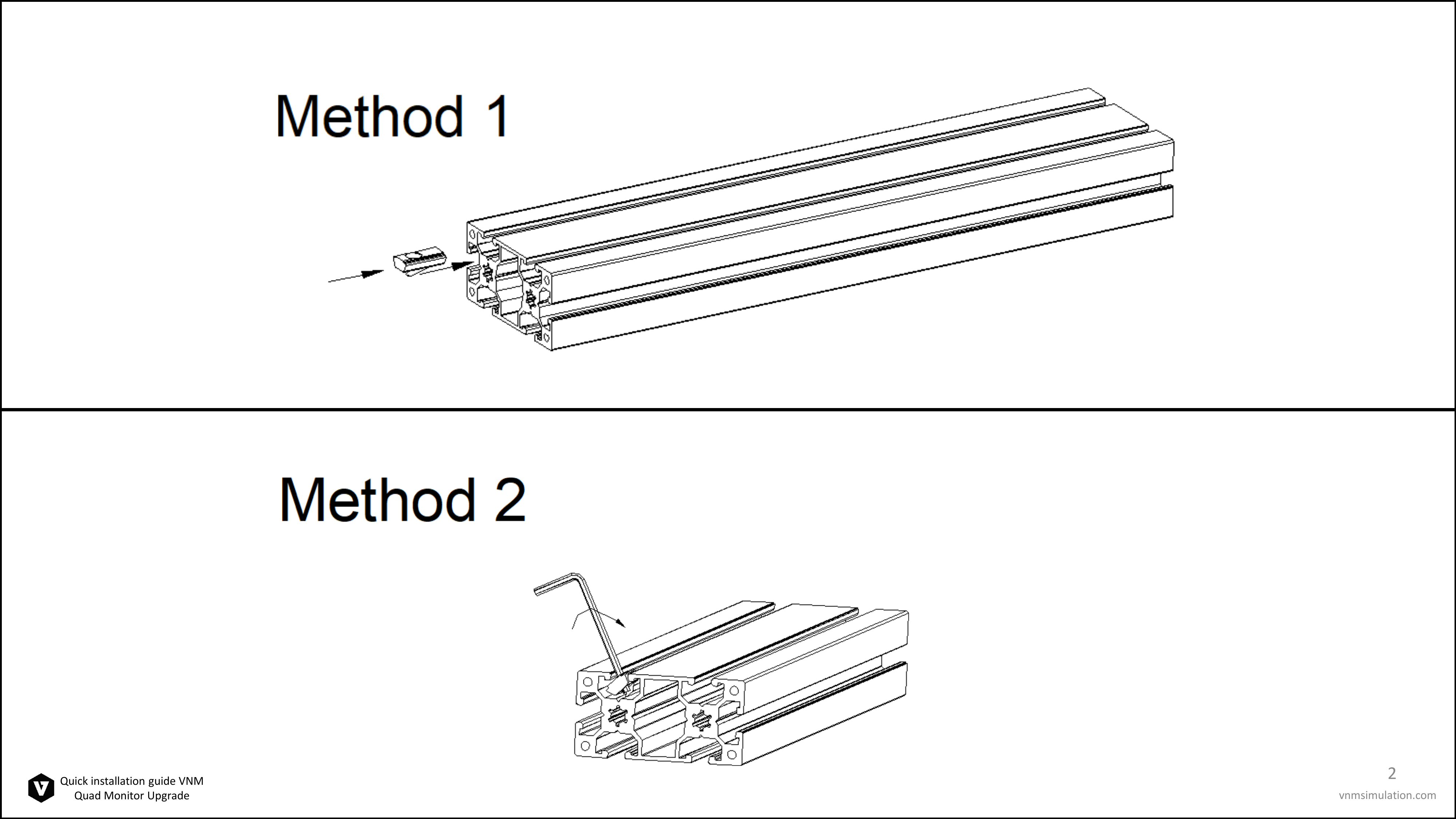

page 03

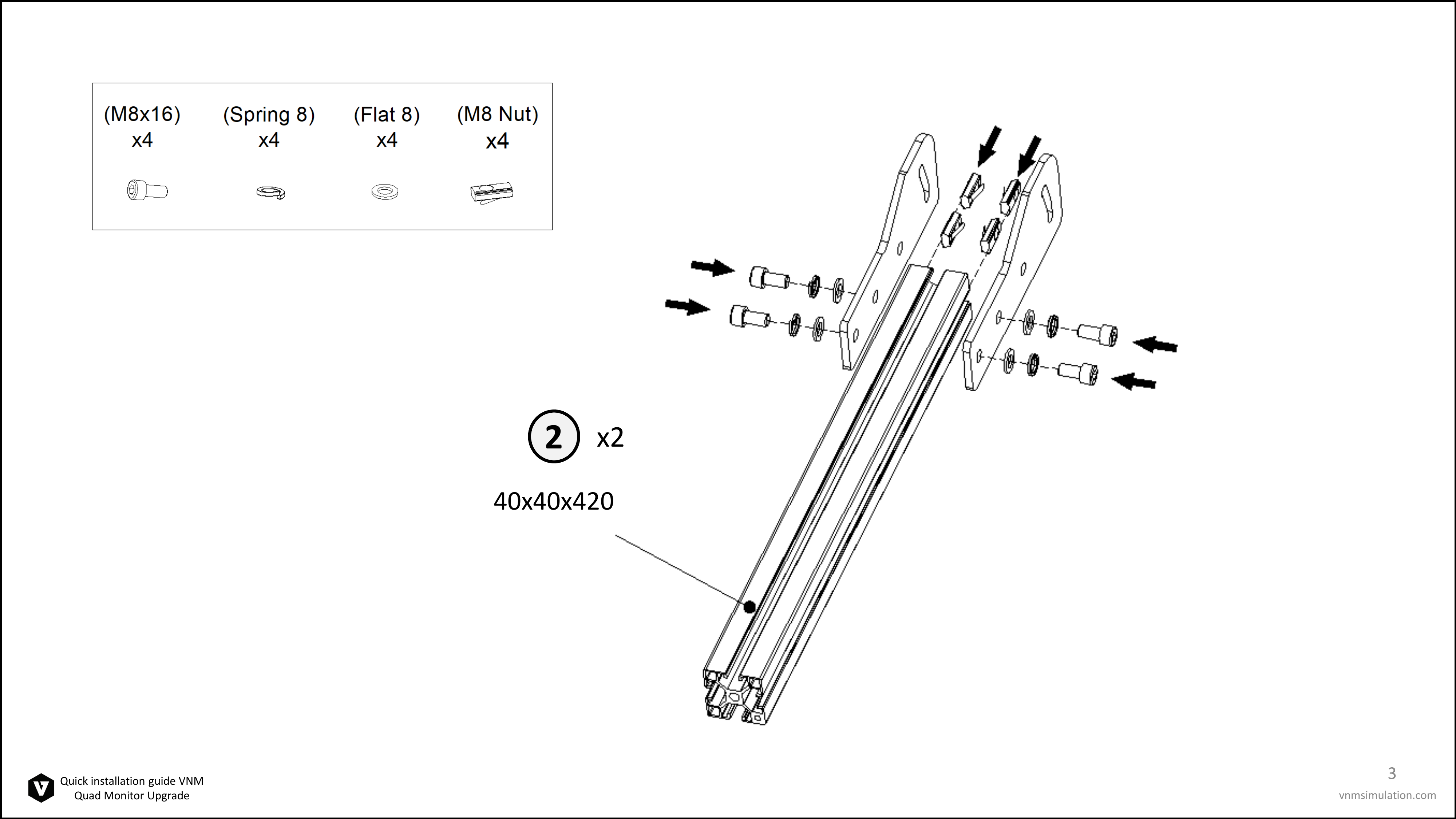

page 04

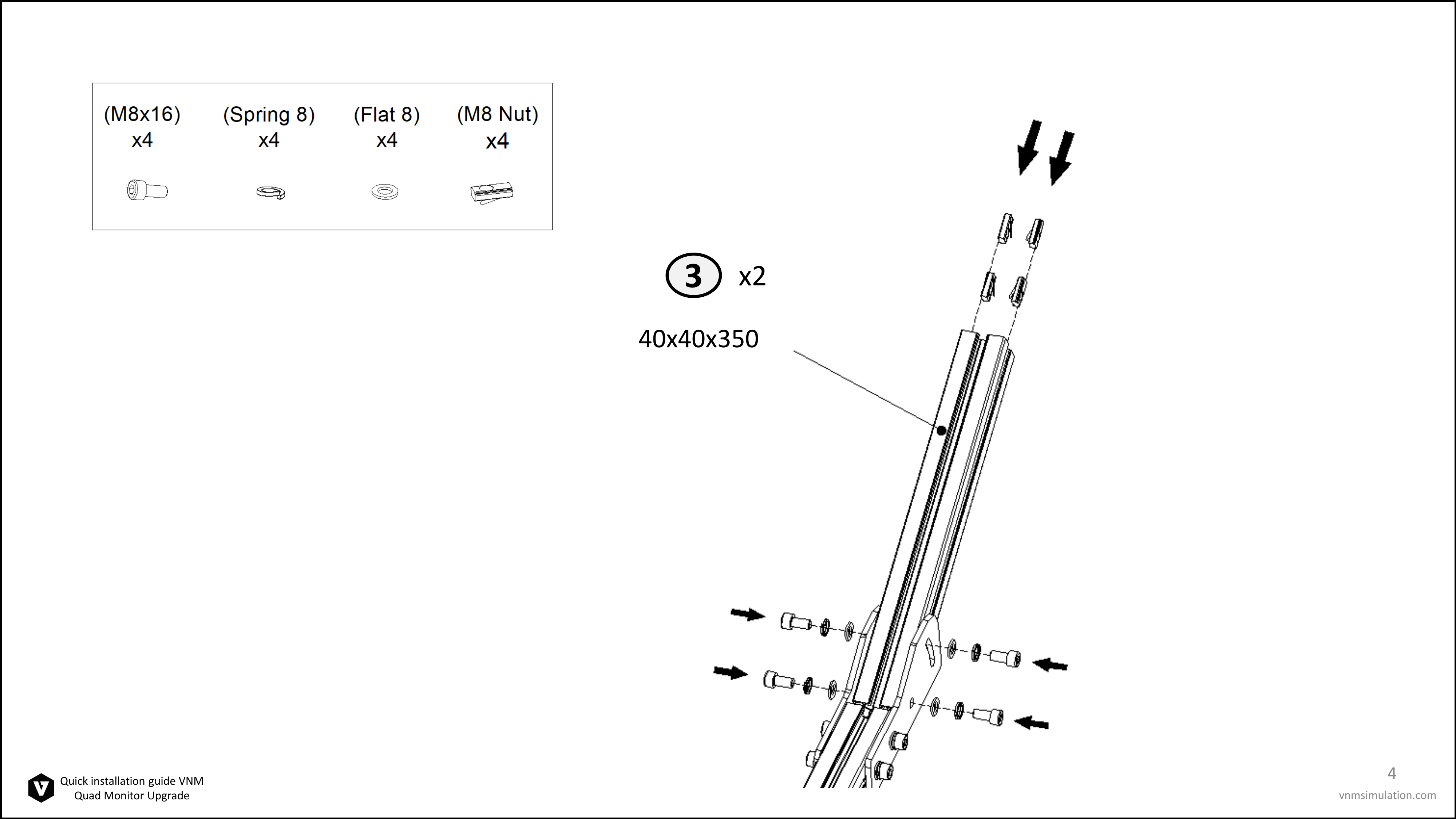

page 05

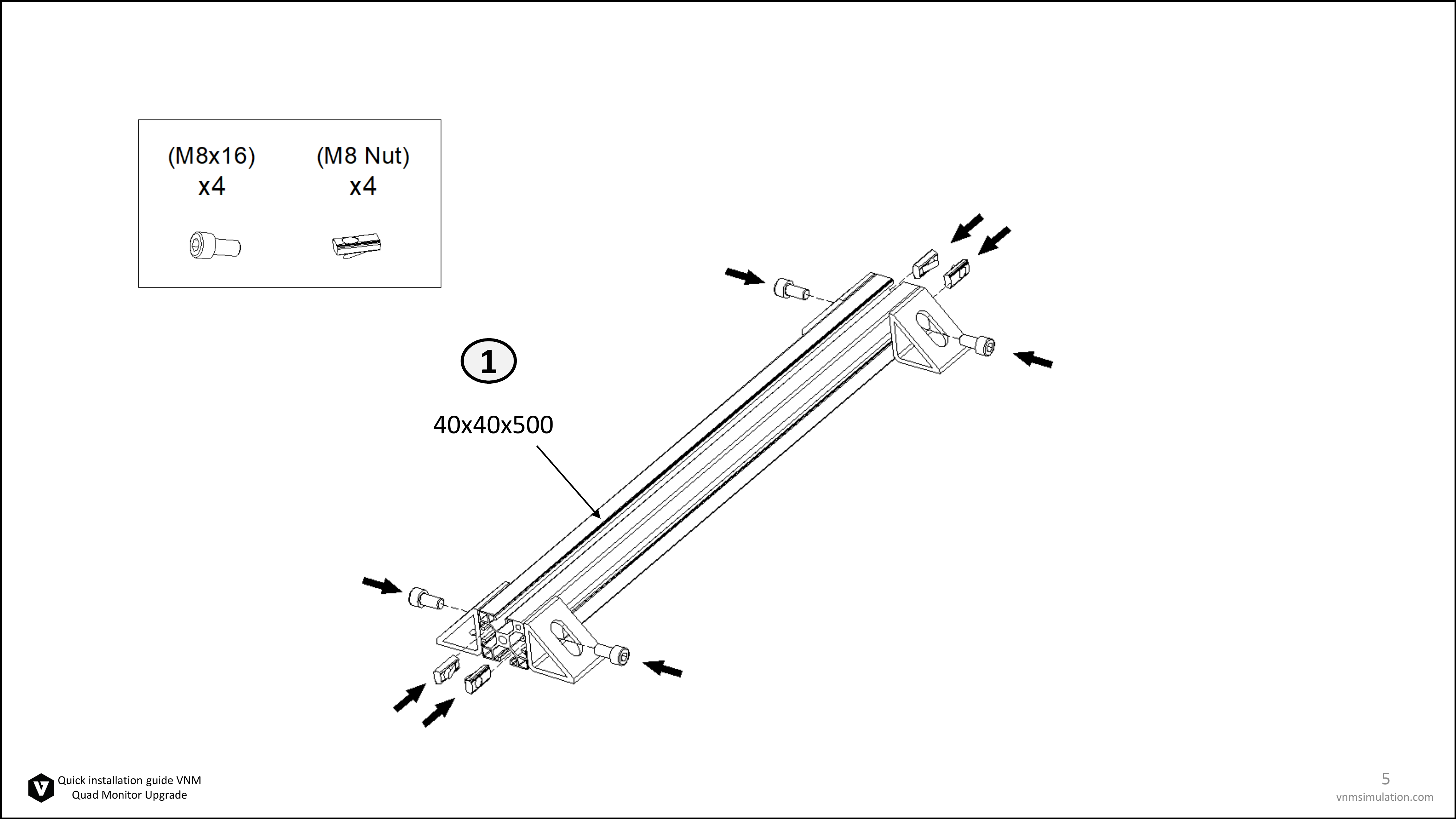

page 06

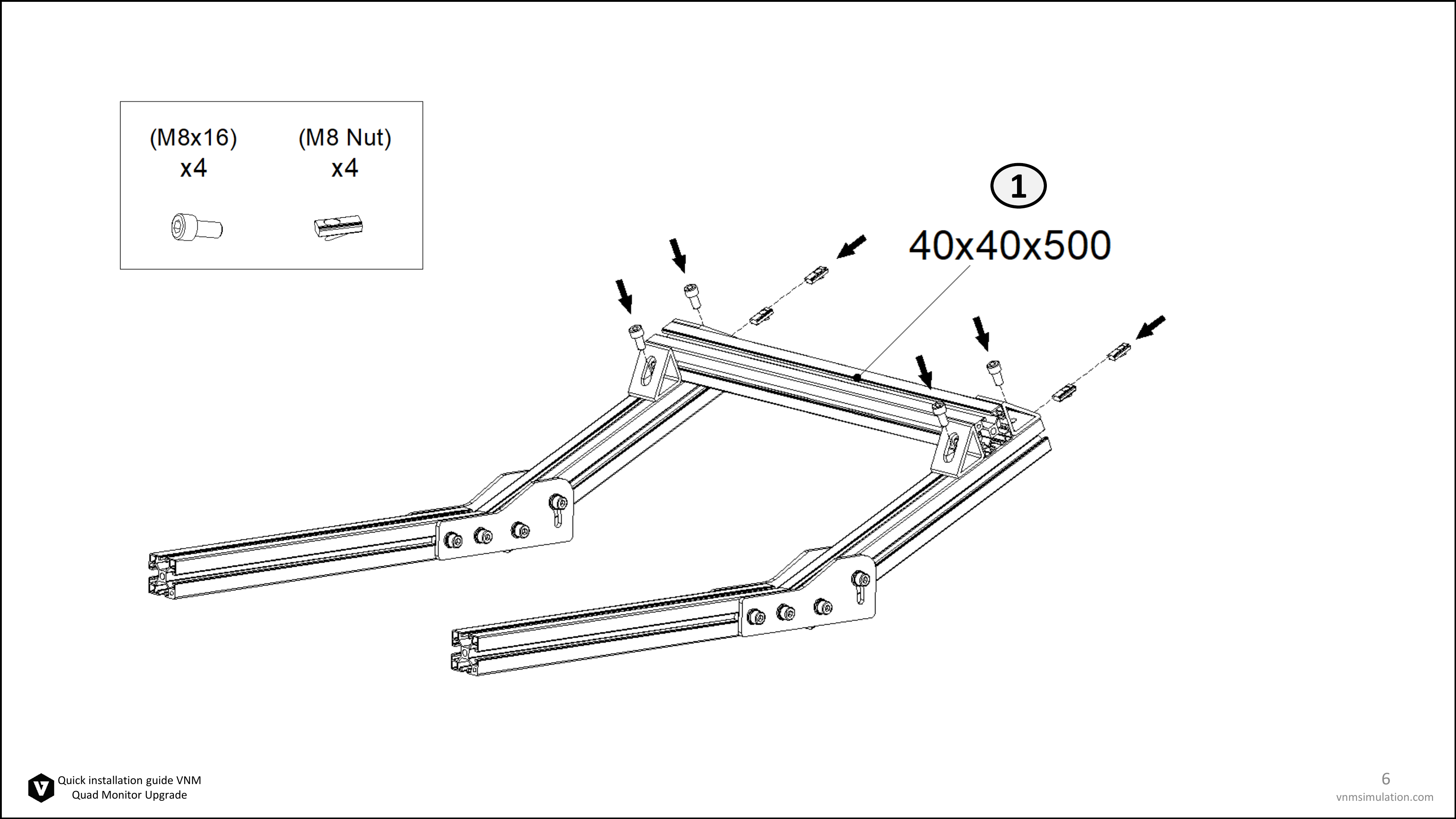

page 07

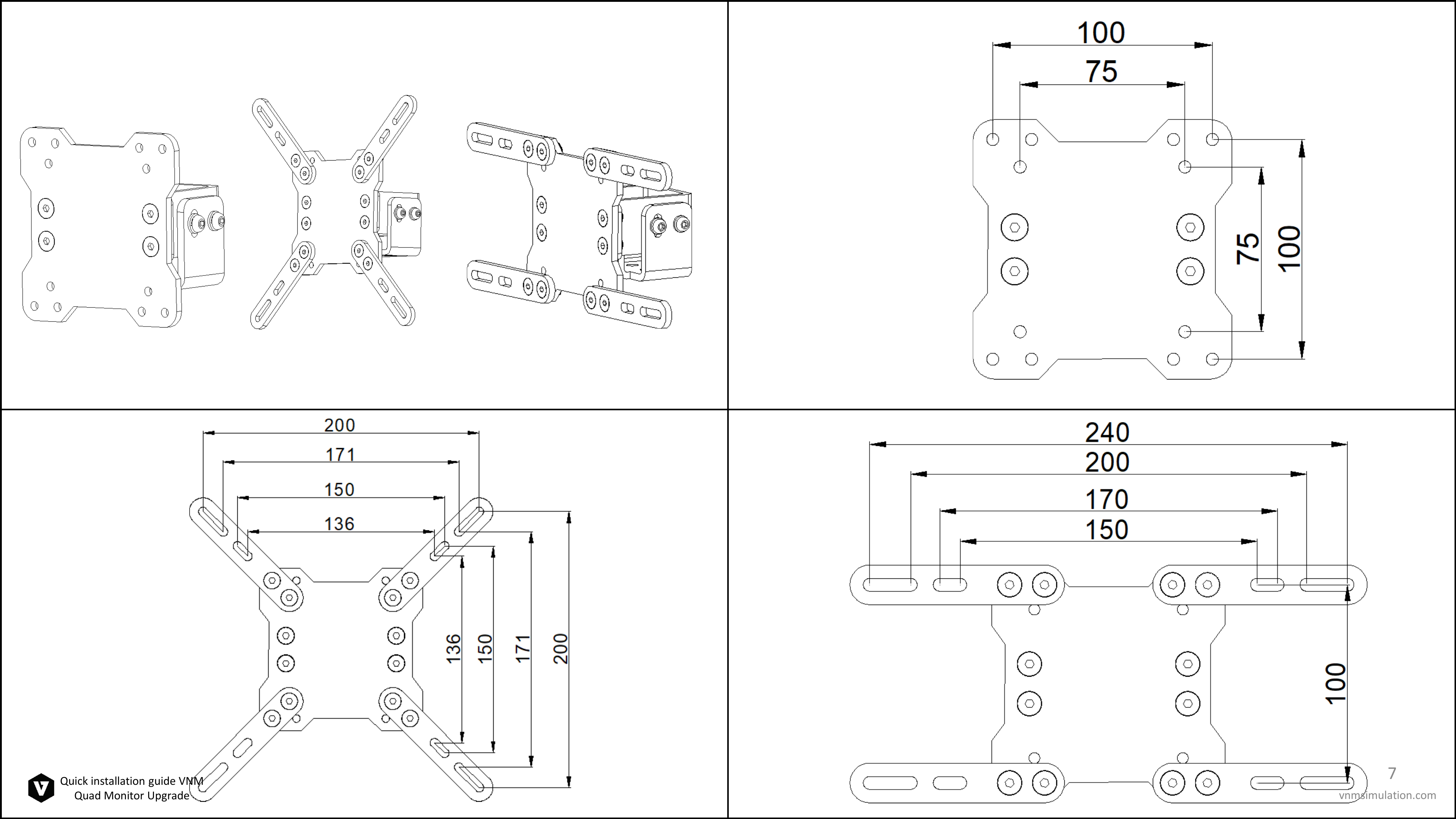

page 08

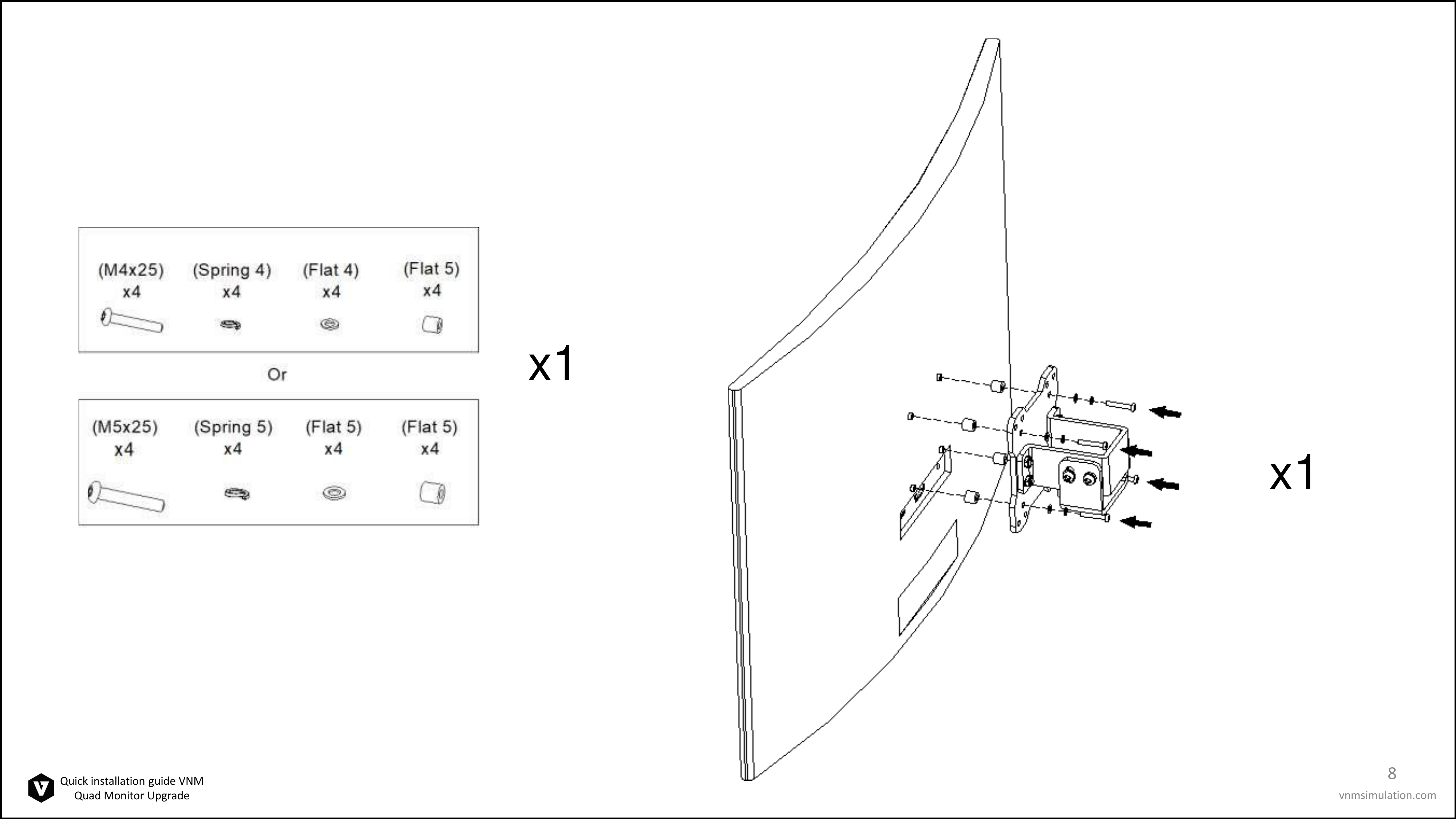

page 09

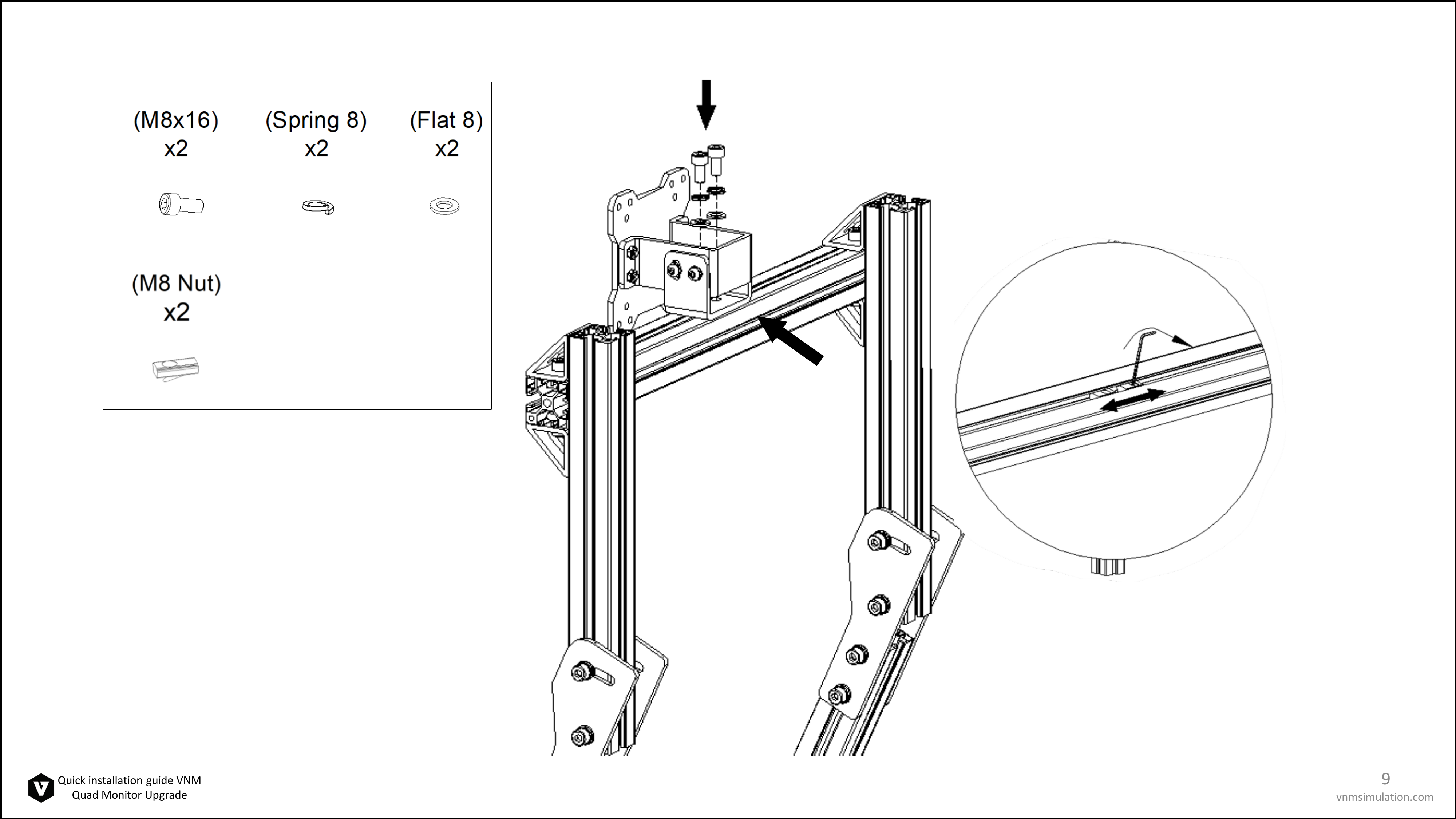

page 10

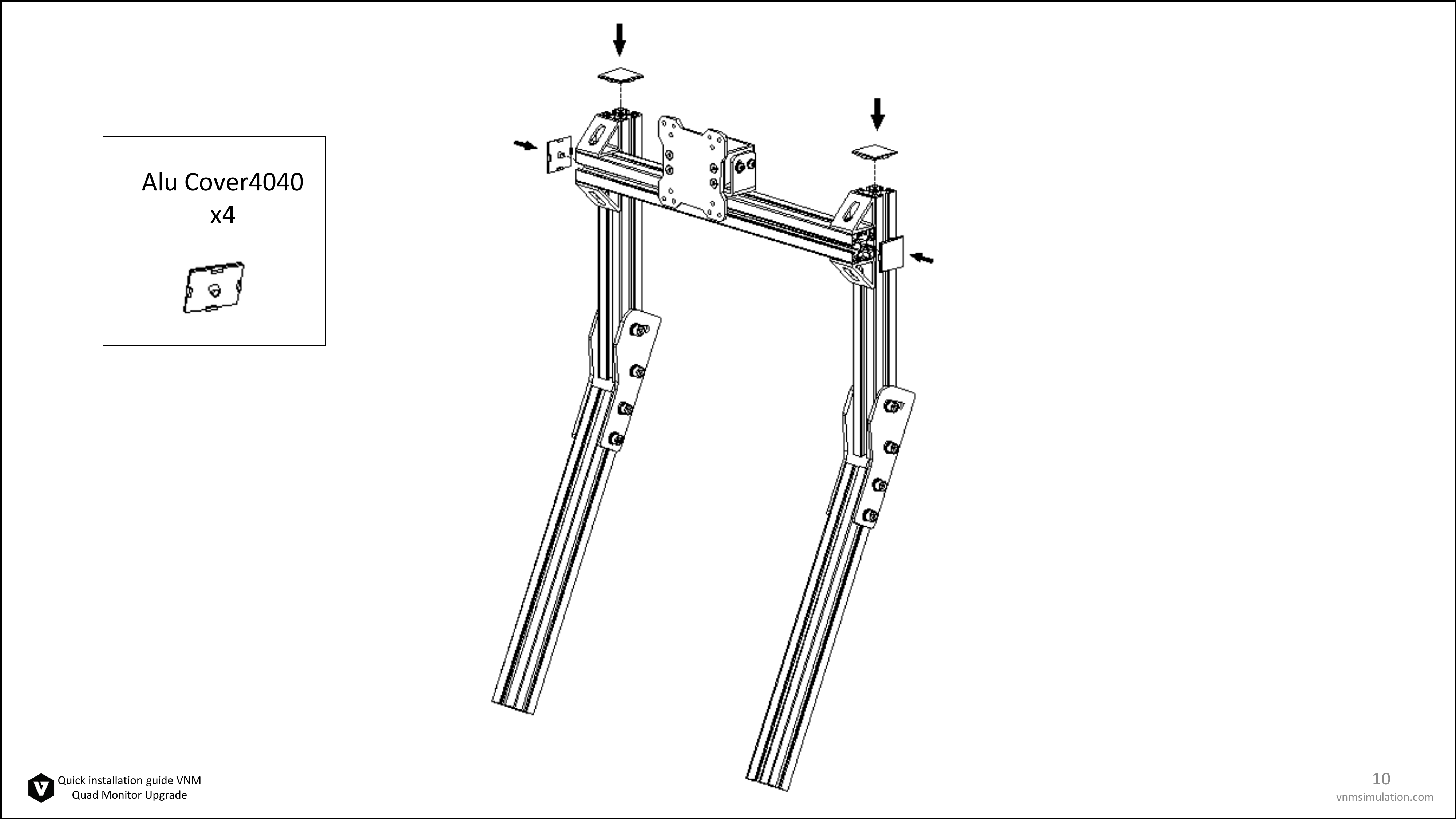

page 11

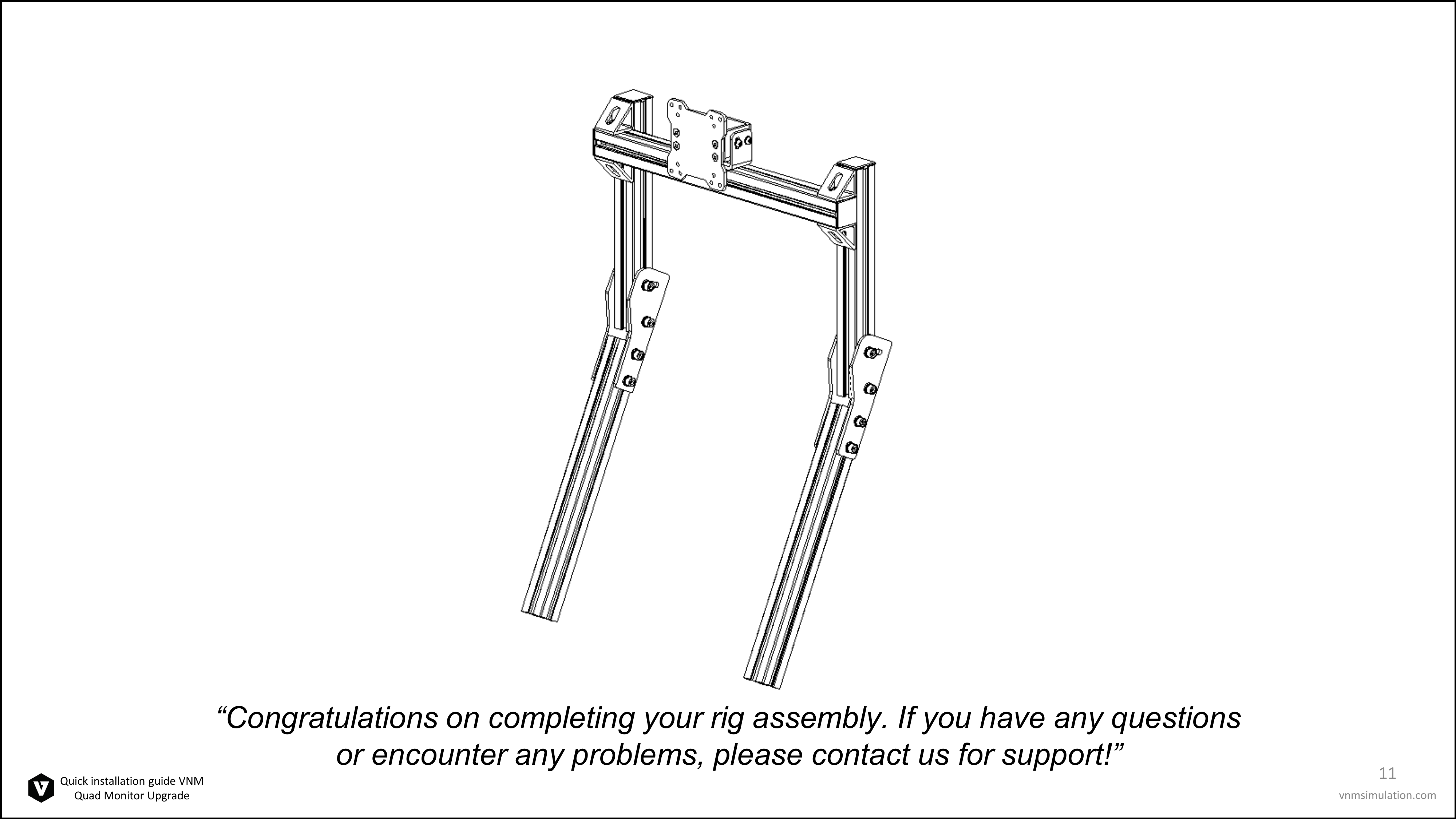

page 12

Download PDF
