VNM 3DOF Motion Kit (4 Actuators)

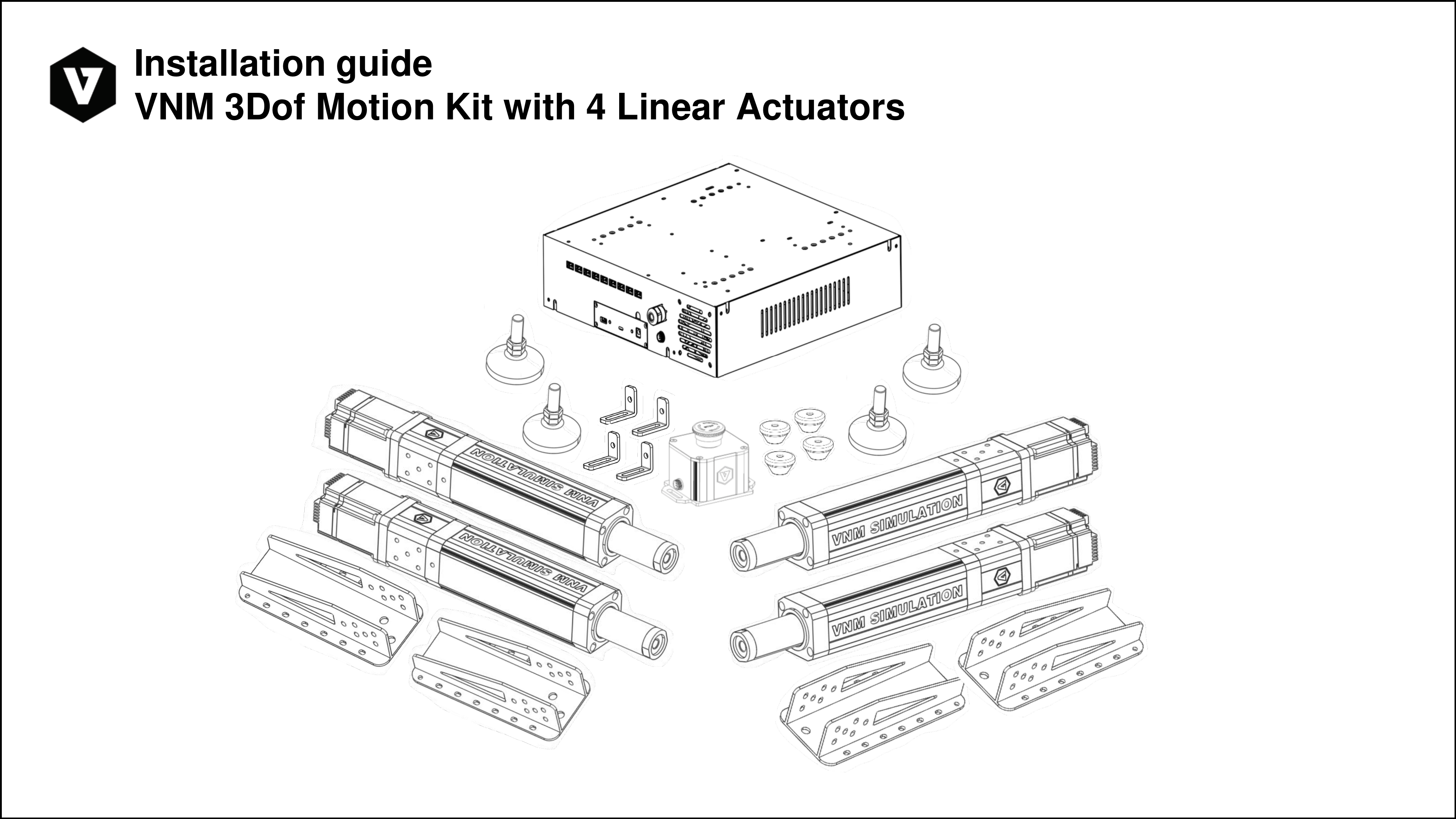

page 01

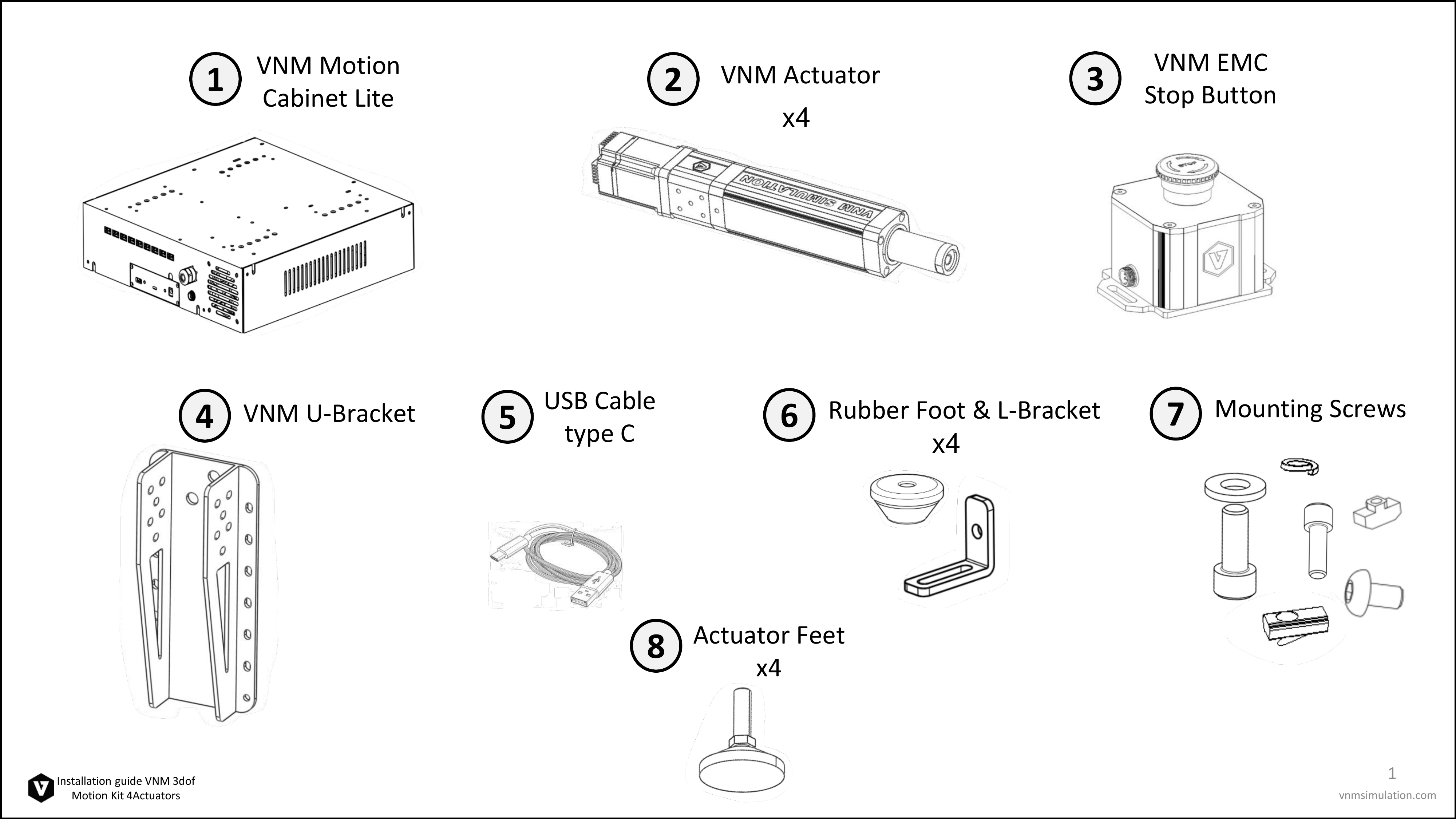

page 02

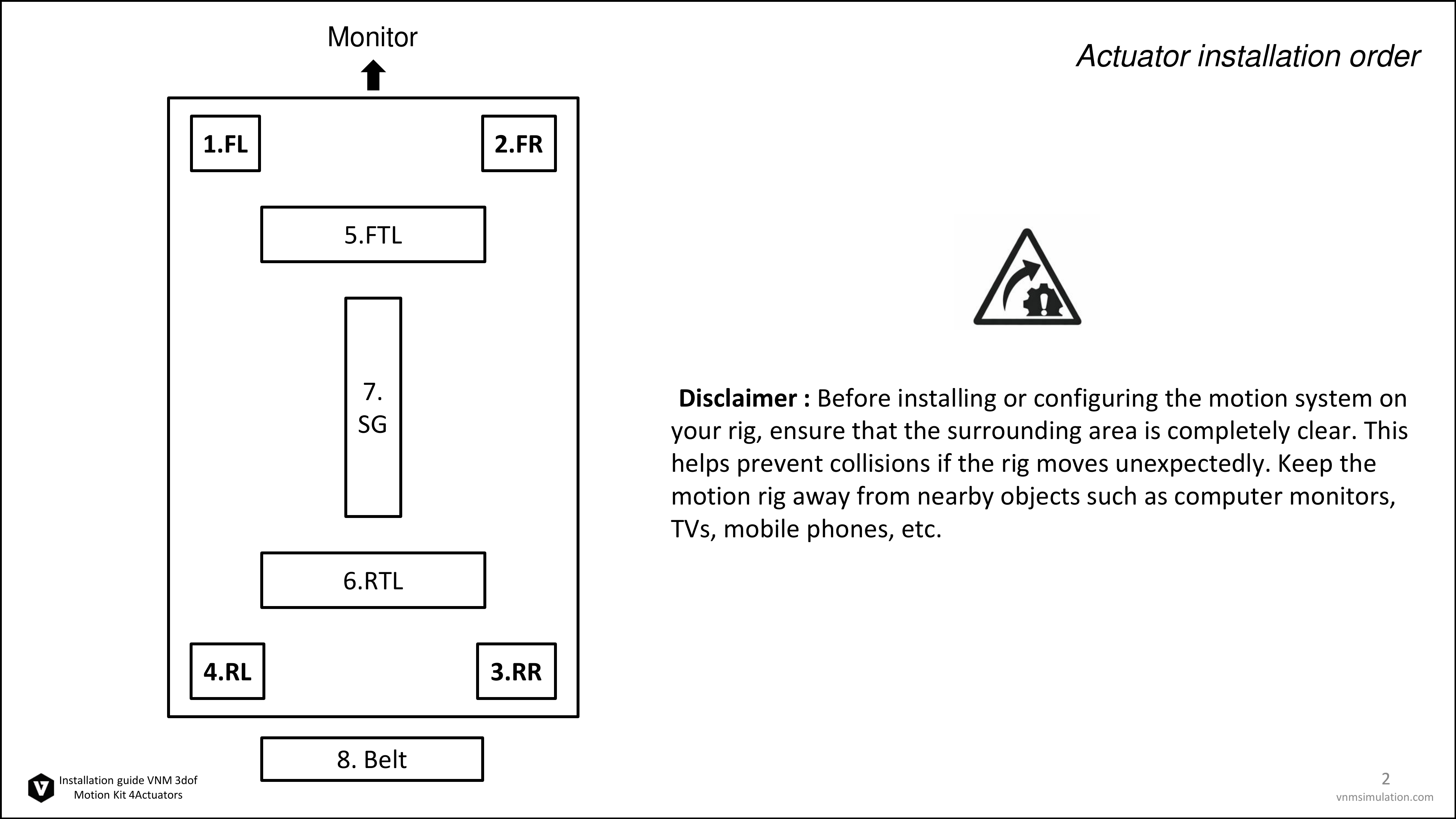

page 03

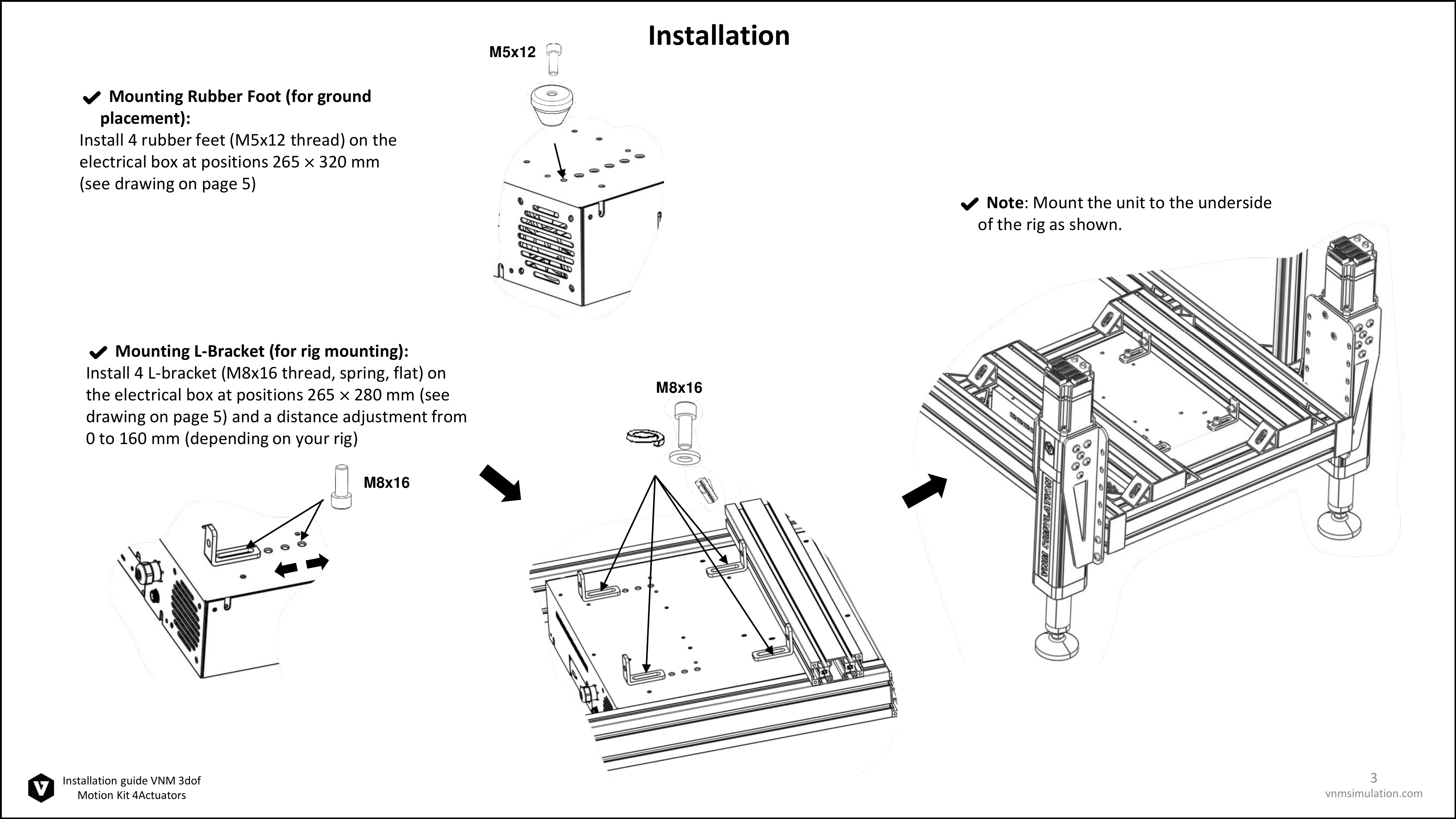

page 04

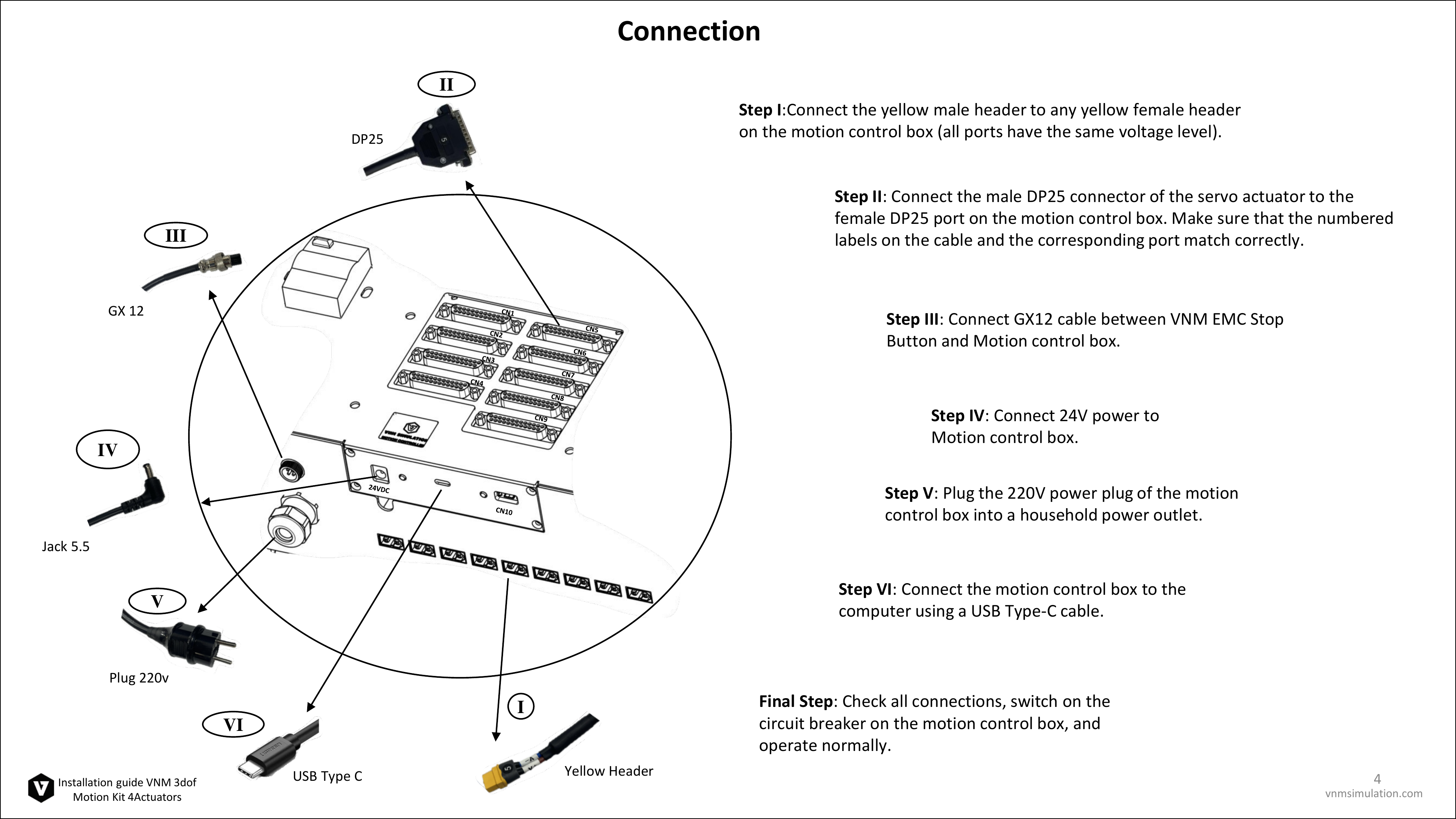

page 05

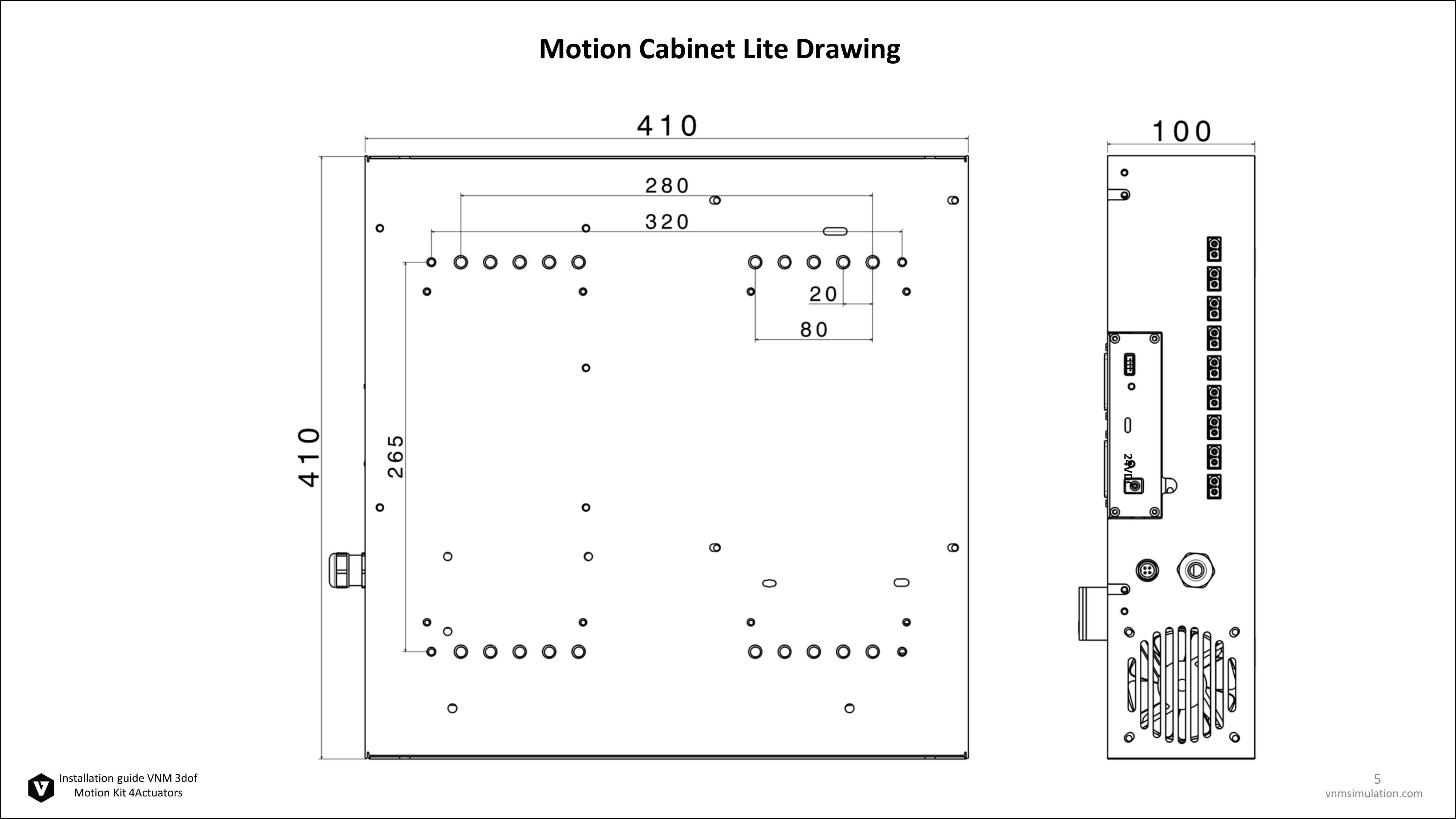

page 06

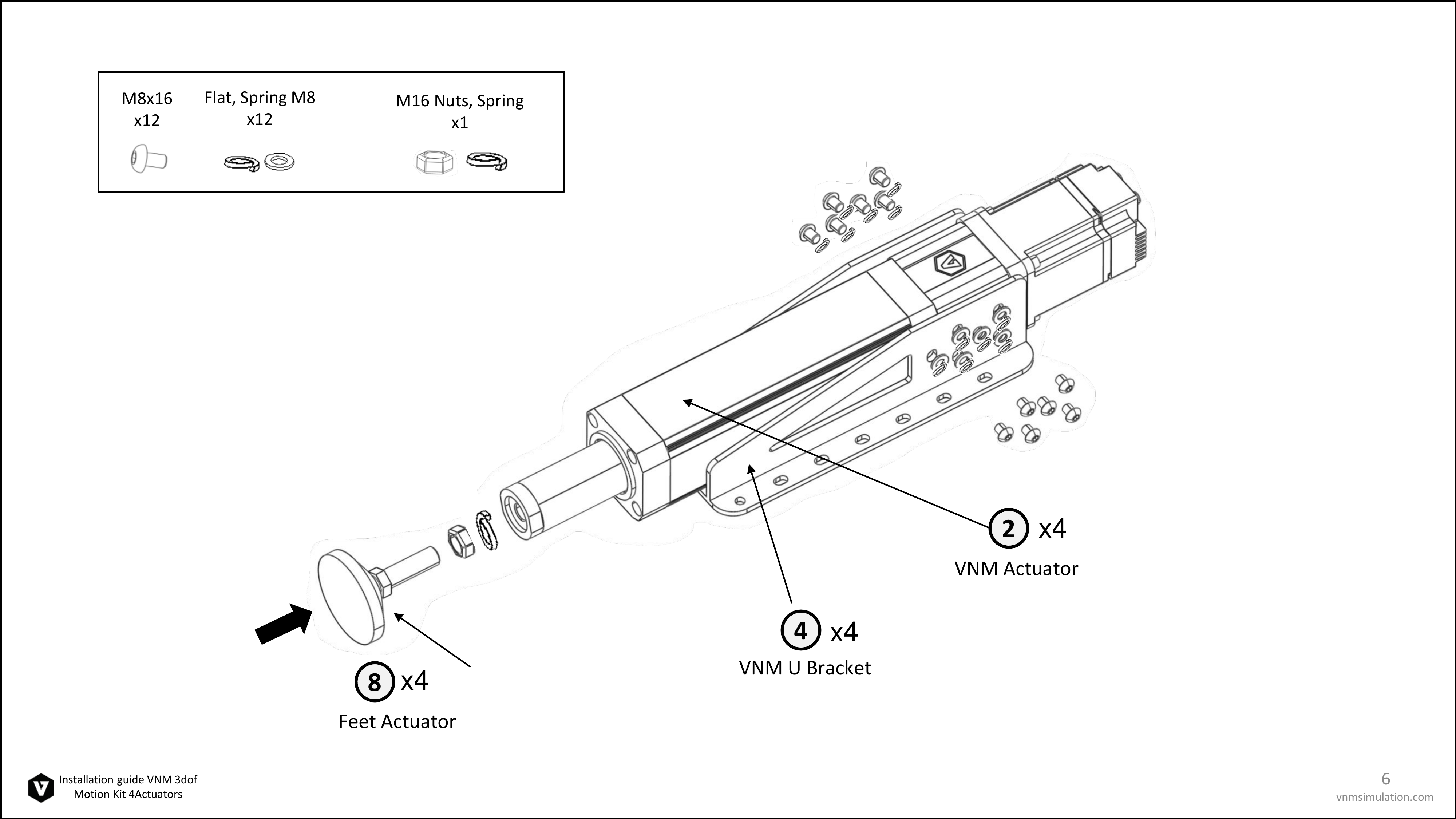

page 07

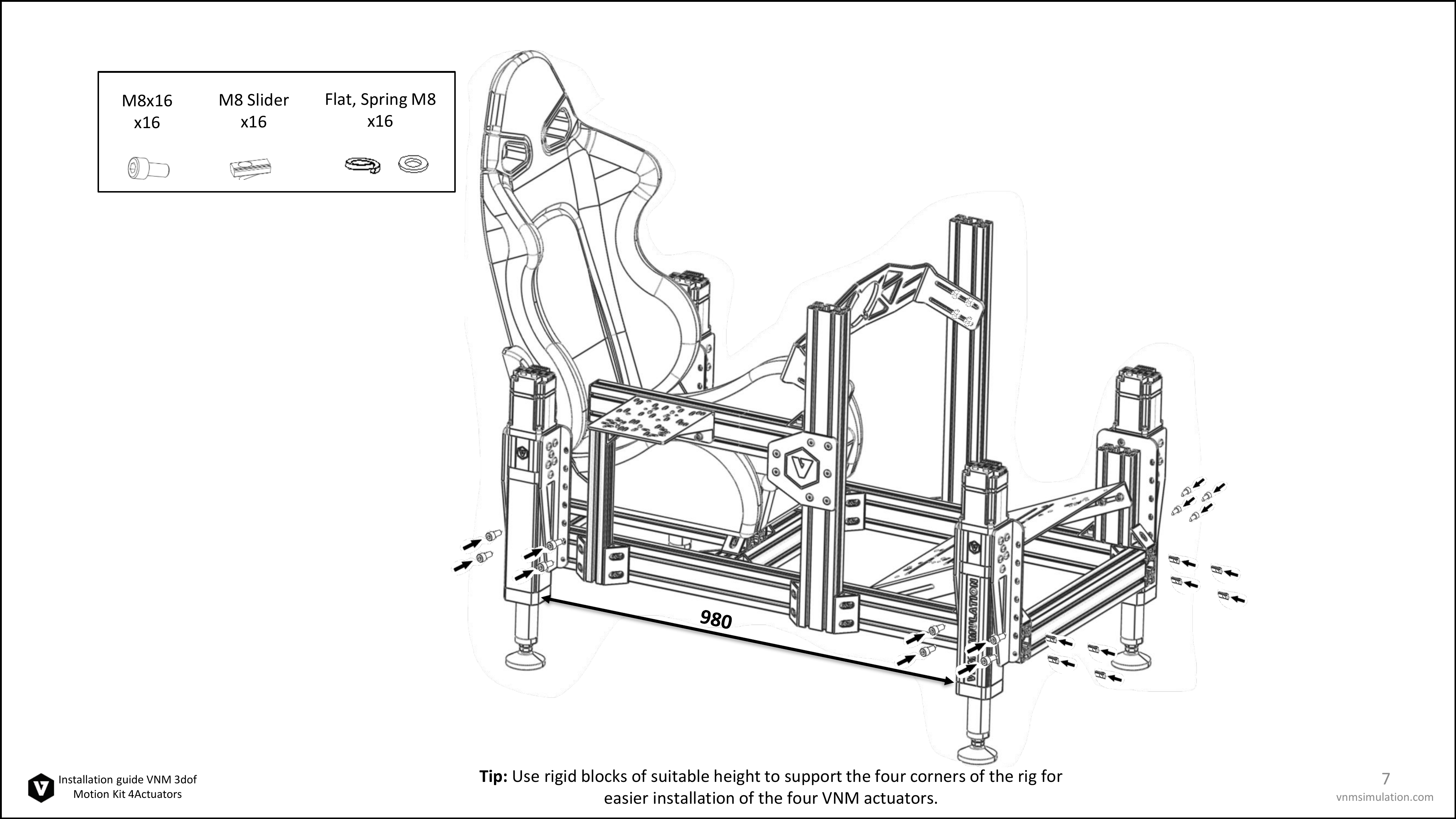

page 08

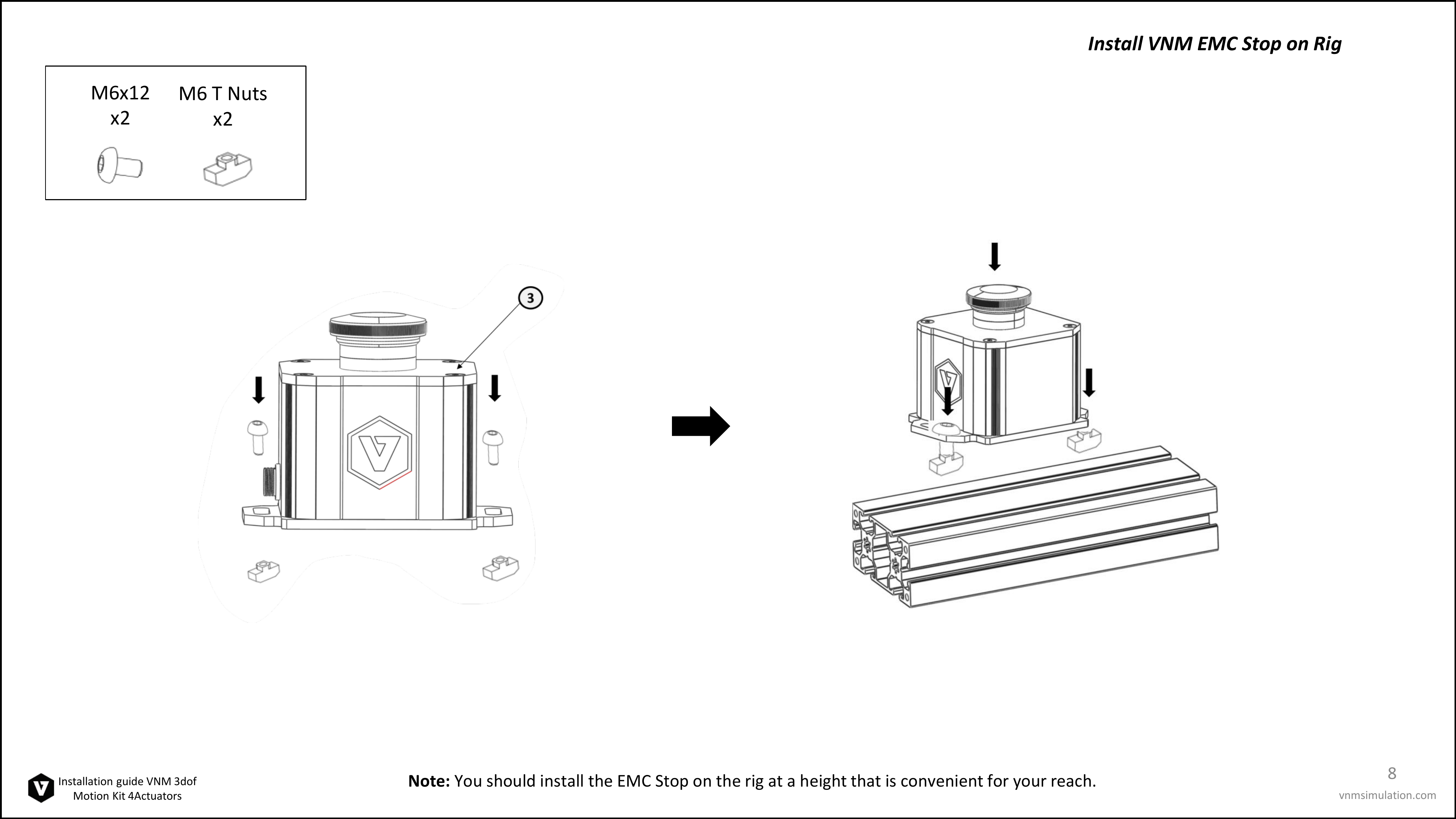

page 09

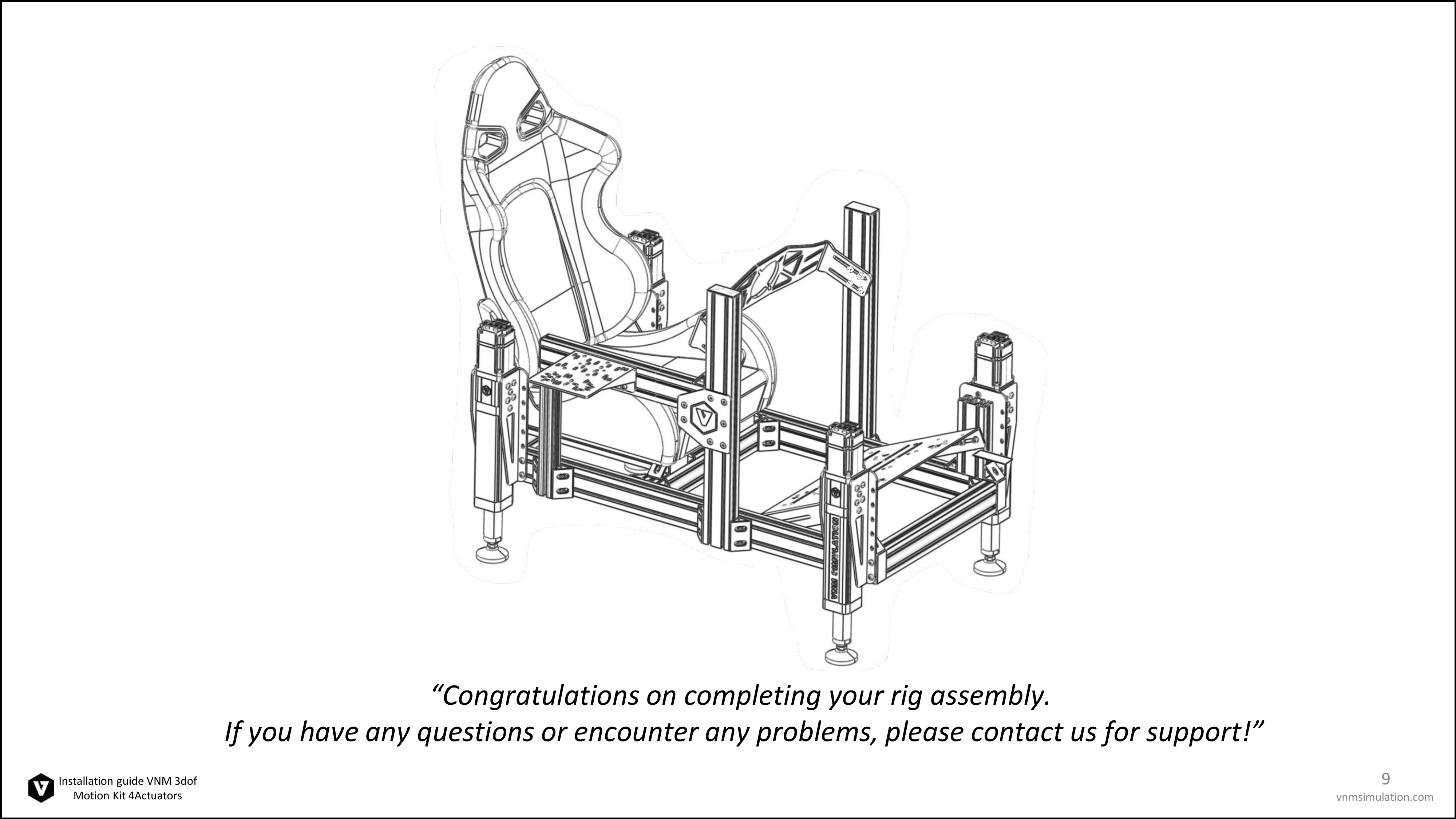

page 10

Download PDF
