VNM Rig 3DOF (4 Actuators)

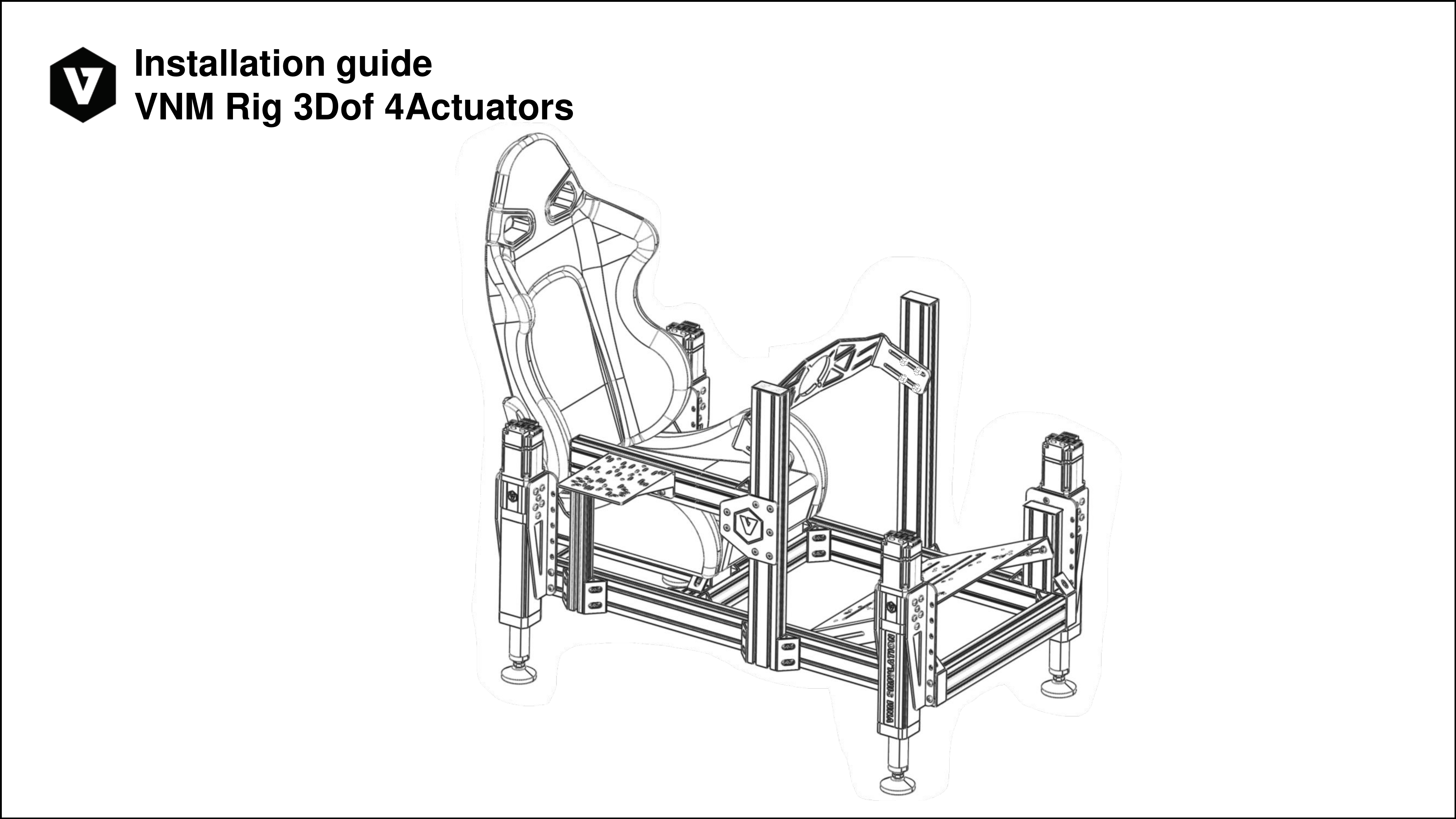

page 01

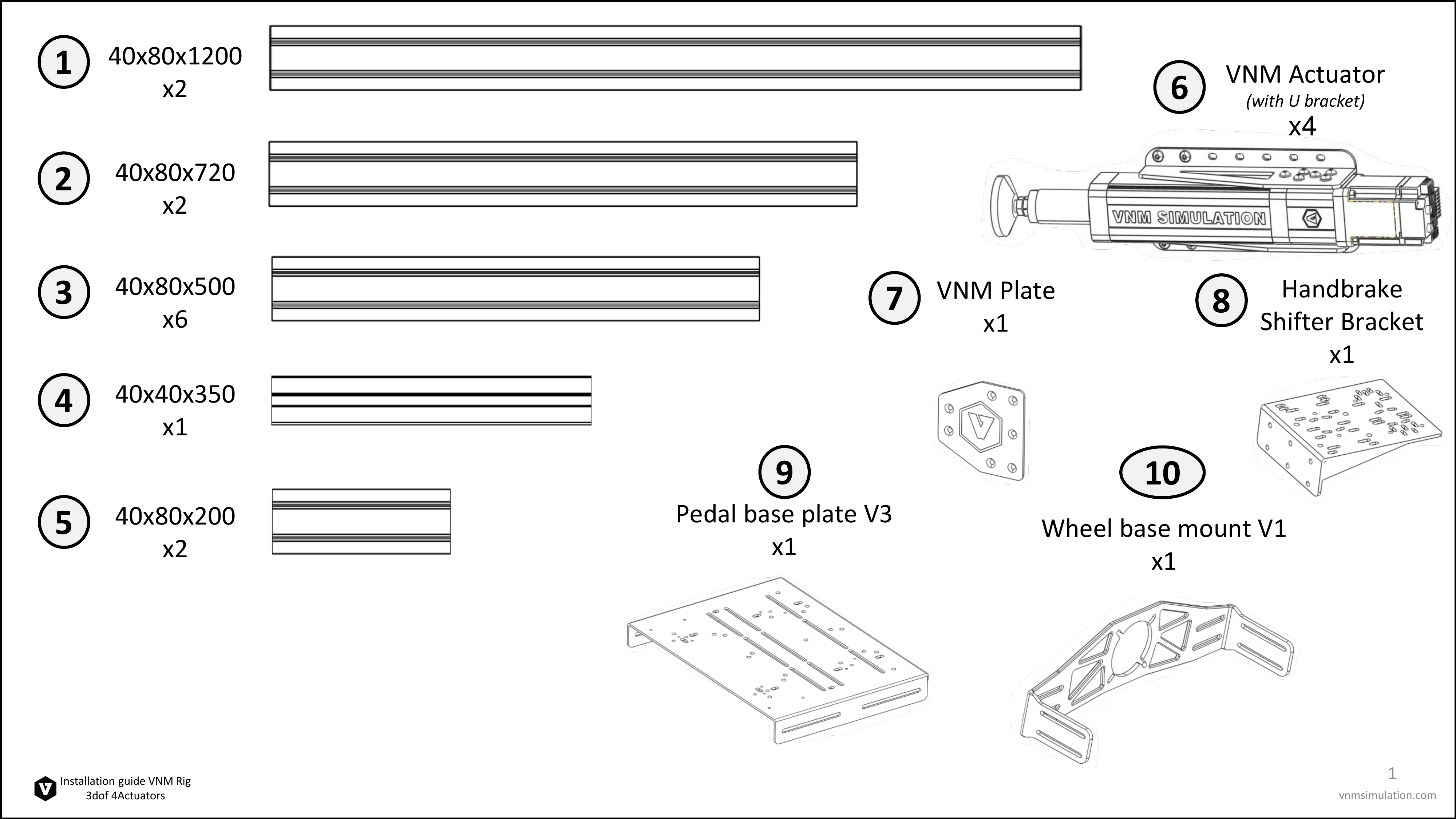

page 02

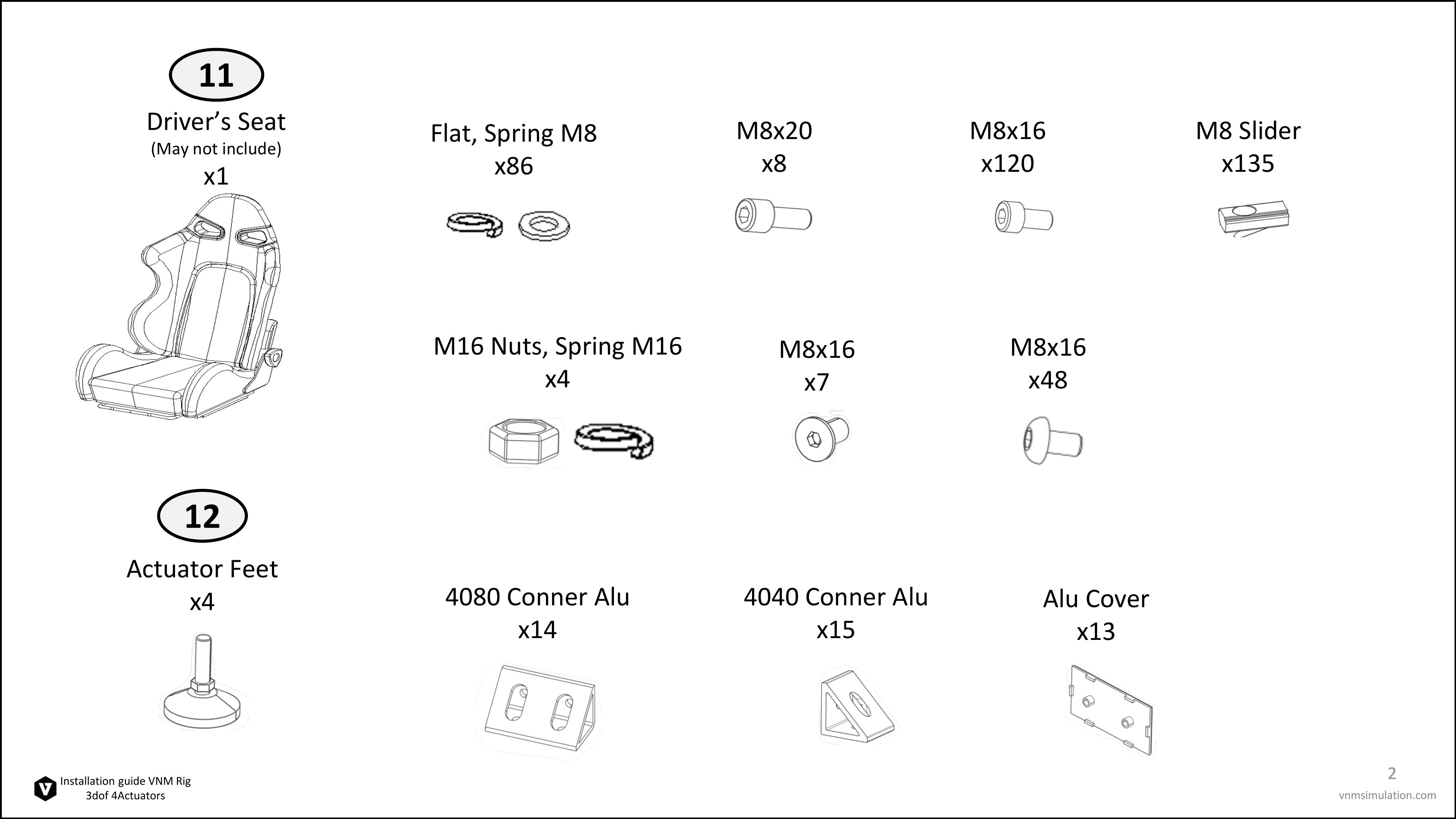

page 03

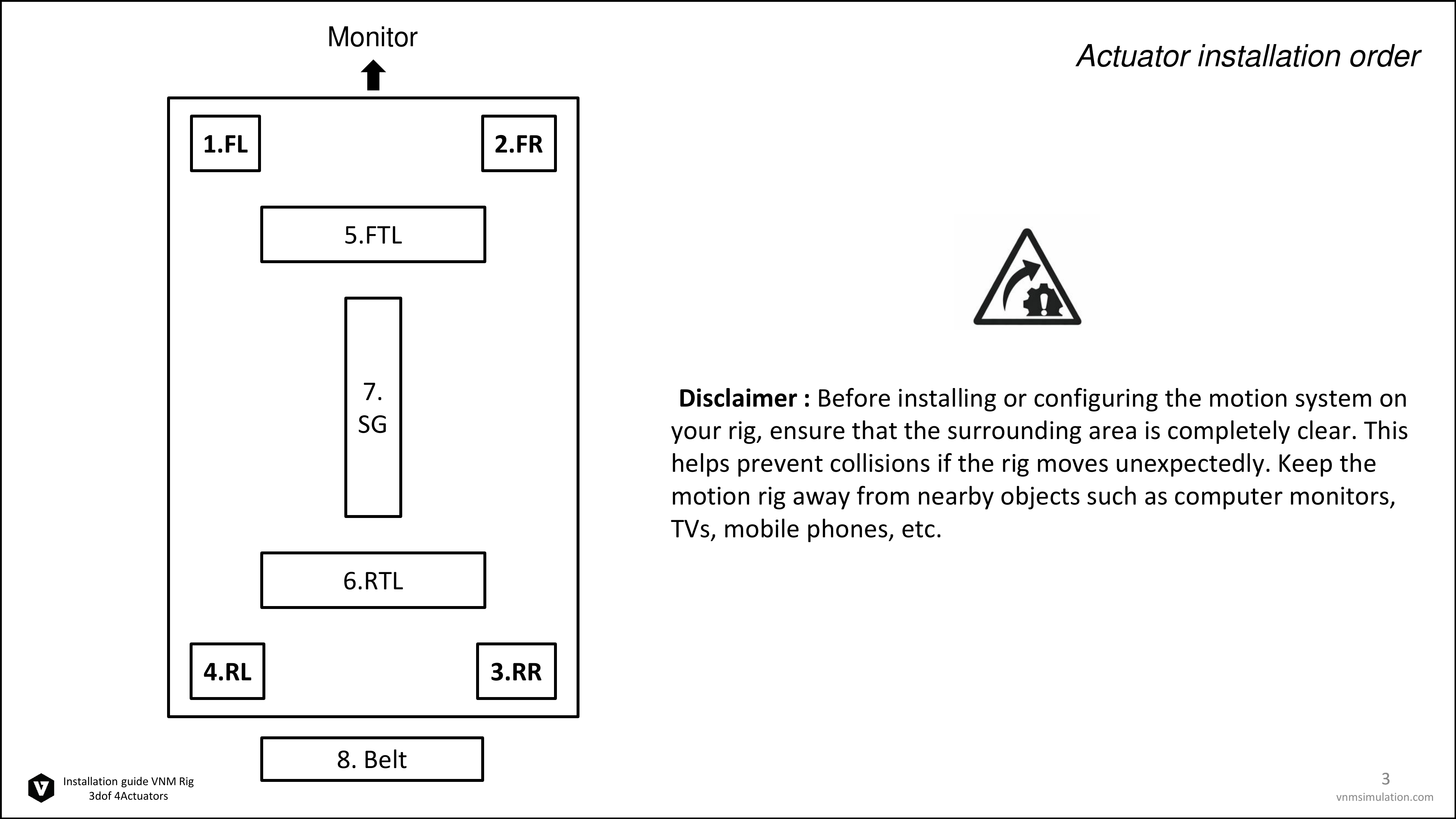

page 04

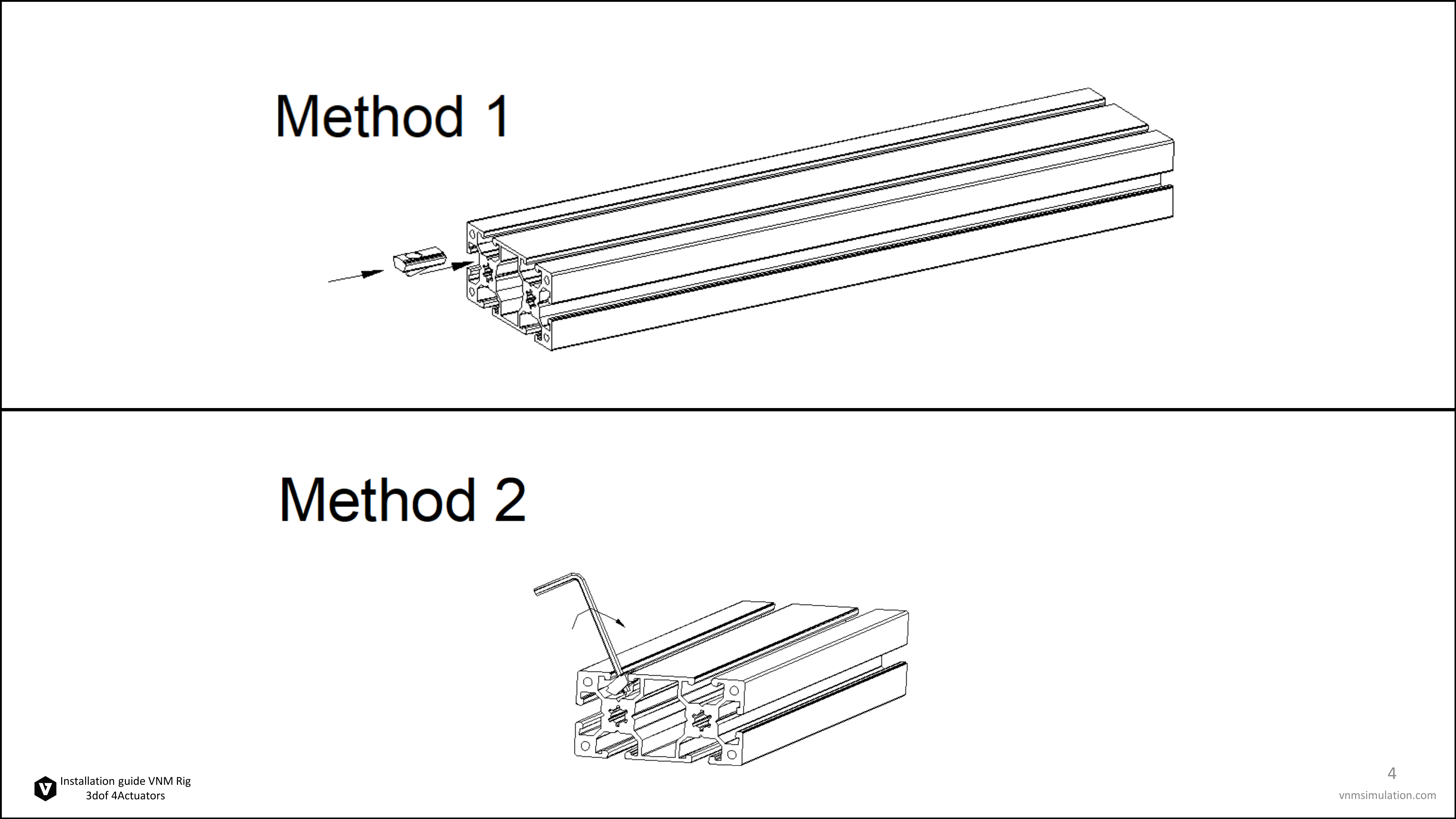

page 05

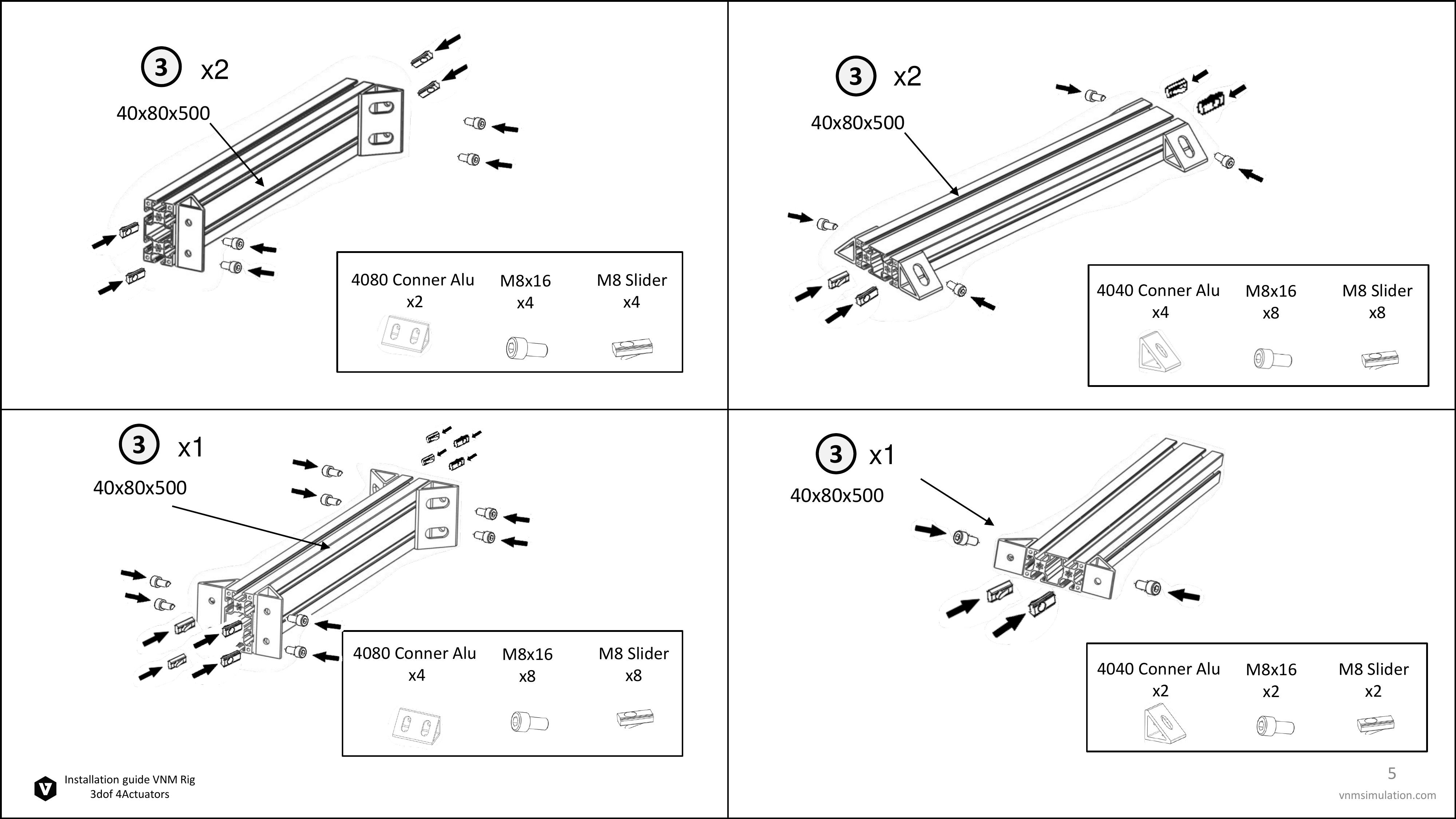

page 06

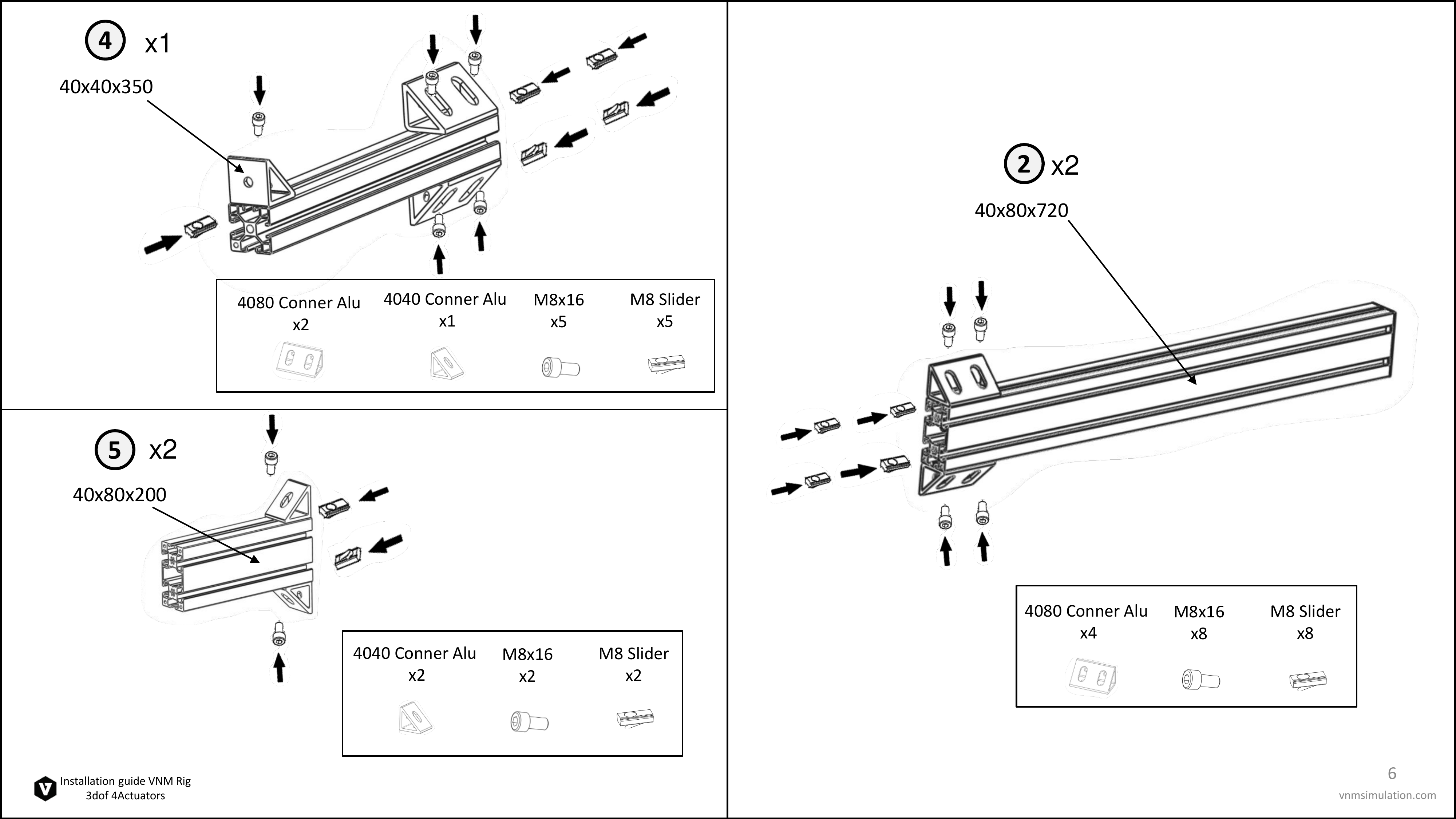

page 07

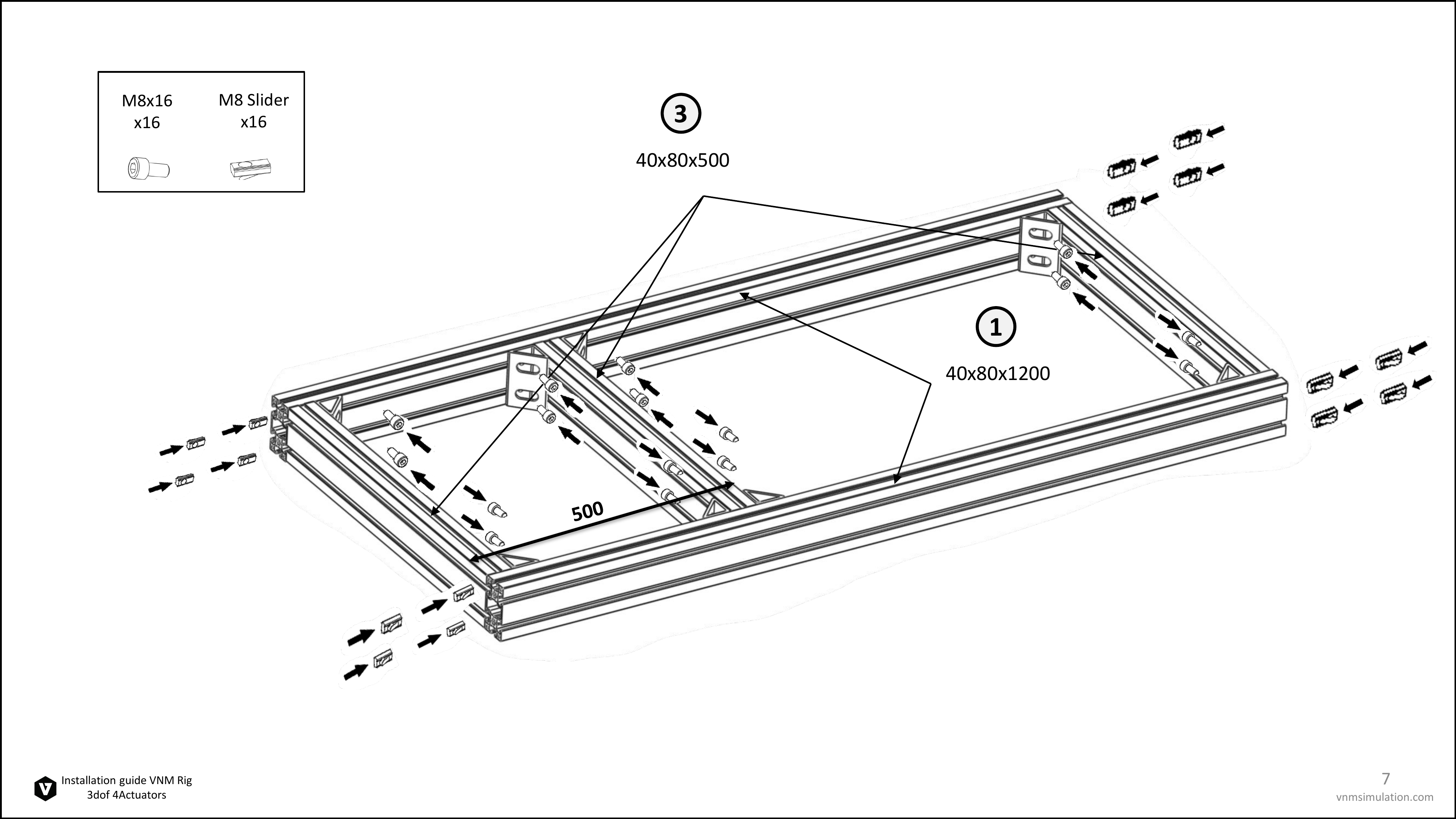

page 08

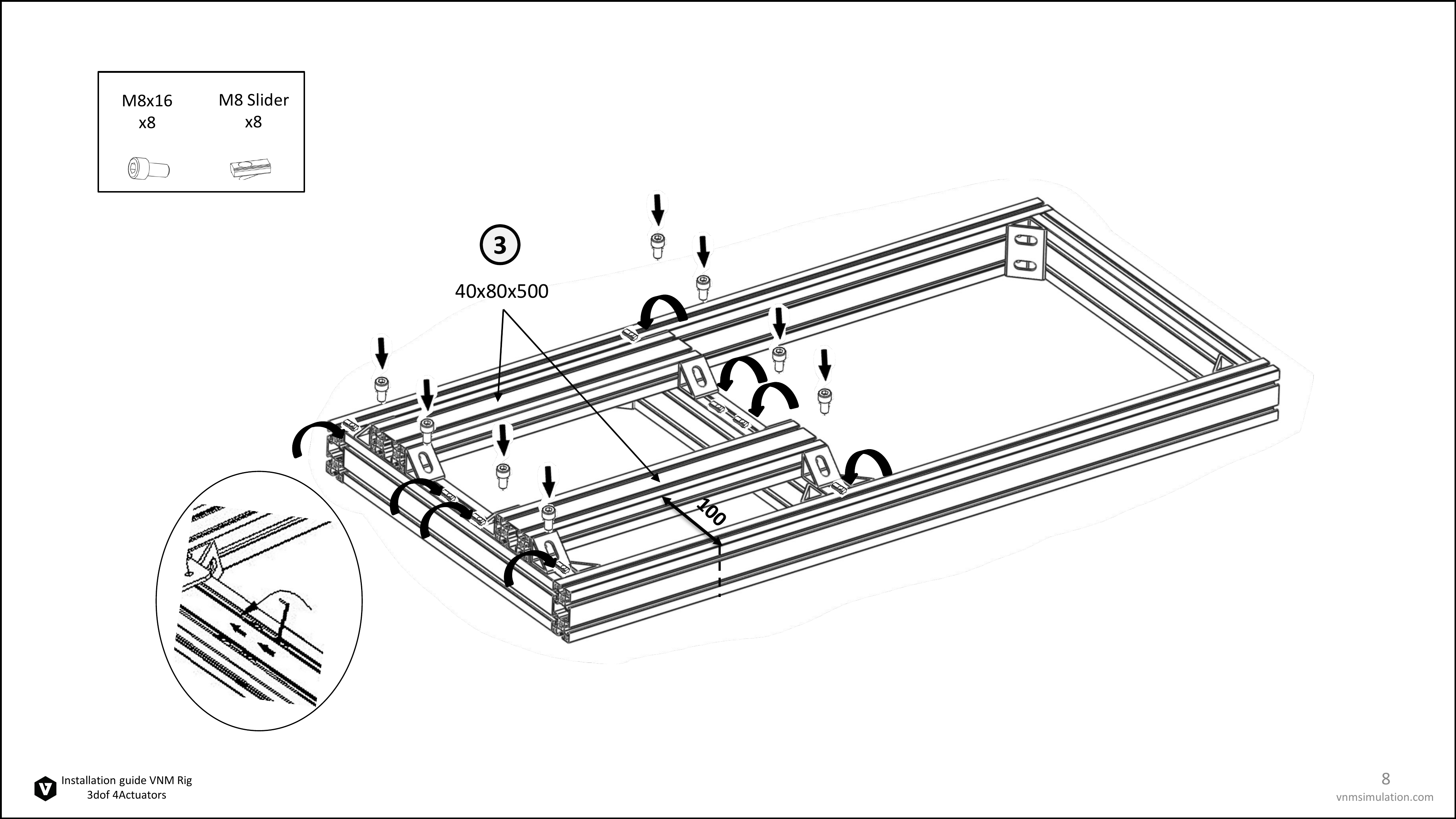

page 09

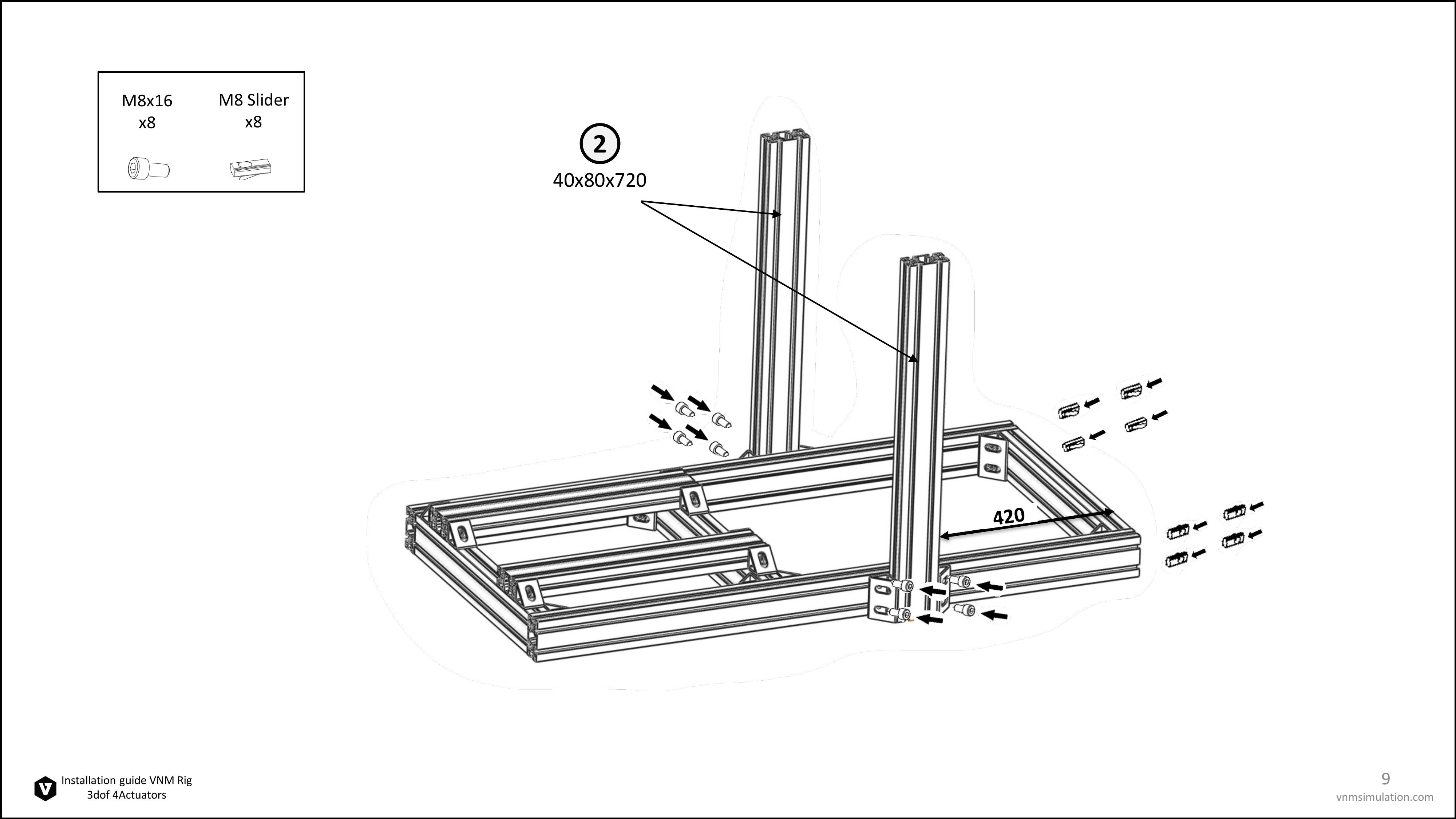

page 10

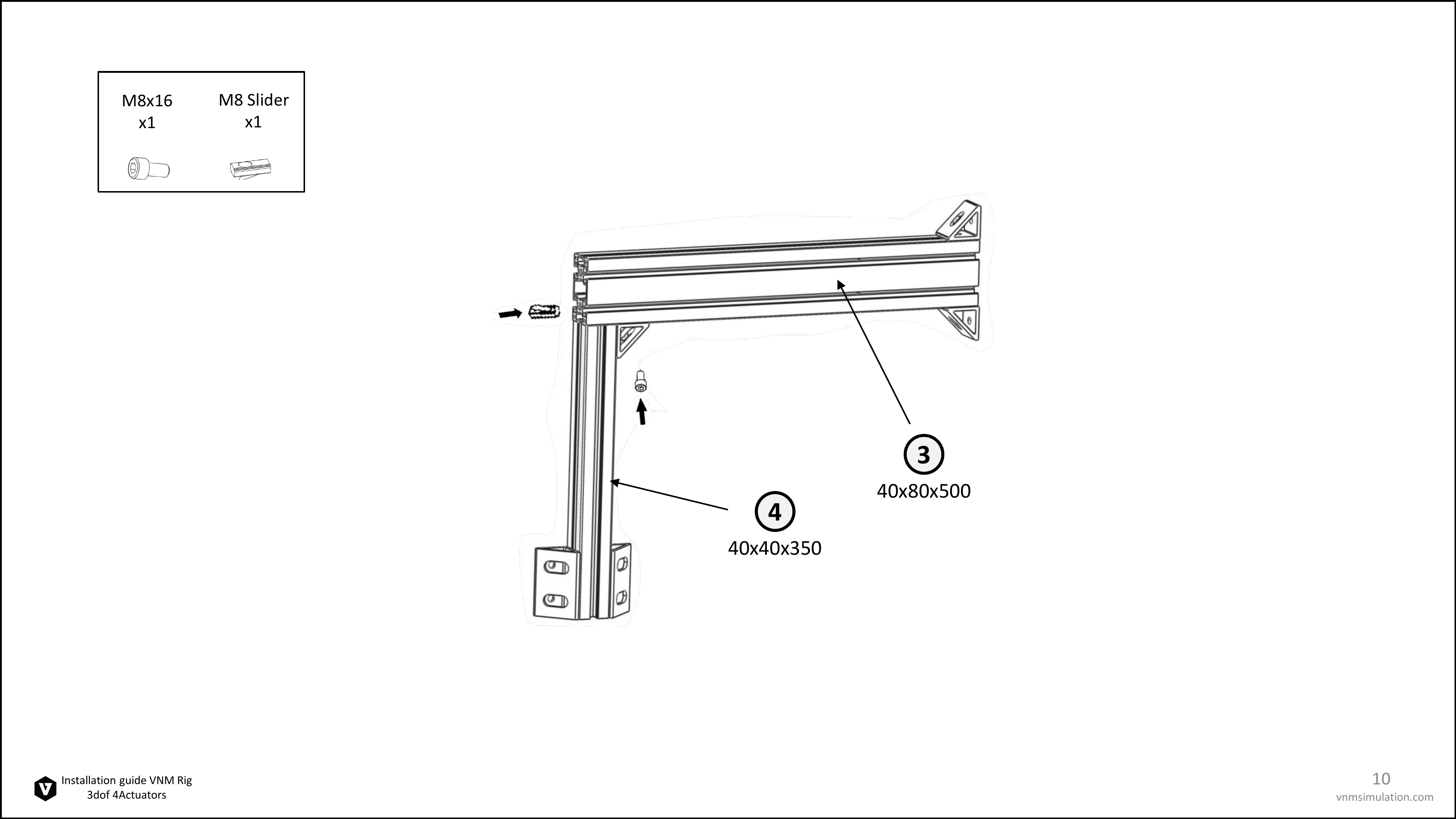

page 11

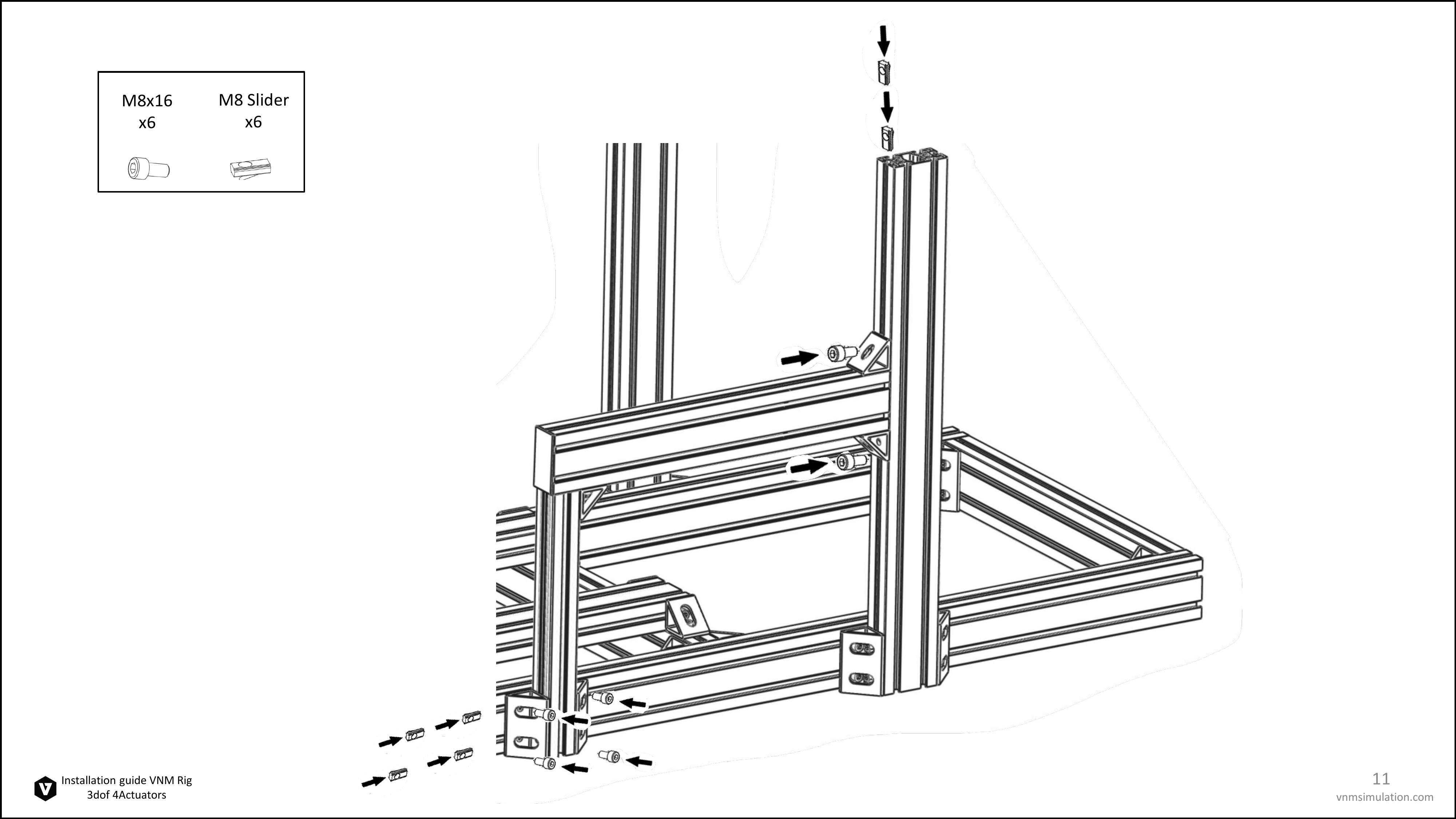

page 12

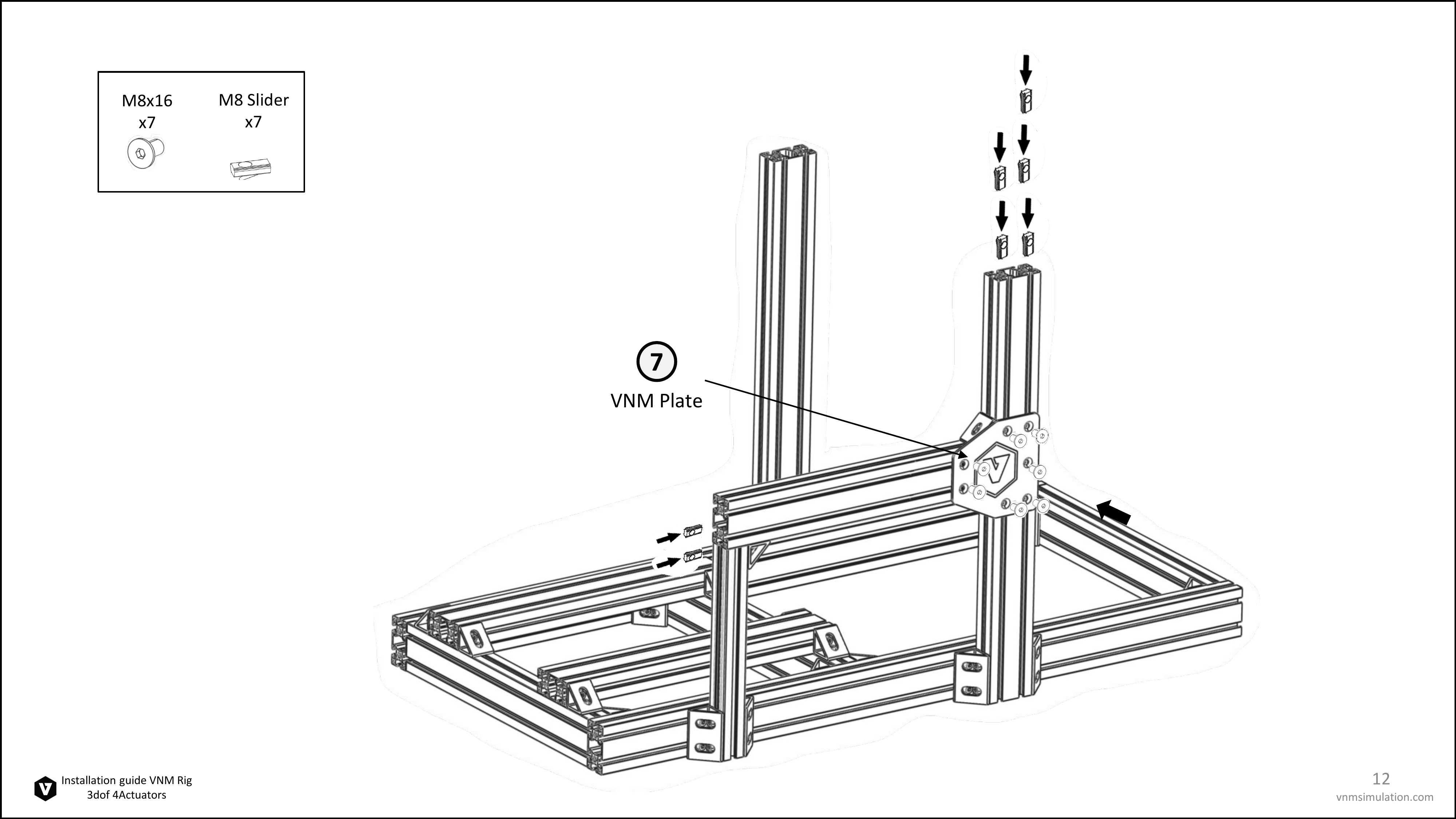

page 13

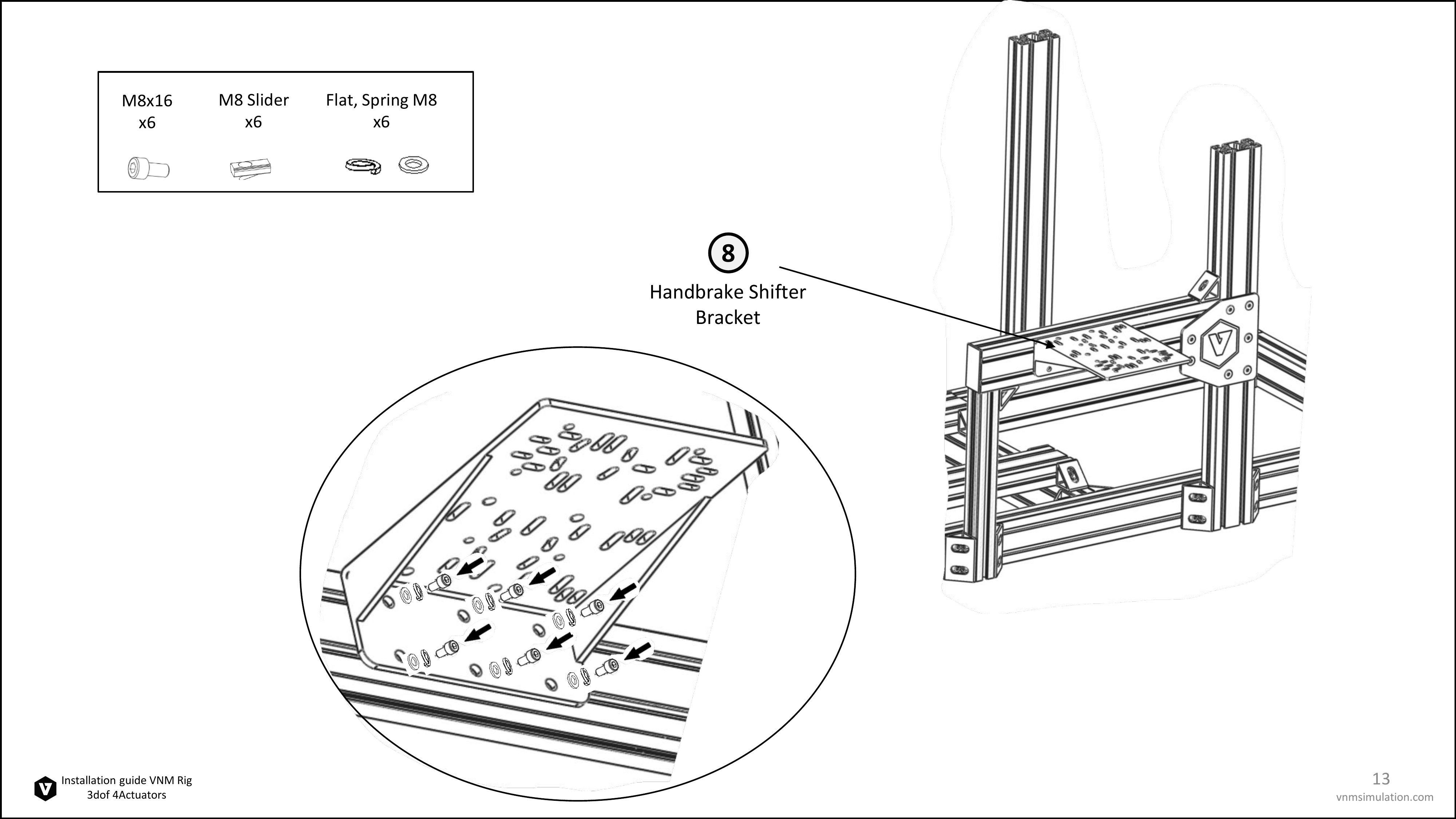

page 14

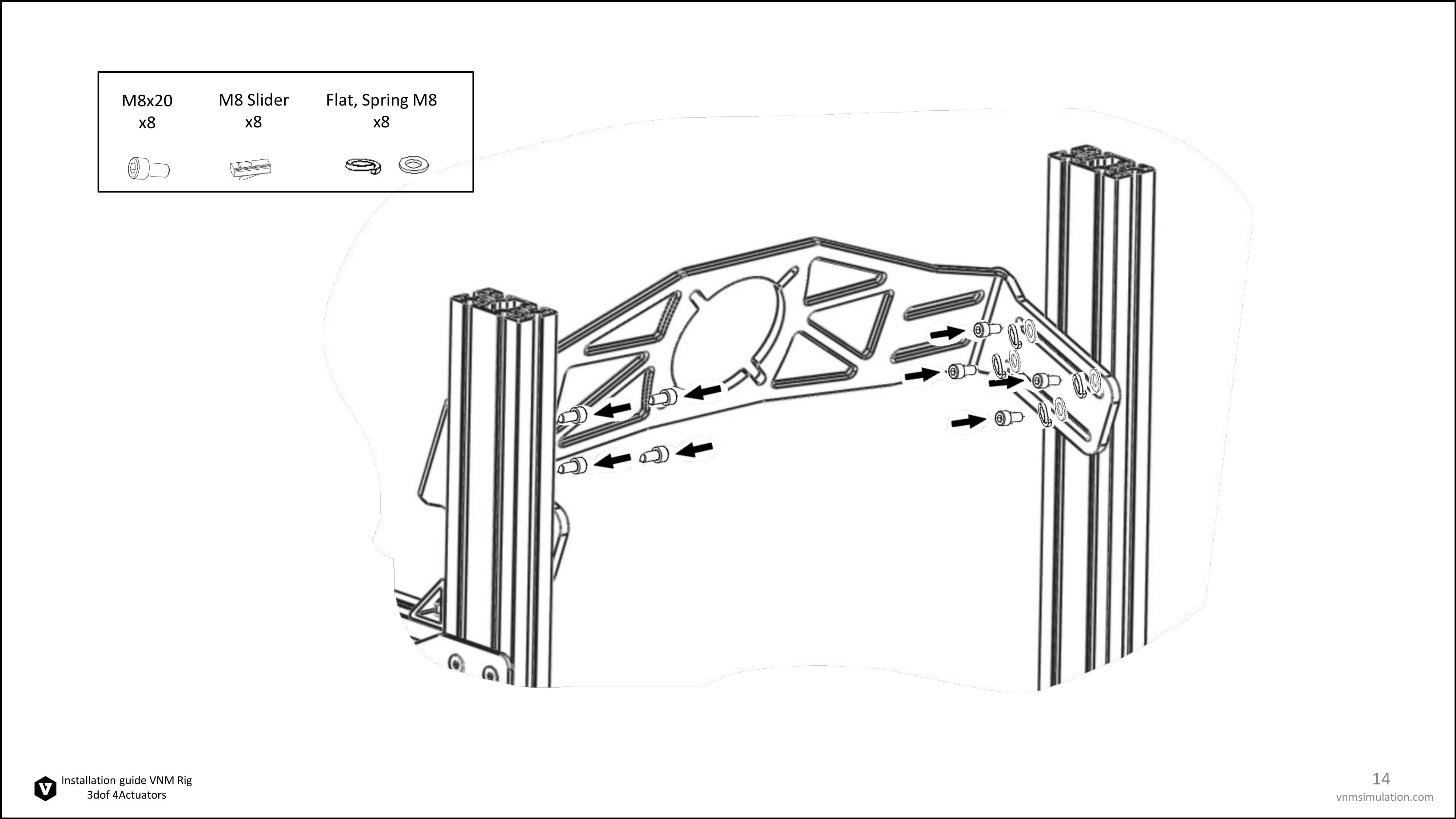

page 15

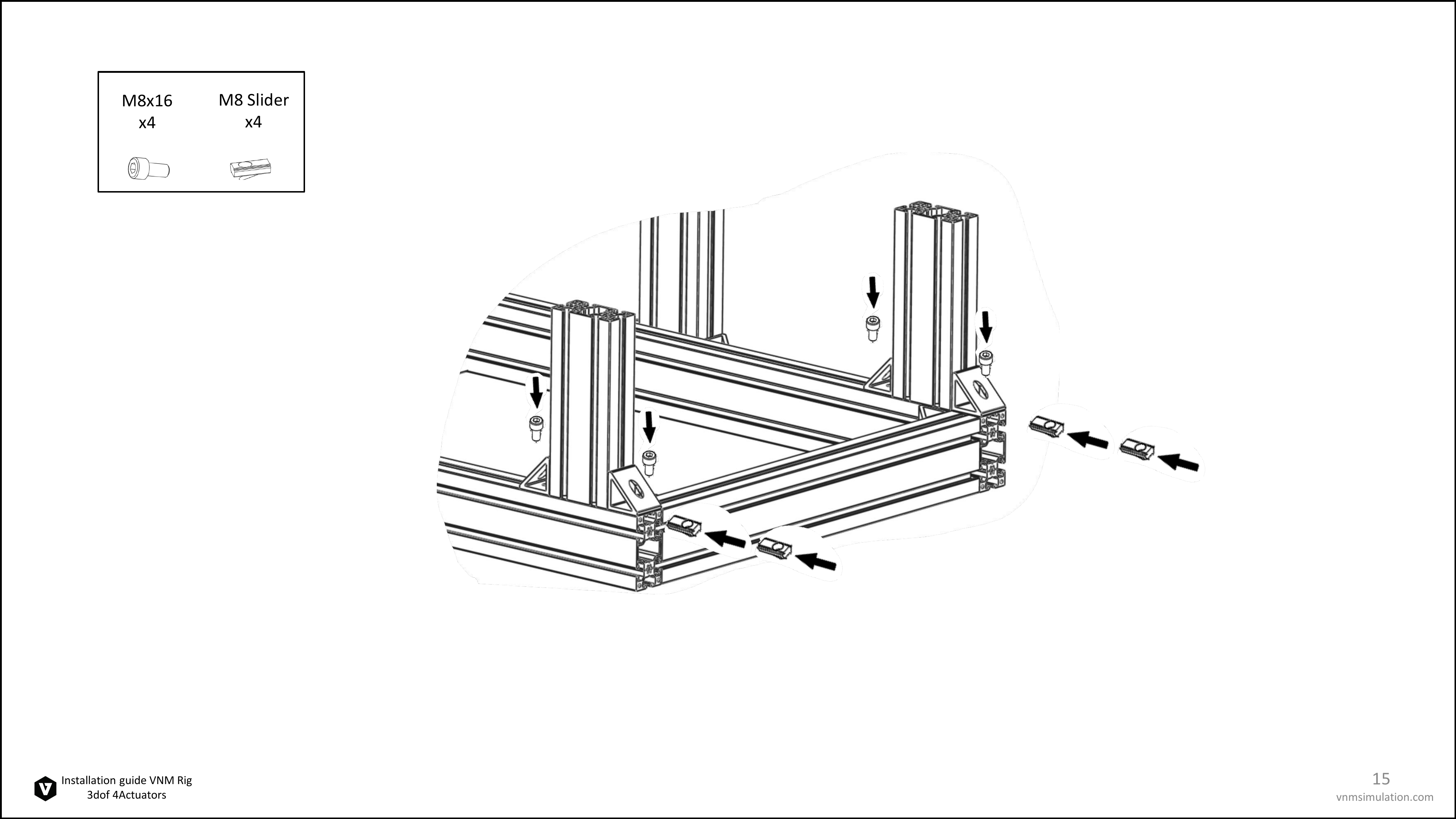

page 16

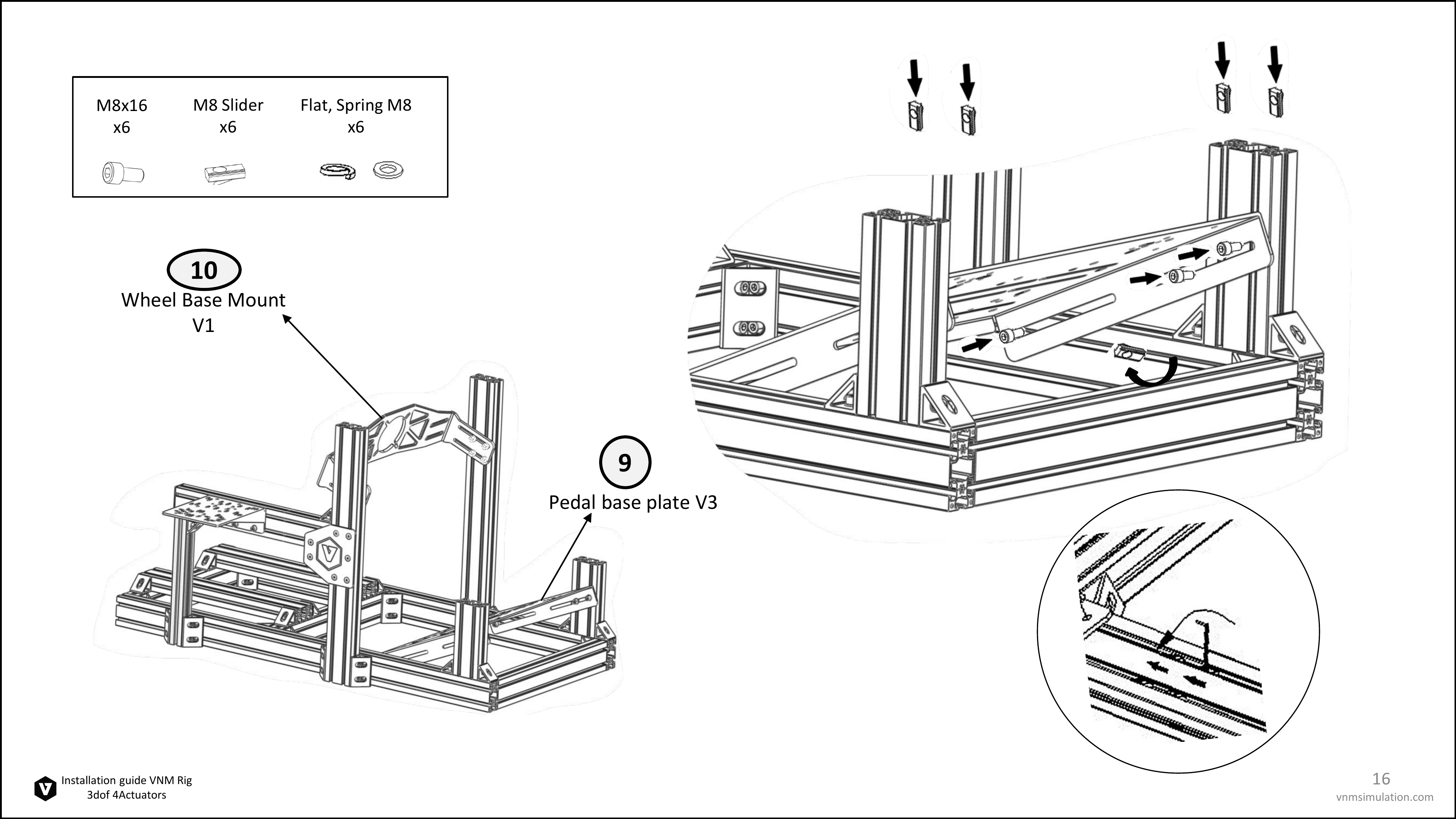

page 17

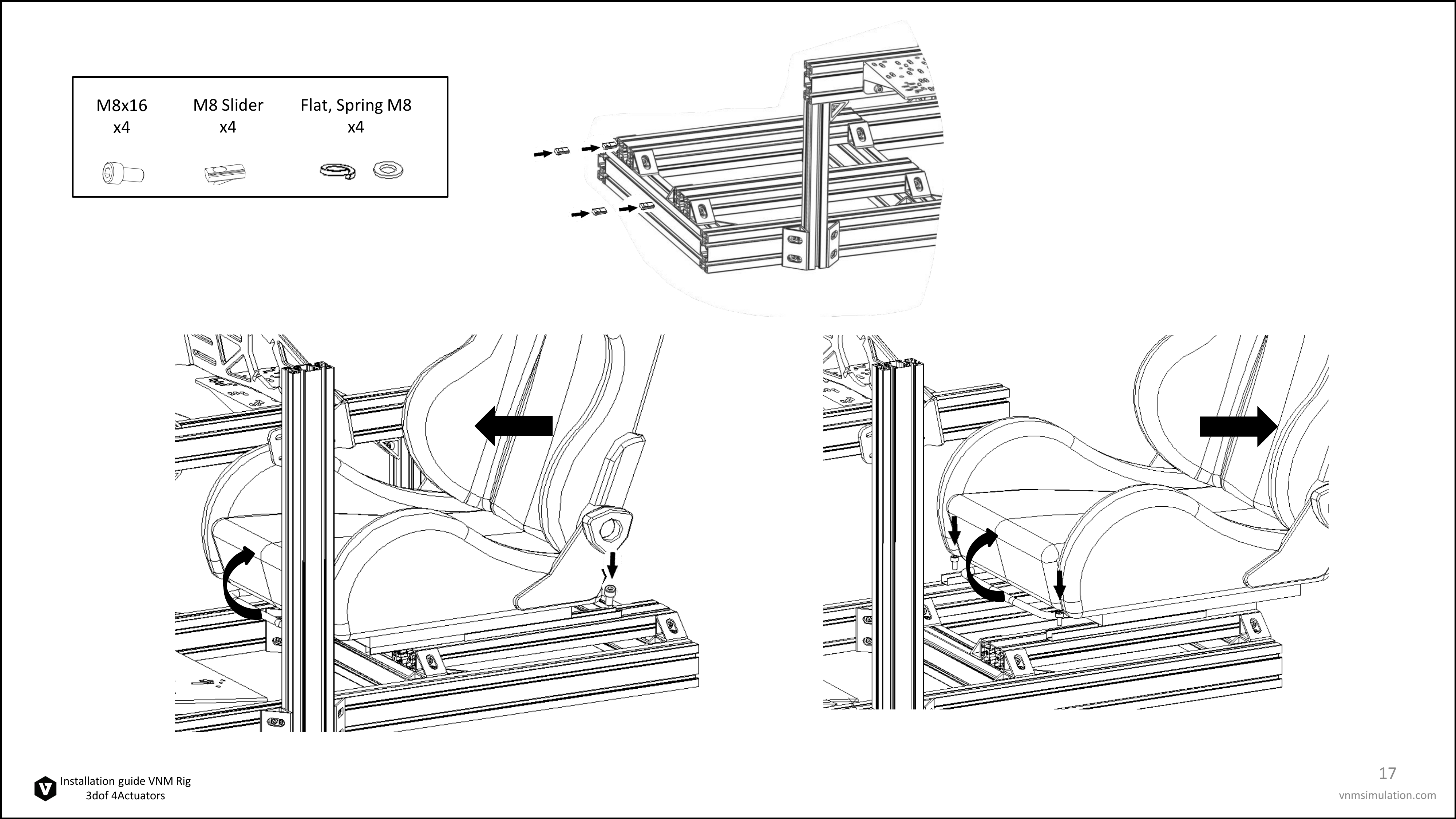

page 18

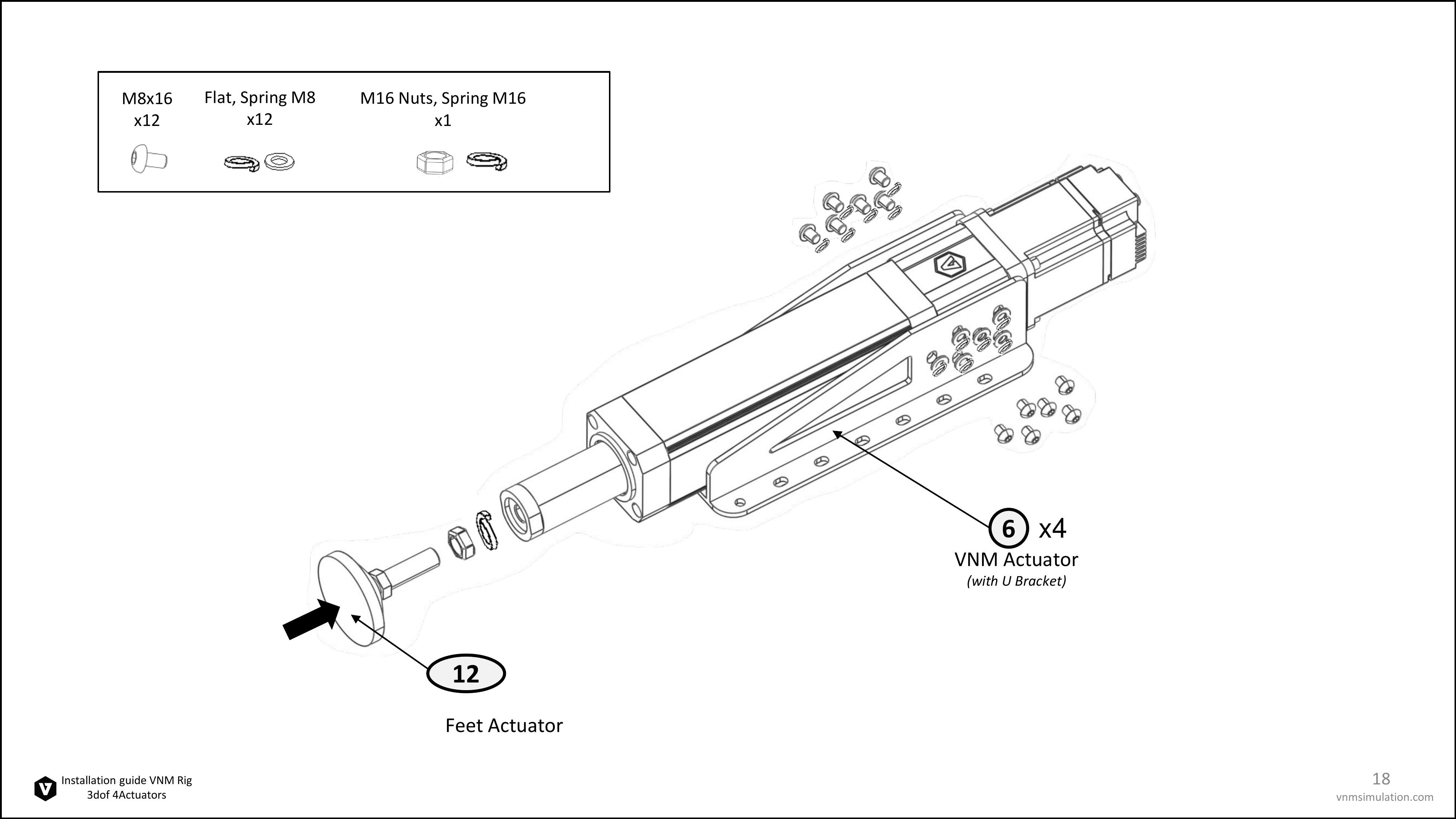

page 19

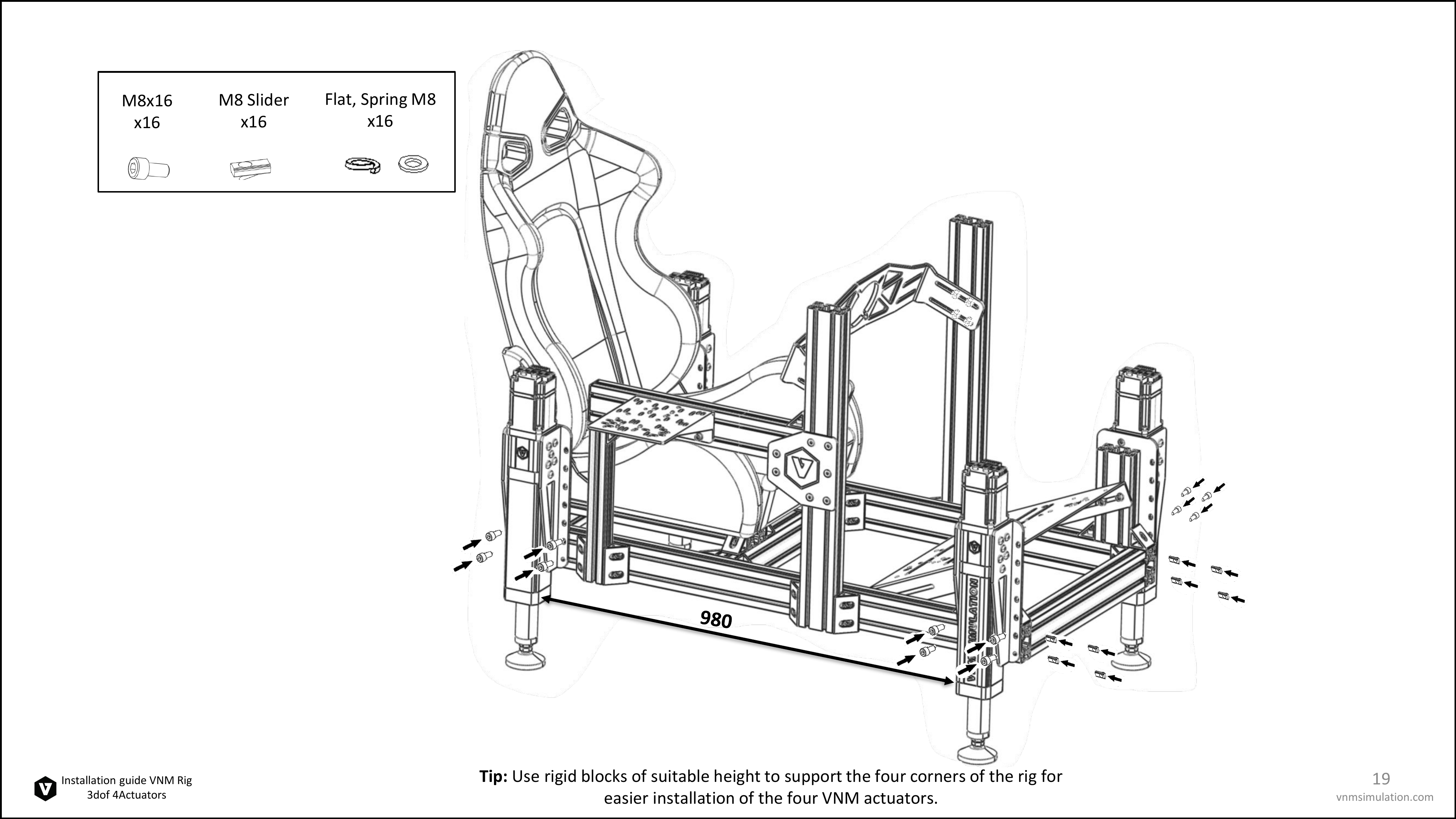

page 20

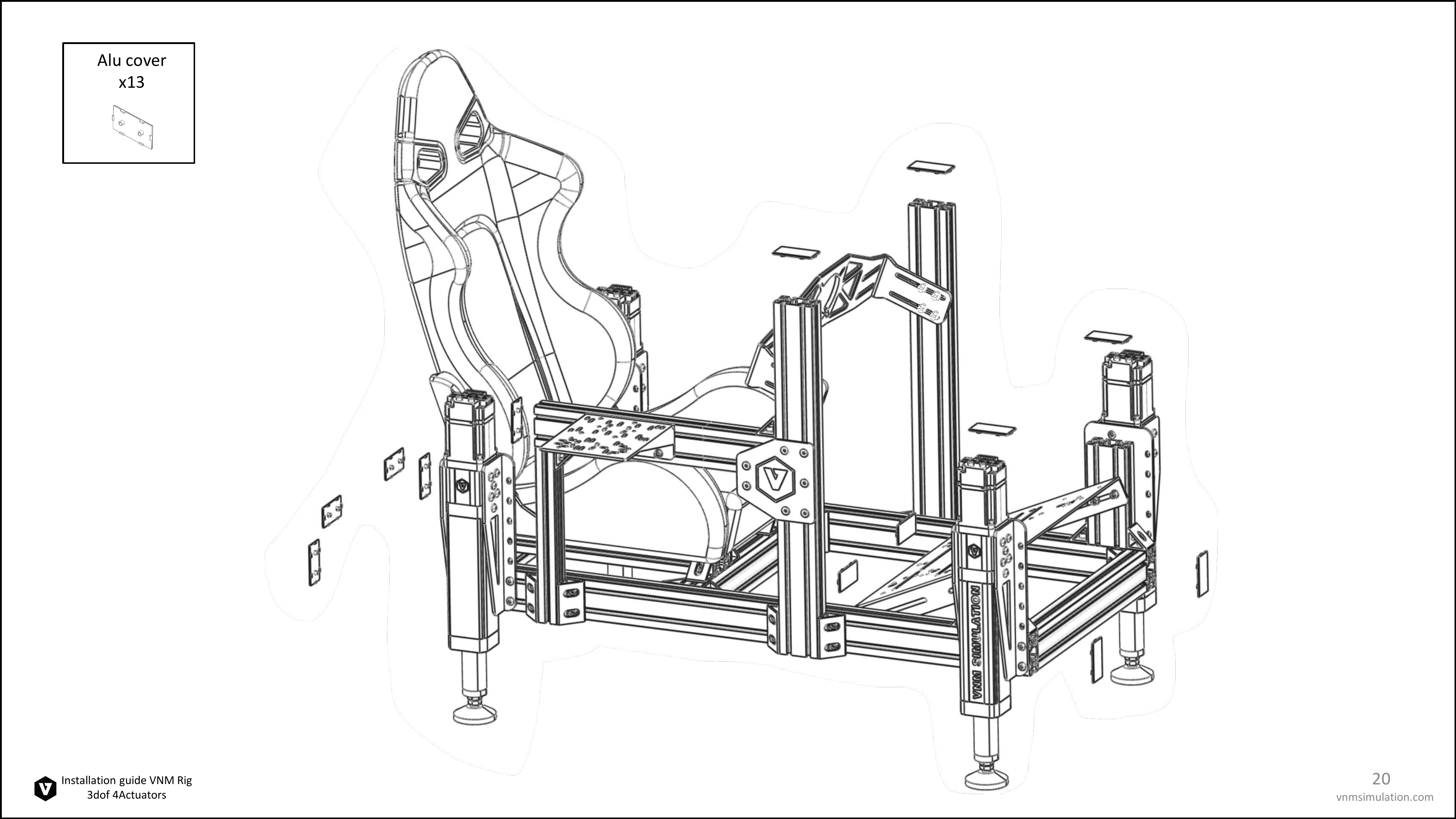

page 21

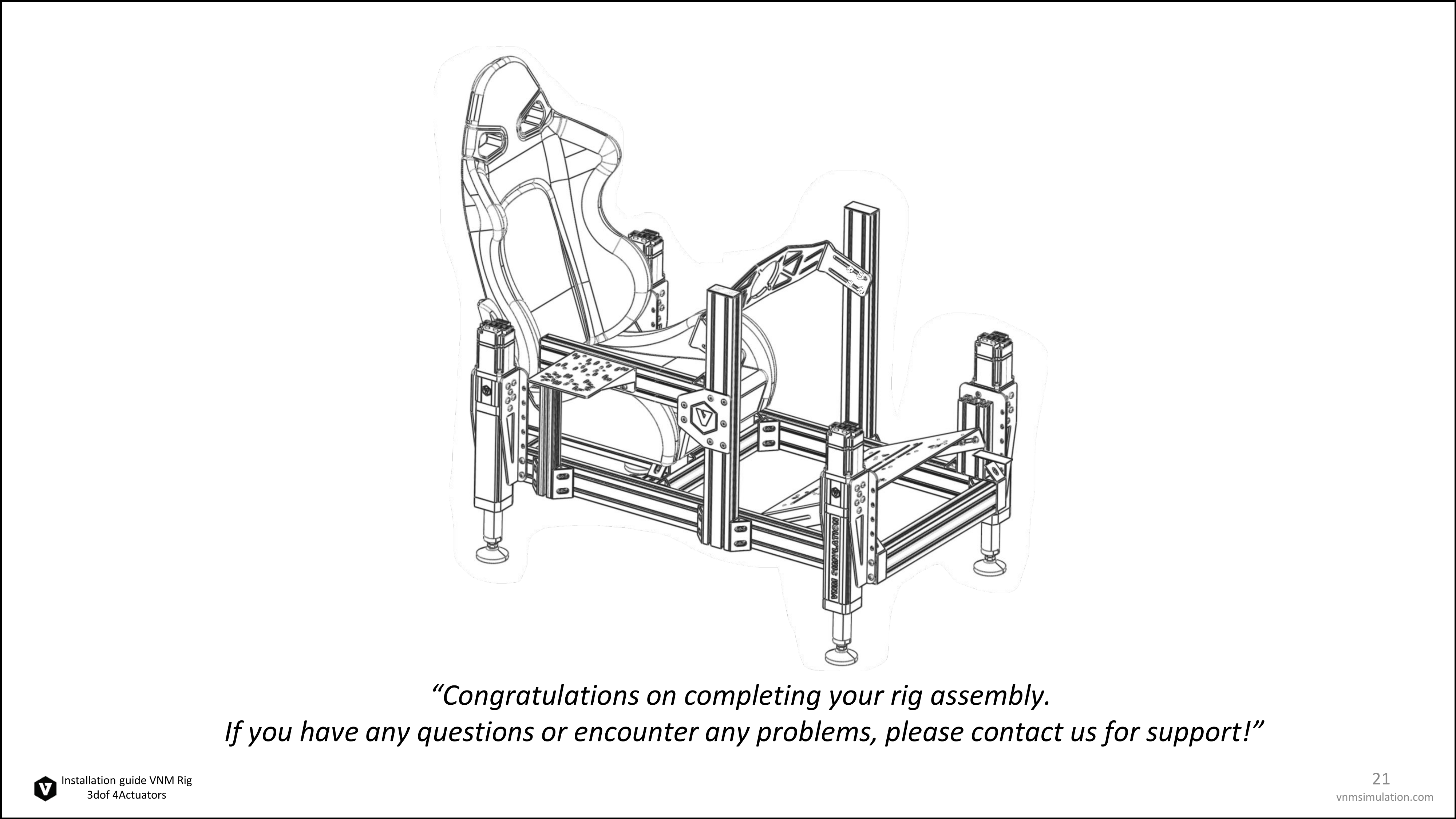

page 22

Download PDF
