Pedal V1 Set2

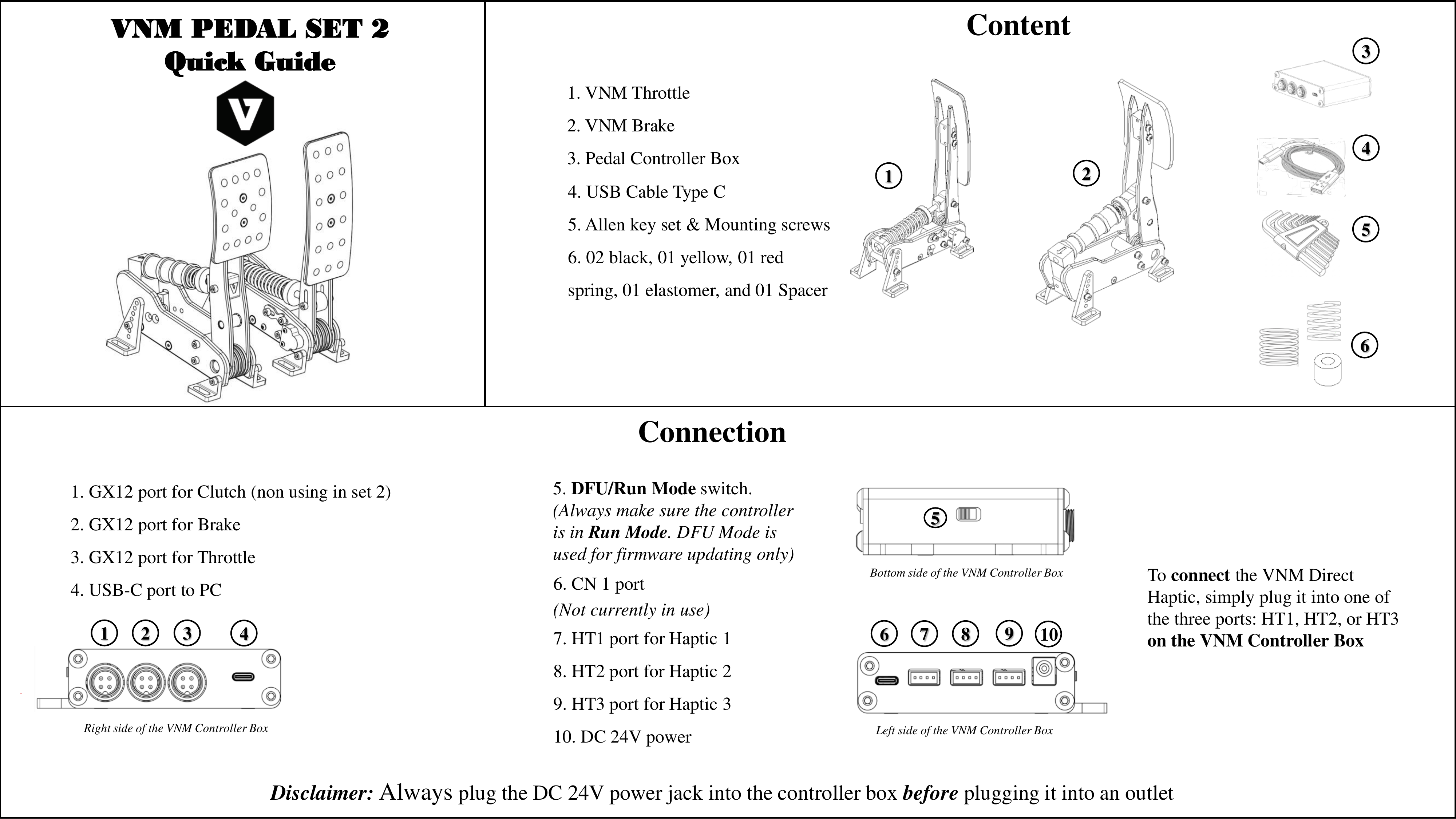

pedal v1 set2 page 1

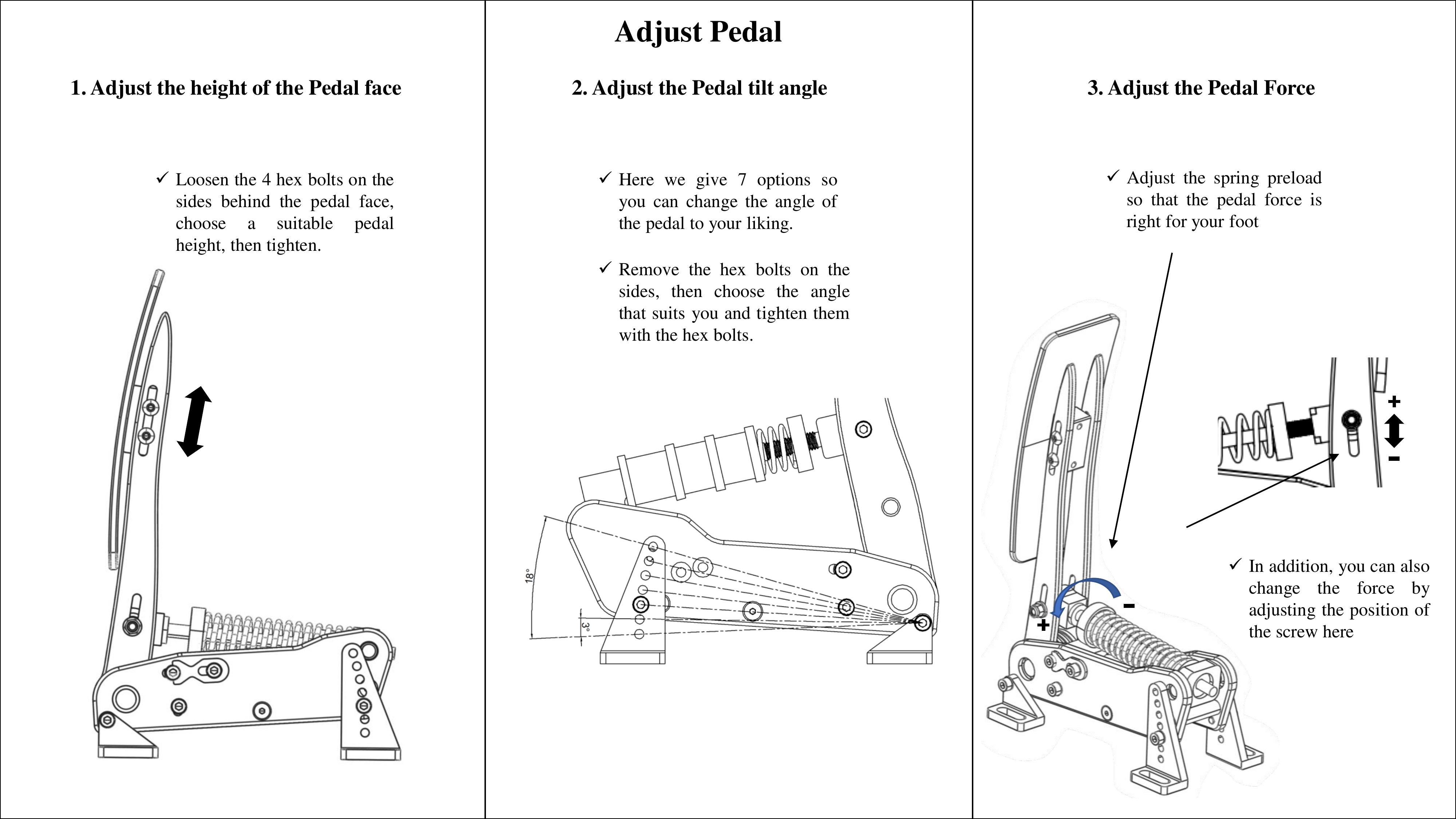

pedal v1 set2 page 2

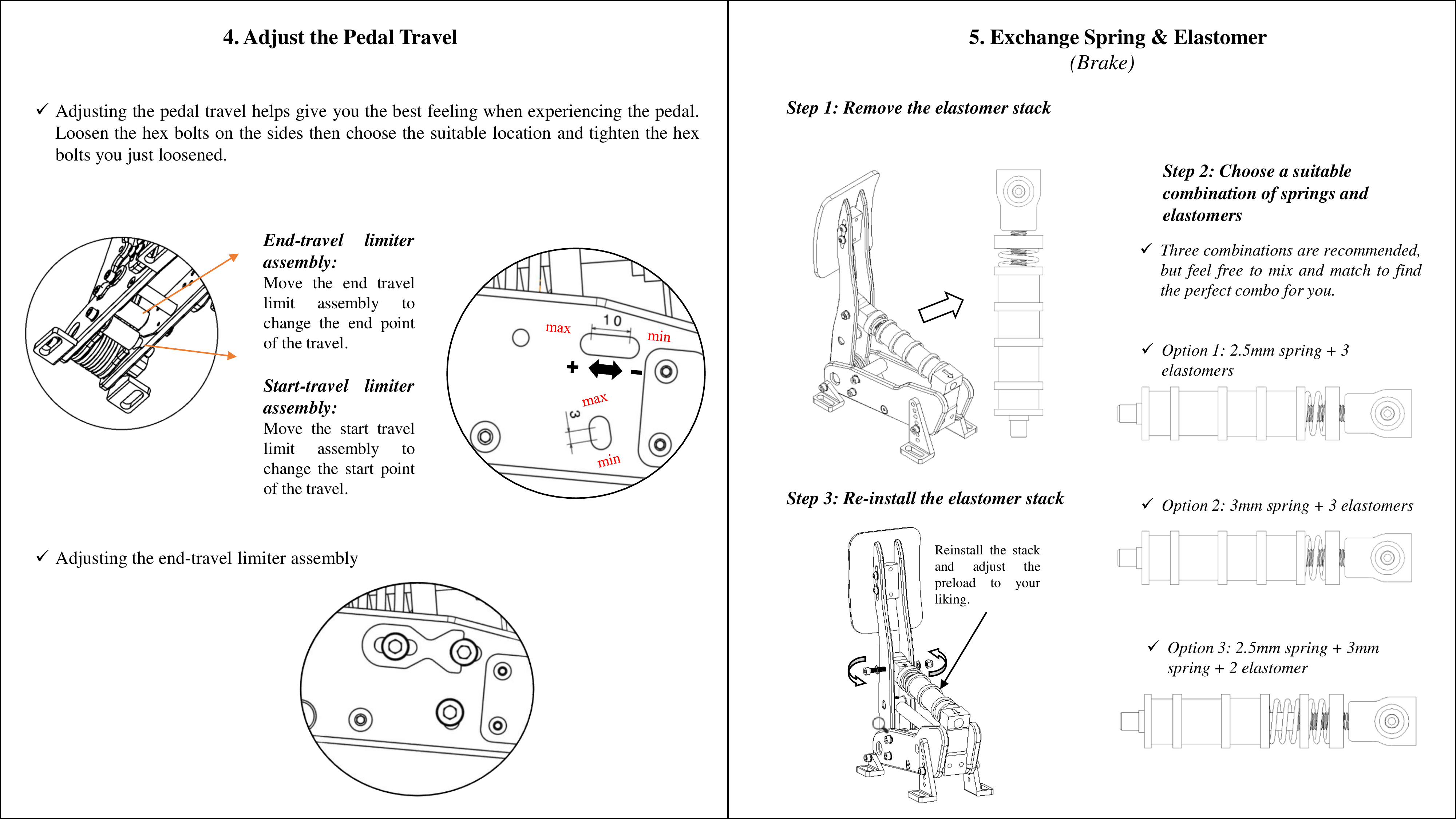

pedal v1 set2 page 3

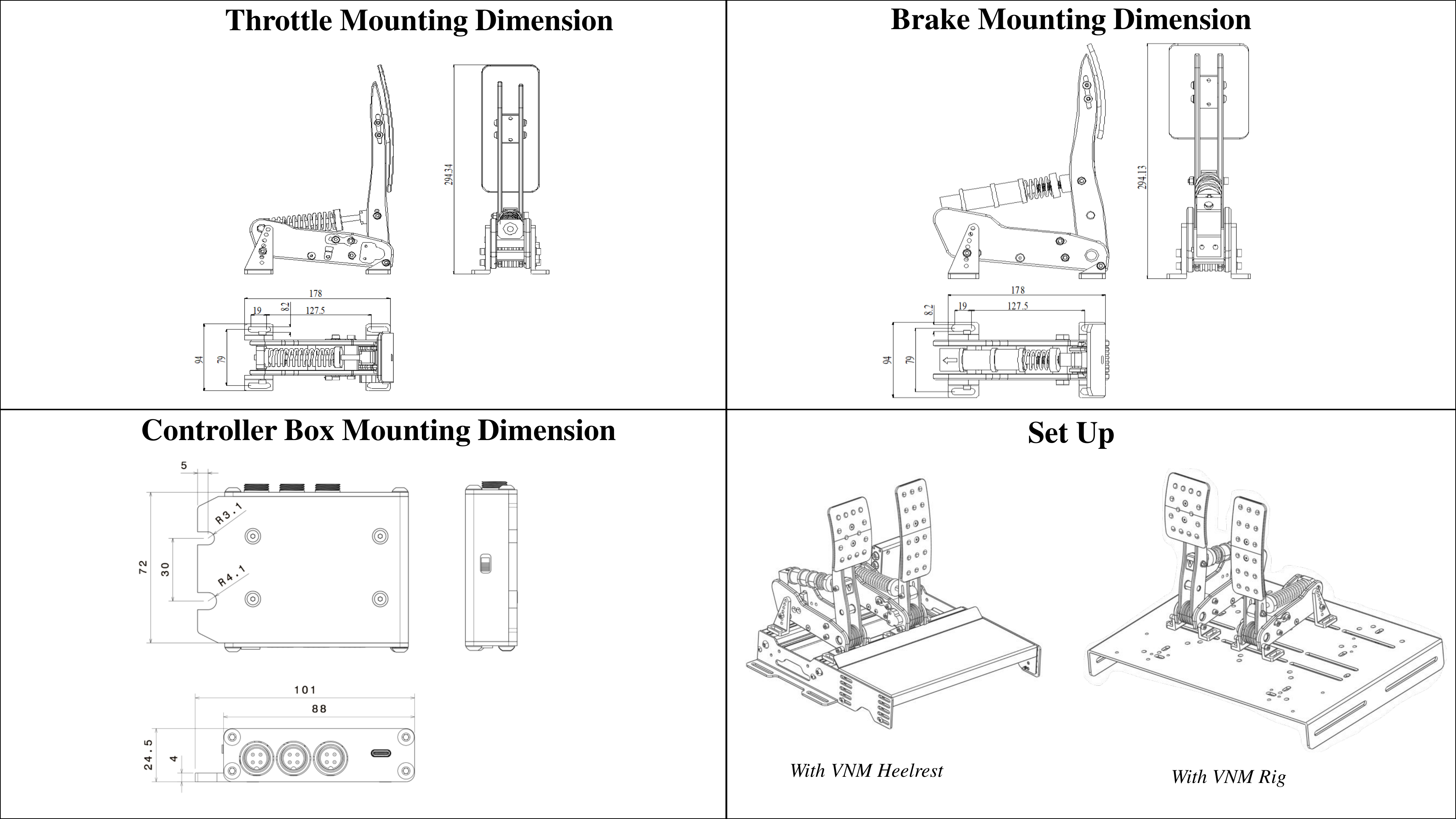

pedal v1 set2 page 4

Download PDF
