VNM Rig 6DOF (7 Actuators)

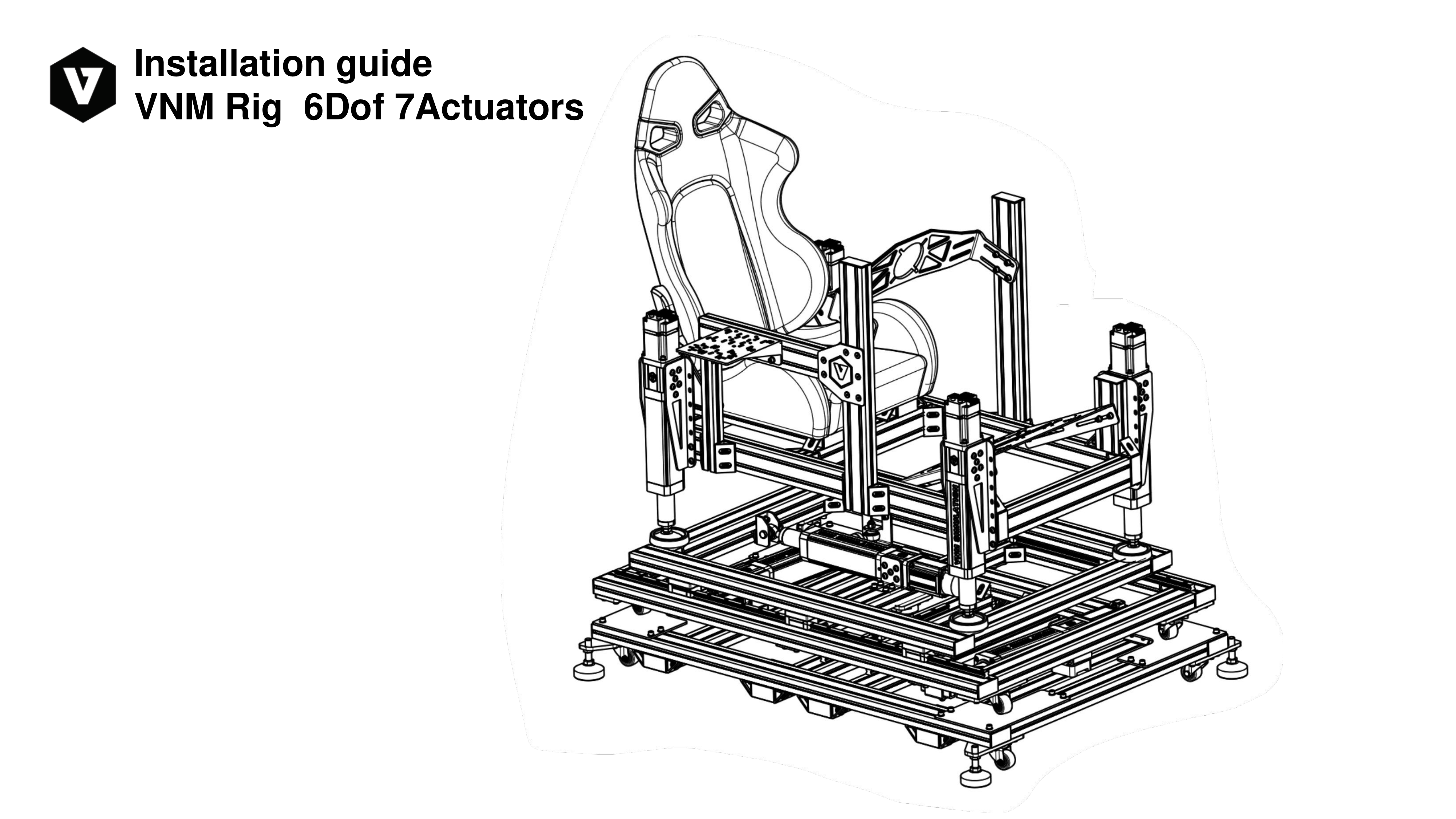

page 01

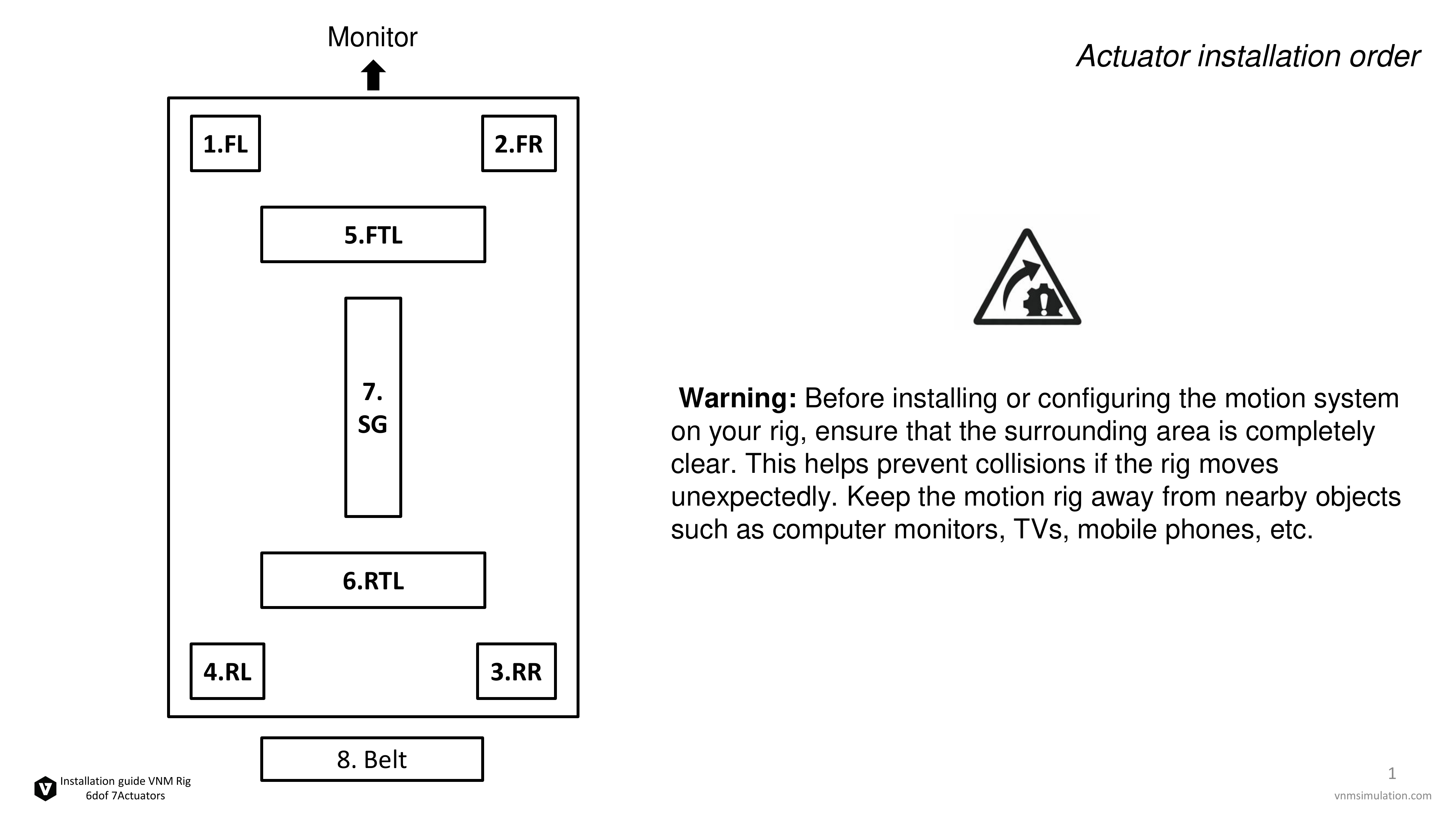

page 02

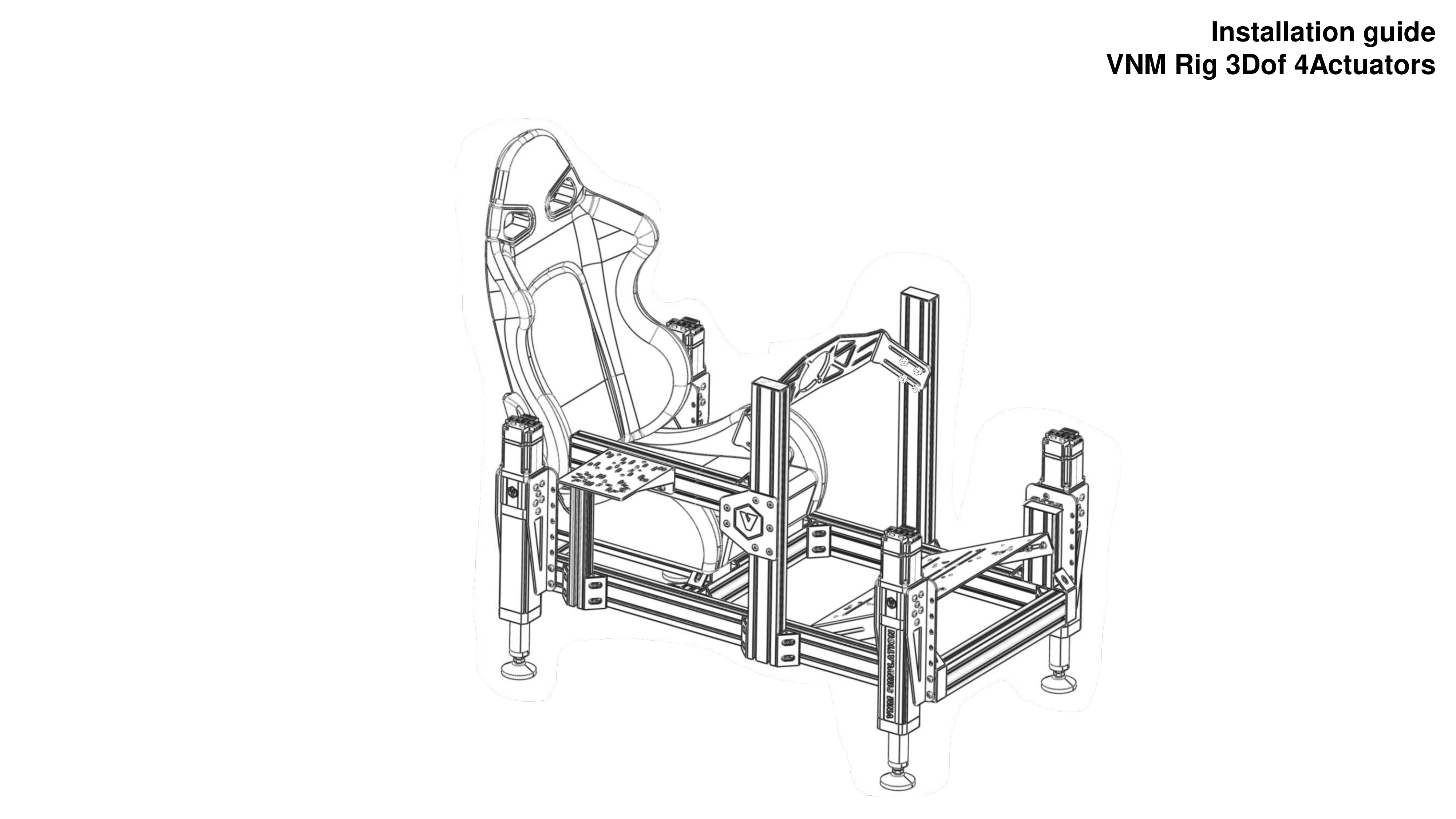

page 03

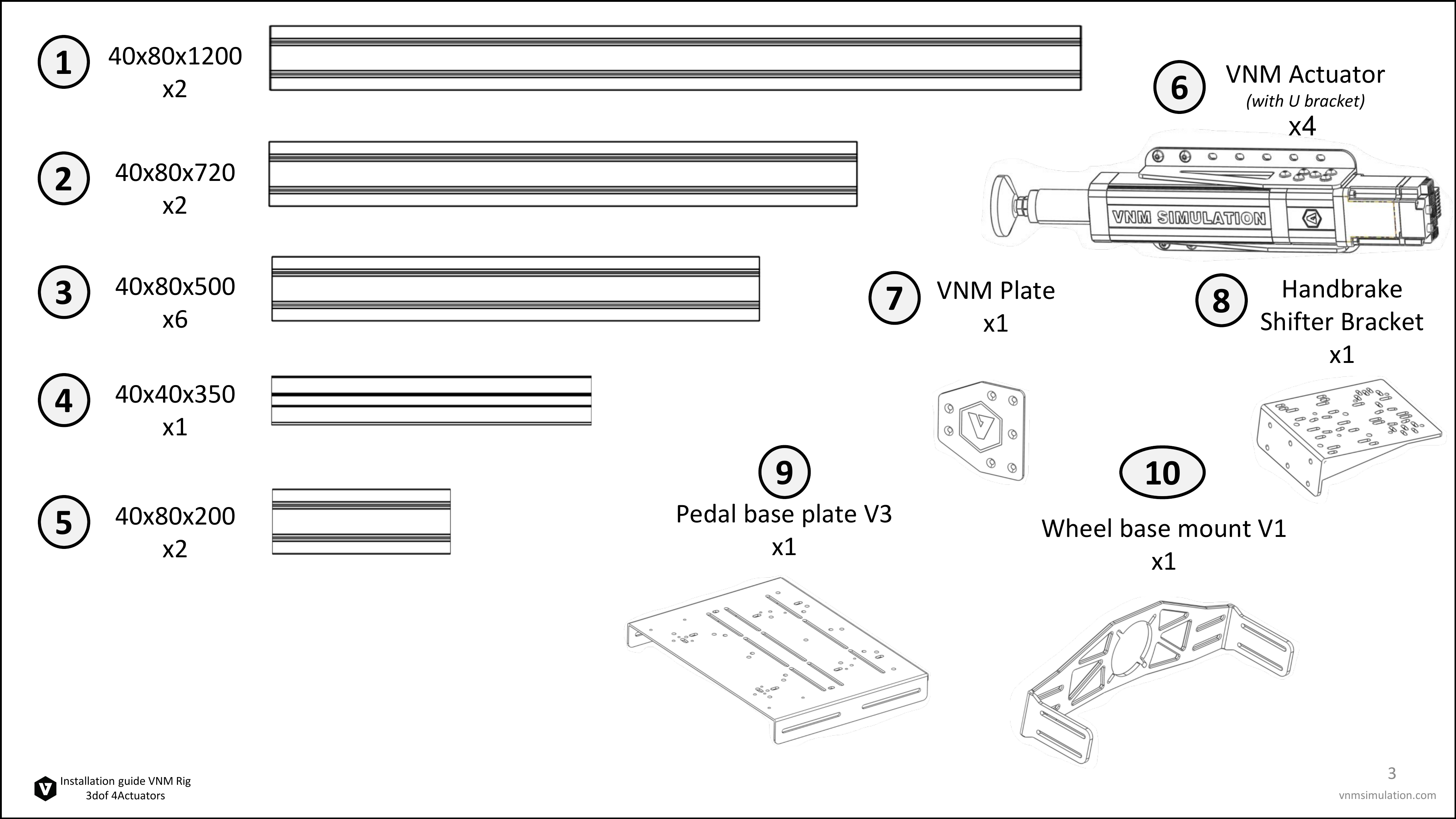

page 04

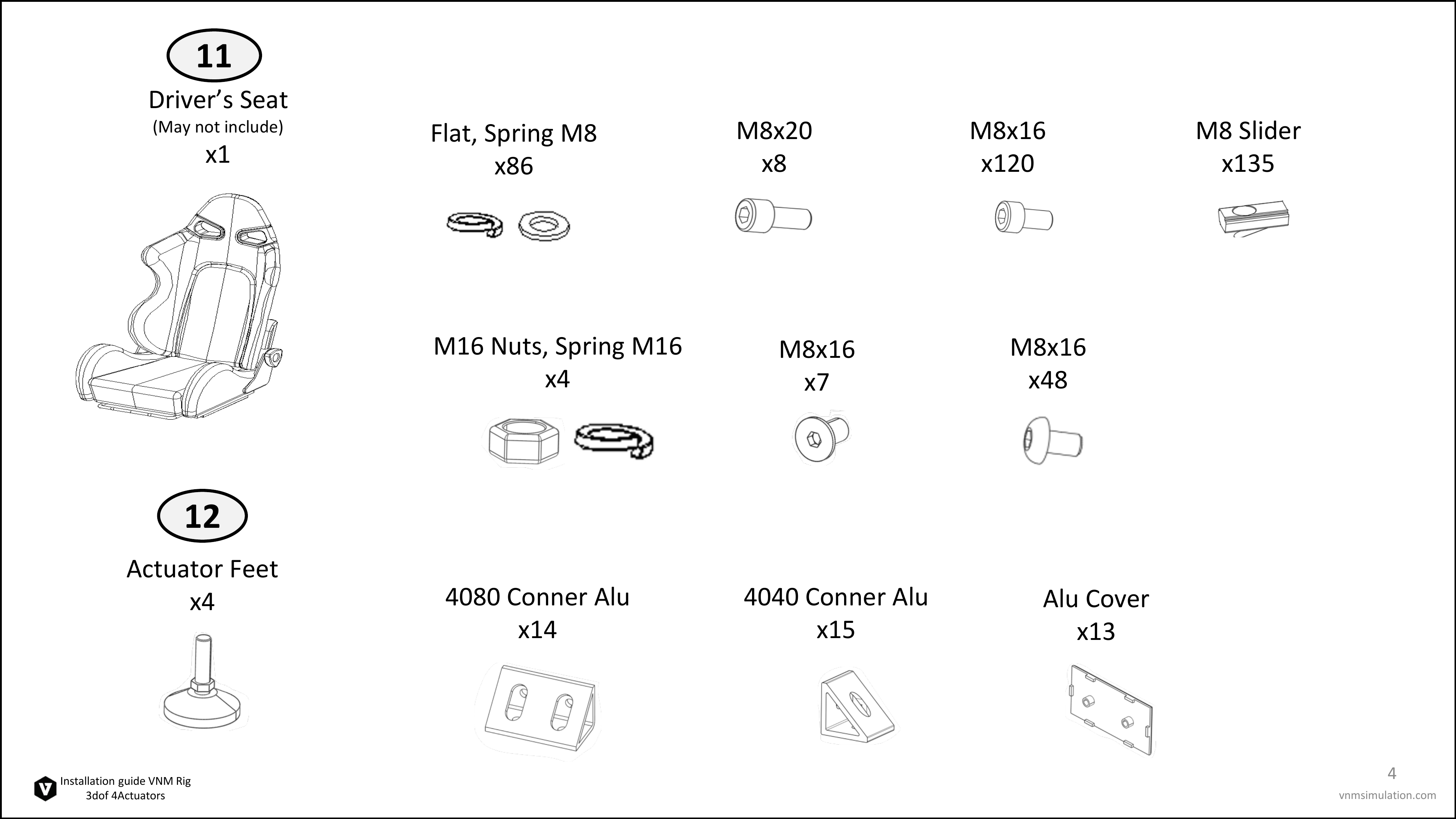

page 05

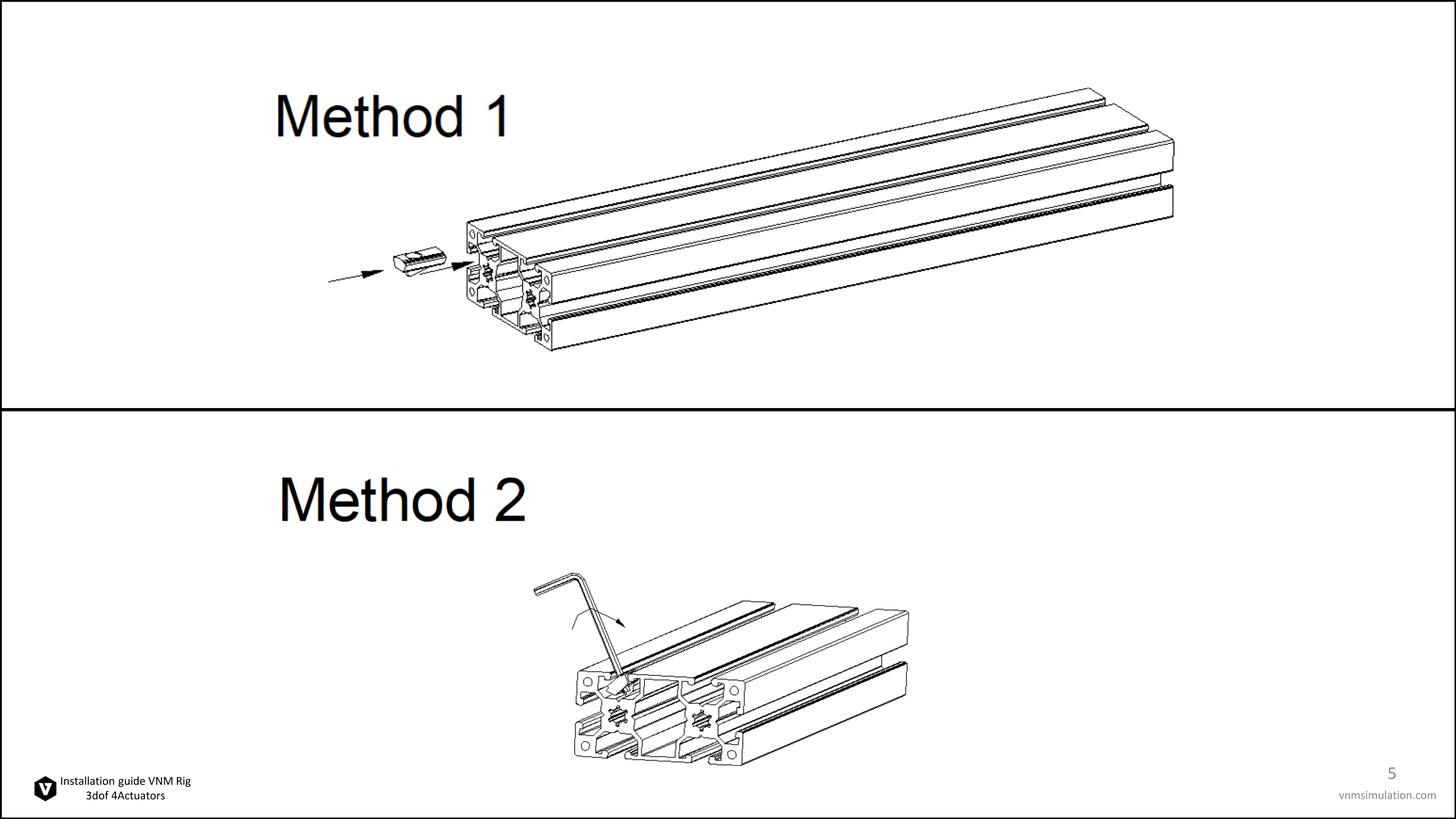

page 06

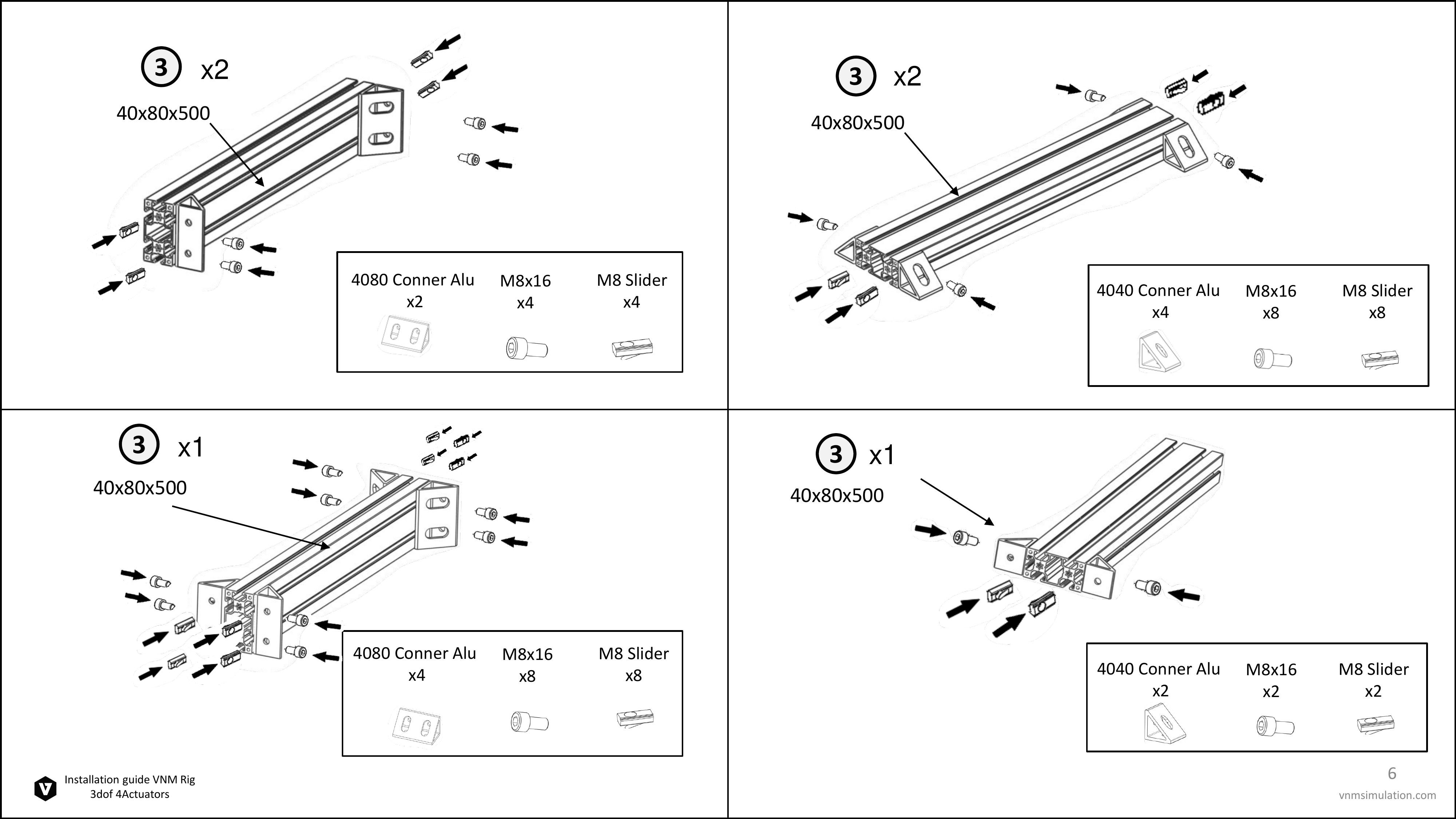

page 07

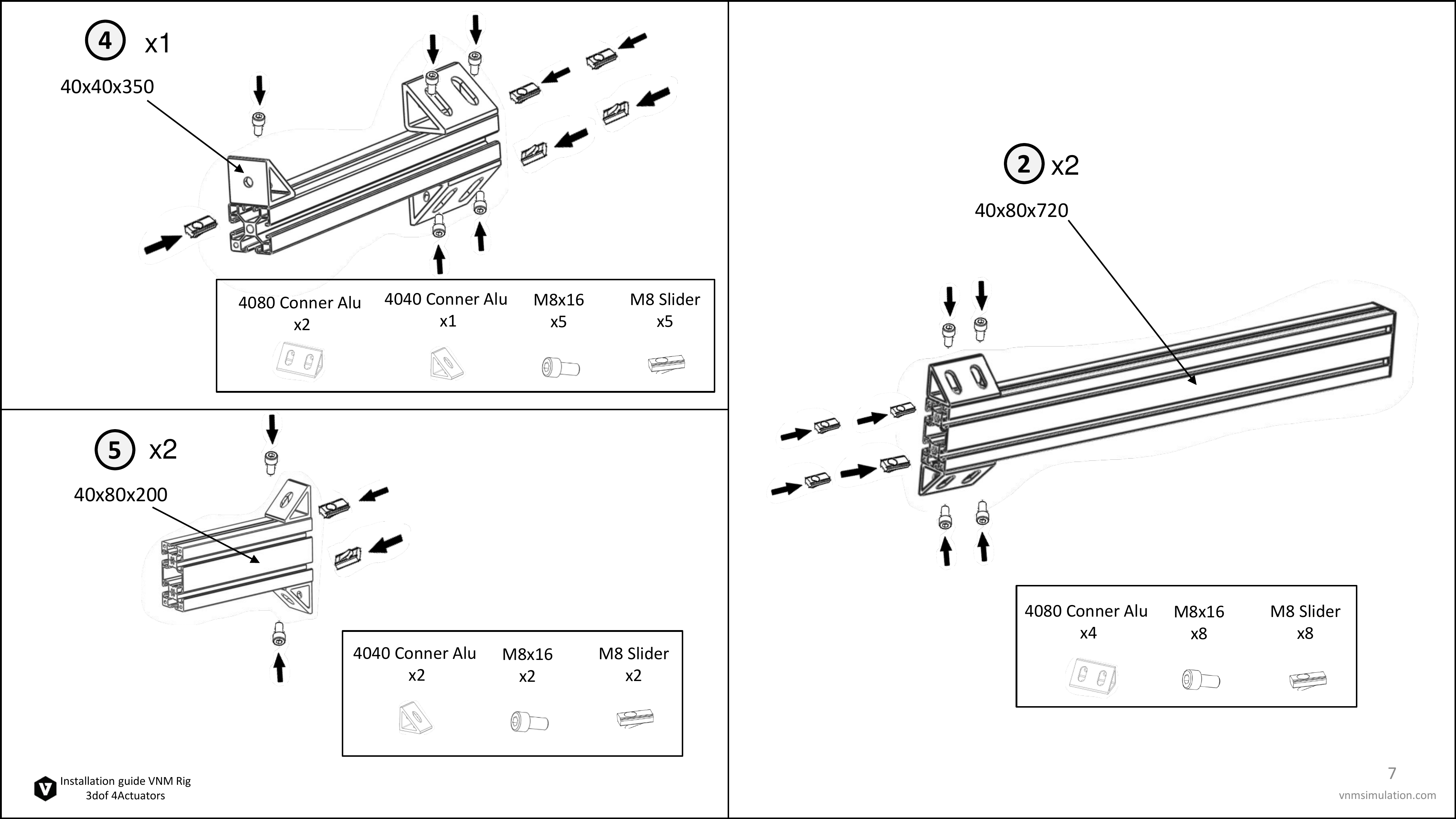

page 08

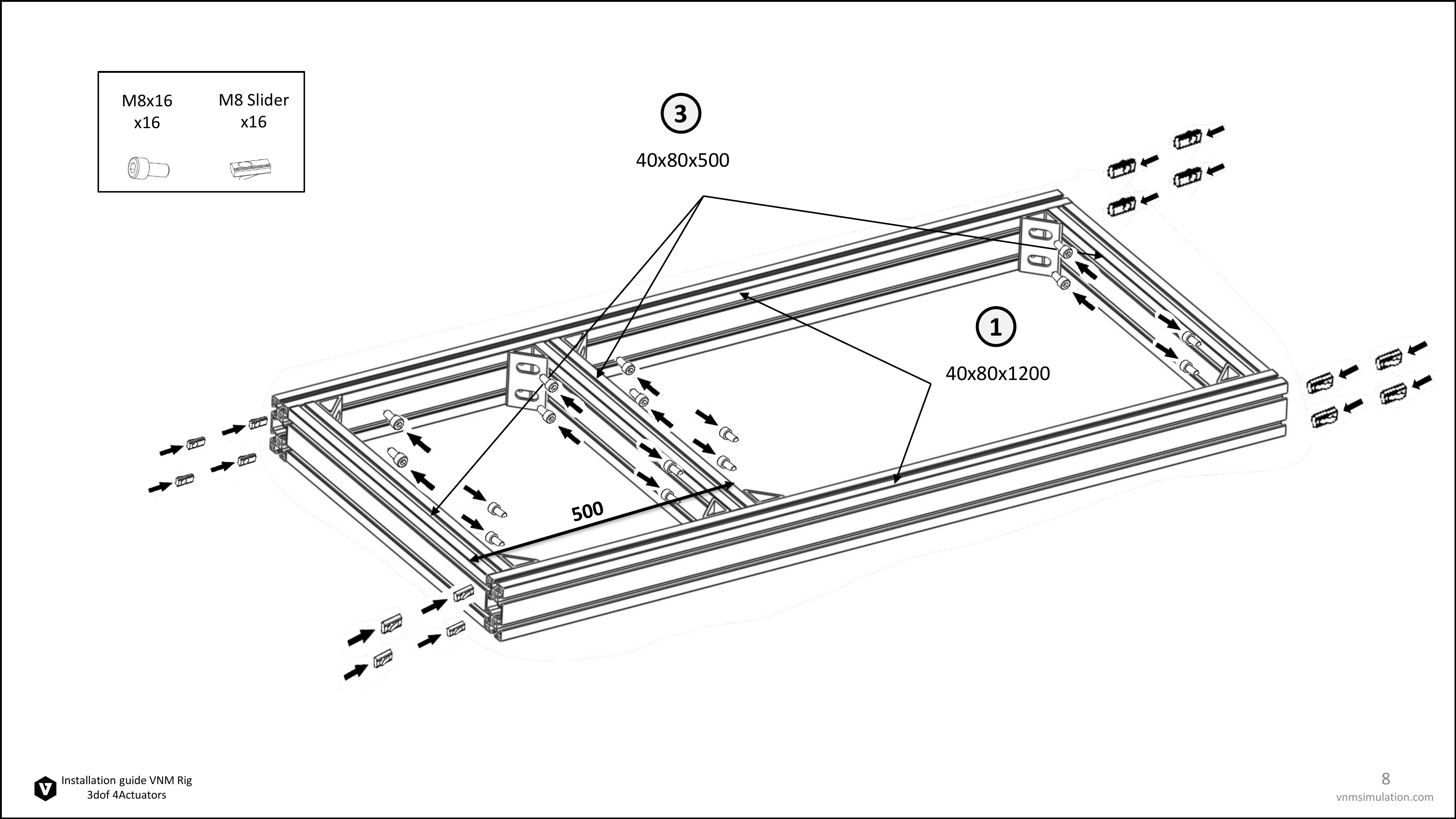

page 09

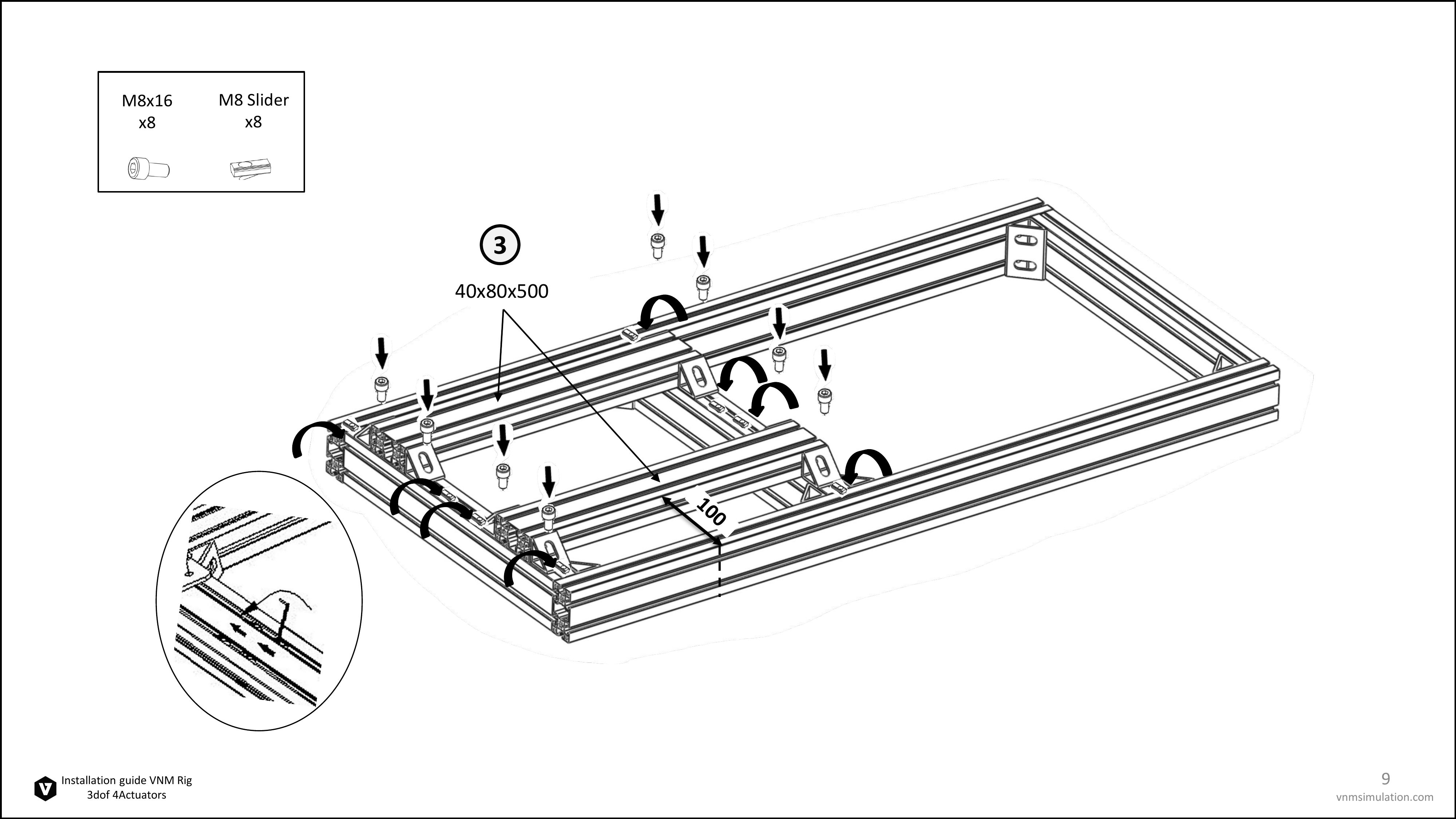

page 10

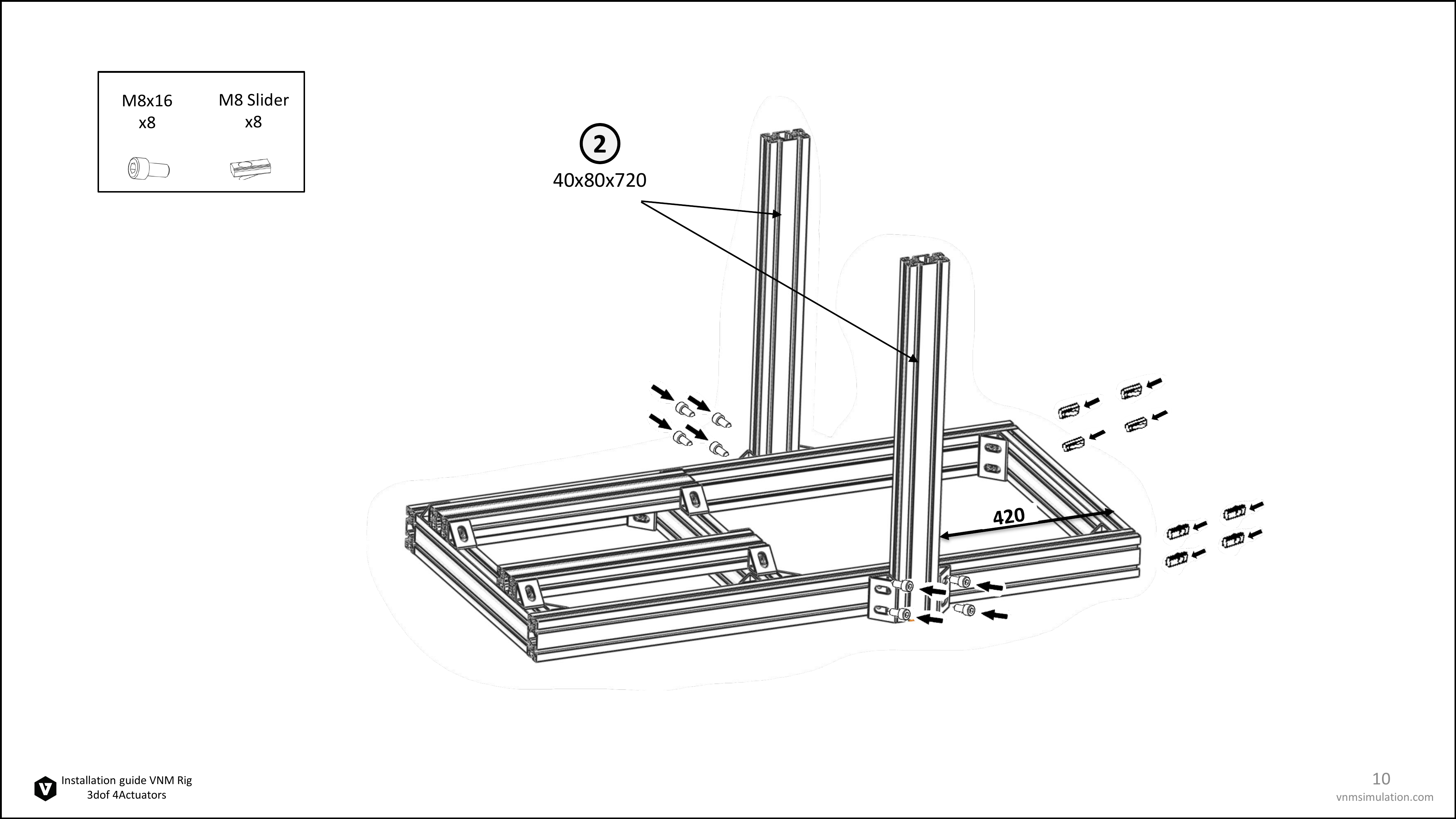

page 11

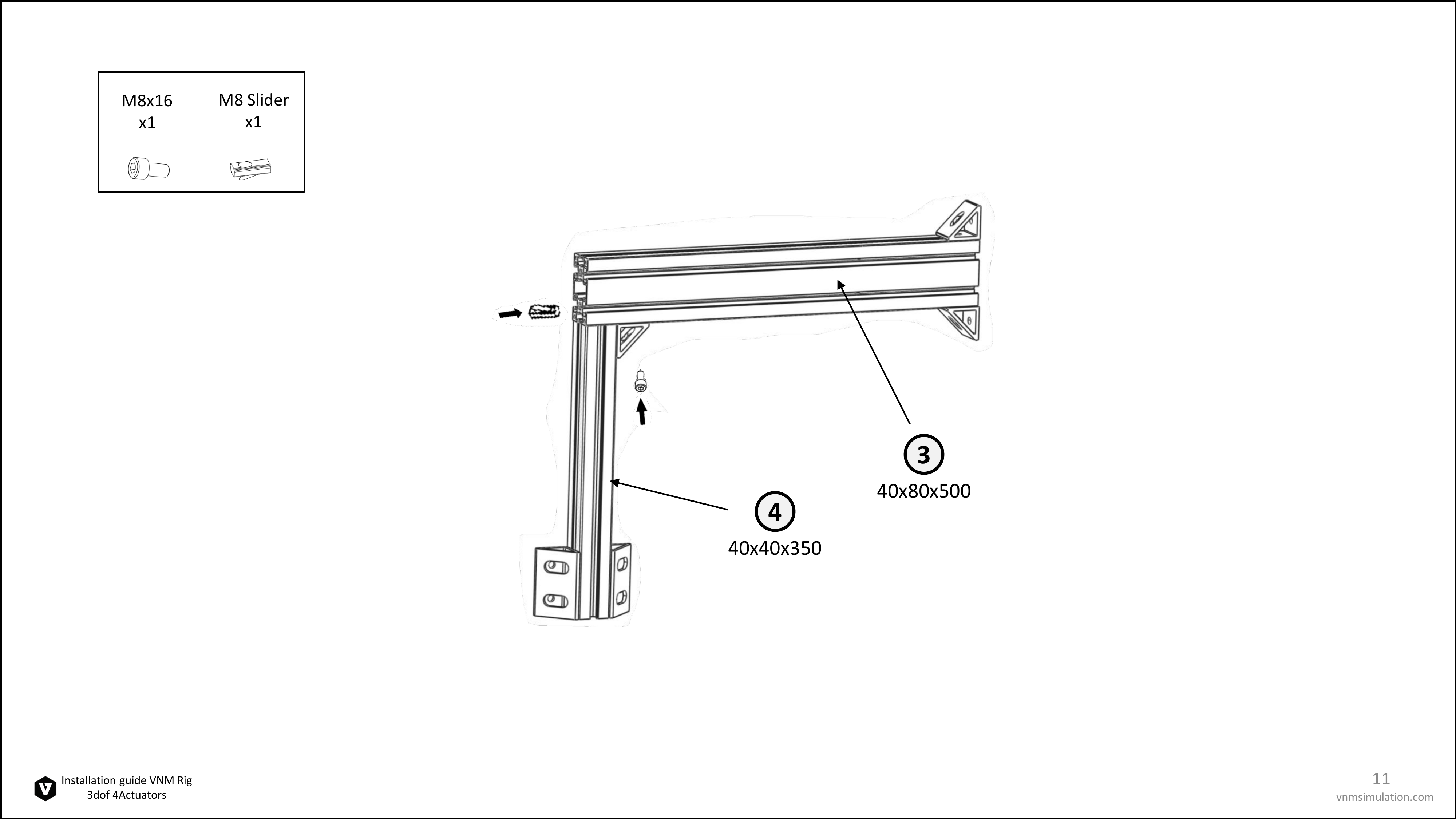

page 12

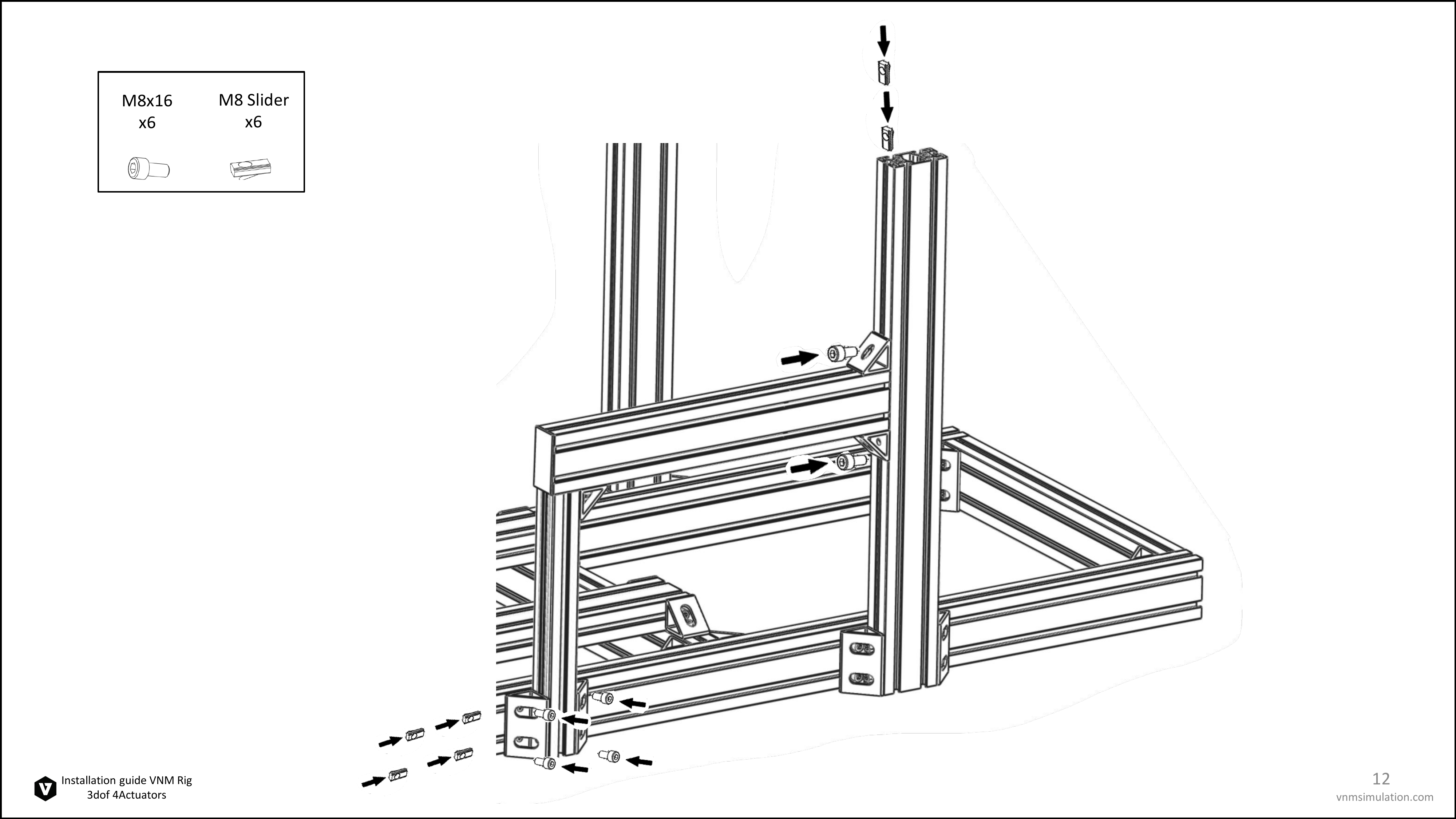

page 13

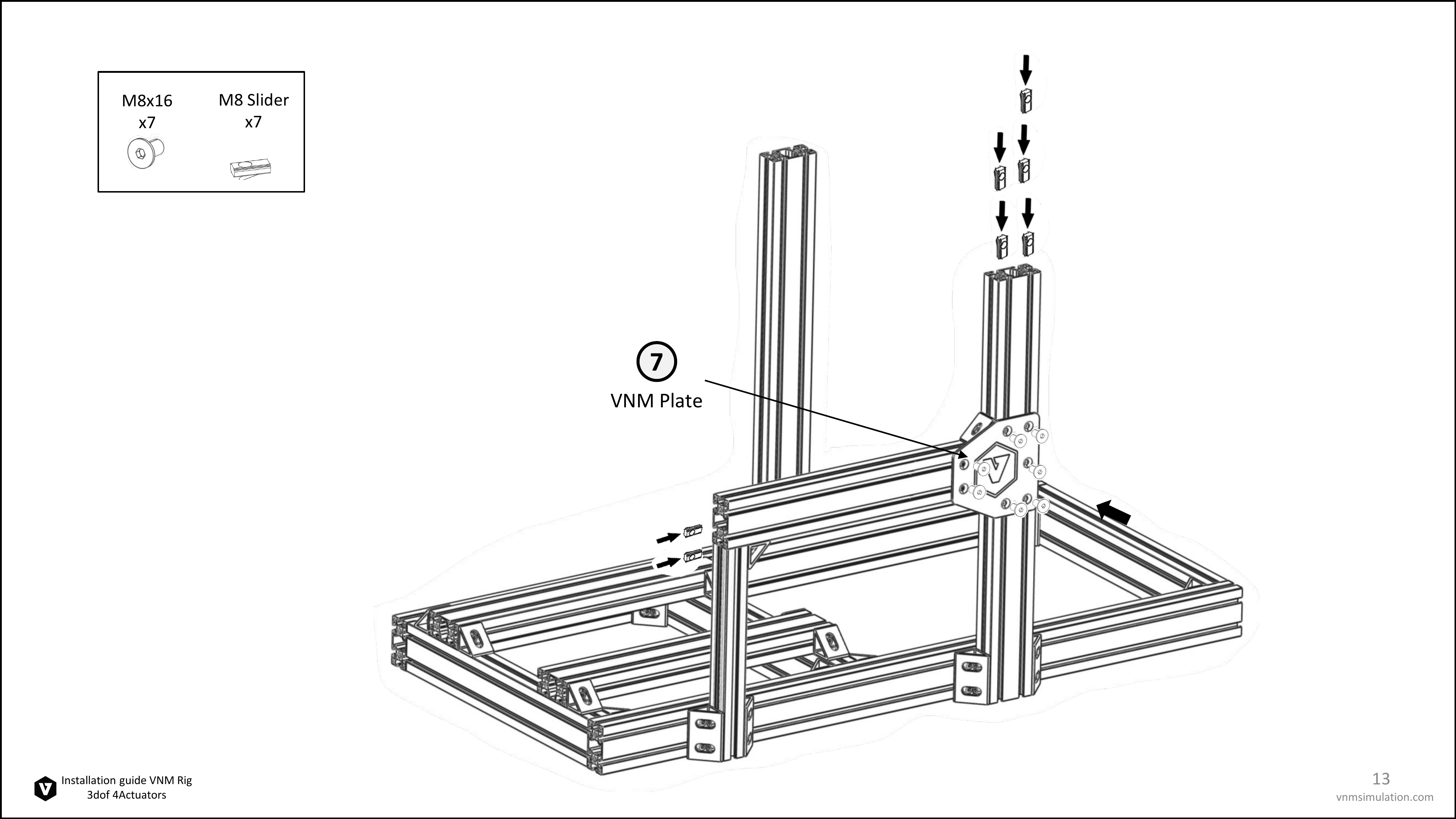

page 14

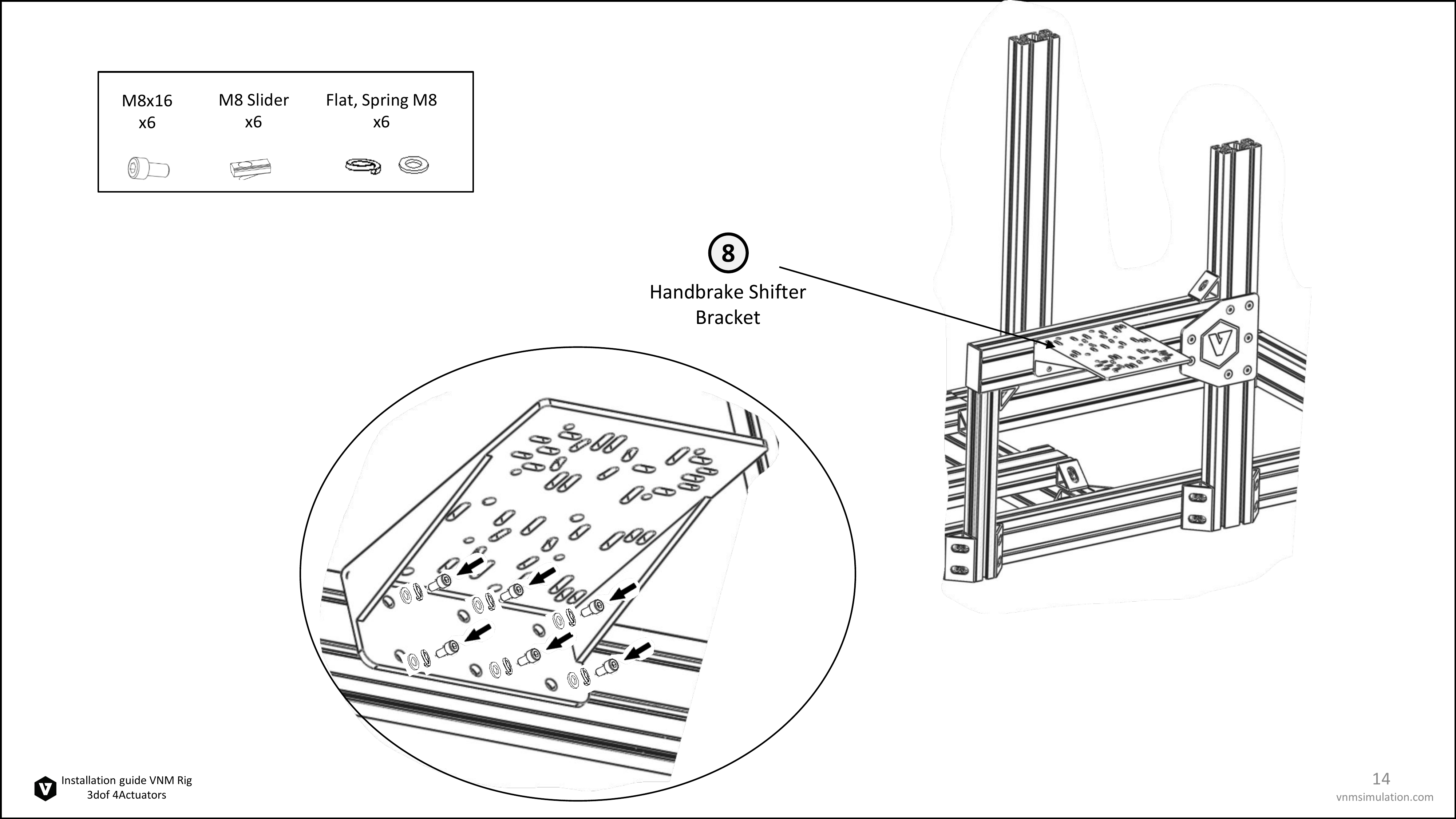

page 15

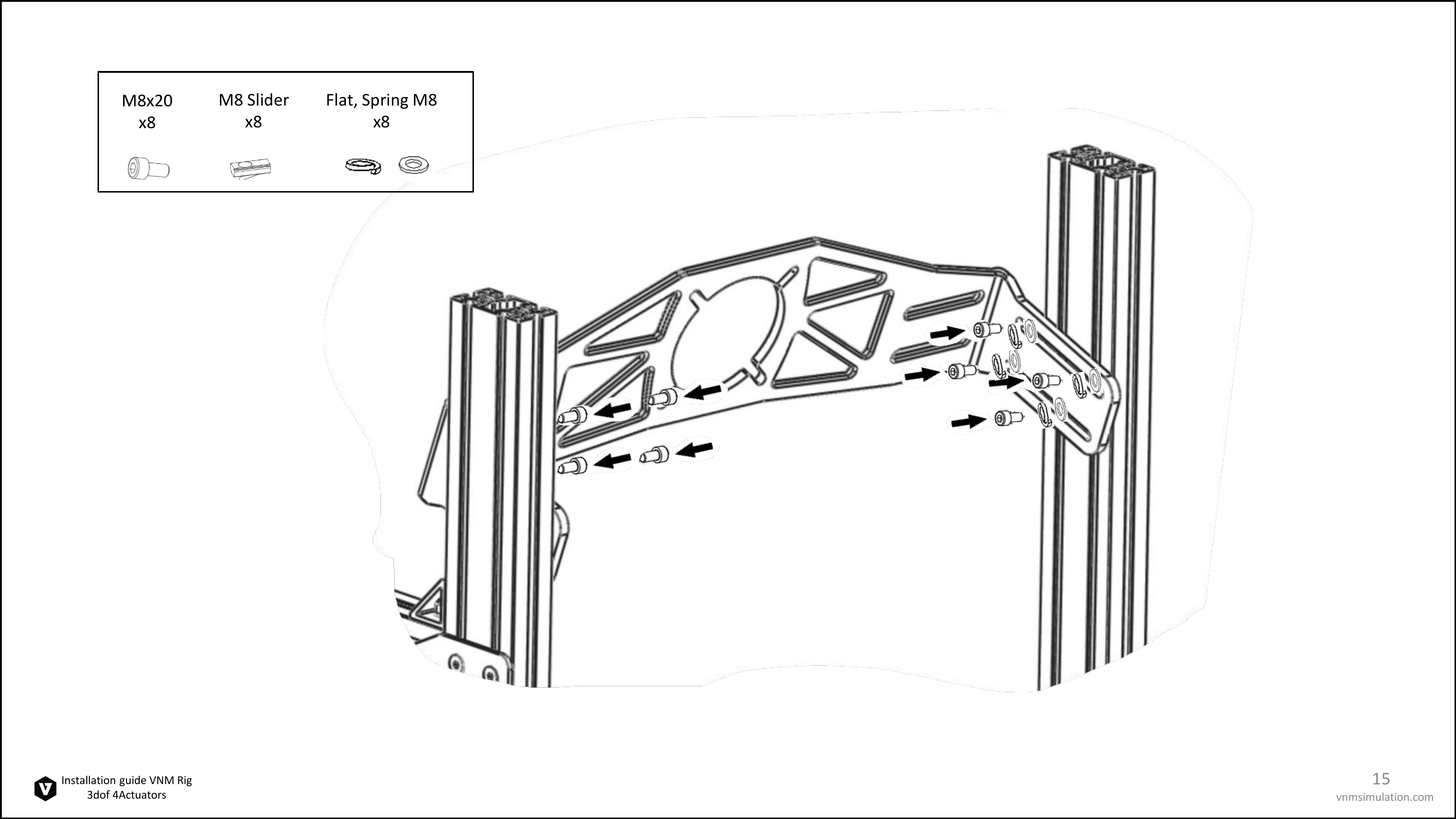

page 16

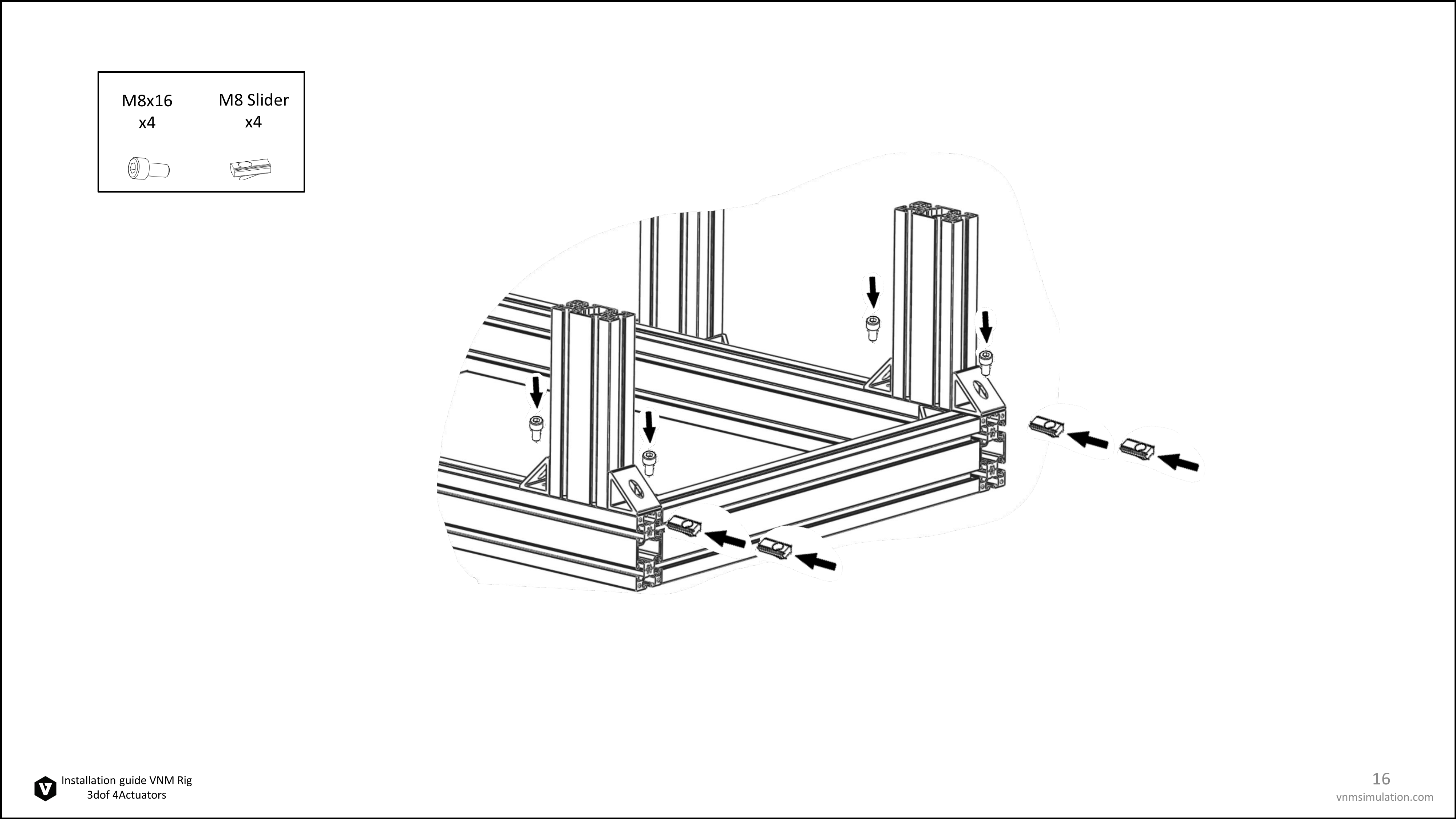

page 17

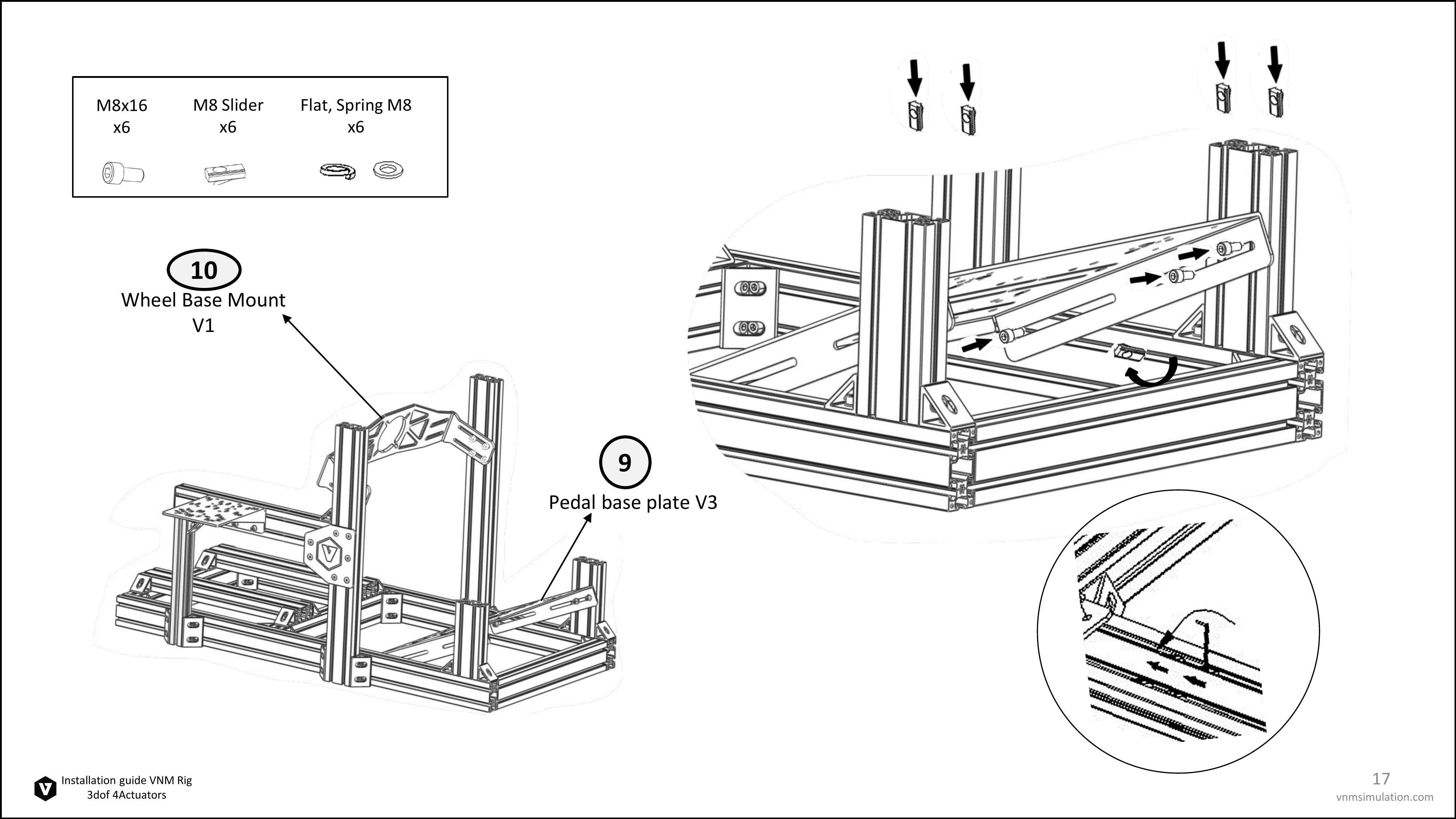

page 18

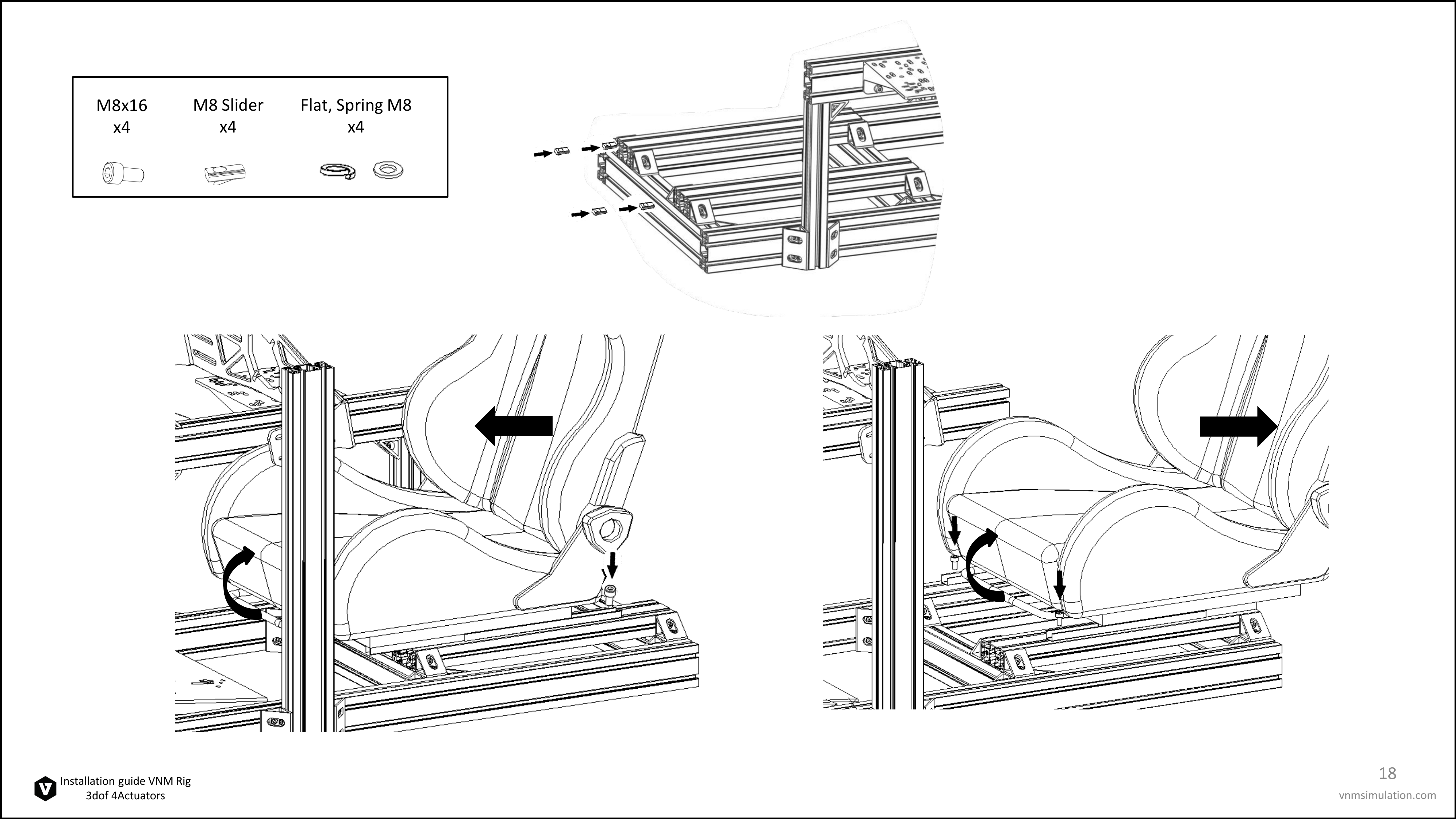

page 19

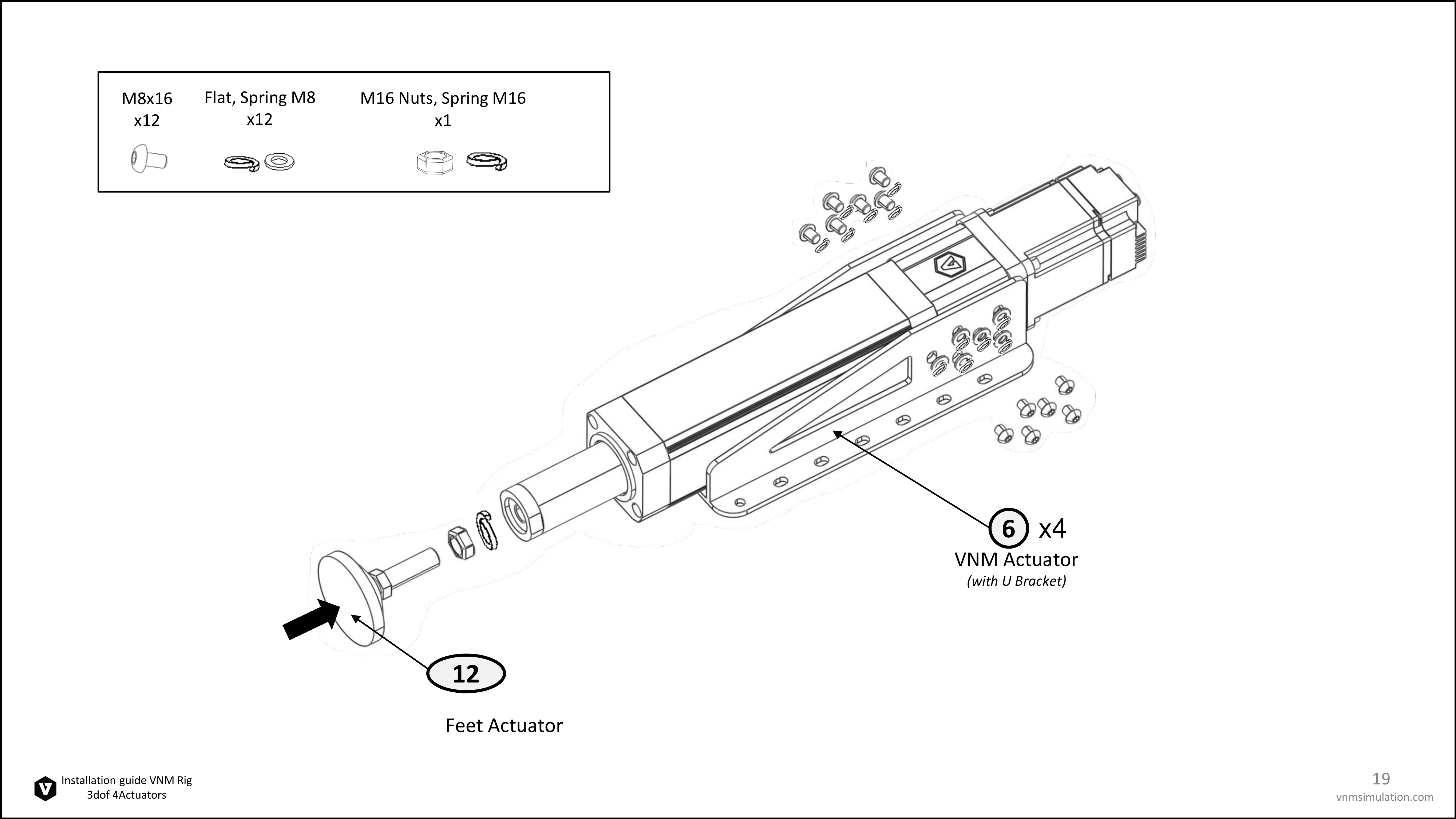

page 20

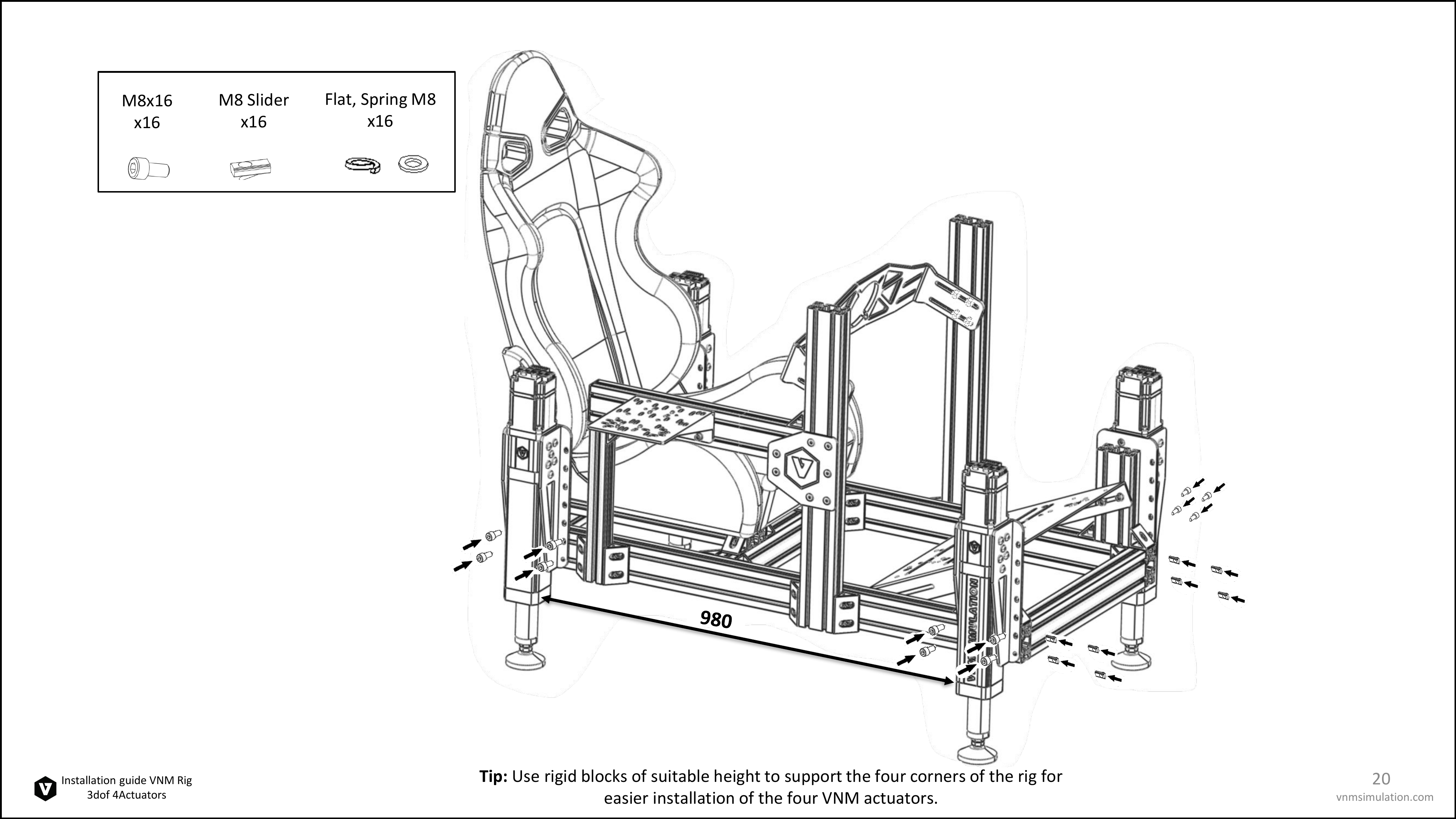

page 21

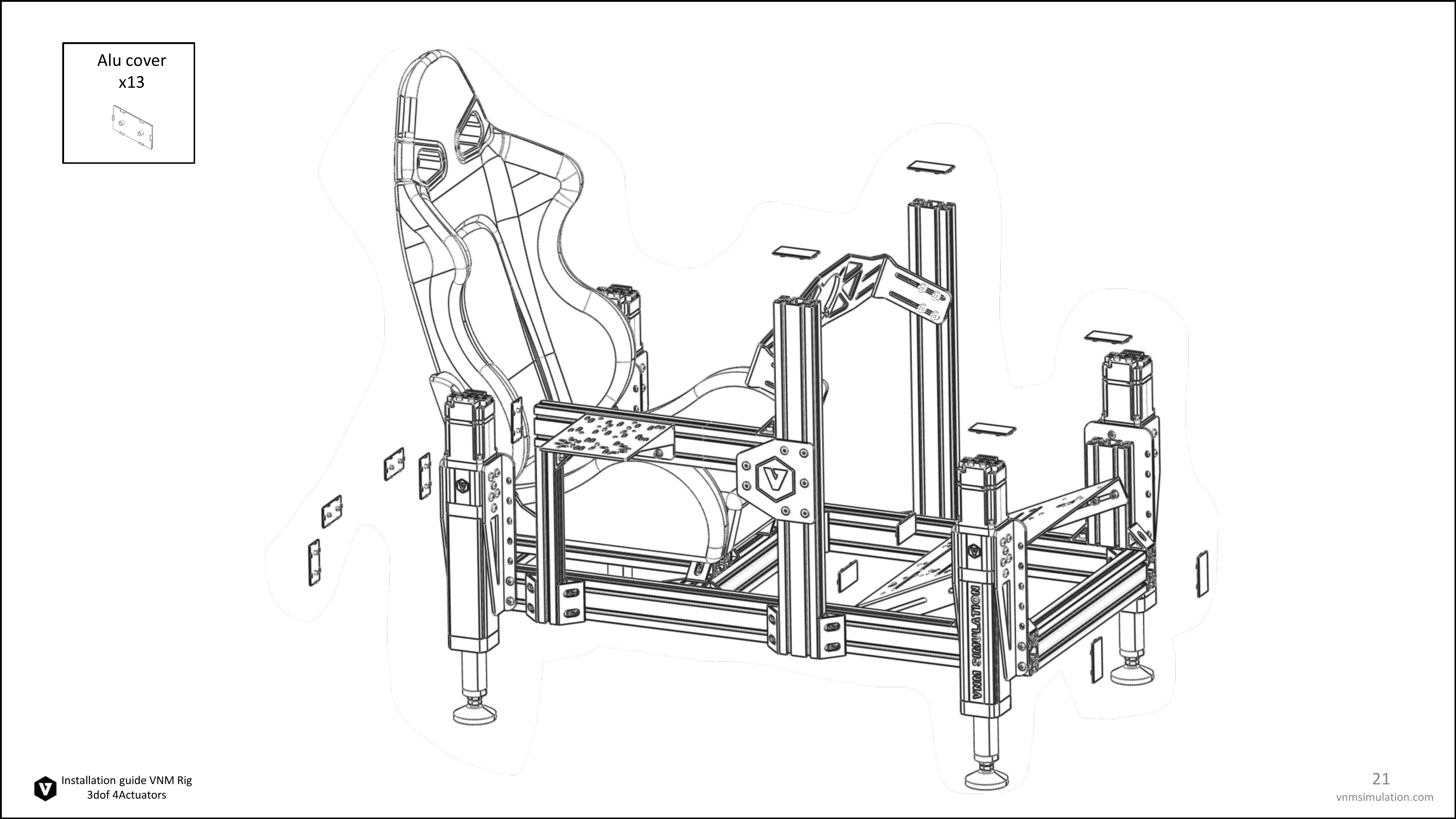

page 22

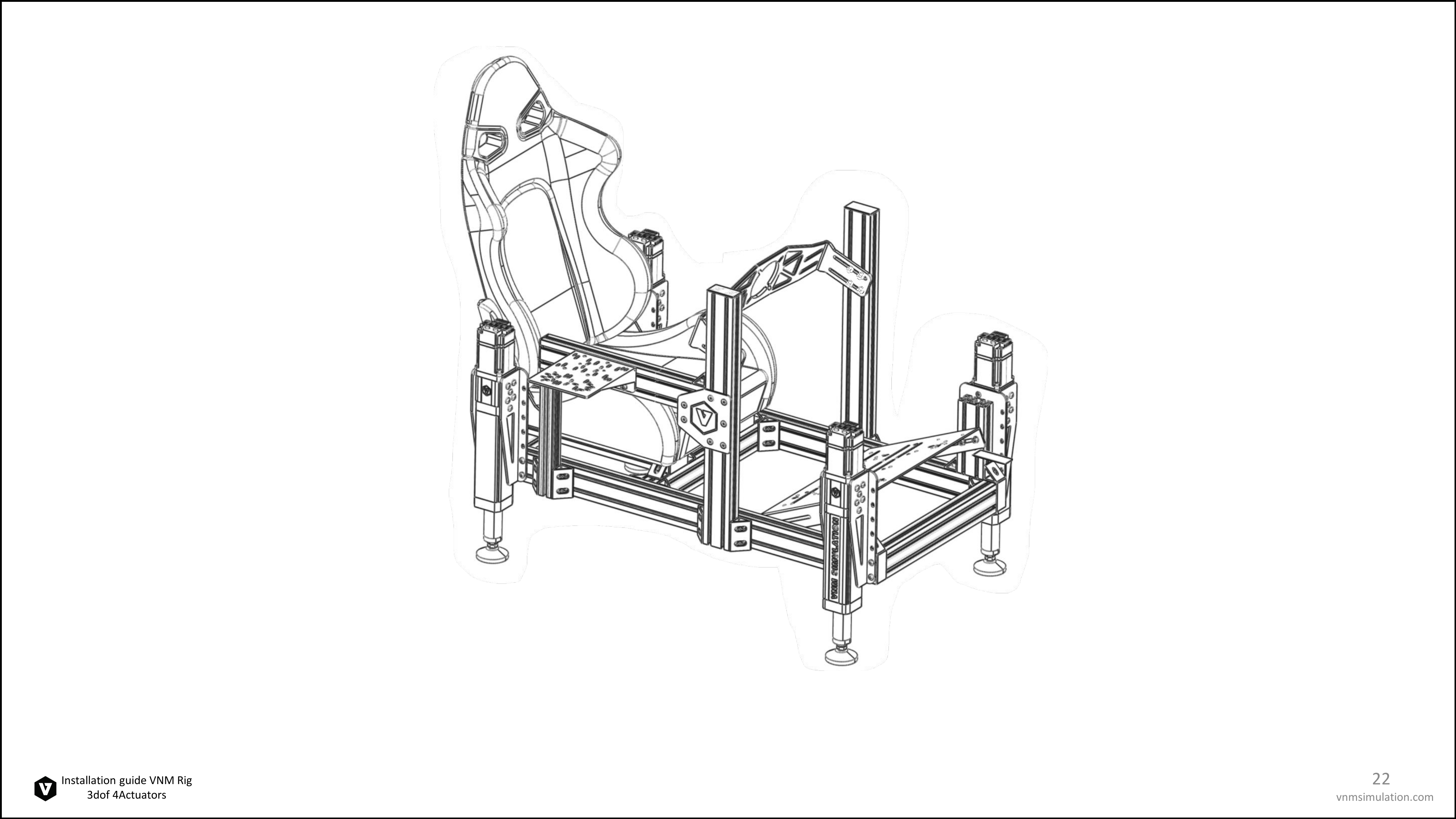

page 23

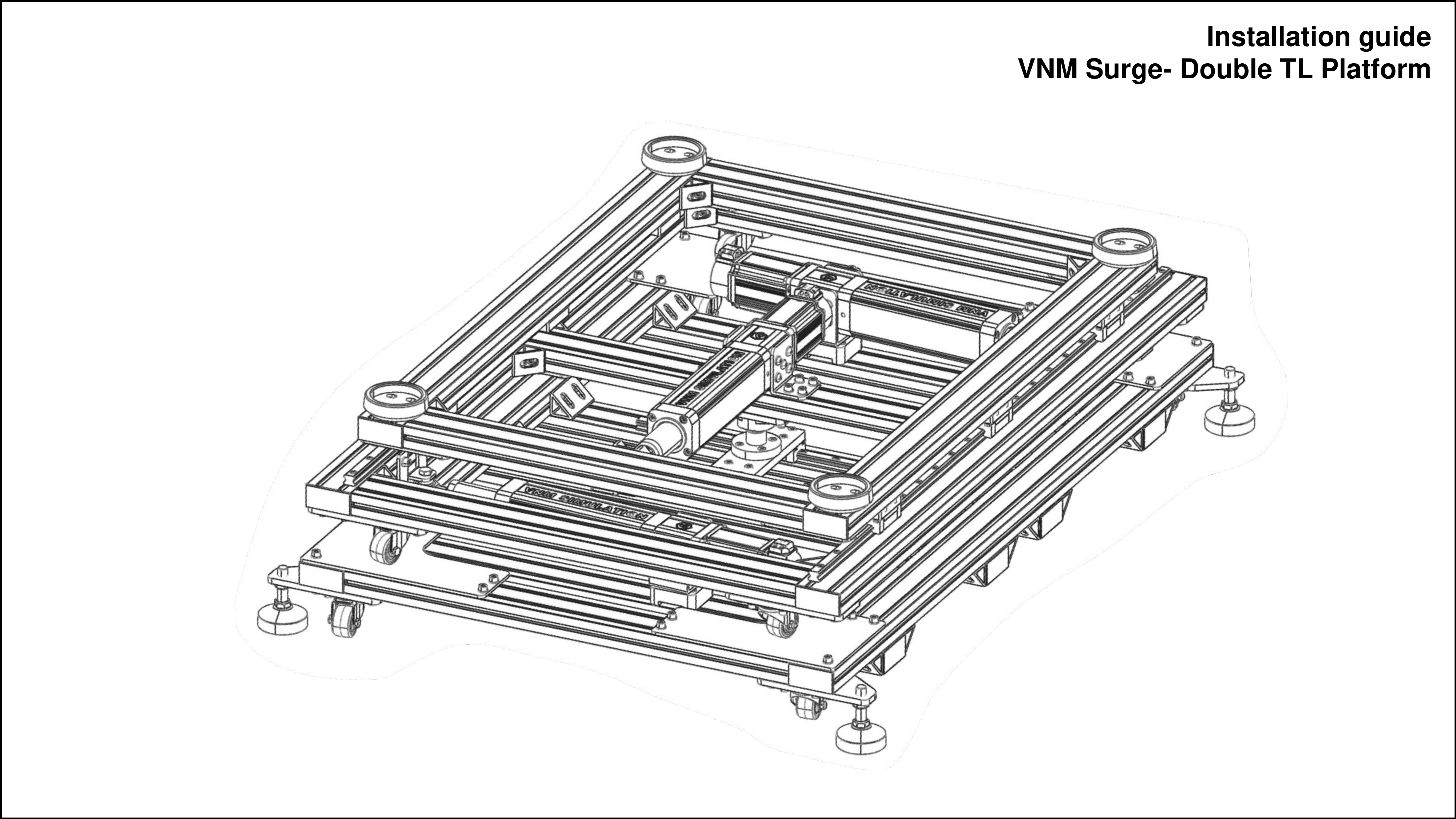

page 24

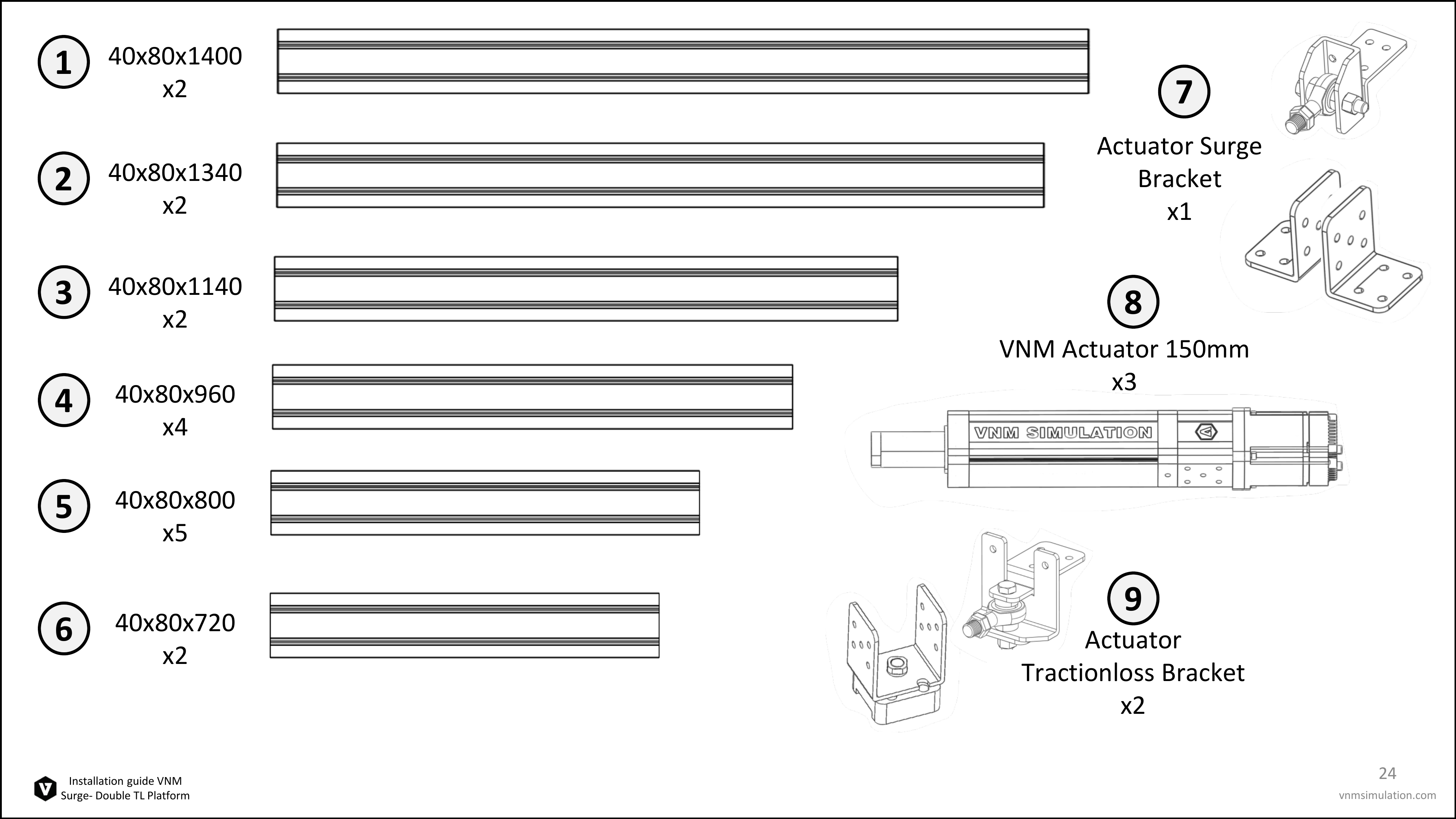

page 25

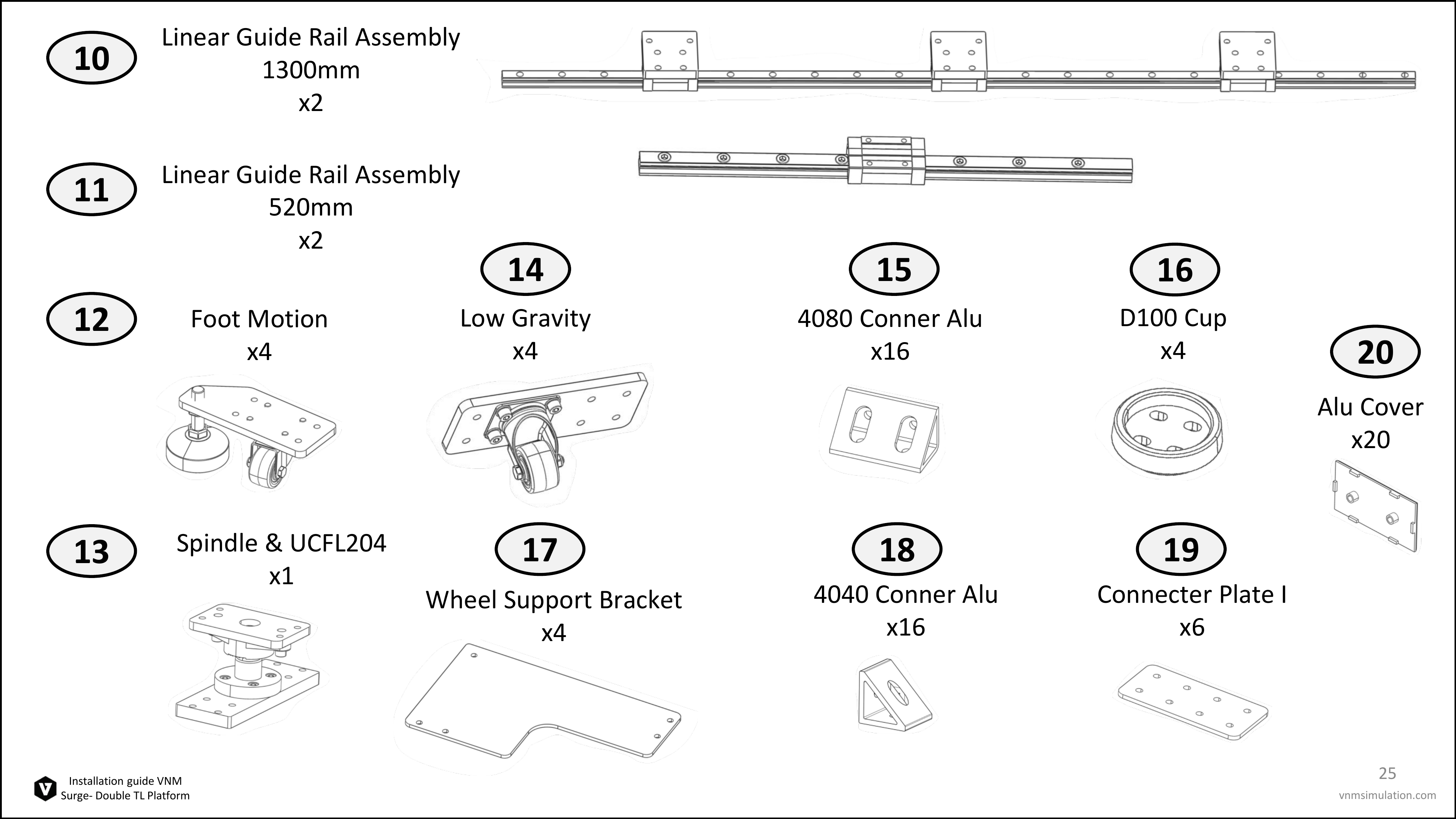

page 26

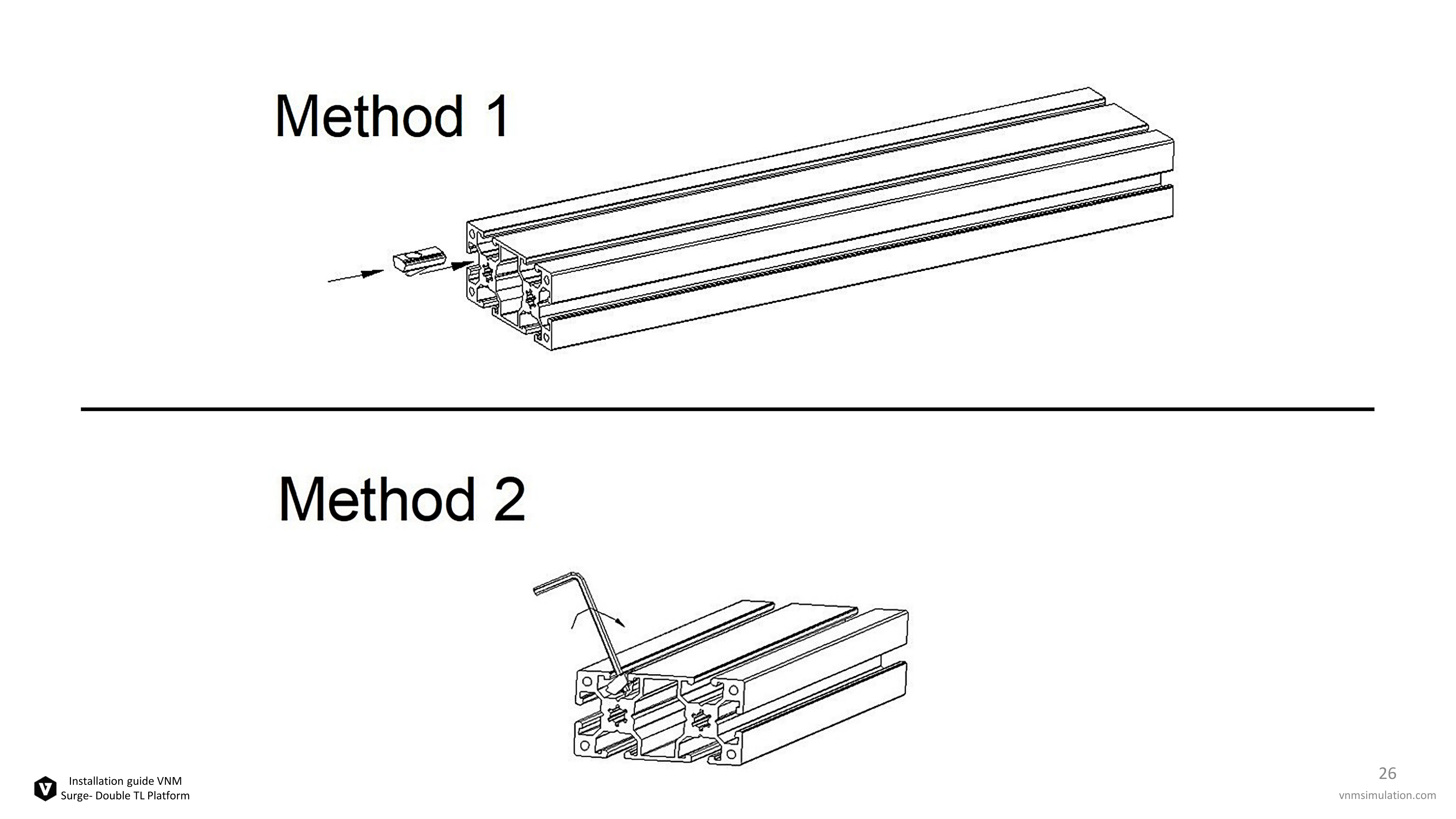

page 27

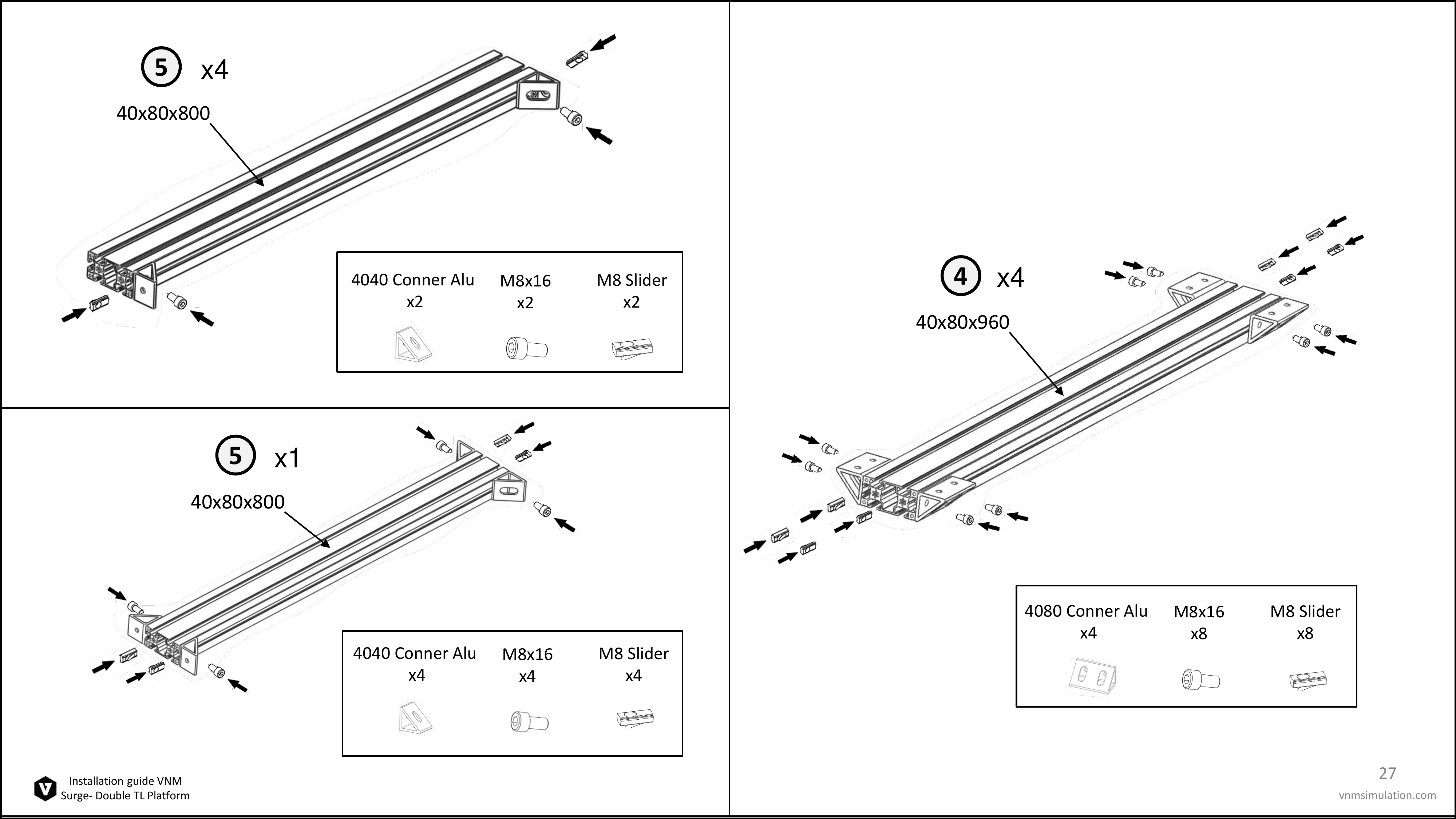

page 28
page 29
page 30

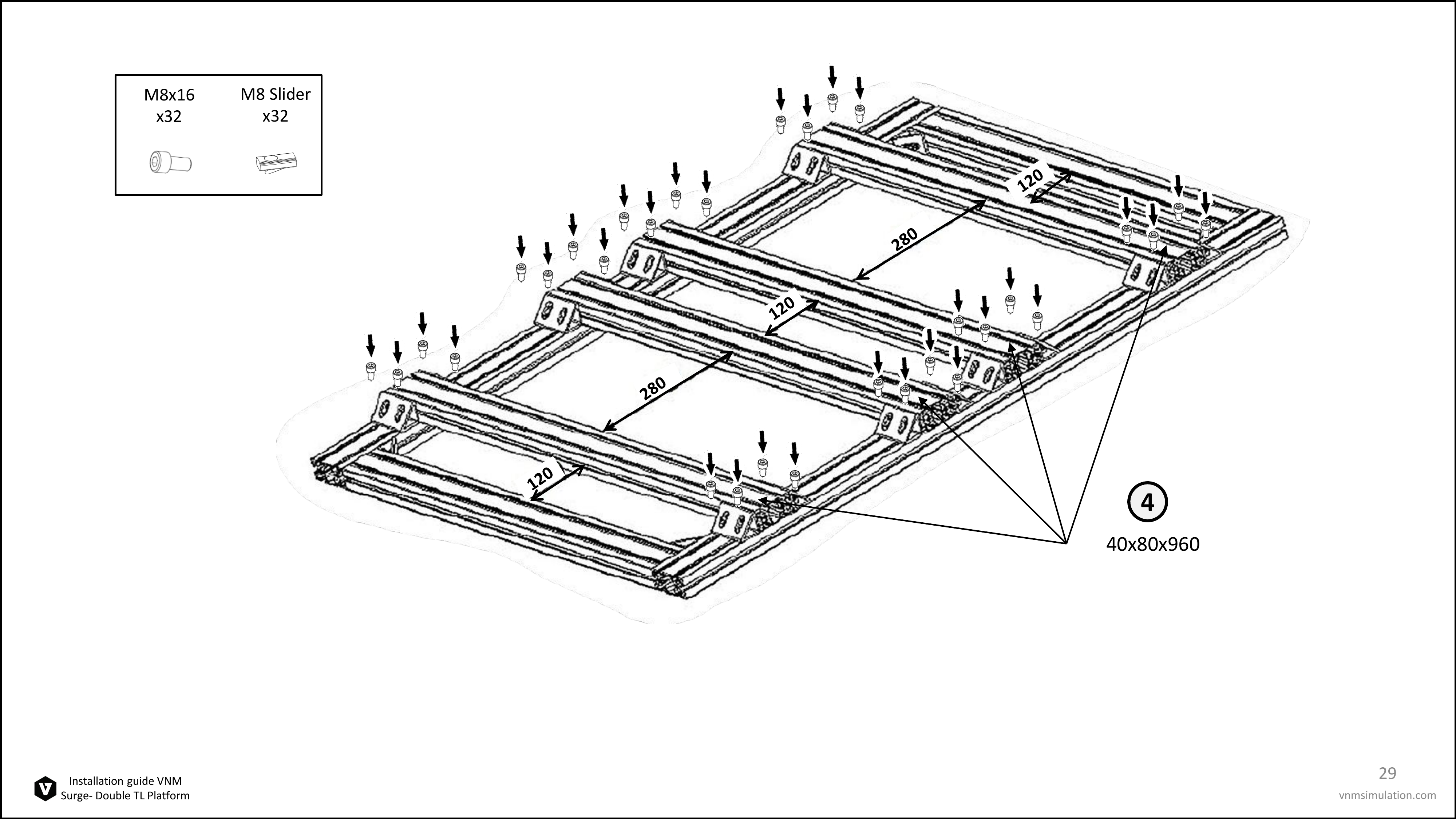

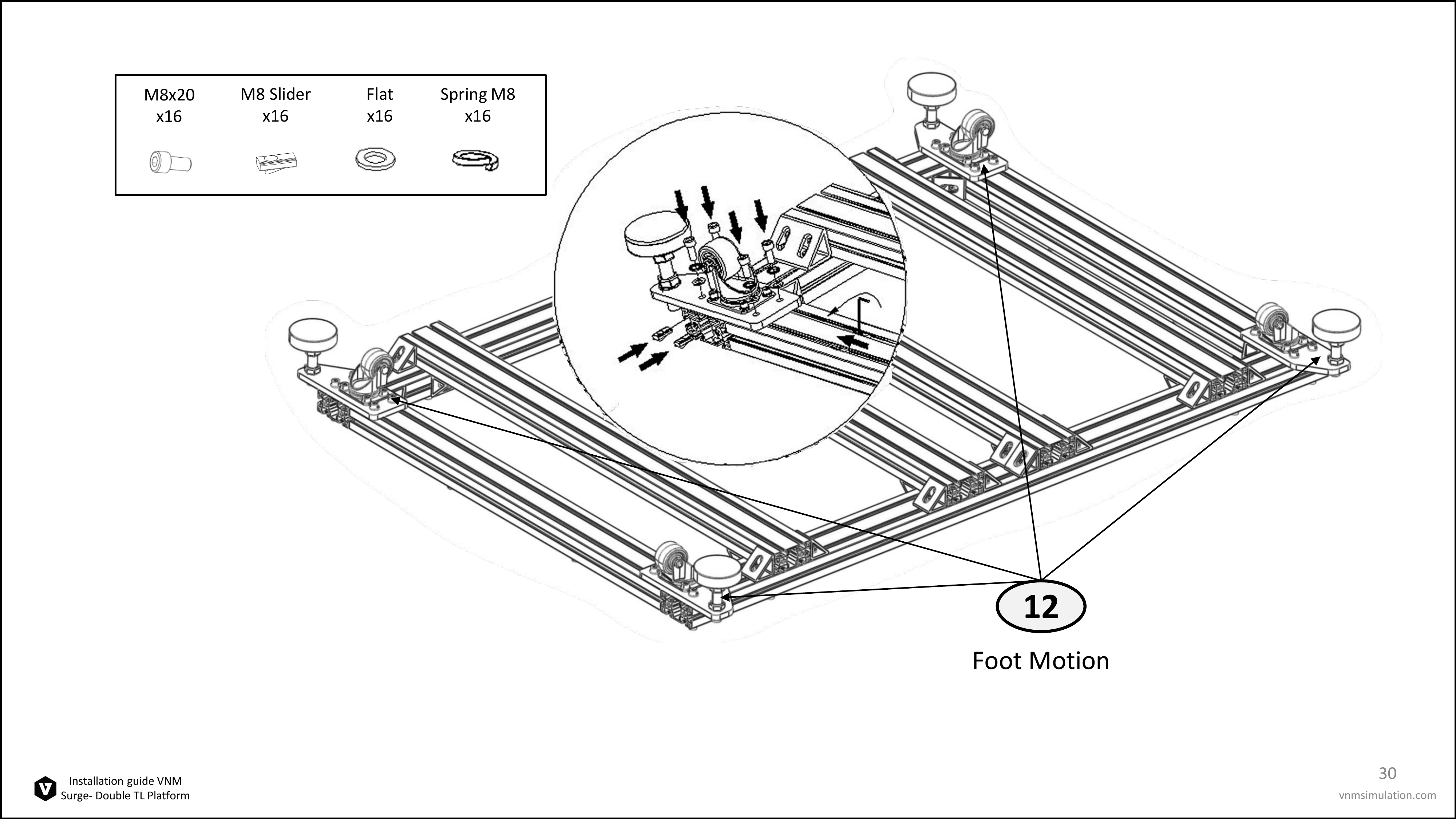

page 31

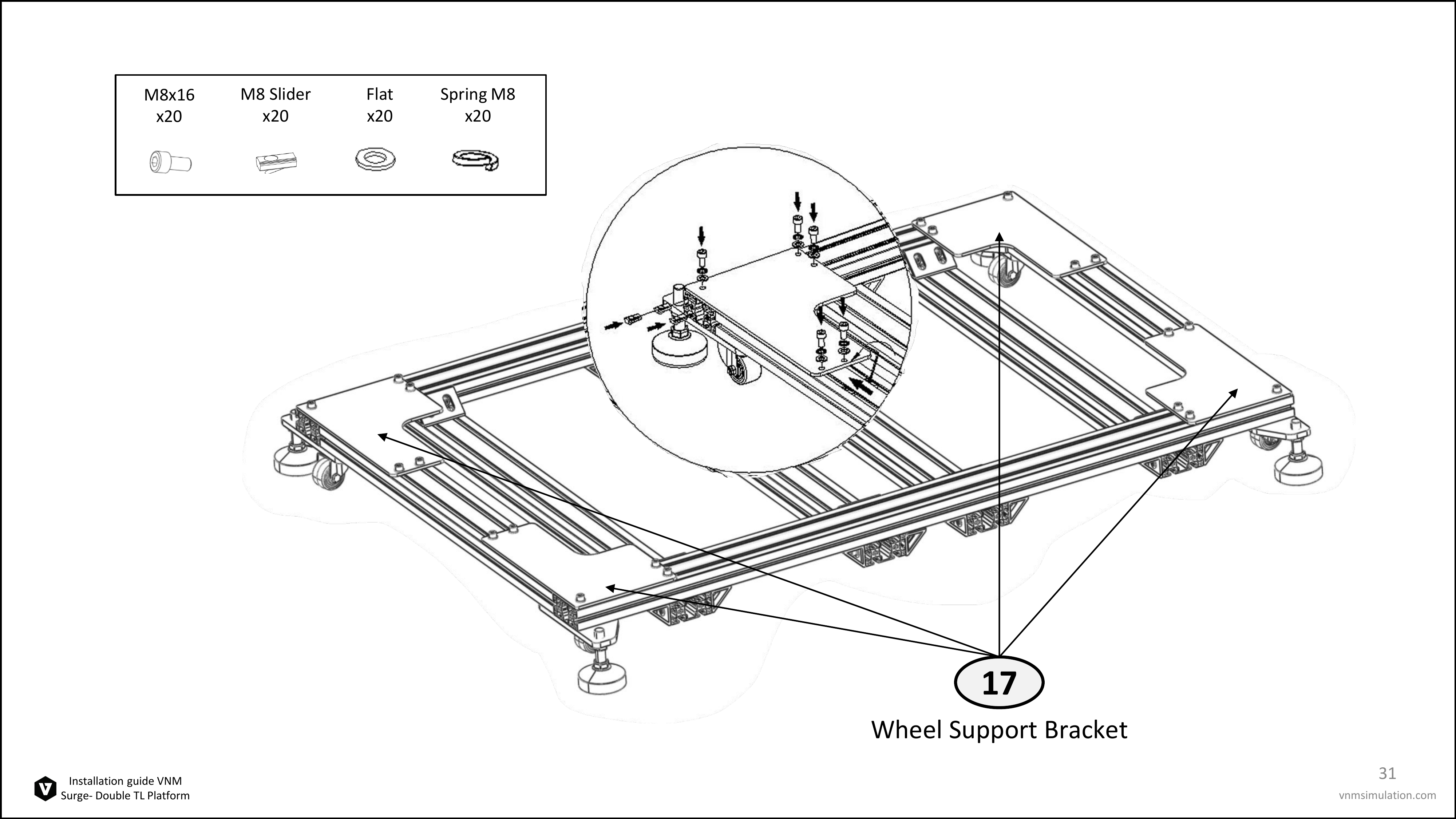

page 32

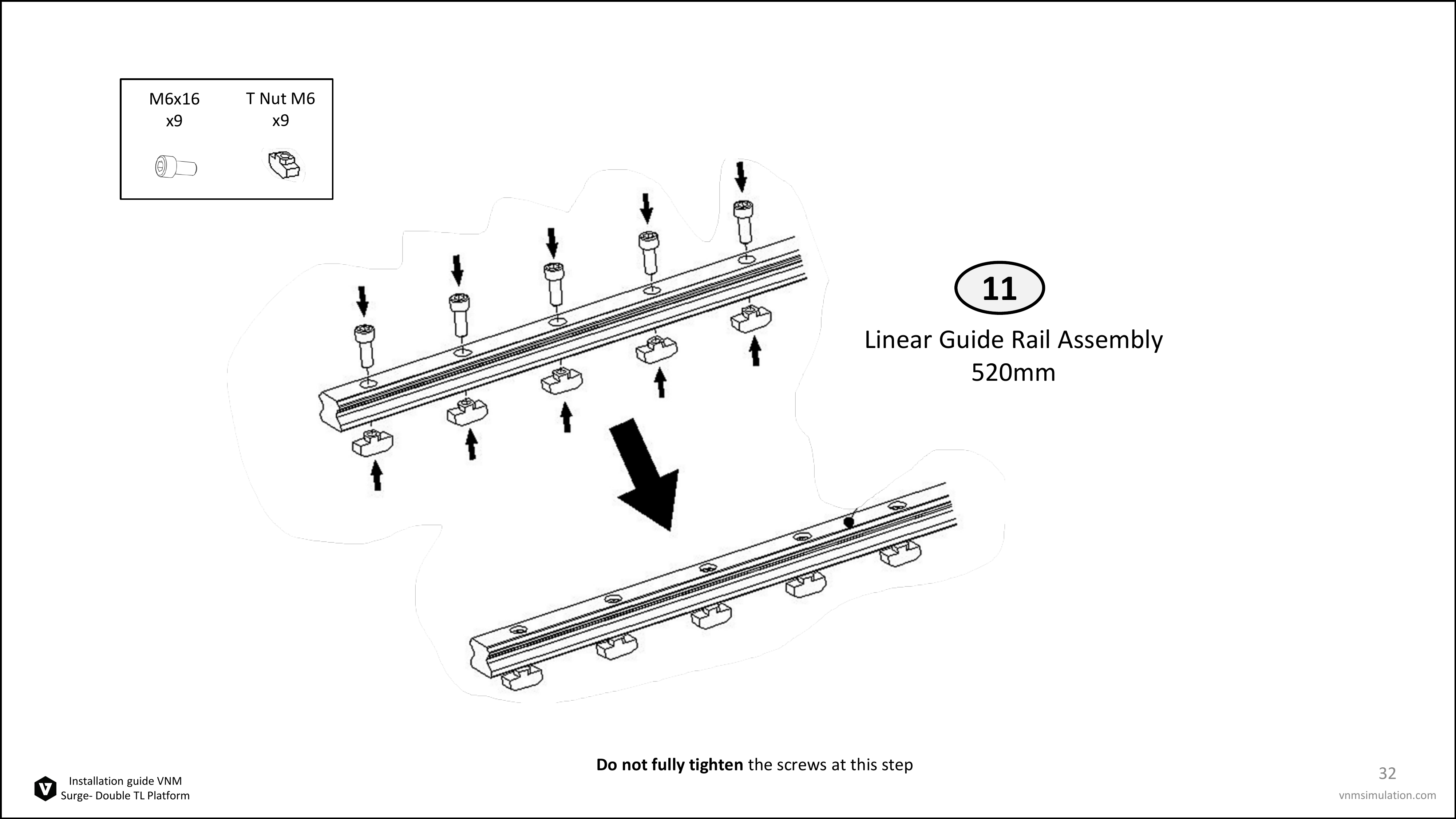

page 33

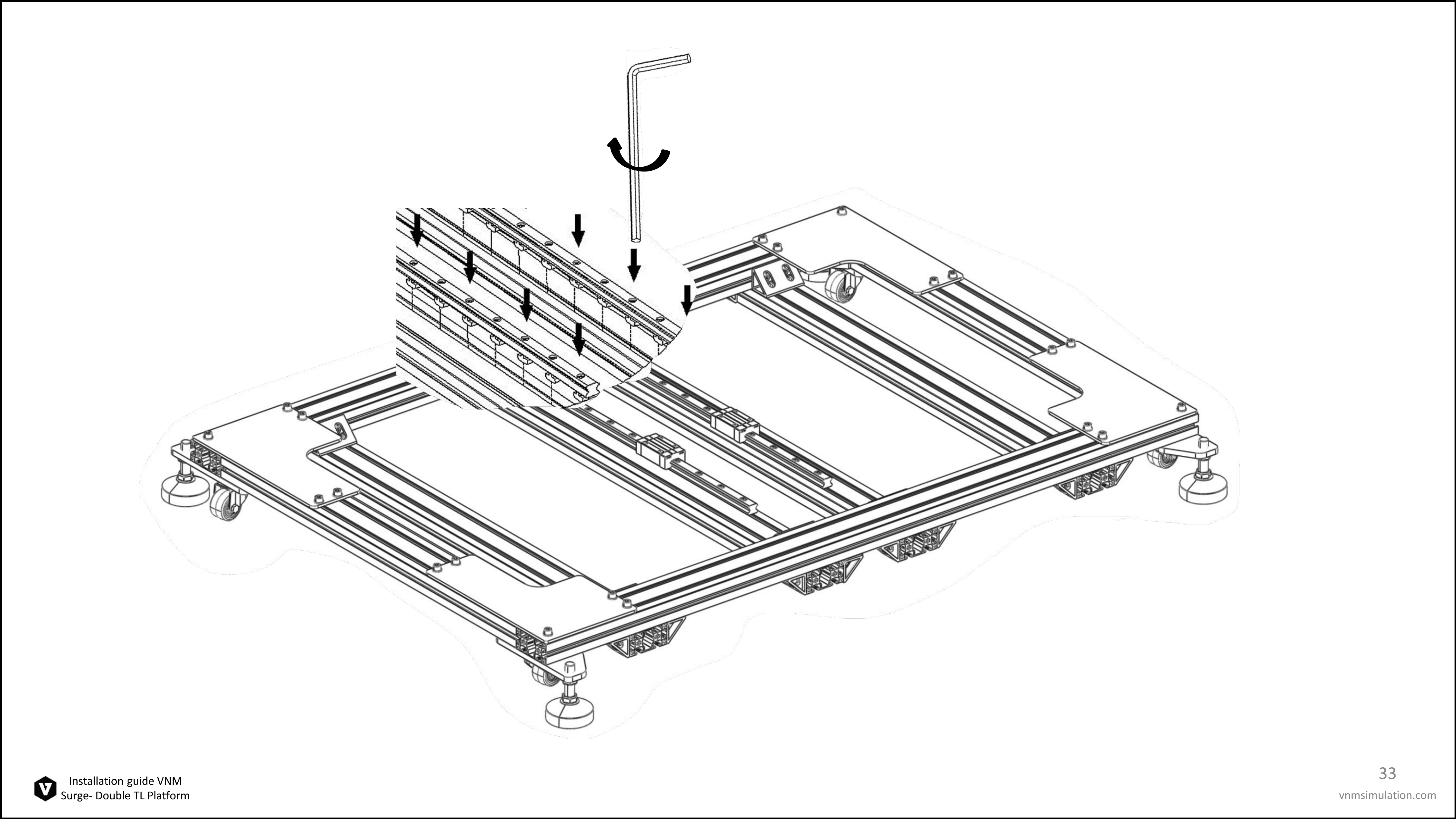

page 34

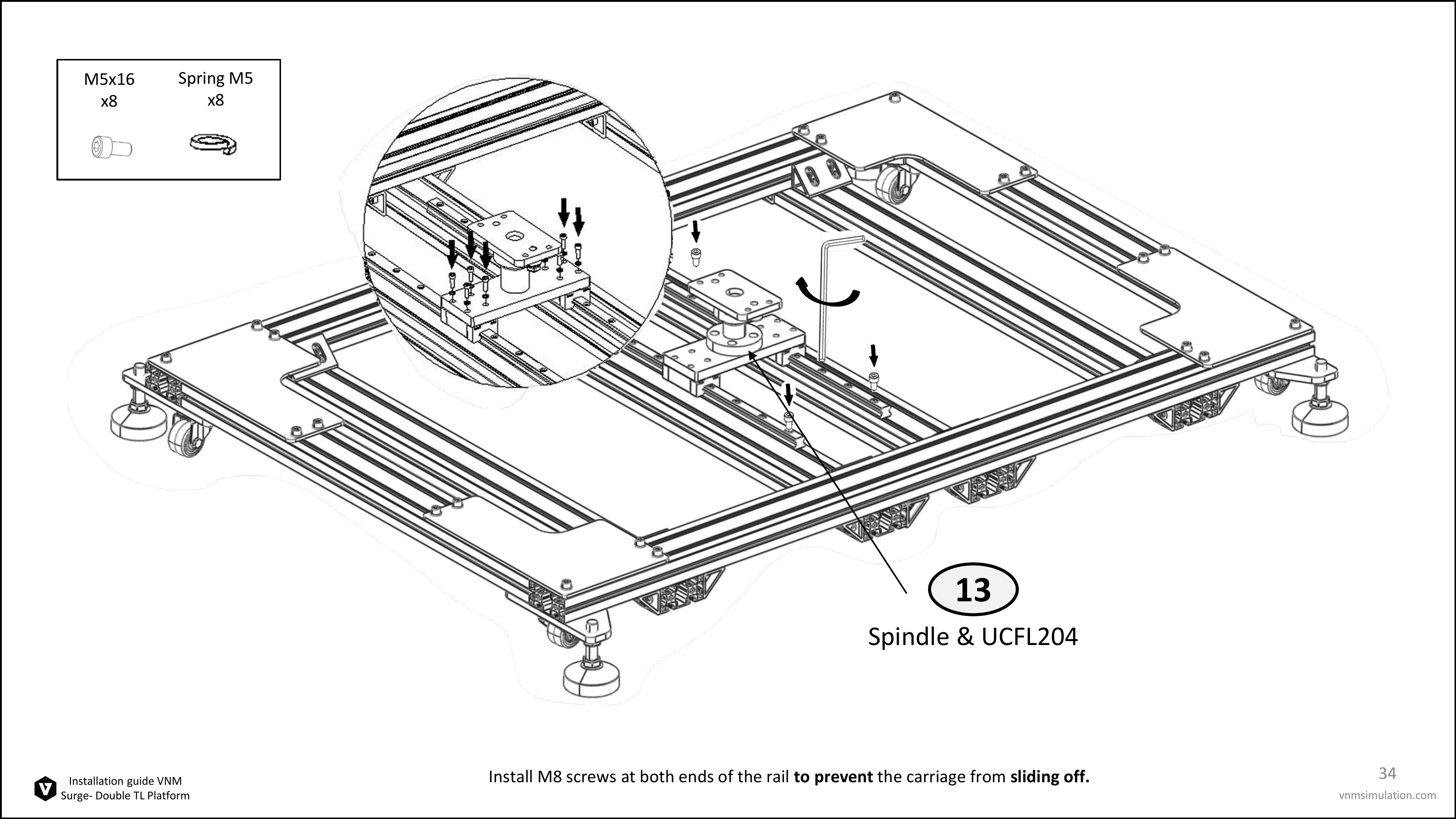

page 35
page 36

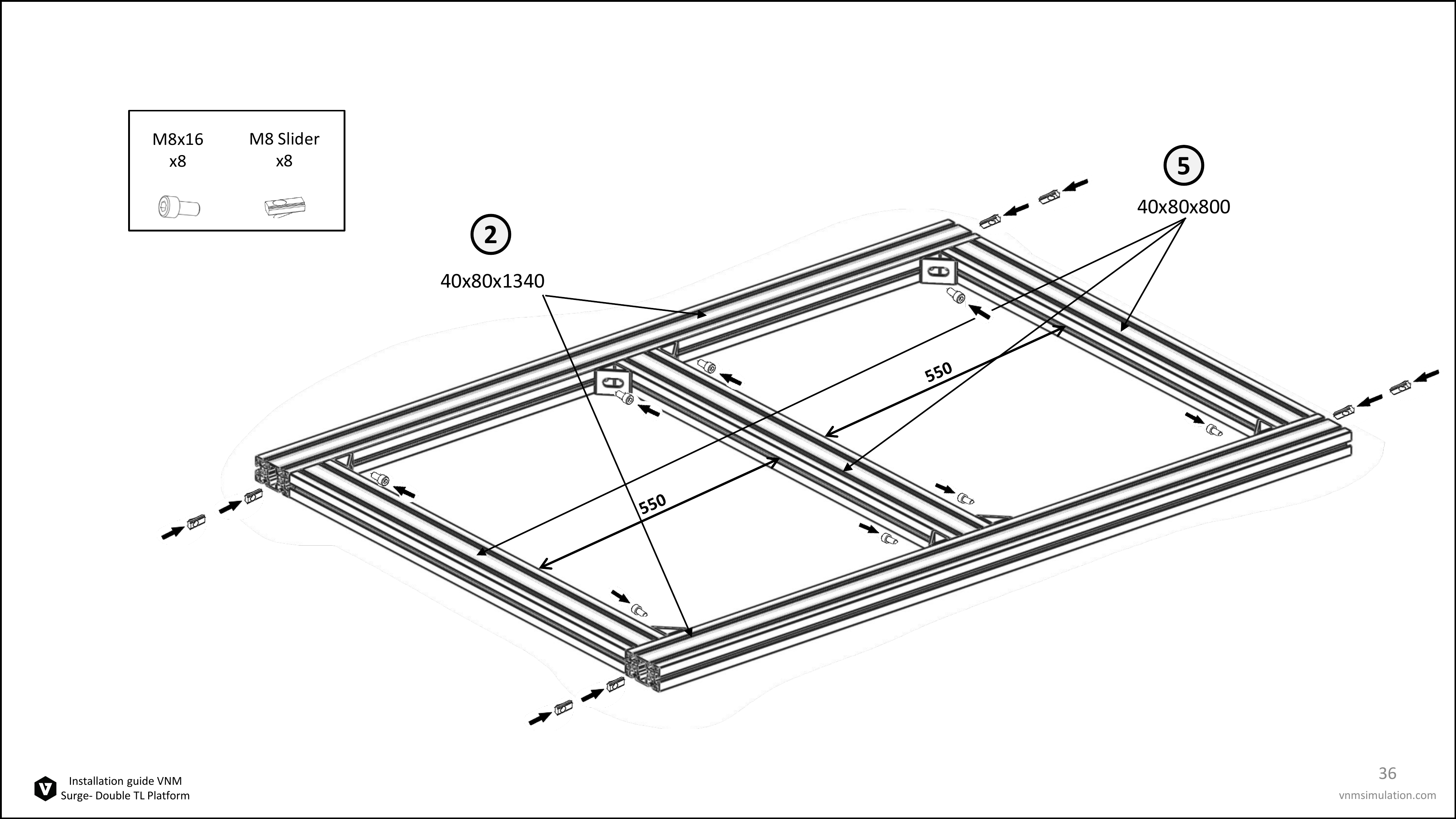

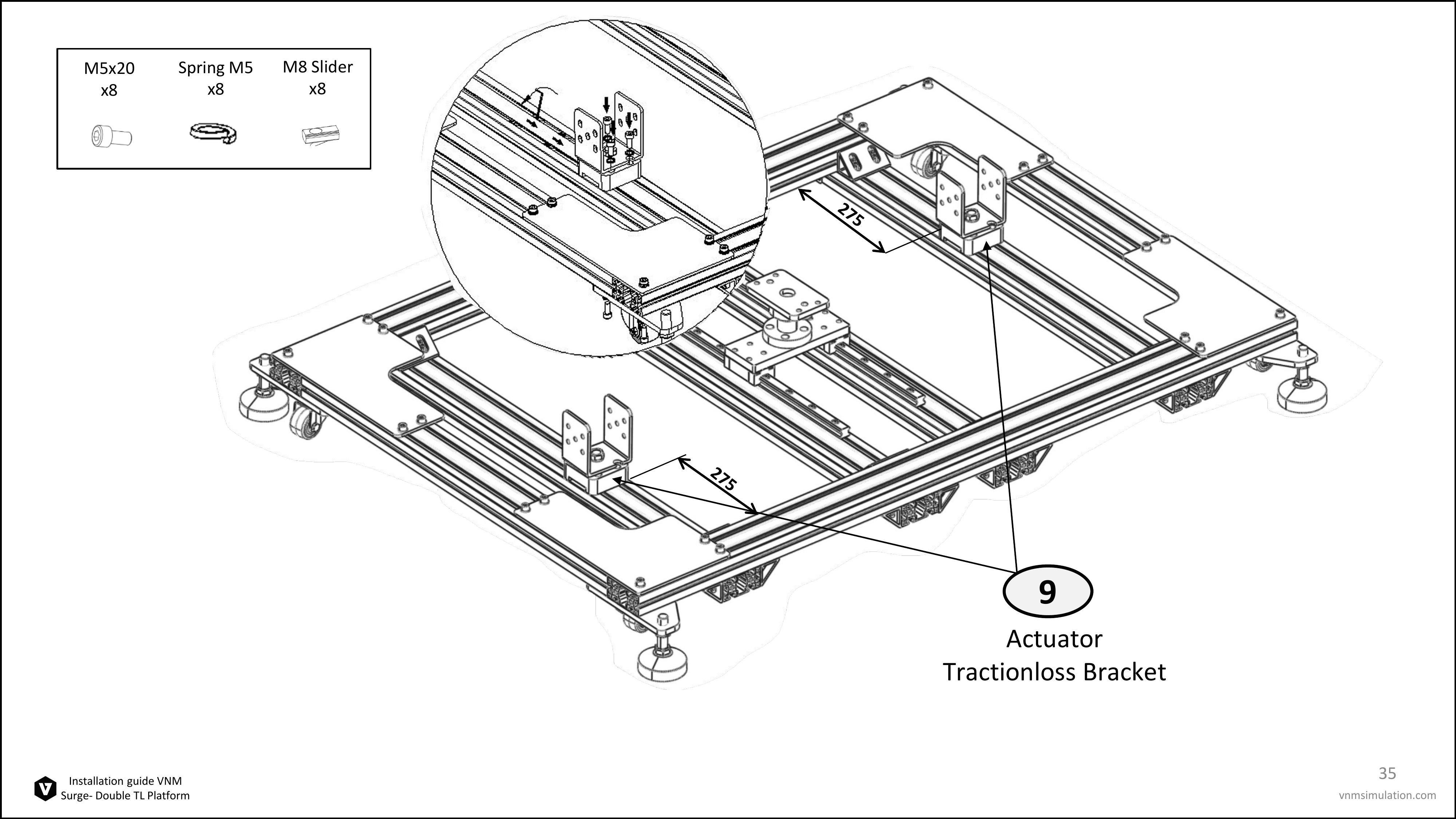

page 37

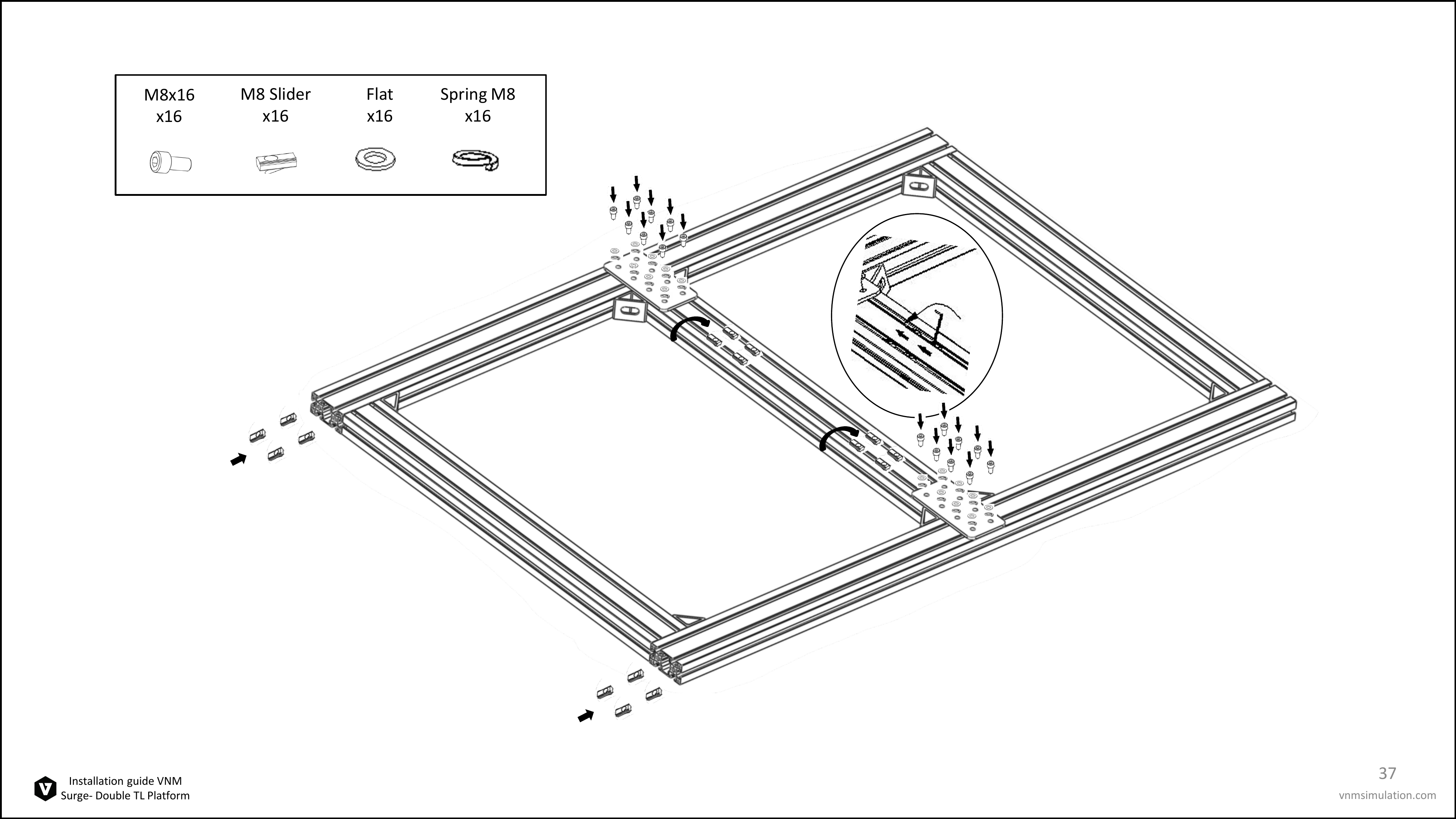

page 38

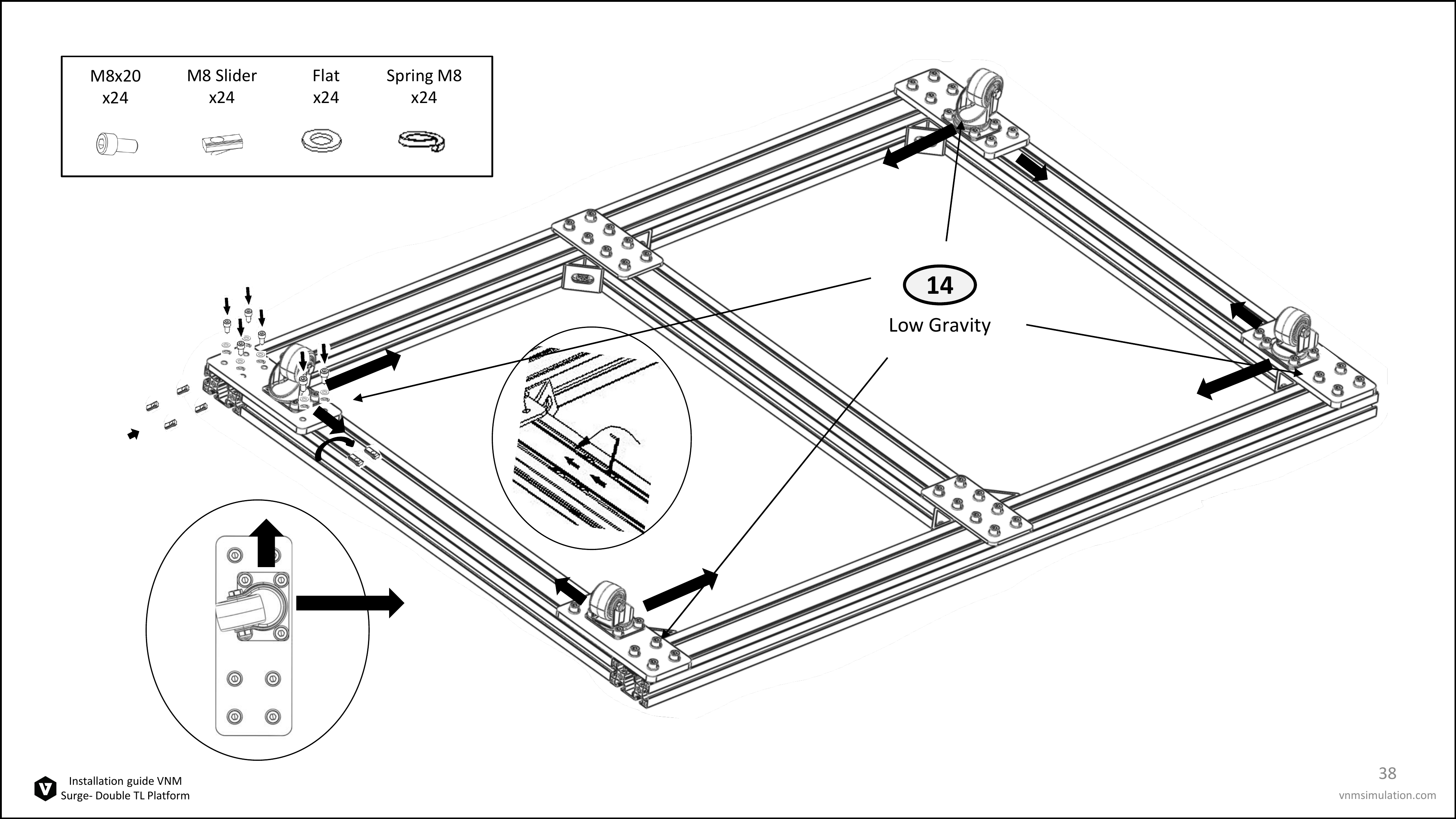

page 39

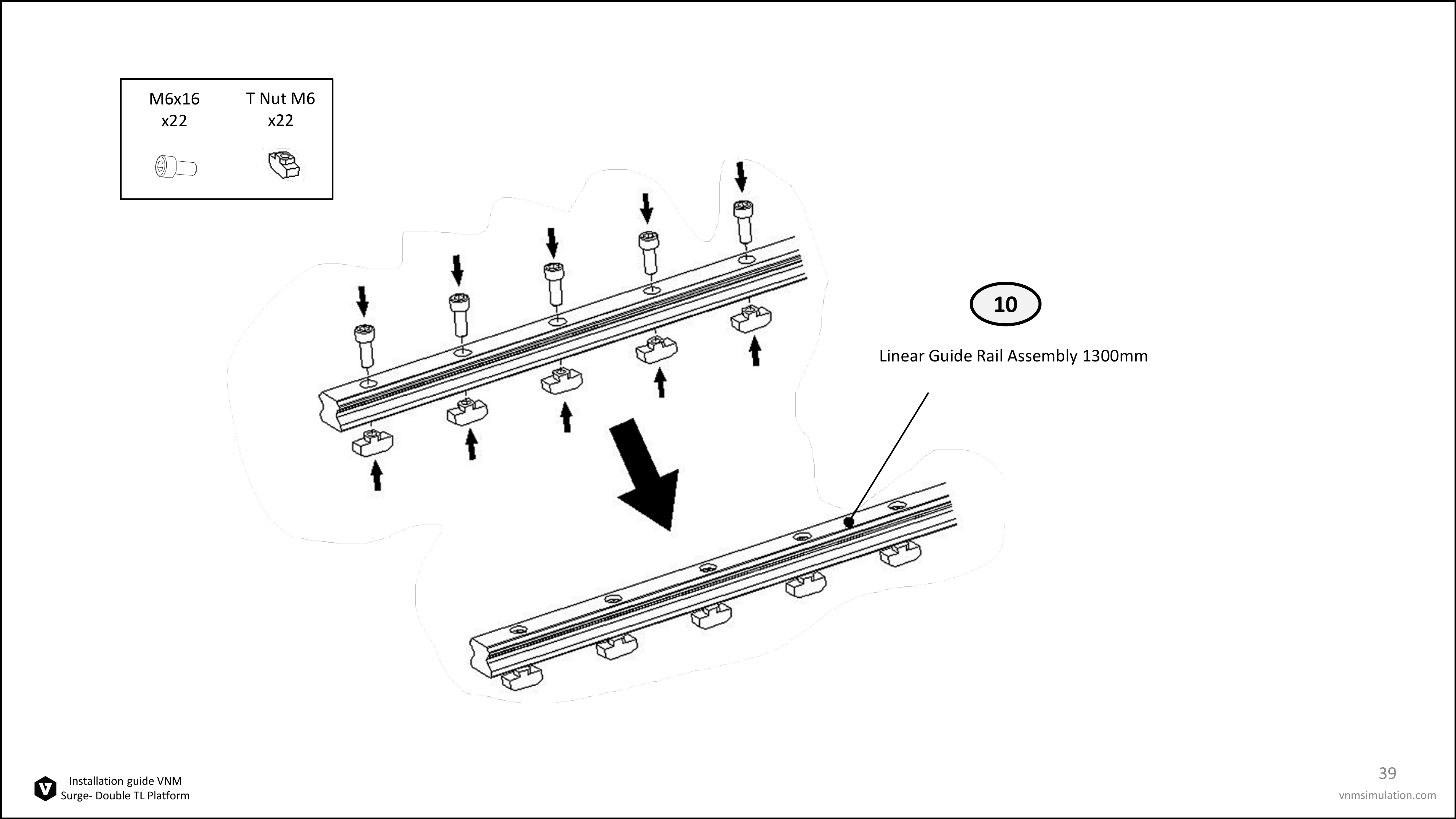

page 40

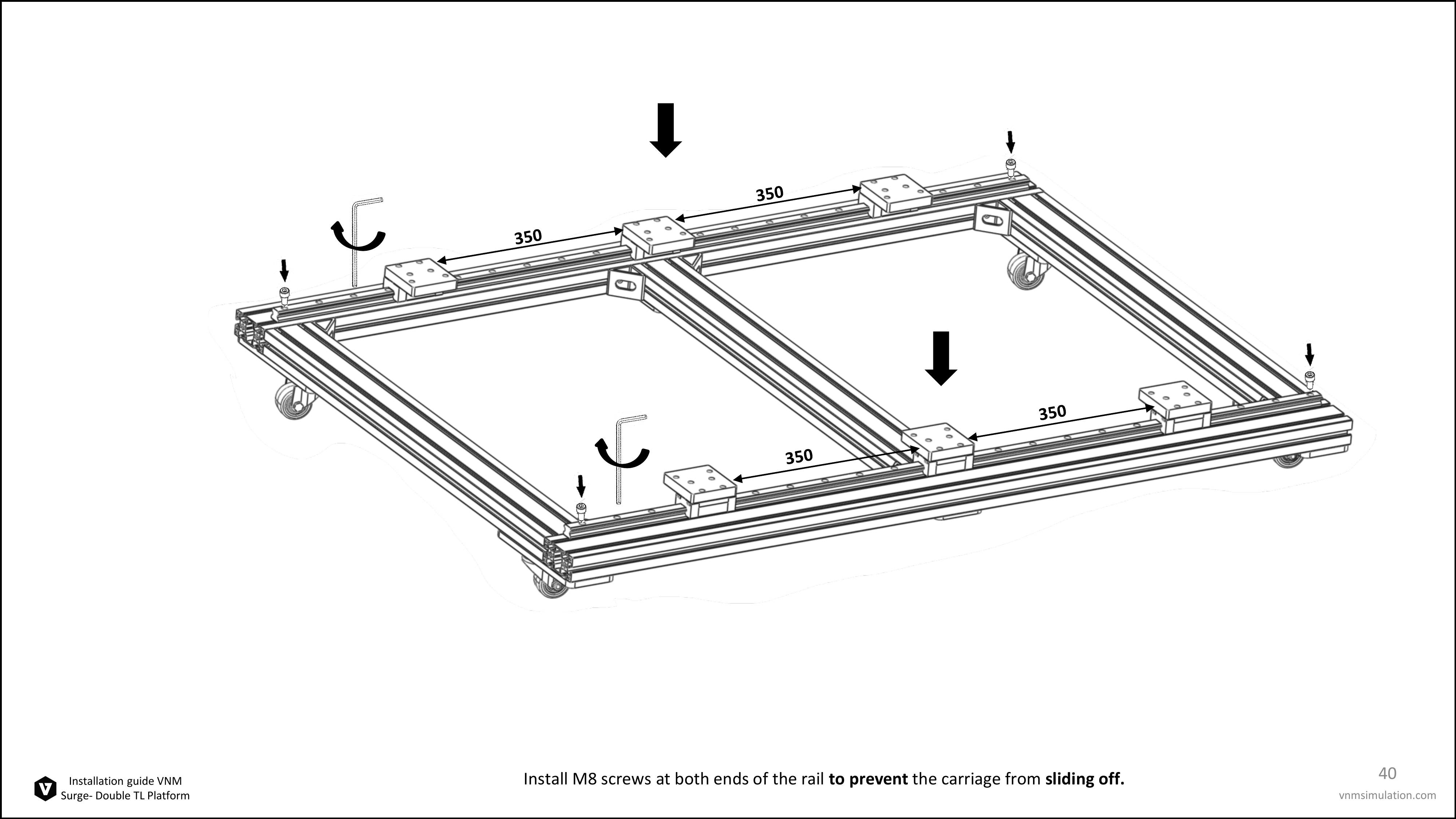

page 41

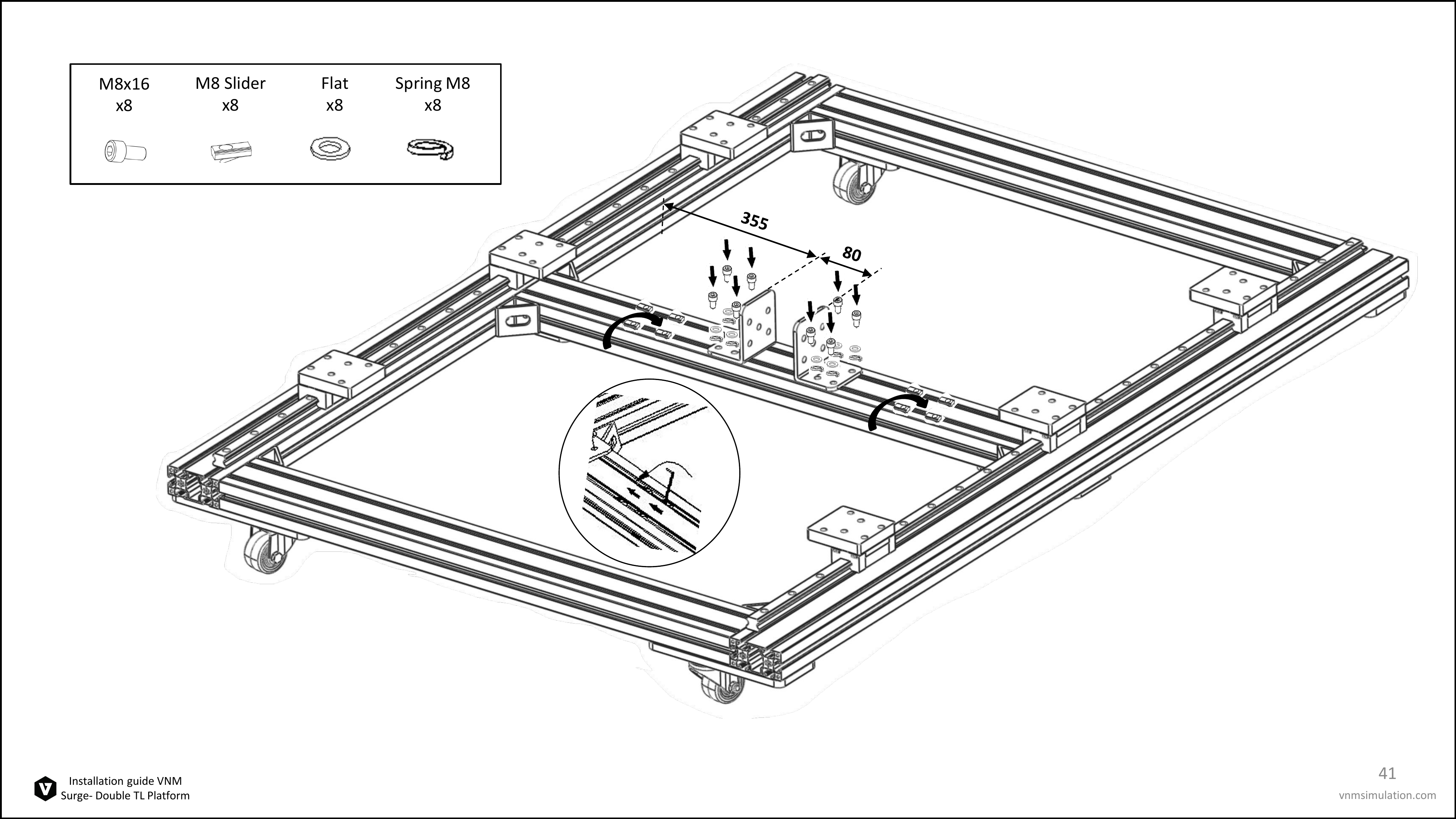

page 42

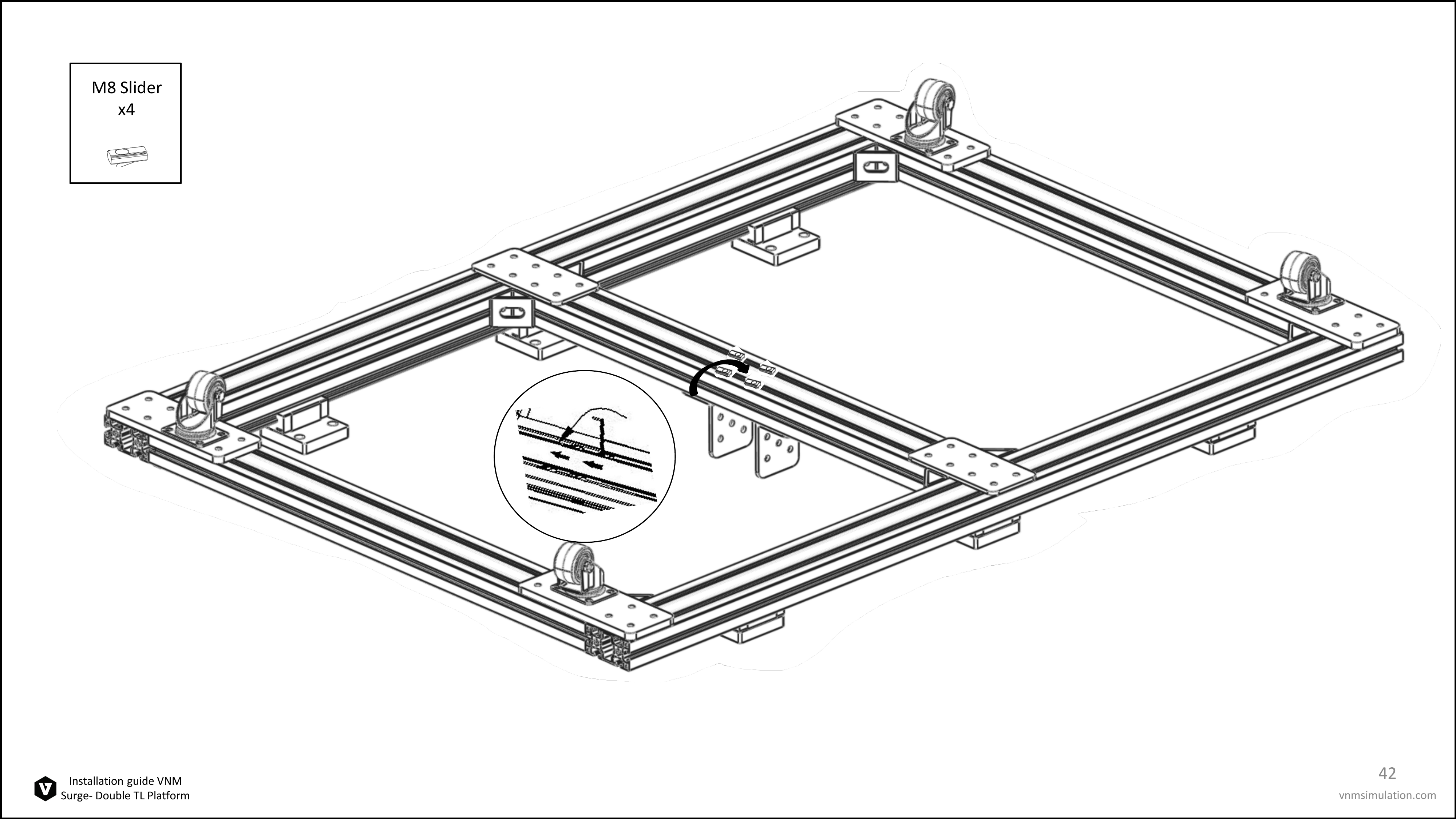

page 43
page 44

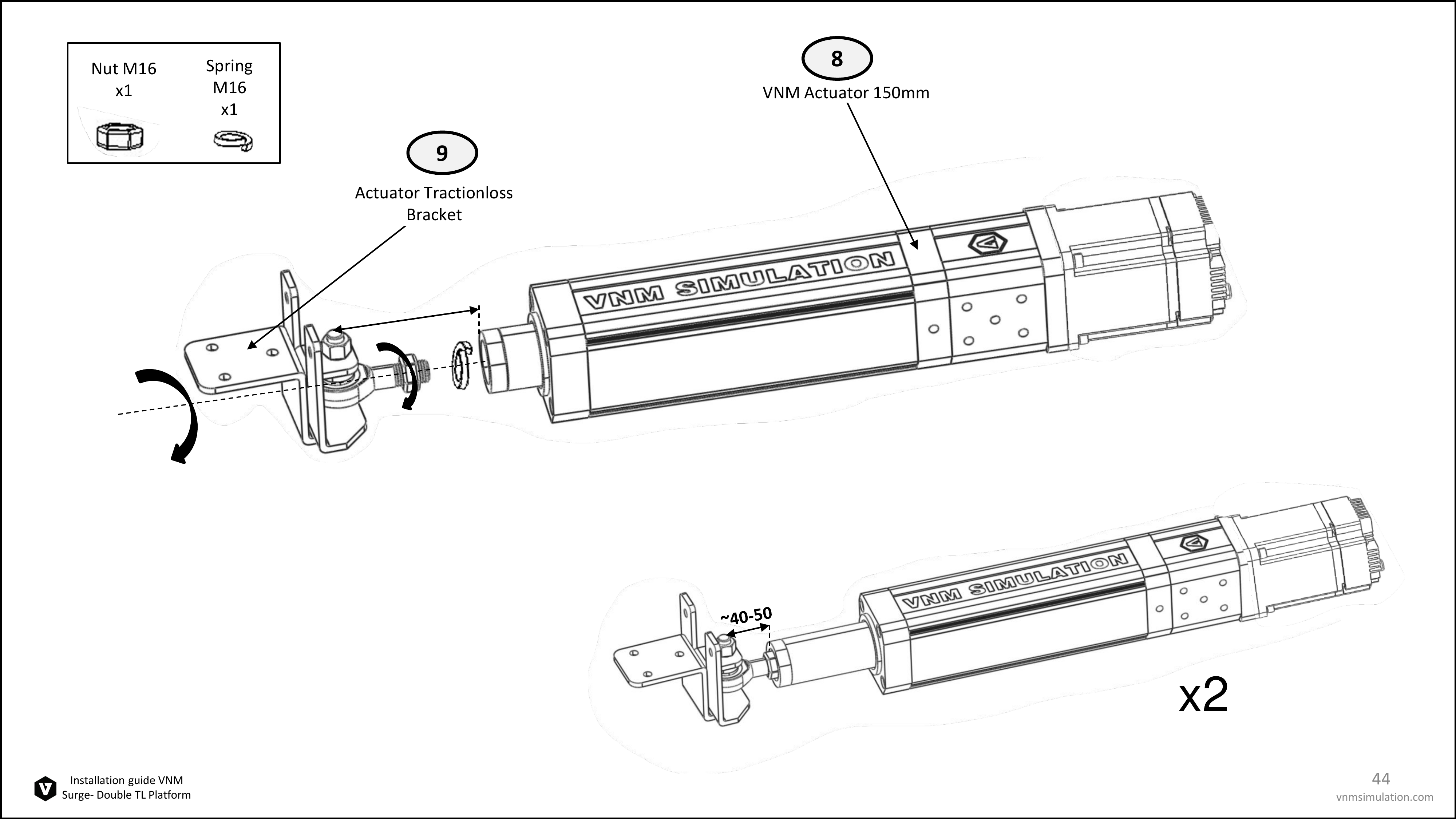

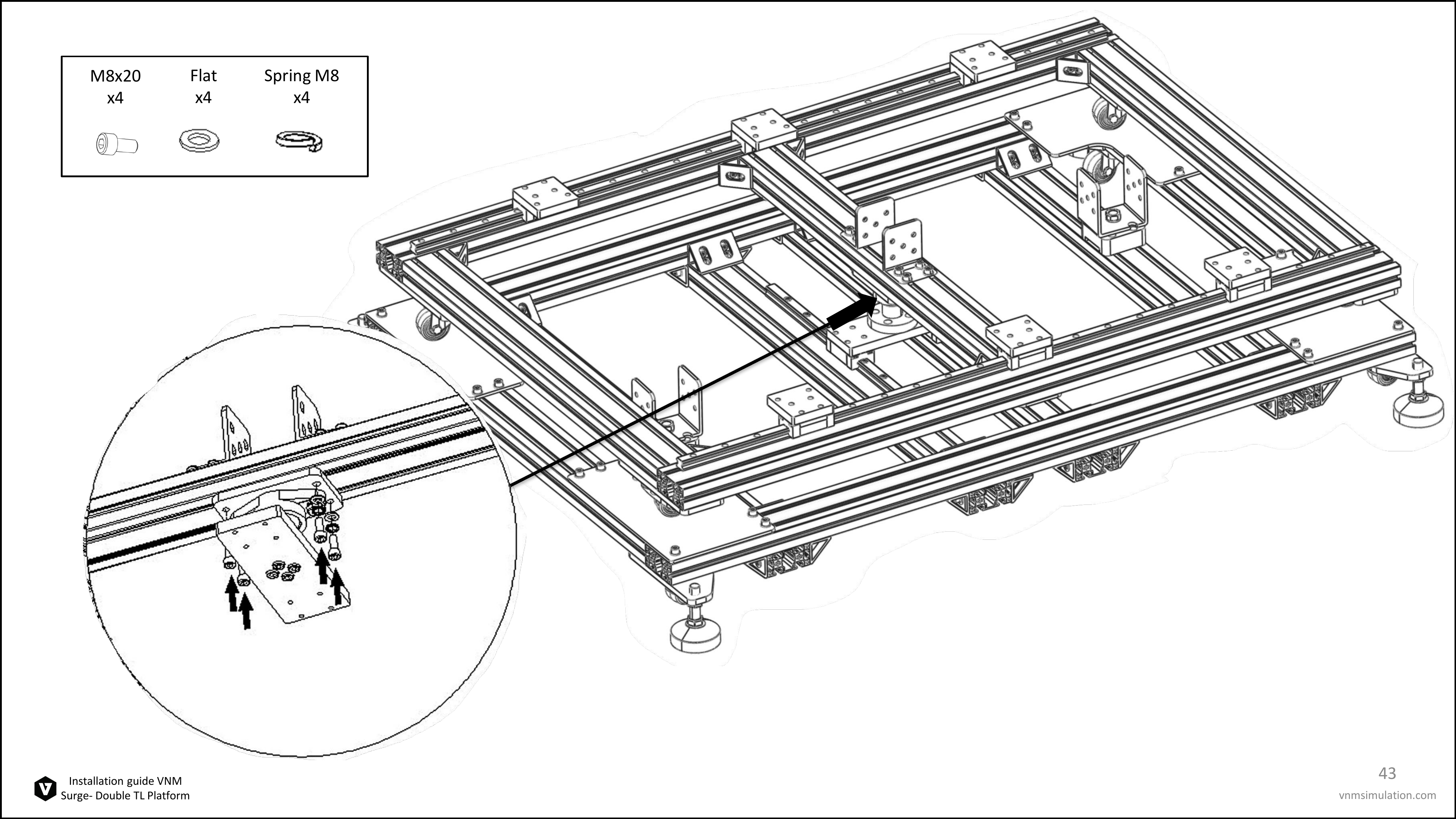

page 45
page 46

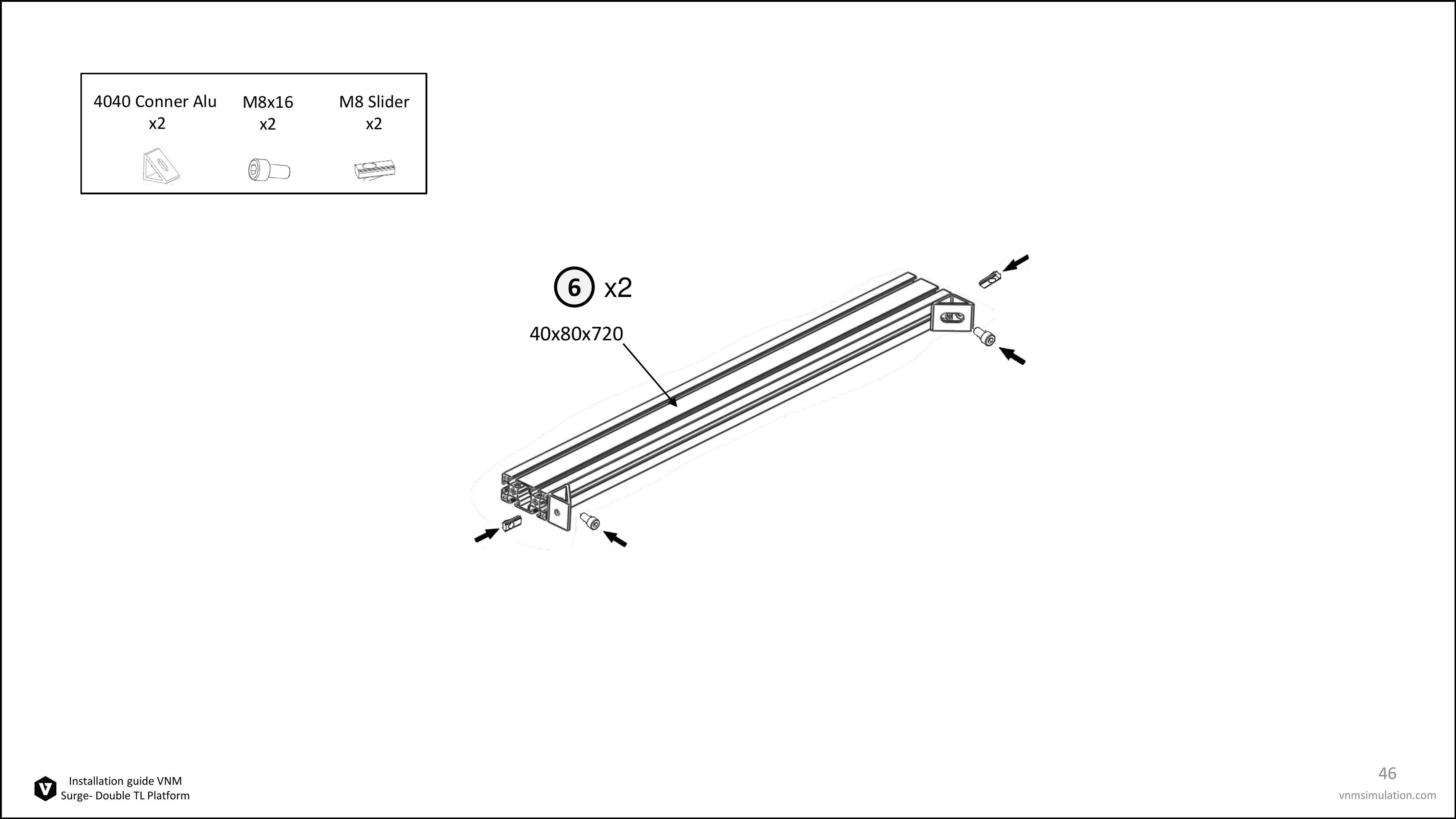

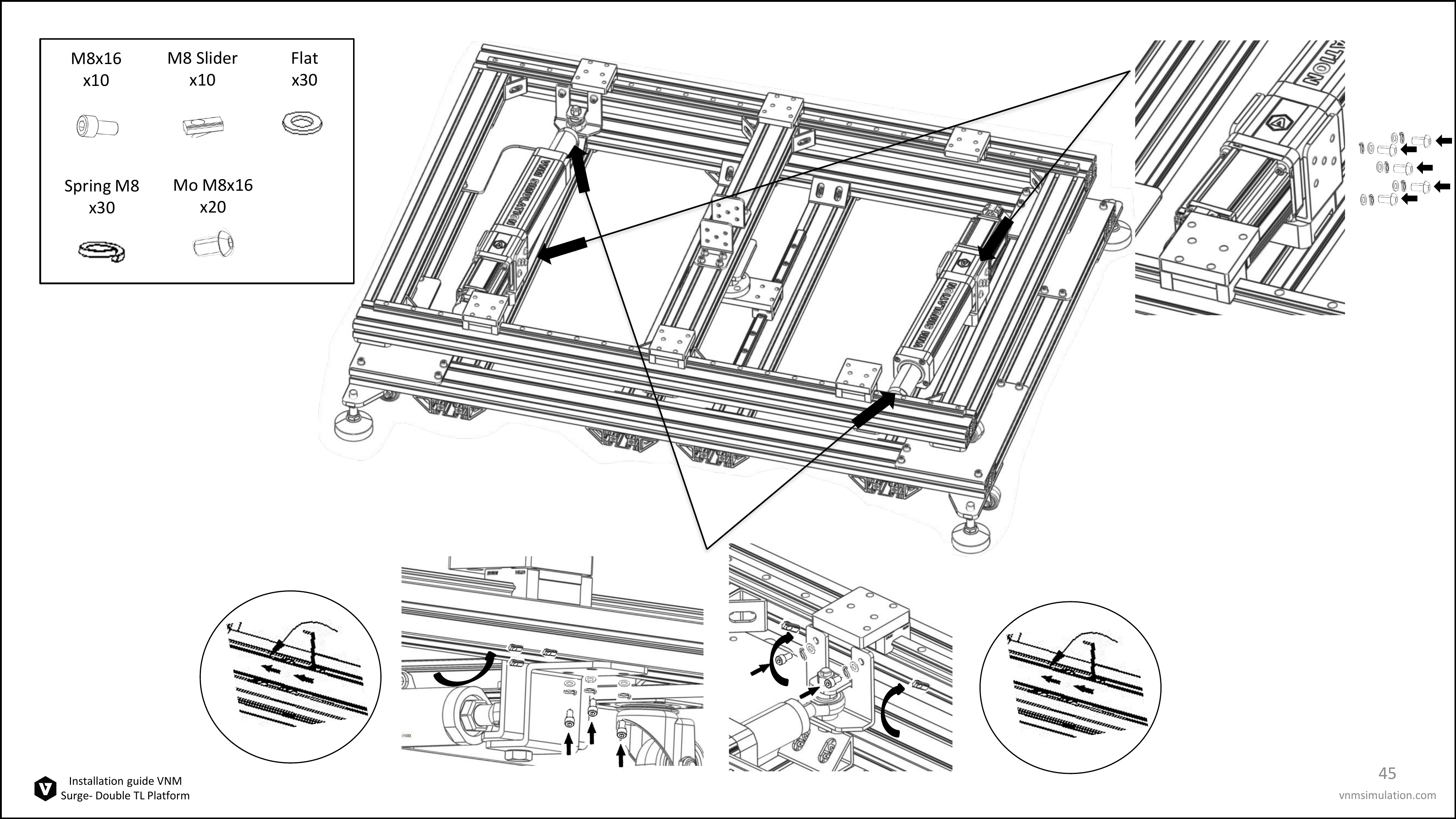

page 47

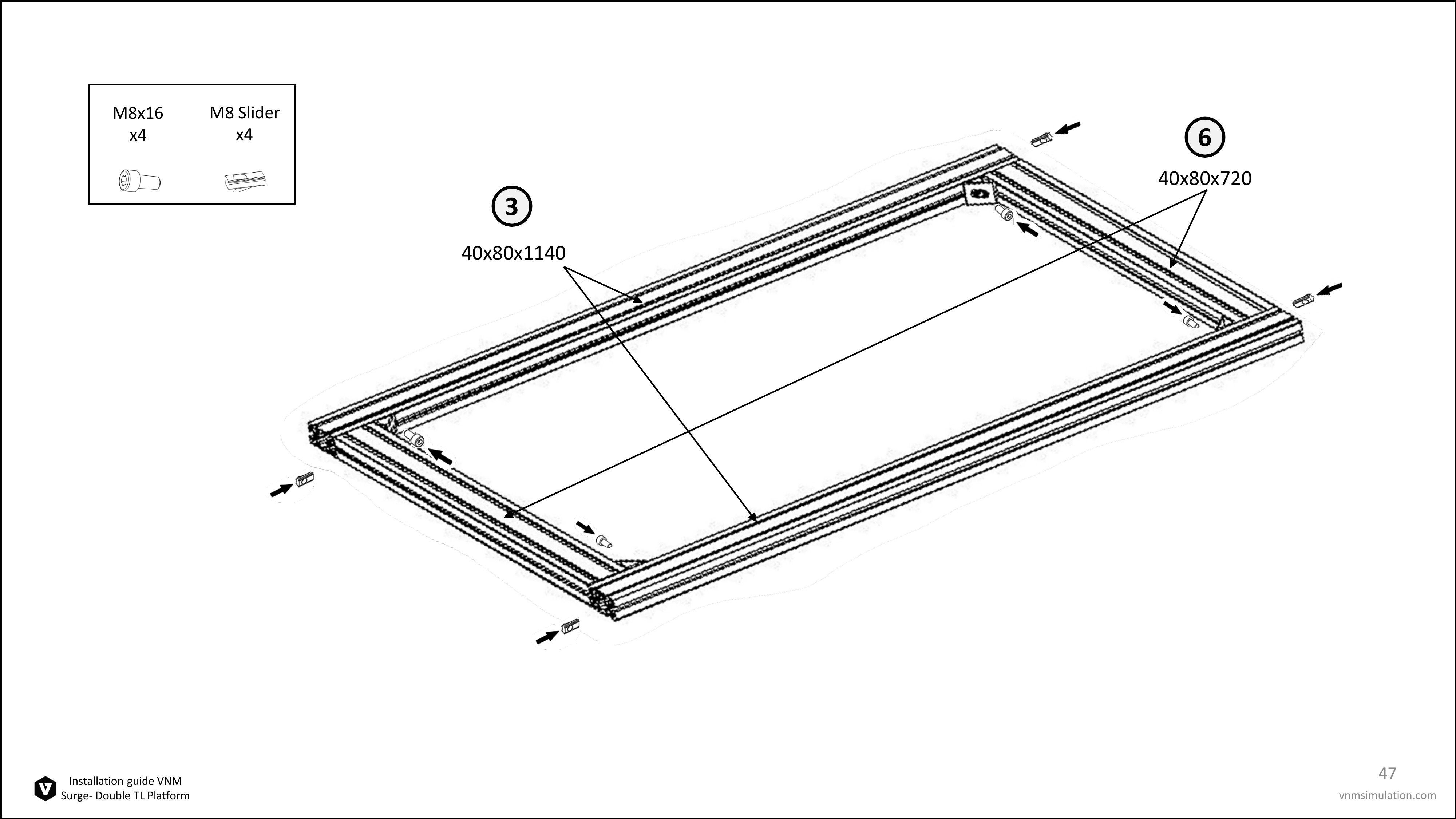

page 48

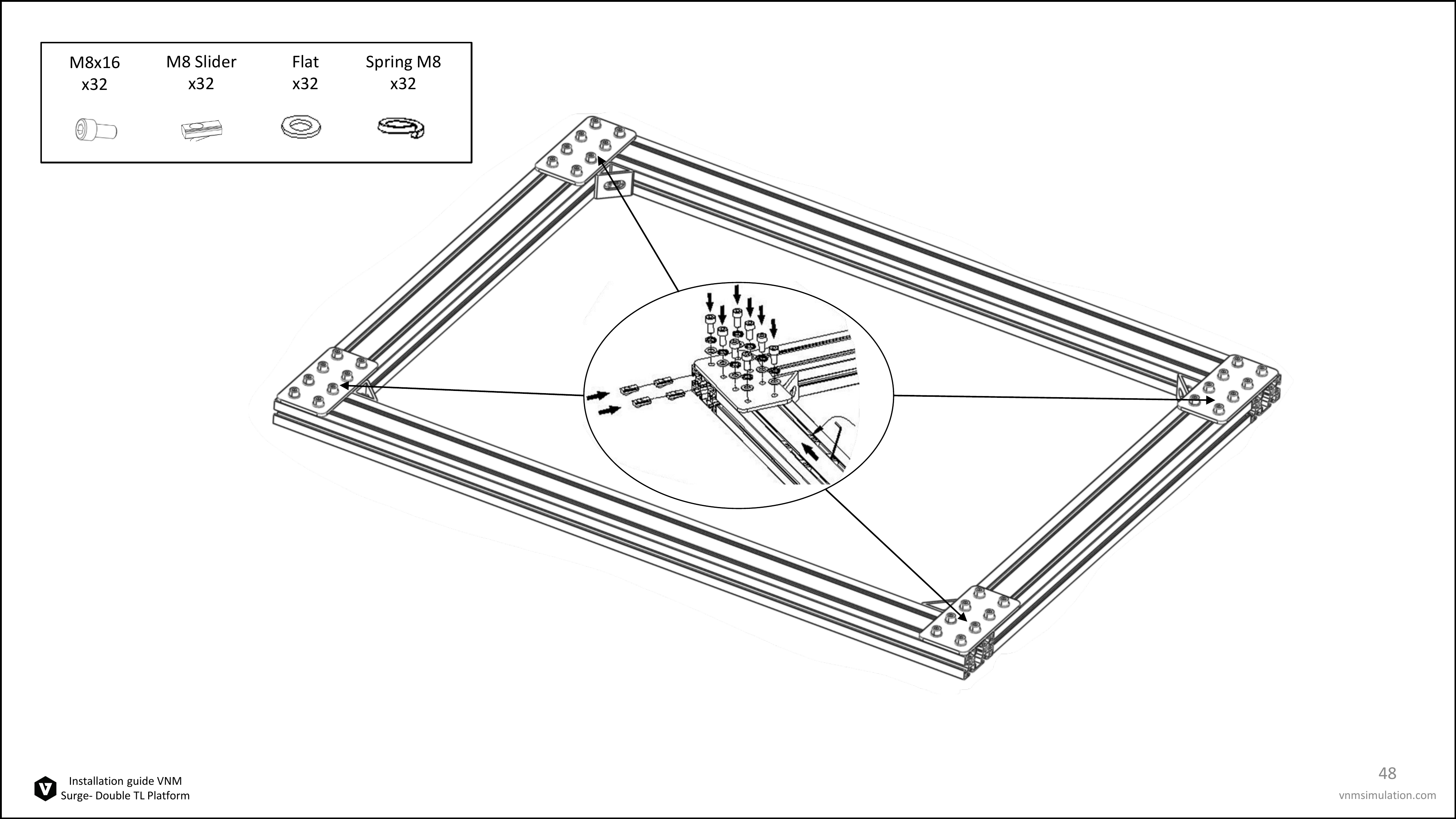

page 49

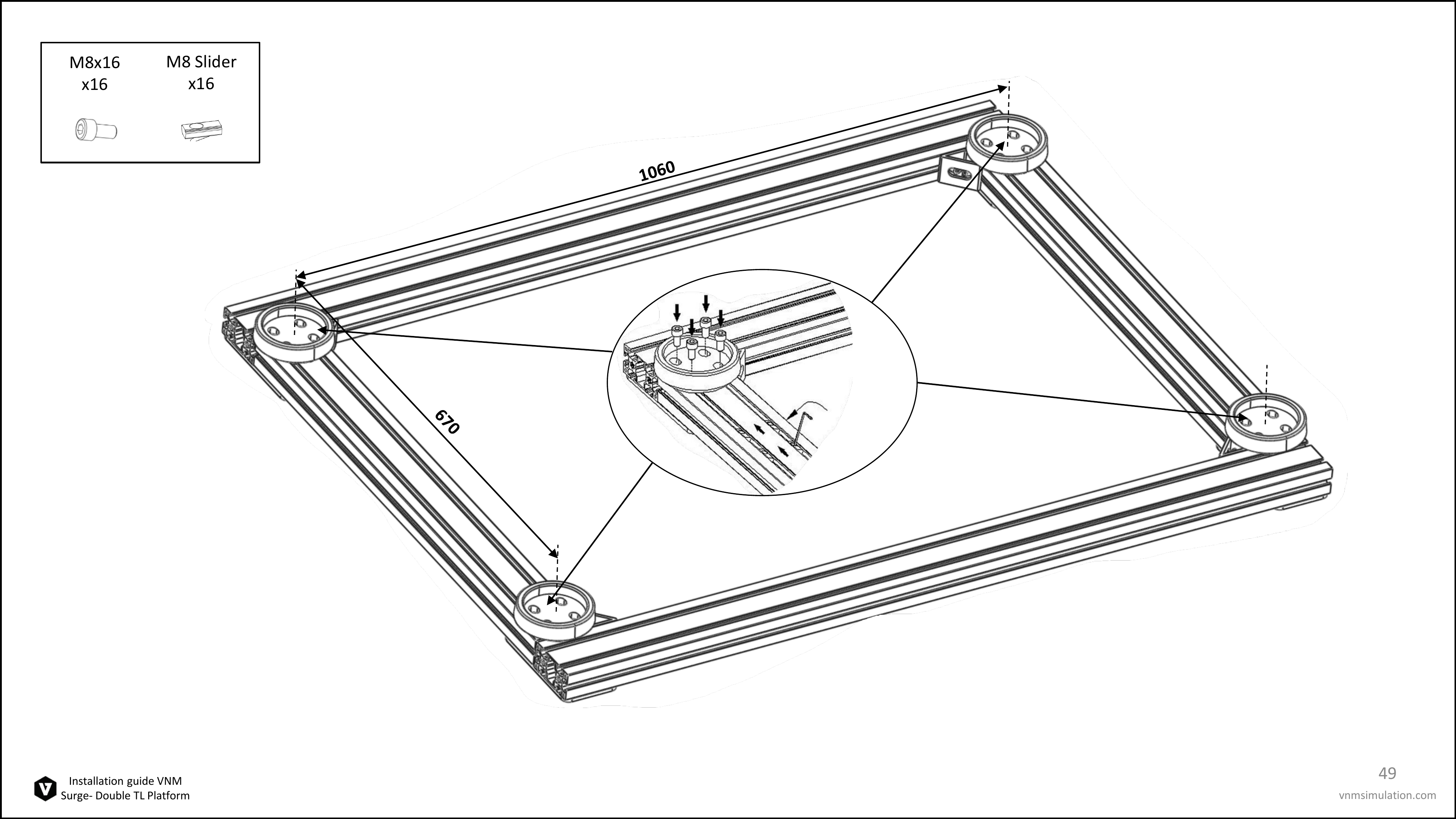

page 50
page 51

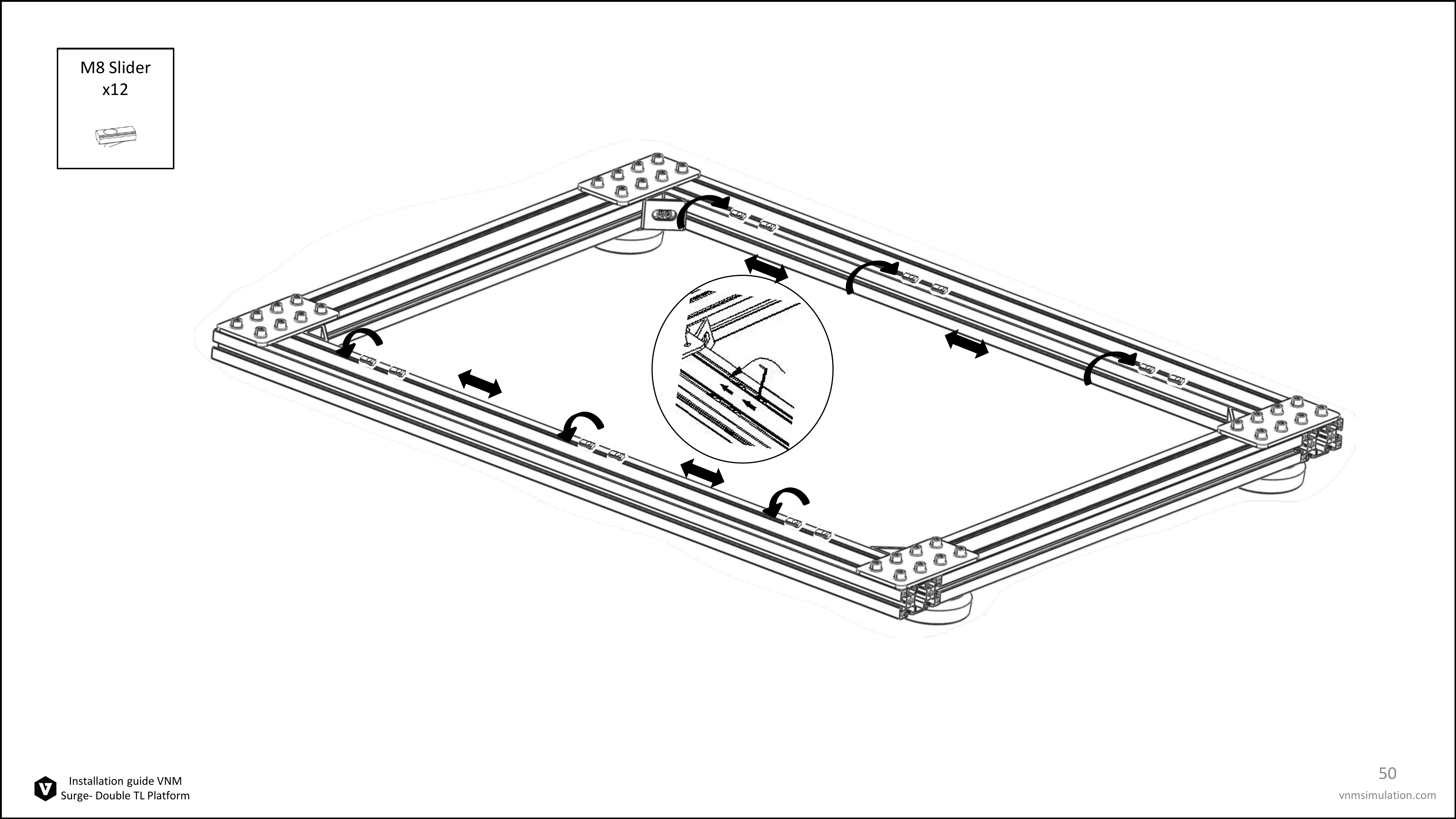

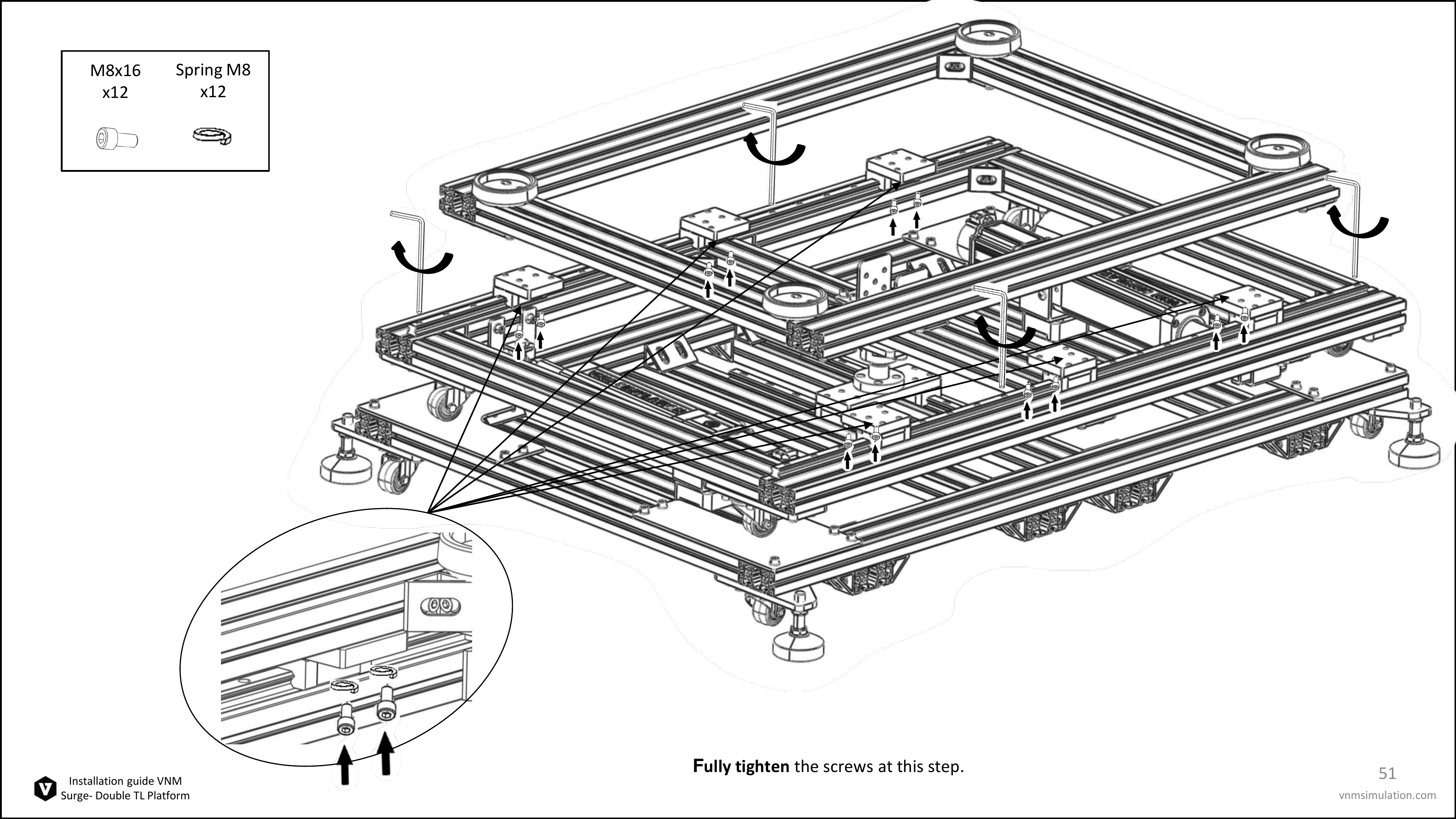

page 52

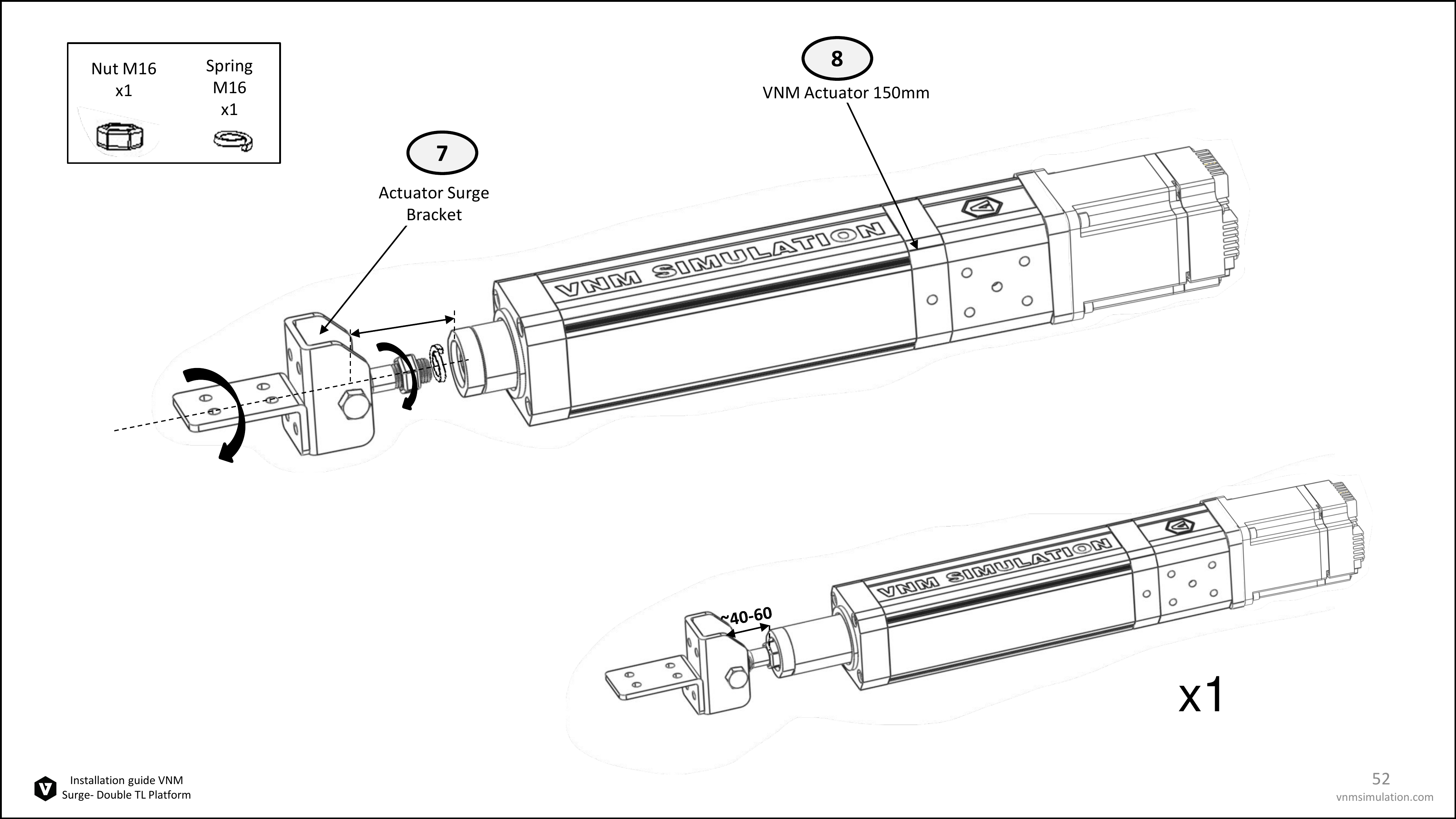

page 53

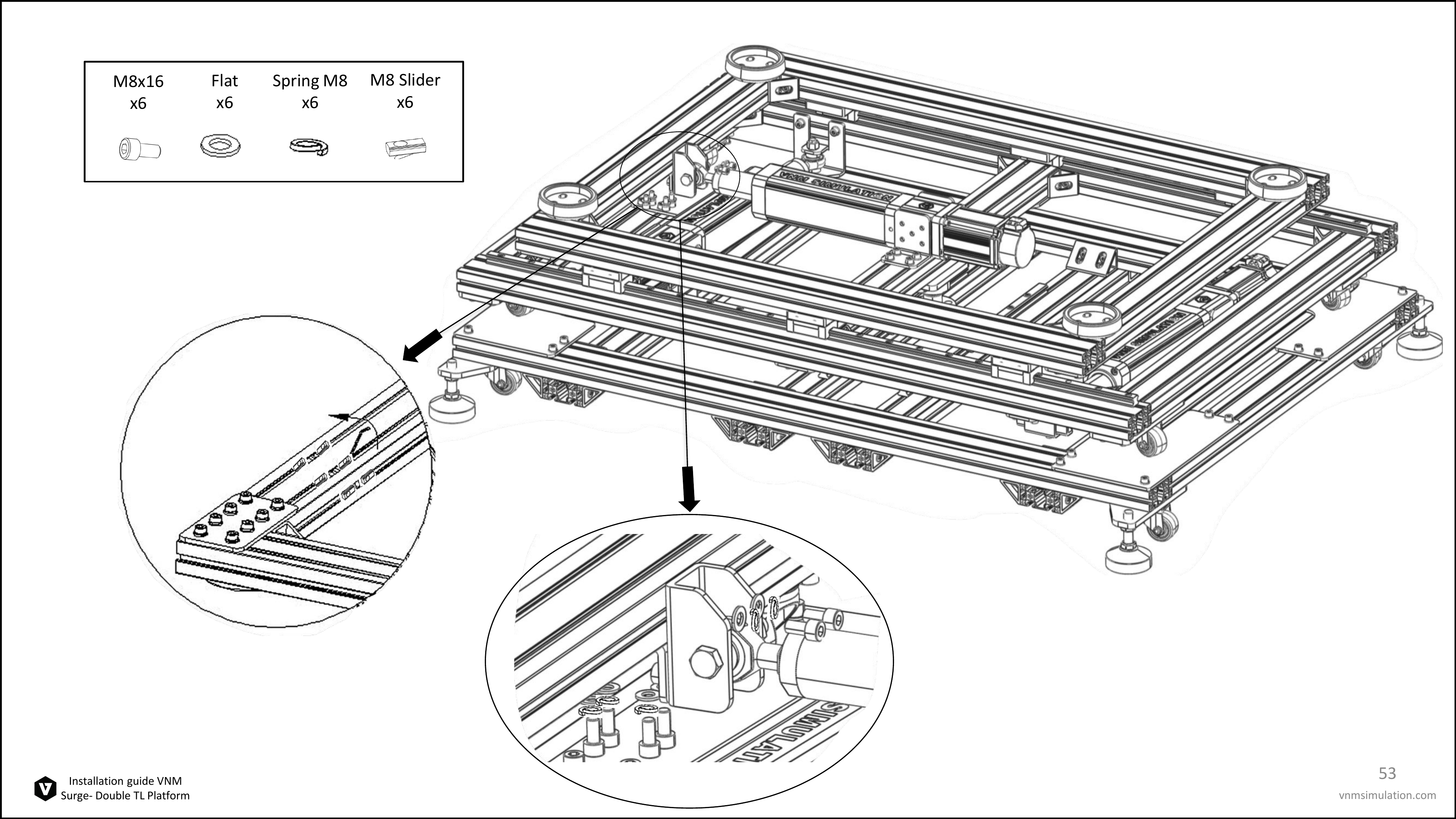

page 54

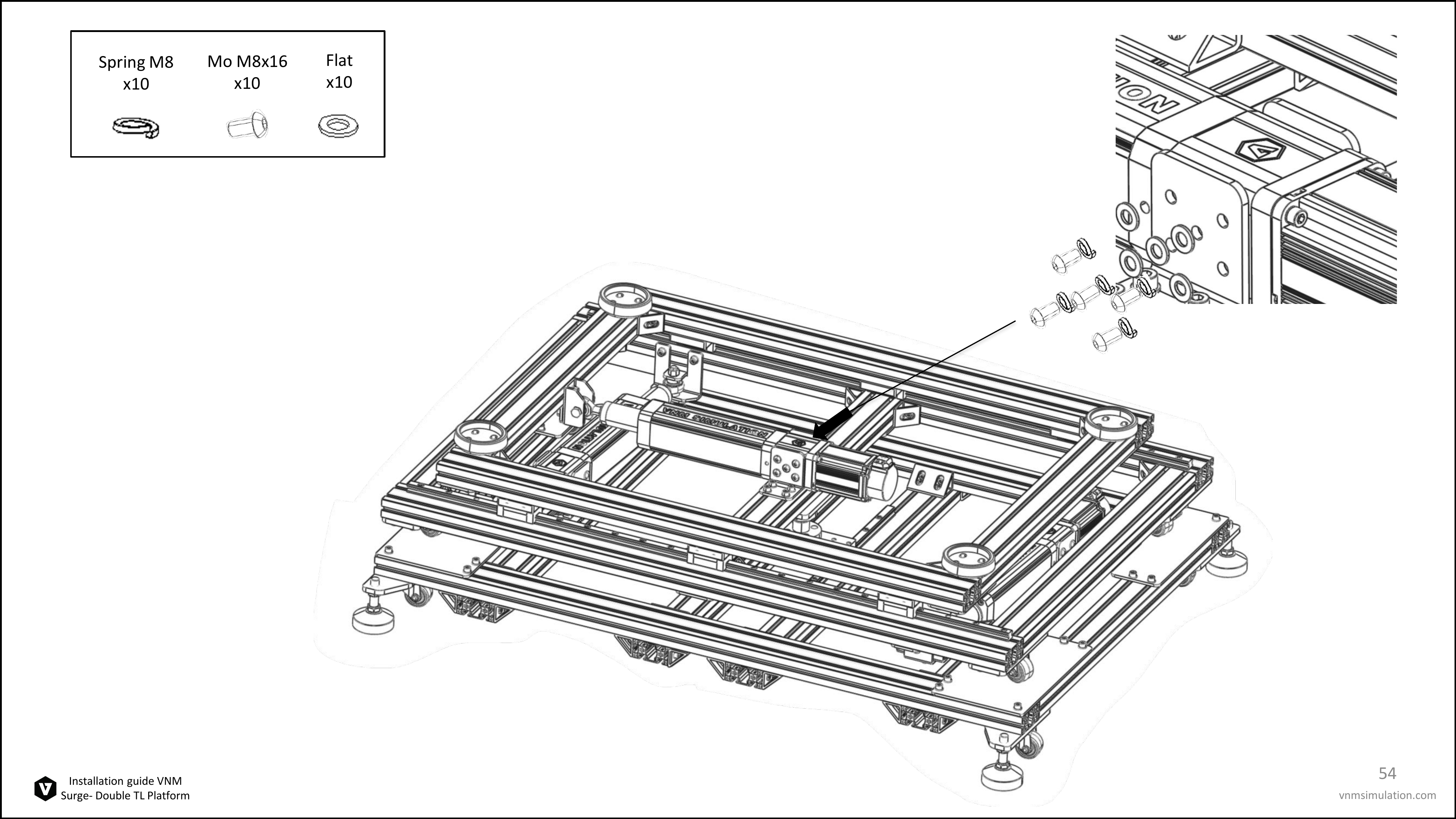

page 55

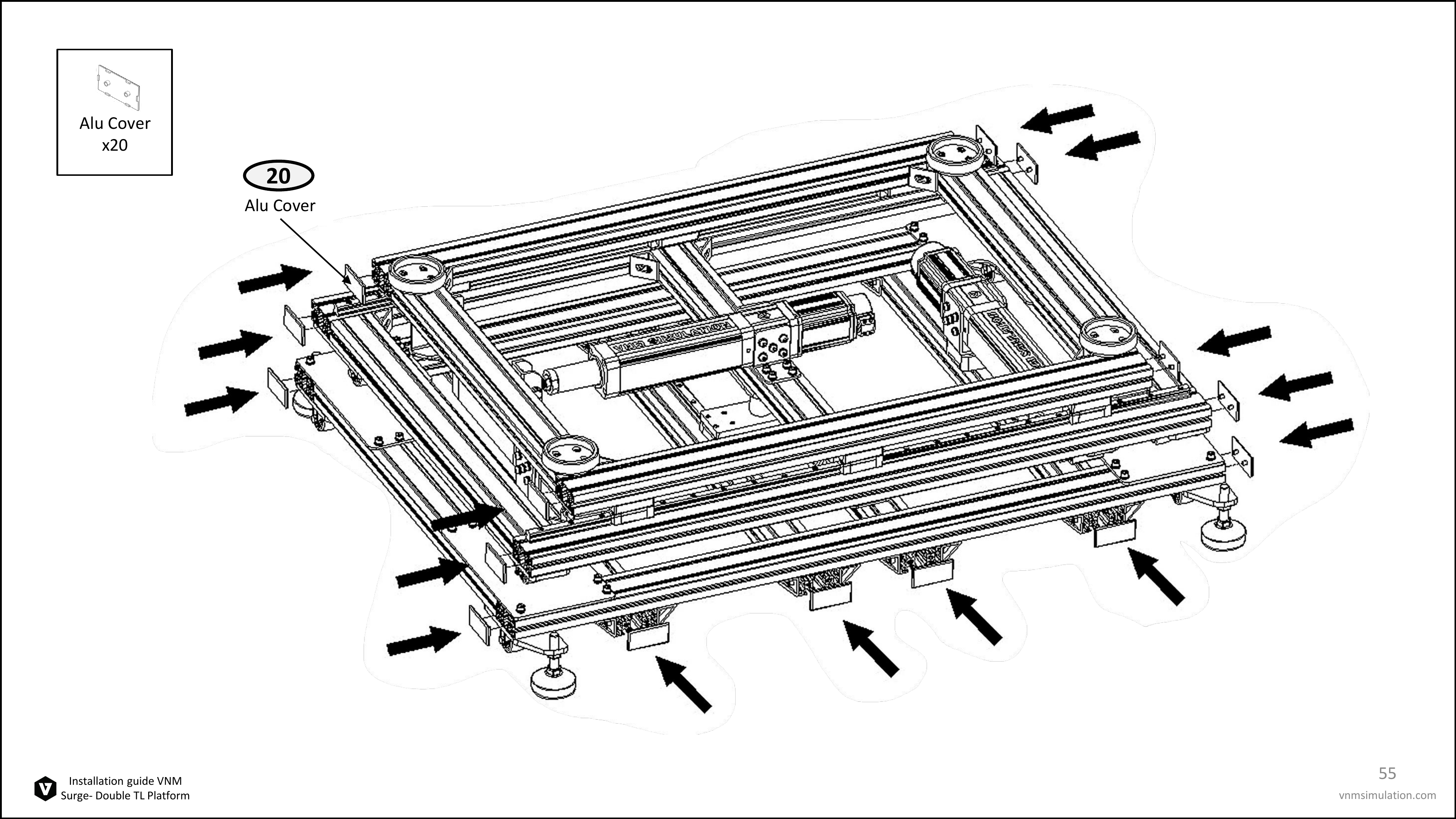

page 56

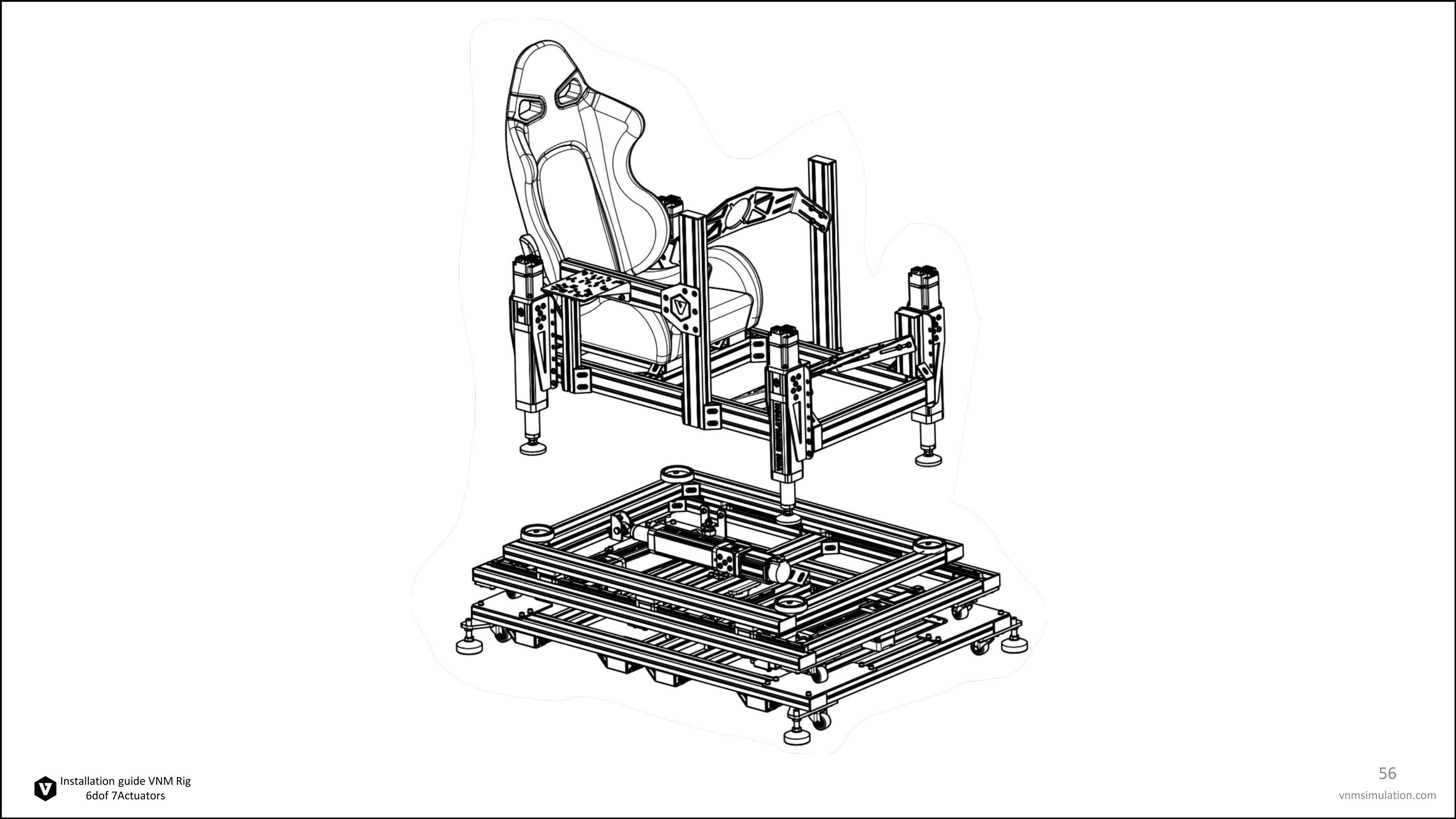

page 57

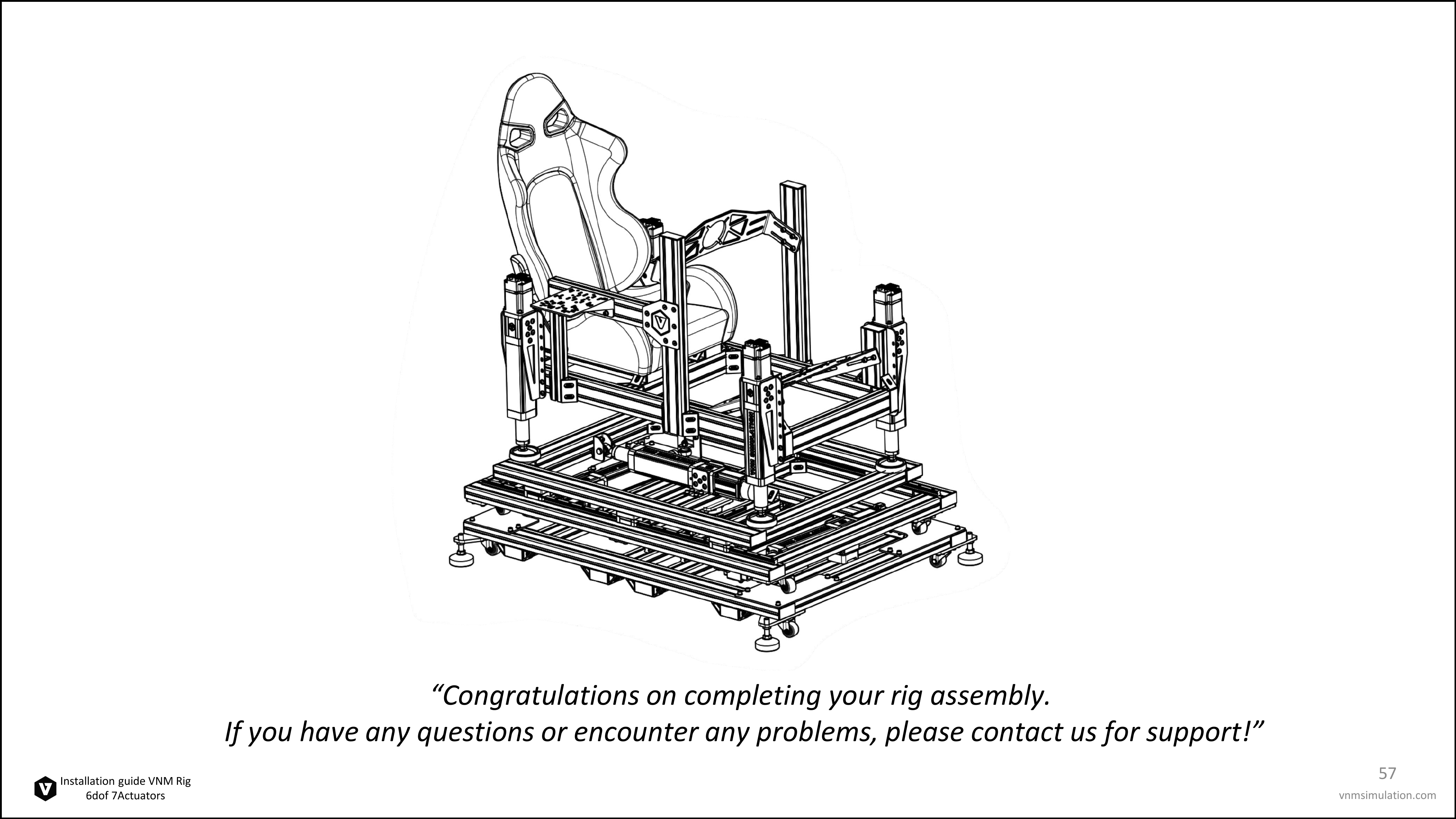

page 58

Download PDF
